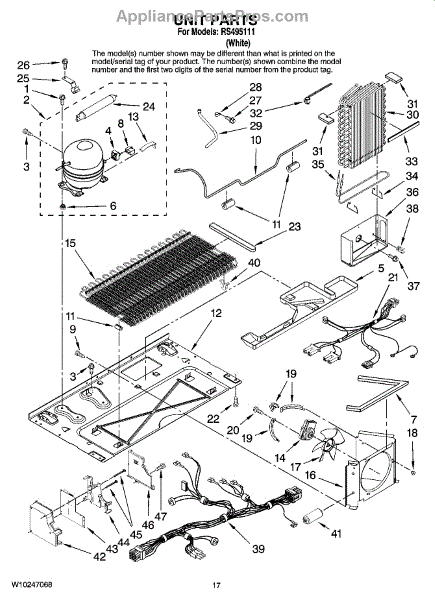

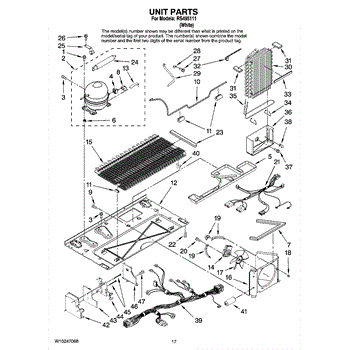

Parts for Maytag RS495111: 11 - Unit Parts

This short machine screw secures small appliance panels, trim pieces, and components to keep assemblies stable and aligned. It's a direct-fit fastener commonly used in laundry and kitchen appliances to replace lost or damaged screws. What it does:

• Fastens panels, bezels, brackets, or small components to the main appliance cabinet or subassembly
• Restores a secure fit when loose or missing screws cause rattling or misaligned parts
• Prevents further wear or damage from unsecured panels or trim
• Works where a short-length machine screw is specified by the manufacturer

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or follow appliance safety procedures before servicing electrical appliances
• If threads are damaged, replace the mating fastener or insert rather than relying on an oversized screw

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This condenser grommet cushions and secures the refrigerator condenser assembly, reducing vibration and preventing metal-to-metal contact. It helps keep the condenser stable for quieter operation and longer component life. What it does:

• Isolates condenser from the cabinet to reduce rattling and vibration noise
• Prevents condenser edges from rubbing or wearing against the chassis
• Helps maintain proper condenser alignment for efficient airflow
• Commonly replaced when cracked, torn, or missing and causing noise or movement

• Disconnect power before servicing the appliance.
• Support the condenser assembly before removing or installing the grommet to avoid stress on tubing.
• Push the grommet into position; replace any grommets that are brittle or deformed.

This condenser shroud is the molded plastic housing that directs airflow across the refrigerator condenser coils to help the cooling system run efficiently. Replaces a cracked or broken shroud to restore proper airflow and fit. What it does:

• Directs and channels airflow across the condenser coils for effective heat dissipation
• Protects condenser coils and fan from debris and accidental contact
• Restores correct clearance and alignment when damaged tabs or mounting points fail
• Can reduce excessive run-time or higher temperatures caused by obstructed airflow

• One condenser shroud

• Always unplug the appliance before beginning repairs
• Access typically requires moving the fridge and removing the rear access panel; remove condenser fan or related fasteners as needed
• Handle edges and the condenser coil area carefully to avoid cuts or coil damage
• Replace any broken mounting clips or hardware as necessary

This condenser fan blade is the rotating plastic blade that moves air across the condenser coils to help remove heat from the refrigerator. Replacing a damaged blade restores proper airflow for more consistent cooling. What it does:

• Spins on the condenser fan motor to circulate air over condenser coils
• Helps dissipate heat so the compressor and fridge run efficiently
• Can cause reduced cooling or higher temperatures if broken or missing

• Disconnect power to the appliance before starting any service
• Inspect the fan motor shaft and mounting for wear; replace motor if shaft is damaged
• Handle the blade carefully to avoid cracking; ensure blade is seated and secured before testing

This bracket grommet cushions a component where it mounts to a bracket in your refrigerator. It isolates metal-to-metal contact to reduce vibration and rattling and helps keep parts aligned for quieter, reliable operation.

• Fits into a mounting bracket to provide a cushioned seat for a component
• Isolates vibration and reduces noise by preventing metal-to-metal contact
• Helps maintain secure mounting and proper alignment
• Common signs of wear: cracking, flattening, missing grommet, increased vibration or rattling

• Disconnect power before servicing; shut off water supply if working near water lines
• Access the bracket and support the mounted component to relieve weight
• Remove the worn grommet and press the new grommet fully into the bracket opening
• Reassemble and snug fasteners—do not overtighten, so the grommet can isolate vibration

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This air block is a small plastic baffle that helps direct and control airflow inside the appliance, maintaining even temperatures between compartments and improving overall cooling performance. What it does:

• Channels or blocks internal air flow to balance temperatures between compartments
• Helps prevent warm or cold spots caused by unrestricted airflow
• Reduces the chance of frost buildup from misdirected airflow
• Works with the appliance's venting system to maintain consistent cooling

• Disconnect power to the appliance before starting any service
• Handle the plastic part gently to avoid cracking; align tabs/slots before snapping into place
• No special calibration is usually required; verify airflow and temperature after reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
