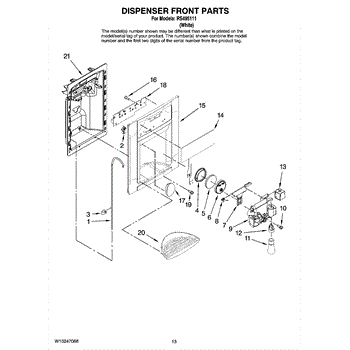

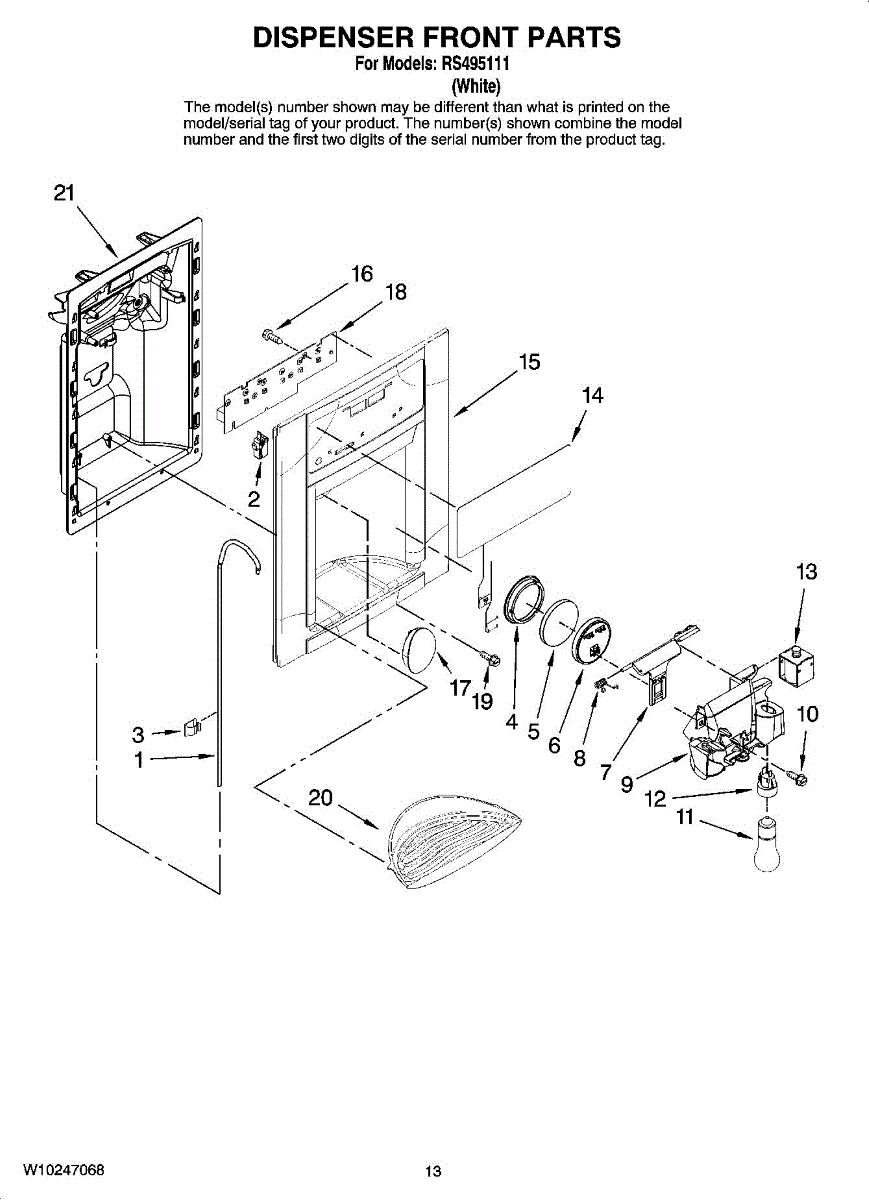

Parts for Maytag RS495111: 08 - Dispenser Front Parts

This waterline assembly supplies water from the household line to the refrigerator's ice maker and/or water dispenser, restoring reliable water flow and preventing leaks from damaged tubing. Ideal when the fridge isn't filling or water is leaking. What it does

• Carries water from the home supply to the refrigerator ice maker/water dispenser
• Replaces cracked, pinched, or leaking tubing that causes visible leaks or puddles
• Restores normal fill to the ice maker and consistent water flow to the dispenser
• Helps eliminate slow or intermittent fill issues caused by restricted or damaged lines

• One waterline assembly with attached fittings as shown

• Shut off the home water supply and unplug the refrigerator before starting
• Tighten fittings to manufacturer torque—do not overtighten plastic fittings
• Inspect existing connections and replace any damaged shutoff valves or connectors
• After installation, turn water back on and check all connections for leaks; flush line per manufacturer instructions

This limit switch is a temperature safety device that opens the circuit if heat rises too high. Replacing a weak or failed switch restores proper overheat protection and can resolve nuisance shutdowns or no-heat conditions due to an open safety. What it does:

• Monitors temperature at its mounting location
• Opens the electrical circuit at a preset over-temperature to stop heating or operation
• Helps protect internal components and wiring from heat damage
• Common symptoms include: won't heat, shuts off during use, or no power after an overheat event

• 1 limit switch

• Disconnect power (and gas, if applicable) before servicing
• Access the switch, note wire positions, and transfer wires one at a time
• Mount the switch flat and firmly against the original sensing surface or bracket
• After replacement, check for root causes of overheating (blocked airflow, failed fan, dirty filters, shorted element)

The Ice Chute Door is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides access to the dedicated ice and water storage and dispensing compartment located on the refrigerator door.

Causes of a faulty chute door can include normal wear from frequent use. Internal temperature fluctuations may cause durability issues over several years.

Symptoms of problems include:

• Failure to fully close or form a tight seal
• Difficulty dispensing ice or water due to door misalignment
• Premature cooling loss from unsealed opening
• Physical damage preventing proper closing

This OEM door is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerators.

The ice chute hinge mounts in the dispenser and lets the ice door pivot open and closed. Replacing a worn hinge restores smooth movement and a tighter seal, helping prevent frost, moisture, and warm-air leaks at the dispenser.

• Supports and pivots the dispenser's ice chute door/flap
• Helps the door seat firmly to reduce warm air infiltration
• Wear or damage can cause sticking, sagging, or misalignment
• Common symptoms: frosting or condensation at the dispenser, ice clumping, or a door that won't open/close smoothly

• Unplug the refrigerator or disconnect power before servicing the dispenser
• Remove dispenser trim/control panel per service instructions; support the ice door when detaching the hinge
• Transfer the ice door and any spring/fasteners to the new hinge; reuse original hardware if applicable
• Verify free movement and full closure of the door before reassembly

The Ice Chute Door Spring is an OEM part for Whirlpool refrigerators. This part returns the ice chute door to its closed position after ice has been dispensed, ensuring the door remains sealed to maintain proper temperature and efficiency.

Causes of a bad ice chute door spring can include wear and tear over time, corrosion from exposure to moisture, or damage due to repeated use or mishandling.

Symptoms of a bad ice chute door spring include:

• The ice chute door not closing properly
• Ice or frost buildup around the ice chute
• Warm air entering the freezer compartment
• Difficulty in dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

6 - 19 x .250

Color: black. It measures about 10 inches wide by 4 inches deep.
