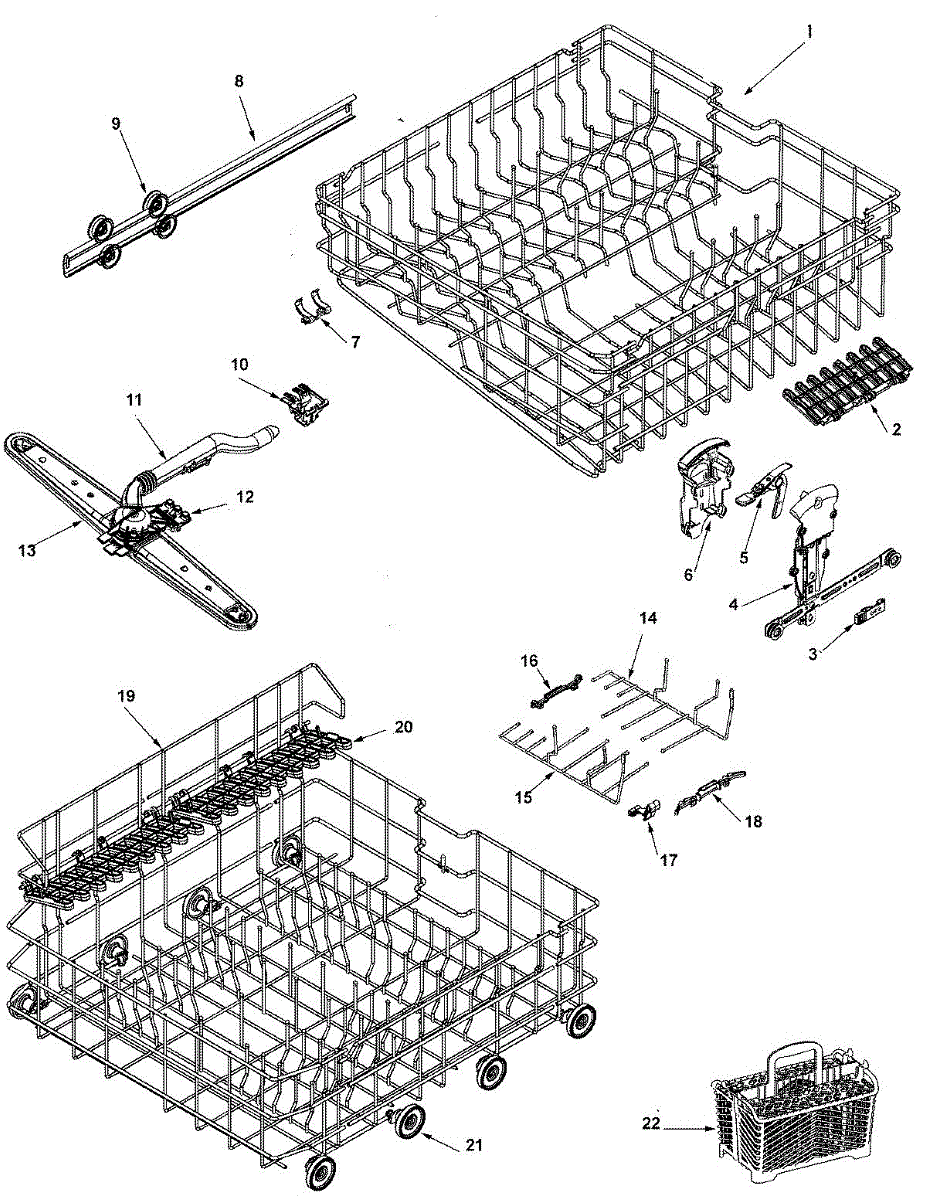

Parts for Maytag MDBTT70AWS: 05 - Track & Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dark gray cap that covers the tip of dishwasher dishrack tines. Replace if your existing tine cap is cracked, broken, missing, or worn to protect dishes.

Upper

Upper dishwasher rack adjuster assembly. Right hand side. For the left hand side order WPW10153530.

Upper dishwasher rack adjuster assembly. Left hand side. For the right hand side order WPW10153532.

Color: Blue

Blue plastic cup clip for dishwasher upper rack. Attaches next to stationary tines to secure cups during wash cycles. Replace if broken or missing.

This slide rail guides and supports the dishwasher rack as it moves in and out of the dishwasher tub. It provides smooth rolling motion and proper alignment for the dish rack during loading and unloading. Replace this part if your rack is difficult to pull out, doesn't slide smoothly, or comes off track during use.

The Tub Wheel supports and guides the washer's tub assembly on its base during wash and spin cycles. Replacing a worn wheel restores smoother, quieter operation and helps reduce vibration and rubbing as the machine operates.

• Provides rolling support so the tub can move and self-balance during cycles
• Reduces friction between the tub and the base/frame
• Helps keep the tub centered to minimize noise and vibration
• Failure symptoms include squeaking or grinding, scraping noises, dragging movement, or visible flat spots/cracks on the wheel

• Disconnect power and water supply before servicing; wear appropriate gloves and eye protection
• Access the base/suspension per the service information and support the tub to remove load from the wheel
• Remove the retainer/axle, install the new wheel, and free rotation and correct orientation
• Reassemble, level the appliance, and run a spin test to check for noise and balance

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures the upper wash manifold in your dishwasher. Replace this clip if it's cracked, broken, or missing to properly mount the spray arm assembly.

Upper

Front

This rotating spray arm distributes water throughout the upper rack of your dishwasher to clean dishes, glasses, and utensils. It spins during the wash cycle, spraying pressurized water through multiple holes to remove food particles and soap residue. Replace this spray arm if your upper rack dishes aren't getting clean, the arm doesn't rotate, or spray holes are clogged and can't be cleared.

These convertible rear rack tines replace bent or broken prongs on the dishwasher's rear rack to help keep plates and bowls upright and prevent shifting during cycles. Durable molded tines restore rack function without replacing the entire rack. What it does:

• Holds dishes, plates and bowls upright in the rear section of the lower rack
• Replaces missing, bent or broken tines that allow items to tip or tumble
• Restores the rack's convertible configuration for different dish loads
• Fits into existing rack sockets for a secure hold during wash cycles

• One set of convertible rear rack tines as shown

• Remove the lower rack to access and replace the rear tines; press into existing sockets until fully seated
• No electrical work required; follow OEM rack-removal instructions if needed
• Use caution for sharp edges and wear gloves if necessary
• Do not force parts—confirm correct orientation before installing

Lower rack fold-away tine row for dishwasher. Replace when tines rust, break, or no longer fold properly. Verify fit with your model number listed.

Fix broken or missing tine clips that won't hold collapsible tines upright. This dishwasher convertible tine latch secures folding tines in place.

Blue pivoting hinge tine clip for dishwasher upper rack. Replaces broken, cracked, or missing clips that secure folding tines. Clips into rack slots.

These small plastic clips secure individual tines to the dishwasher rack framework, keeping them upright for holding dishes. Replace if tines are loose, falling out, or clips are cracked and no longer grip the tines securely.

Note: New rack no longer includes removable tines or cup shelf. This part is a lower dishrack. The lower dishrack is the lower shelf of a dishwasher that holds plates, bowls, and utensils. To remove the old dishrack, simply pull it out and lift the wheels up from its track. Set it off the side, and lift the new dishrack. Slide it into its track and make sure it is locked in. If it is gliding in and out in a smooth way, it has been installed properly.This genuine replacement OEM part is sold individually and is compatible with Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand appliances.

Lower

Dishrack wheel assembly for dishwashers. Replaces broken, cracked, or worn wheels that prevent smooth rack sliding. Includes wheel and axle bracket.

Replacement silverware basket for dishwashers. Holds and organizes utensils during wash cycles. Replace if cracked, broken, or falling apart.
