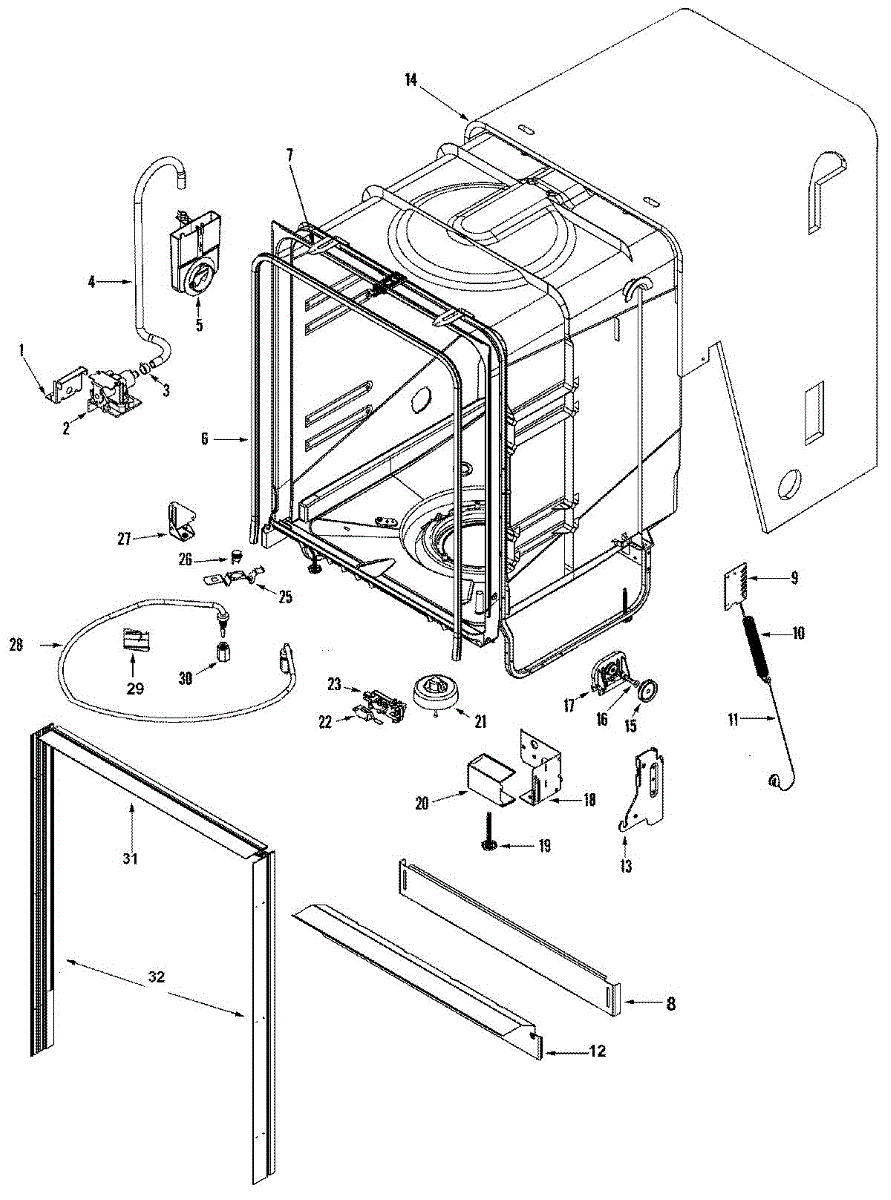

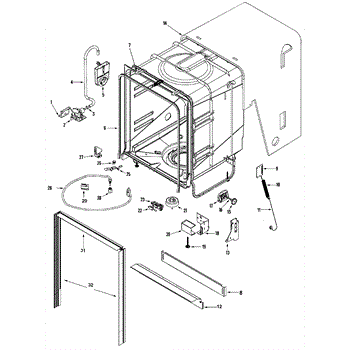

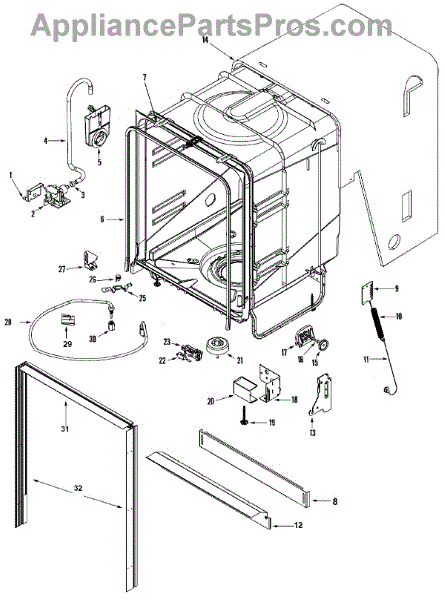

Parts for Maytag MDB9601AWS: 07 - Tub Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Specs: 10-32X.400 (T-20 HEAD)

Screw: 8-16 x 3/8 inch.

Fix a dishwasher not filling with water or filling too slowly. This inlet valve controls water flow into your dishwasher. DIY repair with video guide.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flexible injector hose routes liquid between the appliance's injector/dispenser and the pump or spray assembly, restoring proper dispensing and preventing leaks. It's a direct-replacement service part for affected injector connections. What it does

• Carries water or detergent solution from the injector/dispenser to the pump or spray assembly
• Restores normal dispensing when the original hose is cracked, split, or clogged
• Prevents leaks that can cause puddling or improper wash cycles
• Helps restore consistent flow so detergent and rinse/cleaning agents reach the tub

• One injector hose

• Disconnect power and shut off the water supply before starting
• Remove the old hose and reuse or replace any clamps or fittings as needed; install the new hose onto the same connection points
• After installation, restore power/water and run a short cycle to check for leaks and correct dispensing

This dishwasher door seal is used on some Amana, Maytag, Magic Chef, Crosley, Samsung, Admiral and Jennair dishwashers.

Secures your dishwasher to surrounding cabinetry. Replace this bracket if it's bent, broken, or missing to restore a tight, level installation.

Color: Black

8-32 x 3/8" machine screw secures dishwasher control panels, brackets, and interior assemblies. Replace missing, stripped, or lost screws during repairs.

Color: Black

Specs: 10-32X.400 (T-20 HEAD)

Replace your dishwasher's spring adjustment bracket if cracked, bent, or missing. This structural component secures the spring mechanism inside your unit.

This dishwasher door spring provides the counterbalance tension that lets the door open and close smoothly. Replacing a worn or broken spring restores proper door feel and helps prevent the door from dropping unexpectedly.

• Provides counterbalance tension so the door opens and closes smoothly
• Helps the door stay partially open without drifting
• Reduces slamming or sudden drop when opening
• Common failure signs: door feels heavy, drops quickly, opens unevenly, or a spring is visibly broken

• Disconnect power and shut off water; remove the toe-kick/access panel
• Support the door; note spring routing and which frame holes are used before removal
• Install the new spring in the same holes; adjust hole selection only per service information to fine-tune tension
• Springs are under tension—wear gloves/eye protection; consider replacing both springs together for balanced operation

Connects dishwasher door to tension springs for balanced opening and closing. Replace if cable is broken, frayed, or detached from mounting points.

8-32 x 3/8" machine screw secures dishwasher control panels, brackets, and interior assemblies. Replace missing, stripped, or lost screws during repairs.

Specs: 10-32X.400 (T-20 HEAD)

Right hand side. For left hand use WPW10117485

Left hand side. For right hand use W10117484

Insulates your dishwasher tub to reduce noise and maintain temperature. Replace if worn, damaged by pests, or causing odors. Confirm fit with your model.

Replace the cable bracket guide roller on your dishwasher. This small wheel guides the door cable smoothly through the bracket, preventing binding and wear.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Specs: 10-32X.400 (T-20 HEAD)

Specs: 10-32X.400 (T-20 HEAD)

Replacement leveling leg that stabilizes and adjusts your dishwasher height for proper alignment. Needed when bent, broken, or missing to eliminate rocking.

Screw: 8-16 x 3/8 inch.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Left hand side

Specs: 10-32X.400 (T-20 HEAD)

This is the heating element located at the bottom of the dishwasher tub. It heats the water during the wash and rinse cycles and provides heat for the drying cycle. Replace this element if dishes come out wet or poorly cleaned, the water is not getting hot enough, or if the element is visibly damaged or broken.

Secures the heating element to the bottom of the dishwasher tub. Replace this bracket if it's loose, won't clip back into place, or has a flattened knob.

Replace your dishwasher's door trim if it's cracked, chipped, or missing. This decorative trim piece covers the door edge for a finished look.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
