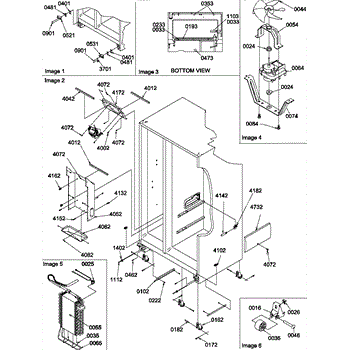

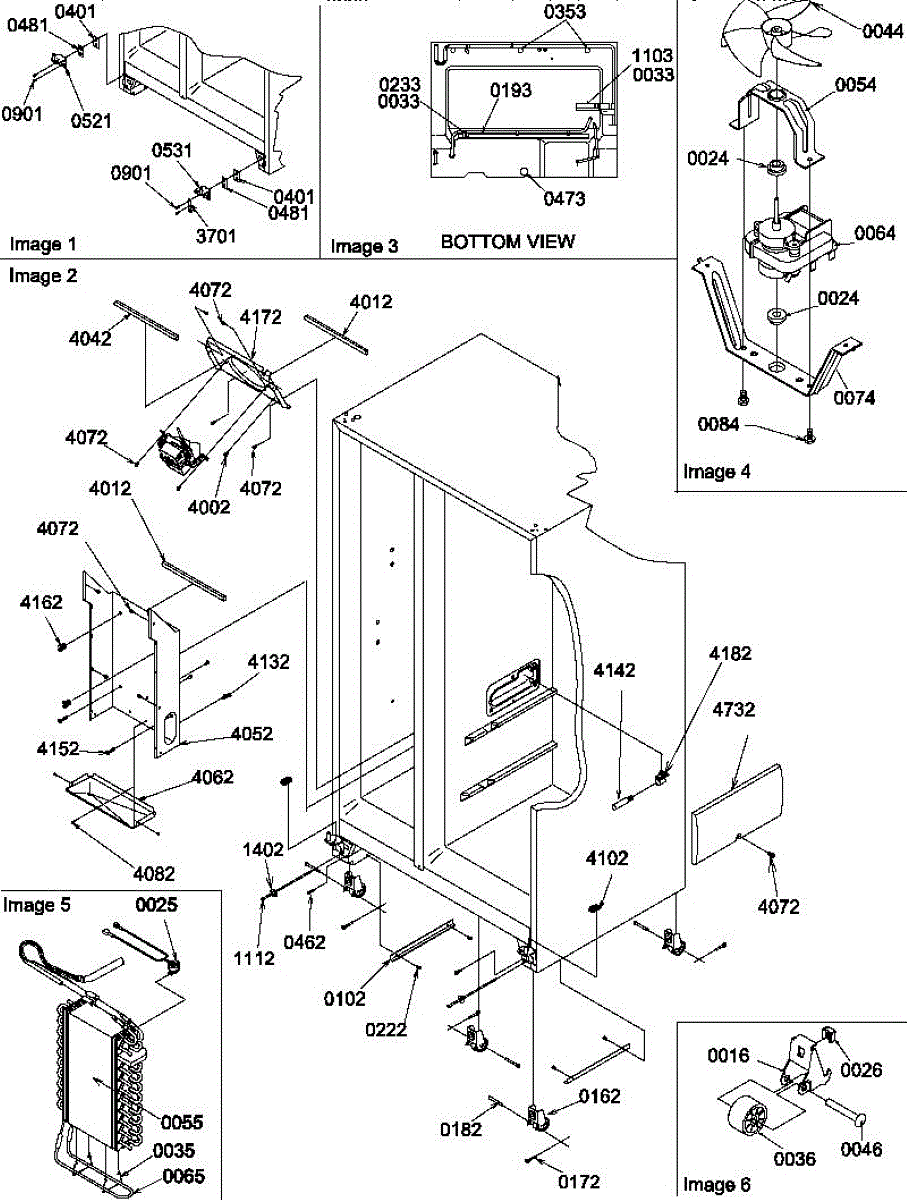

Parts for Amana SBI20S2E / P1190703W E: 09 - Rollers And Evap Assemblies Parts

The Door Closure Kit is an OEM replacement part  for Whirlpool refrigerators. The kit includes all the necessary parts to ensure your refrigerator door closes and seals properly - including two black and two white cams used for both the door and the hinge.

Over time, door closure mechanisms can wear down from continual opening and closing motions. The cushions compress and arms lose tension. Without a tight seal, cold air can escape raising energy costs.

Symptoms of a bad door closure kit include:

• Doors not closing or sealing fully
• Difficulty closing doors that don't latch securely
• Noticeable cool air loss around door edges
• Frost buildup indicating air leakage

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This defrost thermostat helps control the refrigerator/freezer defrost cycle by sensing evaporator temperature and allowing the heater to run when frost removal is needed. Replaces a failed thermostat to restore normal defrost operation. What it does:

• Closes when the evaporator is cold so the defrost heater can run, then opens when the coil warms to stop defrosting
• Helps prevent excessive frost and ice buildup on the evaporator coil
• Common symptom: visible frost or ice on evaporator, excessive frost buildup, or defrost heater running constantly/ not at all
• Works with the defrost system to maintain efficient cooling performance

• One defrost thermostat

• Disconnect power to the appliance before starting any repair
• Mount on or near the evaporator coil as originally installed; secure wiring away from moving parts
• Inspect the harness and connector for damage; replace if corroded or brittle
• Test for continuity with a multimeter to confirm thermostat function before and after installation

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Cabinet Roller is an OEM part for Whirlpool refrigerators. It facilitates the smooth movement and positioning of the refrigerator cabinet, making it easier to adjust or relocate the appliance as needed. This roller is designed to support the weight of the refrigerator while allowing for effortless mobility.

Causes of a bad Cabinet Roller can include wear and tear over time, exposure to heavy loads, or damage due to rough handling or impact. These factors can lead to the roller becoming ineffective or breaking altogether, resulting in difficulty moving the refrigerator.

Symptoms of a bad Cabinet Roller include:

• Difficulty moving or adjusting the refrigerator
• Unusual noises when attempting to move the appliance
• The refrigerator not sitting level or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator fan blade replaces the torn or damaged plastic blade that moves cold air over the evaporator coil, restoring proper airflow for consistent cooling and frost control. Fits the fan motor shaft and spins quietly when intact. What it does:

• Circulates cold air across the evaporator to help maintain even temperatures
• Helps reduce frost buildup by promoting proper airflow over the coil
• Restores airflow when original blade is cracked, warped, or missing
• Can reduce or stop abnormal fan noise caused by broken blades

• Disconnect power to the appliance before starting any repair
• Remove evaporator cover panels to access the fan; handle plastic parts gently to avoid breakage
• Ensure blade is seated fully on the motor shaft and secured in the correct orientation
• If fan motor wobble or noise persists after blade replacement, inspect the motor and mounting for wear

This defrost heater warms the evaporator coil during the automatic defrost cycle to melt frost and clear airflow. Replacing a failed heater helps prevent ice buildup and restores more consistent cooling performance throughout the refrigerator. What it does

• Heats the evaporator during defrost cycles to melt accumulated frost
• Keeps airflow paths clear so temperatures stay stable
• Helps prevent frost-clogged coils that reduce cooling
• Common signs of failure: heavy frost on the back wall/evaporator cover, weak cooling, evaporator fan hitting ice, or ice returning soon after a manual defrost

• One defrost heater

• Disconnect power before servicing; wear cut-resistant gloves
• Access is behind the freezer's rear evaporator cover; remove shelves/bins and the panel
• Defrost heavy ice before removal to avoid damaging the coil or insulation
• Transfer any original mounting clips/insulators and route wires exactly like the original; avoid bending the heating element

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A single replacement screw used to fasten appliance panels and components, restoring secure fit and reducing vibration or noise. Simple, low-cost part for repairs that need a missing or stripped fastener. What it does:

• Secures panels, trim, or small component housings to the appliance frame
• Helps stop rattling, vibration, and misalignment caused by loose or missing screws
• Keeps internal components properly seated to maintain normal operation
• Used wherever the OEM specifies this exact fastener

• One replacement screw

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand first, then tighten snugly—do not overtighten
• Keep small parts away from children and pets

Includes both shims as seen in the photo

Size: 8-32 x .312 inch.

This part has been discontinued by the manufacturer and is no longer available.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes both shims as seen in the photo

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
