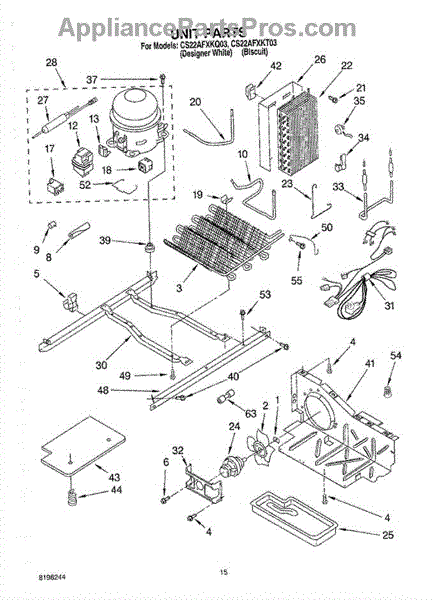

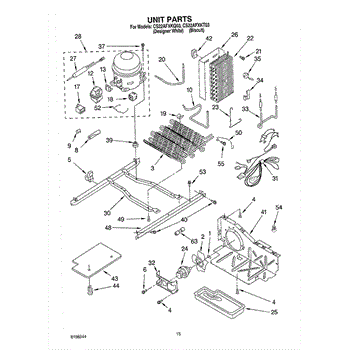

Parts for Whirlpool CS22AFXKQ03: 09 - Unit Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

This dampener cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise for smoother operation. It replaces worn or damaged suspension dampeners to help restore proper tub balance and quieter performance. What it does:

• Absorbs and dampens tub movement during agitation and spin to reduce vibration and noise.
• Helps maintain proper tub alignment for more even spinning and less wobble.
• Commonly replaced when the washer rocks, thumps, or makes excessive noise during spin.
• Works with the washer's suspension system to protect other components from shock and wear.

• 1 dampener

• Disconnect power and shut off water supply before beginning any repair.
• Access typically requires removing the washer cabinet or front panel; follow OEM service instructions.
• Inspect mounting studs and clips for wear; replace as needed to ensure a secure fit.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Fridge not cooling but lights work? This compressor overload stops overheating and prevents startup damage. DIY-friendly repair in about 1 hour.

Fixes compressor that won't start or hums without running. This capacitor provides the electrical boost motors need for reliable startup and operation.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and maintains the correct temperature by stabilizing the compressor's performance.

Causes of a bad run capacitor can include electrical surges, age-related wear, or overheating. When the capacitor fails, the compressor may struggle to start or run continuously, leading to inefficient cooling or a non-functional refrigerator.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual clicking noises from the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fridge making clicking sounds and not cooling? A faulty compressor start device causes repeated clicks and cooling failure. Simple DIY repair.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Refrigerator not cooling or freezing food? A faulty evaporator coil prevents proper temperature regulation. Requires brazing and refrigerant work.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling or making loud noise? A failing condenser fan motor prevents proper heat exchange. Typical DIY repair takes 30 minutes or less.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling or making unusual noises? This compressor tubing kit repairs sealed system issues. Advanced repair requiring proper tools.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

If your freezer is icing up or coils are freezing, replace the defrost heater. Melts frost from evaporator coils during defrost cycle. DIY-friendly repair.

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Refrigerator fan guard protects the evaporator or condenser fan from debris. Replace if cracked, broken, or missing to prevent fan damage. Verify fit by model number.

This bale strap is the replacement strap used to secure and support the appliance's bale or handle assembly, restoring proper hold and alignment for normal operation. It replaces a worn or broken strap to help the door/handle stay connected and function reliably. What it does:

• Secures the bale/handle assembly to the door or frame so the handle stays engaged during use
• Restores proper tension and positioning when the original strap is cracked, stretched, or torn
• Helps prevent the bale or handle from detaching or sagging under normal use
• Reduces rattling or loose-handle symptoms caused by a compromised strap

• One replacement bale strap

• High-level replacement: remove access panel or trim as required, detach the old strap, and fasten the new strap in the same orientation
• Use basic hand tools; avoid forcing parts to prevent breakage
• Disconnect power and follow appliance-specific safety procedures before servicing

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.
