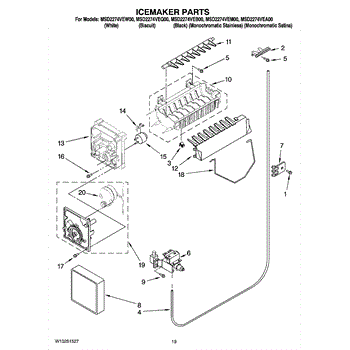

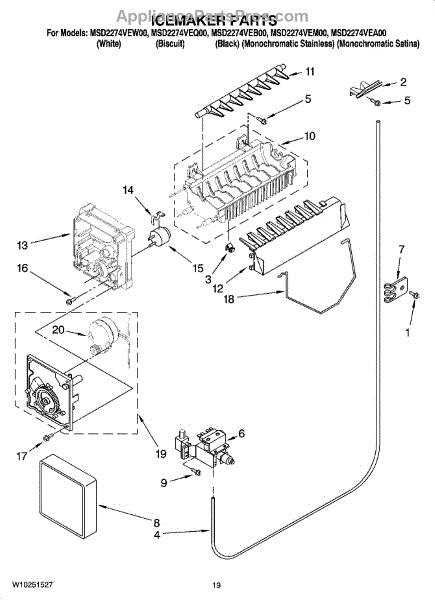

Parts for Maytag MSD2274VEB00: 12 - Icemaker Parts, Optional Parts (Not Included) Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This chute channels water and wash additives from the dispenser housing into the tub. Replacing a damaged or clogged chute helps ensure proper dispensing and reduces leaks or residue around the dispenser area. What it does:

• Guides detergent/bleach/fabric softener from the dispenser to the wash tub
• Maintains proper flow to prevent backups at the dispenser drawer
• Helps reduce leaks and drips from the dispenser area
• Common failure symptoms include water backing up into the drawer, detergent residue left in the dispenser, or leaks at the front-left/top of the washer

• 1 chute

• Disconnect power and turn off water supply before servicing
• Access is typically from the top; remove panels as needed to reach the dispenser assembly
• Transfer any seals, clamps, or hardware from the old chute
• Reassemble and run a brief fill/rinse to check for proper flow and leaks

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. This part is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser system. It operates by opening and closing to allow water from the household supply line to enter the refrigerator as needed.

Over time, water inlet valves can fail or become clogged with mineral deposits, especially in areas with hard water.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• A slow or irregular flow of water from the dispenser
• Unusual noises coming from the valve area during operation
• Water leaking from the valve or at the connection points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This ice mold and heater assembly forms the ice cubes and warms the mold just enough during harvest so cubes release cleanly into the bin. Replacing a worn mold/heater restores reliable ice production and prevents jams or incomplete ejection.

• Forms the ice cube cavities and provides gentle heat for smooth release
• Can help resolve slow or no ice production due to cubes sticking in the mold
• Address misshapen cubes, ice jams, or incomplete harvest cycles
• Common when the coating is worn, the heater is open, or cubes consistently hang up

• Disconnect power to the refrigerator before servicing the icemaker
• Remove the icemaker assembly to access and swap the mold/heater unit
• Transfer any required brackets or hardware from the old part if applicable
• After reassembly, restore power and allow several hours for normal ice making

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This thermostat regulates appliance temperature to help maintain proper heating and cycling for safe, consistent operation. It replaces a failed thermostat to restore correct temperature control and reduce unexpected shutoffs or inconsistent heat. What it does:

• Senses and opens/closes the circuit to control heating elements or compressors
• Can stop heating when the set temperature is reached to prevent overheating
• Commonly used when the appliance won't reach or maintain the correct temperature
• Helps address intermittent heating, continuous running, or overheating symptoms

• Disconnect power before servicing to avoid shock or injury
• Handle thermostat terminals carefully; ensure secure, correct wiring connections

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

Size: 8 x 1/2 ab.

The Ice Level Arm is an OEM part for Whirlpool refrigerators. It is an component of the ice maker, responsible for sensing the ice level in the ice bin and controlling the ice production cycle. When the ice bin reaches capacity, the ice level arm signals the ice maker to stop producing ice, ensuring efficient operation.

You should replace this ice level arm if it becomes faulty. Causes of a bad ice level arm can include mechanical wear and tear, accidental damage, or issues with the connection to the ice maker mechanism.

Symptoms of a bad Ice Level Arm include:

• Continuous ice production, leading to overfilling
• The ice maker not producing ice even when the bin is empty
• The ice level arm not moving freely or appearing stuck

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Maker is an OEM part for Whirlpool refrigerators. Designed to efficiently produce ice, this ice maker ensures your refrigerator dispenses fresh and clear ice cubes whenever you need them. It integrates seamlessly into compatible models, maintaining the integrity and performance of your appliance. Note: The original bracket that covered bottom of the icemaker is NLA.  The new bracket is part number W11500948.

Signs that it's time to replace your ice maker include a noticeable decrease in ice production, ice cubes that are smaller or misshaped, and unusual noises during the ice-making process. These issues can arise from a variety of causes such as a malfunctioning water inlet valve, a clogged filter, or even temperature inconsistencies within the freezer compartment.

Symptoms of a bad Ice Maker include:

• Inability to produce ice
• Producing ice at a slower rate than usual
• Ice cubes are not ejected from the mold
• Water leaks in the freezer compartment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

This aerosol spray paint restores the graphite finish on appliance surfaces for quick, low-effort cosmetic touch-ups. Use it to cover small chips, scratches and scuffs so the exterior looks uniform again. What it does:

• Matches graphite appliance finishes for spot repairs and touch-ups
• Covers visible chips, scratches and minor surface scuffs
• Restores a uniform appearance on painted metal appliance surfaces
• Helps protect exposed metal from surface corrosion after repair

• Clean and dry the surface; remove grease, dirt and loose paint before spraying
• Shake can well and test spray on a scrap piece or inconspicuous area first
• Apply in light, even coats from a recommended distance; allow coats to dry between passes
• Use in a well-ventilated area, keep away from heat/open flames, and follow all safety and disposal instructions on the can

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
