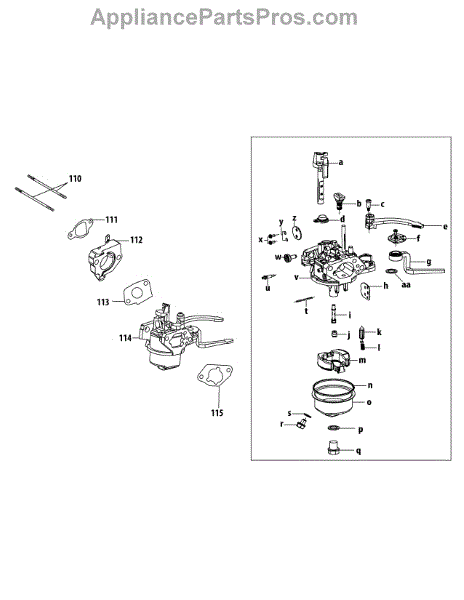

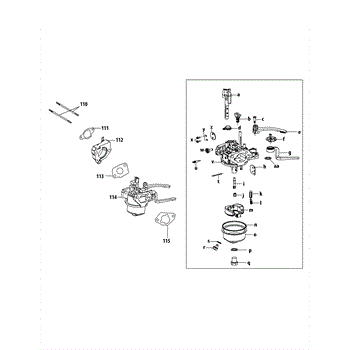

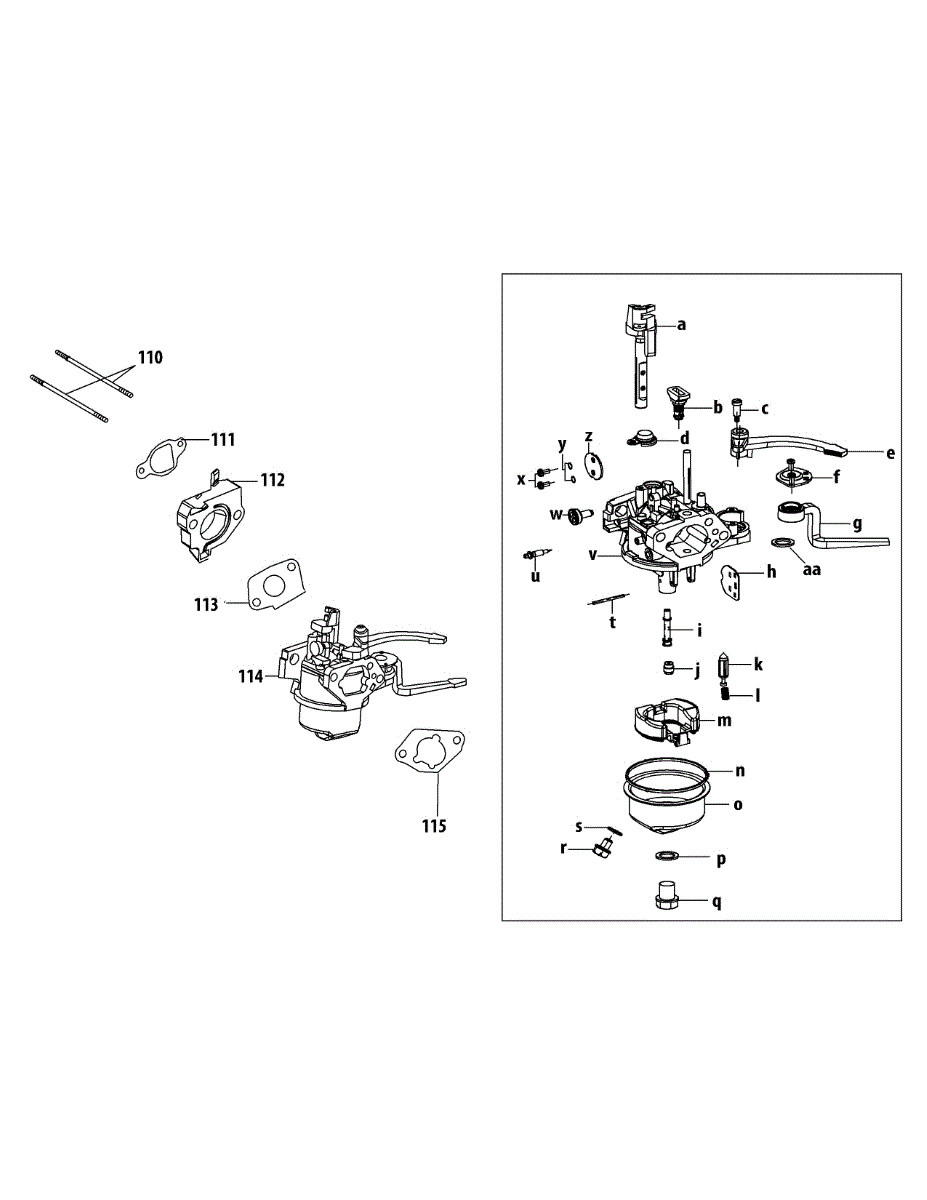

Parts for Mtd 178-L0: L0 Carburetor Assembly Parts

The carburetor insulator gasket, or intake gasket, sits between the carburetor and the combustion chamber of a gasoline powered engine. This gasket provides a perfect seal that serves two purposes: to keep the fuel/air mix in the carburetor from experiencing too much heat before entering the combustion chamber and to prevent air or fuel from leaking. This particular gasket is used in a variety of small gasoline powered tools, including one- and two-stage snow blowers, log splitters, and other engine applications. This gasket continually experiences air, fuel, and heat extremes during use, and over time, the gasket may become warped or so worn that it becomes ineffective, allowing leaks to develop. When an insulation gasket begins to leak, there are some typical signs, including a very hot engine, stalling, sputtering, lack of power, and unusually high gas consumption. The carburetor must be removed in order to replace this gasket, which sits between the carburetor and intake manifold. When replacing this part, it is best to use a gasket such as this one, which is a genuine OEM replacement part, manufactured to be identical to the original part. This gasket is compatible with machines offered by Craftsman, Cub Cadet, Yard Machines, MTD, and Troy-Built.

This carburetor gasket is located between the insulator and the carburetor, creating a strong seal between the two to allow for optimal compression and engine performance. Over time and due to constant heat exposure, gaskets can degrade or become damaged. This can result in leaks in the system, which will impact performance and could cause the engine to fail completely if not properly addressed. If the carburetor gasket becomes faulty in any capacity, it needs to be replaced as soon as possible. This genuine OEM gasket replacement is manufactured to exact standards and is compatible with several models of snowblower engines from Troy-Bilt, MTD, Yard Man, Yard Machines, Cub Cadet, and Husky. This gasket is made of durable material, but gaskets could be more prone to damage or breakage during other repairs, so always use caution when working with this part. Allow the engine to cool completely and wear gloves when performing any engine repairs for hand protection.

This is a carburetor assembly for lawn equipment. The carburetor is the part that supplies the engine with an enriched mixture of air and fuel. It regulates the flow of air and draws in the right amount of fuel to ensure the engine runs properly. If there is a problem with the carburetor, the engine may produce black exhaust or have difficulty starting or staying running.The carburetor should last for quite a while, but it may eventually need to be replaced. Parts of the carburetor could start to wear out. They could also break or corrode. Before replacing this part, ensure that the engine is cool and the spark plugs have been disconnected.This carburetor assembly is compatible with engines from MTD, Cub Cadet, and Troy-Bilt. This is a genuine OEM sourced replacement part, and it is sold individually.

This is a carburetor gasket plate used on many types of lawn and garden equipment. This gasket seals the connection between the air cleaner base and the body of the carburetor. It ensures that air, fuel, and debris cannot pass between components of the lawn equipment. The carburetor gasket plate is made of a thin material that will experience wear as the tool is used. When it begins to wear down, it can create leakages and will need to be replaced.If the carburetor gasket plate is worn or damaged and needs to be replaced, start by placing the lawn equipment on a stable surface. Remove the spark plug wire before taking out the air cleaner assembly. Next, remove the carburetor and take off the original carburetor gasket plate. Clean the area before installing the new gasket plate.This is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual component. The carburetor gasket plate is made for use with snowblowers and log splitters manufactured by MTD and Cub Cadet.

This is a quality choke knob used with many types of log splitters and snowblowers. The choke knob is made of durable plastic. This knob can be used to actuate the choke valve. This ensures that a rich blend of fuel and air will pass into the cylinder to assist in starting the engine. Through use or time, the choke knob can break, become cracked, or get lost and will need to be replaced. If the choke knob isn't replaced, the engine may not start. It may also have problems running continuously.The choke knob is found on the choke plate lever on the carburetor. To replace it, the screws that secure the top cover of the tool need to be removed. Remove the top cover and take out the air filter cover. Remove the ignition switch lever to get access to the choke knob. Take out the original component and replace it with a new part before reassembling the other parts.This is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The choke knob is made for use with snowblowers and log splitters manufactured by MTD and Cub Cadet.

This is an external gasket kit that comes with a variety of gaskets that are used in log splitters made by Cub Cadet and MTD. The kit includes an oil drain plug washer, a carburetor insulator plate, an exhaust pipe gasket, a carburetor insulator gasket, a valve cover gasket, a carburetor gasket, and two carburetor gasket kits. If these parts start to wear out, it can cause leaking of fuel, oil, or air. If the parts aren't replaced, worn-out gaskets can create engine problems and the log splitter may not start or run.A socket wrench and a screwdriver will be needed to replace any of the gaskets in the log splitter. Put the log splitter in the off position and place it on a stable surface before disconnecting the spark plug wire. Depending on the location of the faulty gasket, the engine or carburetor may need to be removed to replace the part. Remove the old gasket, clean the surface, and replace the part with a new component.This is a genuine OEM replacement component that is sourced directly from the manufacturer. The external gasket kit is sold as a single item. It is designed for use with log splitters manufactured by MTD and Cub Cadet.

The carburetor controls the air to fuel ratio sent to the engine and ensures smooth operations of the device. If the engine is not working well and the carburetor is the cause, this kit can be used to make the repairs. If the carburetor is not working well, a repair will be necessary to continue using the equipment and prevent failure.Before working on the carburetor, first, allow the machine to cool thoroughly. Wear protective gloves for safety. Be sure to have all the necessary tools for the repair. Check all parts of the carburetor for blockages, damages, and loose, broken, or missing seals.This MTD carburetor kit is a genuine OEM replacement part supplied by the manufacturer. It is sold individually. This kit includes one carburetor, two mounting gaskets, one fuel valve, one fuel filter, one fuel line, one shut-off valve, and one primer bulb. The carburetor kit is compatible with various engines found in MTD brand lawn and garden equipment.

This is a fuel shut off gasket that is often a component in snowblowers and log splitters. Rather than using a bowl and an O-ring, the fuel shut off gasket creates an airtight seal with the carburetor. The fuel shut off gasket helps to prevent fuel from leaking out of the equipment. The most common sign of a failing fuel shut off gasket is a gasoline leak. If the cover starts to leak, this component will need to be replaced.The first step to replacing the fuel shut off gasket is to remove the air filter assembly. Next, remove the carburetor. Hold the fuel line tight to prevent a spill and remove any linkages present. Take the screws out of the carburetor bottom and remove the old gasket. Clean off the surface before installing the new replacement fuel shut off gasket.This is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual part. The fuel shut off gasket is designed for use with log splitters and snowblowers manufactured by MTD and Cub Cadet.

This is a fuel shut off lever used with snowblowers and log splitters. The fuel shut off lever ensures the engine doesn't become flooded with fuel. It also helps extend the life of the float valve by taking some of the pressure off of this part. Some symptoms of a bad fuel shut off lever include an engine that will not start, an engine that stops while the tool is in use, and poor emissions control.The process of replacing the fuel shut off lever is simple and requires only an adjustable wrench. The tool should be placed on a level surface before disconnecting the spark plug wire. The old fuel shut off lever can be removed from the tool before replacing it with a new component. Reassemble the other components and test the tool before use.This is a genuine OEM replacement part that is sourced directly from the manufacturer. The fuel shut off lever is sold as an individual part. It is created to be used with log splitters and snowblowers that are manufactured by MTD and Cub Cadet.

This is a genuine OEM replacement fuel bowl bolt for a snowblower, tiller, or chipper engine. The fuel bowl is a part of the fuel filtration system designed to prevent sediment from clogging up the carburetor. Fuel moves from the fuel tank and passes through the fuel bowl to catch any debris. It is essentially a particle filter. This bolt mounts the fuel bowl in place. The two most likely reasons why a fuel bowl bolt might need replacing are general wear and tear or loss. This bolt is located fairly close to the outside of the engine, making it more susceptible to the elements. Over time, the bolt may corrode and will need replacing. If lost while making a repair to the fuel bowl itself, the fuel bowl bolt will need to be replaced. Use a wrench to make the repair. This fuel bowl bolt is a top of the line replacement part for Bolens, Yard Machines, MTD, Troy-Bilt, Huskee, and Yard Man appliances. This part does not include any additional hardware, as it ships individually.

The fuel drain plug gasket creates a solid, leak-proof seal in the fuel drain. The gasket goes into the connection between the drain and the fuel tank. In the event that this gasket fails, there could be fuel leakage from the equipment that could be costly or even dangerous. Make sure to inspect and replace all gaskets regularly to ensure that the engine is working efficiently. This gasket is made of durable rubber material and is simple to install. drain the fuel to provide access to the drain plug and the fuel line without spilling fuel everywhere. Always wear gloves and make sure to disconnect the spark plug or disable the engine before working on any outdoor power equipment. This OEM replacement fuel drain plug is compatible with several tillers, snowblowers, lawnmowers, tractors, and other outdoor power equipment made by Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut. Sold individually.

This is a replacement fuel bowl gasket that is specifically made for select models of snowblowers. The fuel bowl gasket is used to create a seal in the fuel bowl, allowing the carburetor to maintain appropriate pressure and deliver the fuel properly throughout the engine. Over time, gaskets like this one will become compressed and deteriorated, creating a leak in their seal. This can lead to fuel or air leakage, poor engine performance, and more serious damage if left unrepaired. Replacing gaskets is typically considered routine maintenance, and it is essential to replace them as quickly as possible. This genuine fuel bowl gasket is manufactured to OEM specifications by MTD and designed for use in select machines from MTD, as well as those from Cub Cadet, HUSKEE, Lawn Chief, RYOBI, Troy-Bilt, Craftsman, Remington, Yard Machines, Yard Man, and Bolens. There are hundreds of machines that can use this fuel bowl gasket. It is made of durable rubber material and sold as a single unit. Always be sure to inspect gaskets when performing other maintenance and repairs and use the correct tools for gasket replacement to prevent damage during installation.

The fuel bowl gasket provide an airtight seal to the fuel bowl. This will ensure that air, along with dirt and debris, do not make their way into the fuel. Gaskets will wear out over time. They will start to crack and fall apart, and they will no longer be capable of providing you with the necessary seal for the fuel bowl. The repair is easy and should only take between half an hour and an hour. This is an OEM replacement fuel bowl gasket part that is made from high-quality, durable rubber. Each of the fuel bowl gaskets is sold individually. The gasket can work well with many different types of outdoor power equipment, including snowblowers, chipper-shredders, tillers, lawn tractors, mowers, and other small engines. The fuel bowl gasket is compatible with many brands, including MTD, Yard Machines, Yard-Man, Troy-Bilt, Huskee, Cub Cadet, and Mastercut.
