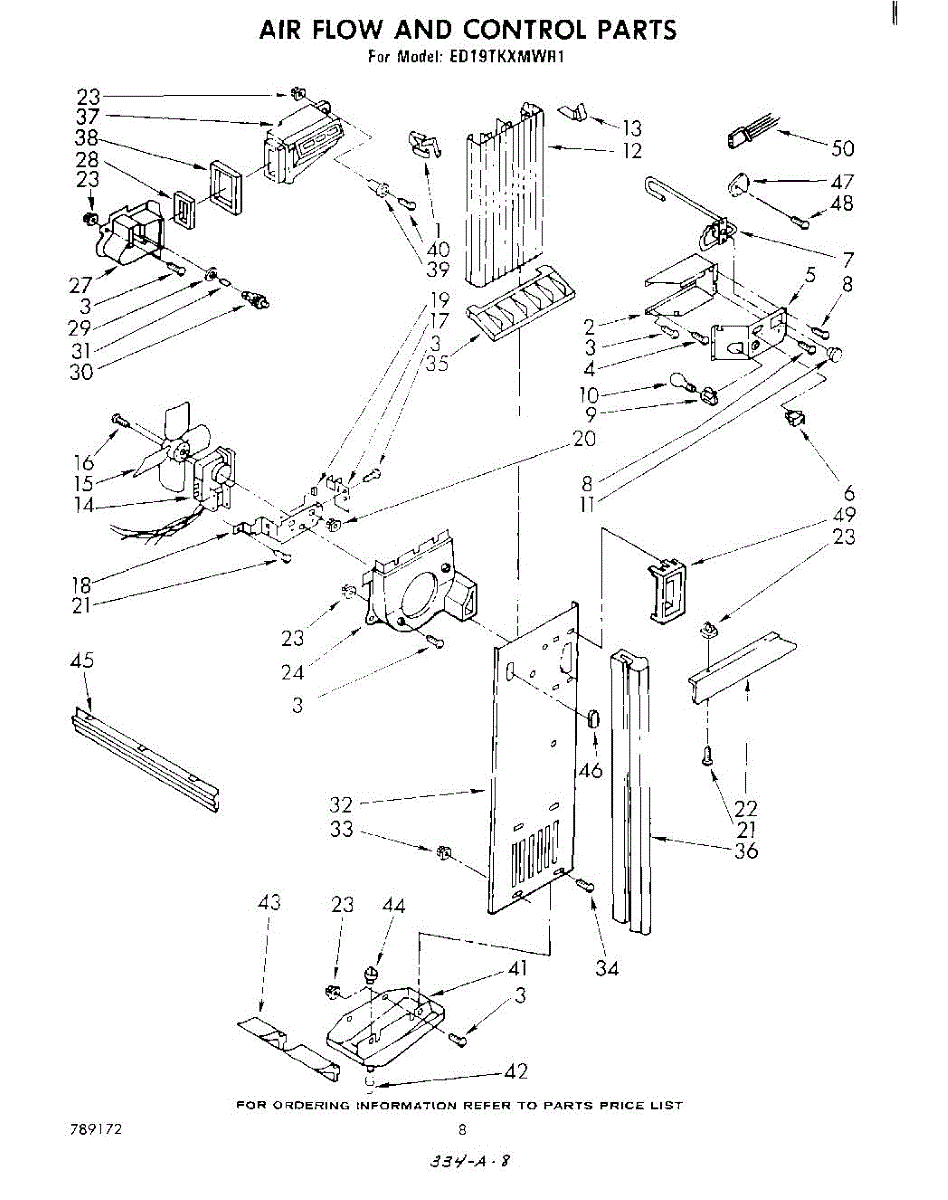

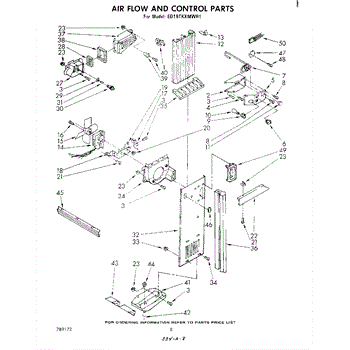

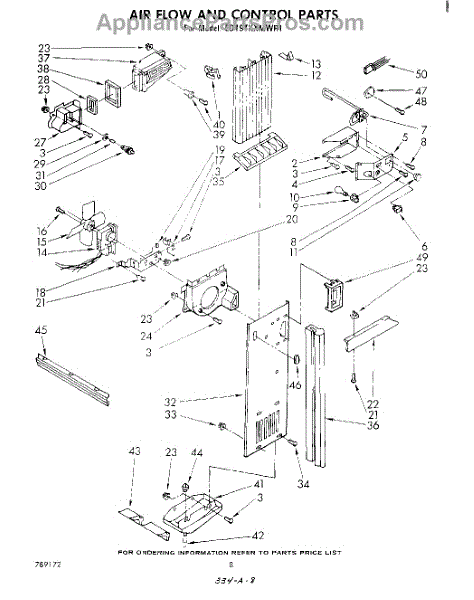

Parts for Whirlpool ED19TKXMWR1: 05 - Air Flow And Control , Lit / Optional Parts

Secures air duct to housing, maintaining proper airflow alignment. Replace if broken or loose to prevent air leaks. Confirm fit with your model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix excess condensation or sweating on refrigerator doors with this power saver switch. Controls anti-sweat heater to prevent moisture buildup. Easy install.

Cold control that regulates cooling cycles to maintain set temperatures in the fresh-food section. Replacing a failed control restores more consistent temperature control and helps prevent food spoilage. What it does:

• Controls compressor/cooling cycles based on the selected temperature setting to maintain cabinet temperature.
• Common symptoms: refrigerator running constantly, not cooling, or temperature cycling irregularly.
• Interfaces with the fridge control housing and wiring to open/close the cooling circuit as needed.

• Disconnect power to the appliance before starting any repair.
• Access the control housing/panel to remove the old control; note wire locations or take a photo for correct reinstallation.
• Handle any attached sensor or capillary tube gently to avoid kinks or damage.
• After installation, restore power and the refrigerator reaches and holds the desired temperature.

Screw: 8-16 x 3/8 inch.

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Refrigerator not cooling or making screeching noise? This evaporator fan motor kit stops those symptoms. DIY-friendly repair, typically done in 15 minutes.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

This part has been discontinued by the manufacturer and is no longer available.

Fixes ice buildup on freezer coils and warm fridge temps. This defrost timer regulates the automatic defrost cycle. Moderate DIY repair with video guide.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components

This part has been discontinued by the manufacturer and is no longer available.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Epoxy repair kit - aluminum tubing.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

230 - 115 volt

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Size: 1/4 lb.

Sealer for refrigerant line insulation.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

Color: White. Size: 13 oz. Spray paint primer. can.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

230 - 115 volt

Epoxy repair kit - aluminum tubing.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Size: 1/2 inch.

Size: 5/8 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Sealer for refrigerant line insulation.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Size: 3/16 inch.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Size: 1/4 lb.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

Color: White. Size: 13 oz. Spray paint primer. can.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
