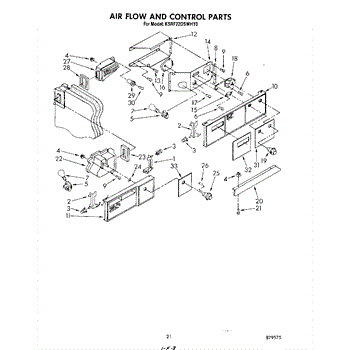

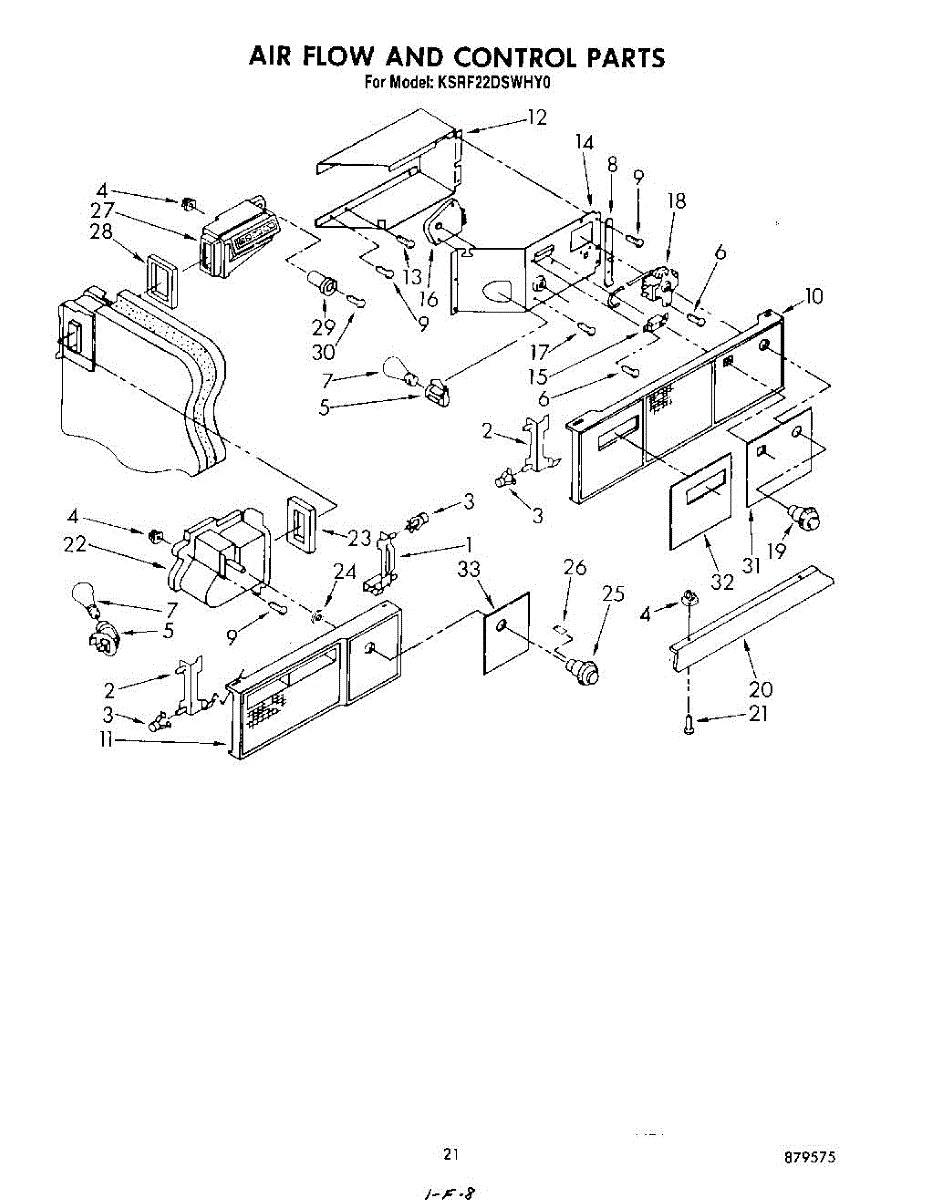

Parts for Kitchenaid KSRF22DSWHY0: 12 - Air Flow And Control , Literature Parts

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screw: 8-16 x 3/8 inch.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components

Cold control that regulates cooling cycles to maintain set temperatures in the fresh-food section. Replacing a failed control restores more consistent temperature control and helps prevent food spoilage. What it does:

• Controls compressor/cooling cycles based on the selected temperature setting to maintain cabinet temperature.
• Common symptoms: refrigerator running constantly, not cooling, or temperature cycling irregularly.
• Interfaces with the fridge control housing and wiring to open/close the cooling circuit as needed.

• Disconnect power to the appliance before starting any repair.
• Access the control housing/panel to remove the old control; note wire locations or take a photo for correct reinstallation.
• Handle any attached sensor or capillary tube gently to avoid kinks or damage.
• After installation, restore power and the refrigerator reaches and holds the desired temperature.

This part has been discontinued and is no longer available.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

Epoxy repair kit - aluminum tubing.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Bottle with brush. Color: Platinum. Size: 0.6 fl.oz.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
