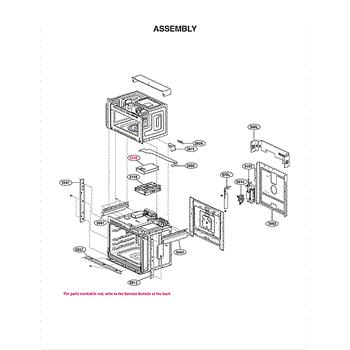

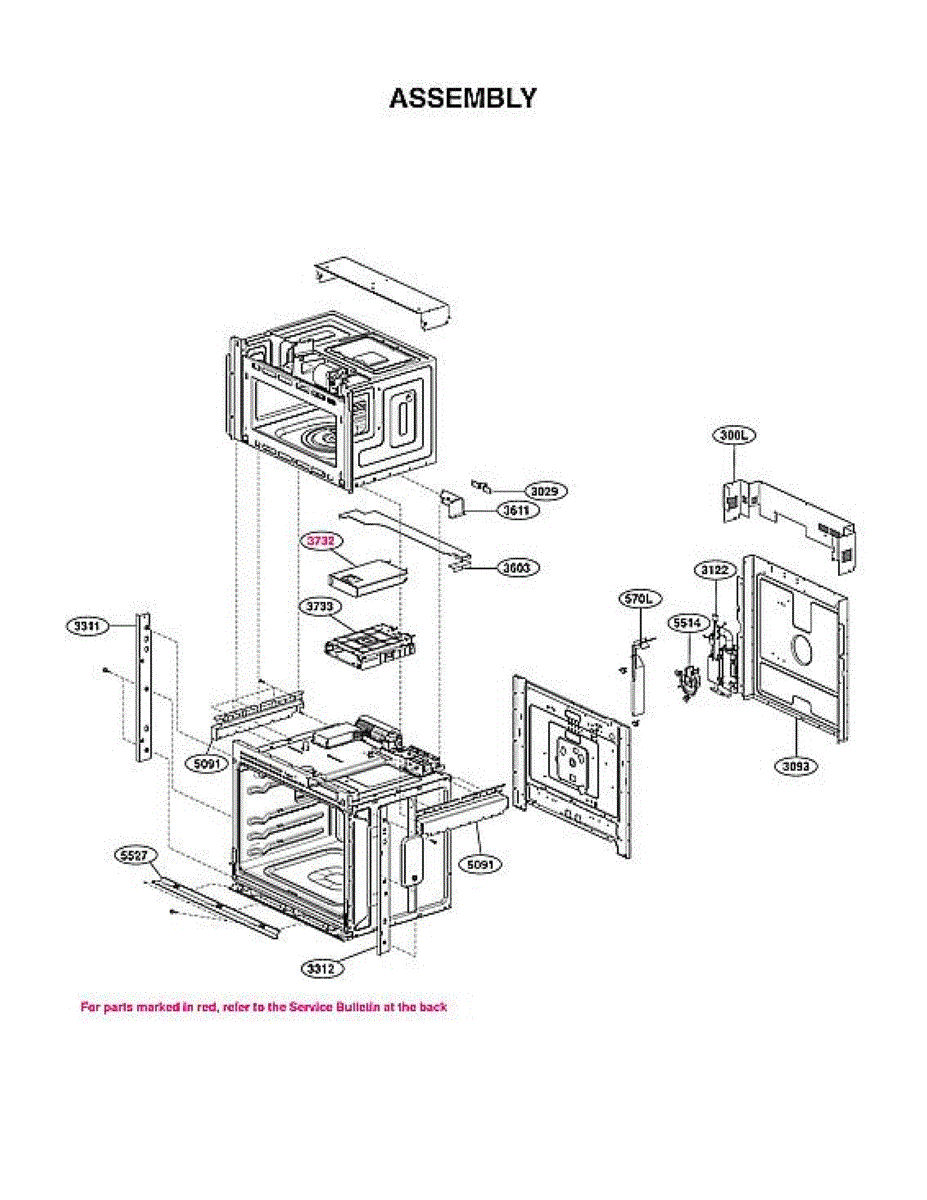

Parts for Lg LSWC307ST/00: Assembly Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

A flat washer used with the appliance's fastening hardware to distribute load and reduce wear. Helps maintain secure connections and prevents damage to mating surfaces for reliable operation. What it does:

• Provides an even bearing surface for bolts or screws to prevent pull-through
• Reduces friction and wear between fasteners and housing parts
• Helps keep fasteners tight and resists loosening from vibration
• Commonly used where a smooth, protective spacer is needed

• Verify correct location and orientation before reassembly
• Use manufacturer-recommended fasteners and torque specifications
• Power off and unplug the appliance before accessing internal components

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

This customized washer is a small hardware piece that secures fasteners and helps distribute load where screws or bolts attach to appliance components. It restores proper fit and reduces movement at the connection point. What it does:

• Provides a stable bearing surface for screws or bolts to prevent pull-through and material damage
• Helps keep fasteners tight and reduces vibration-related loosening or rattling
• Maintains correct spacing and alignment of panels or internal parts
• Can help form a seal on fasteners in locations prone to vibration or minor movement

• Disconnect power and water (if applicable) before servicing the appliance
• Retain or replace the associated fastener; small parts can be easily lost—work on a clean surface

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

This cover insulator is the replacement insulation panel that helps reduce heat transfer and protects surrounding components. It restores proper thermal shielding to help appliances run safely and quietly. What it does

• Covers and thermally insulates internal components to help control heat transfer.
• Protects wiring and nearby parts from excess heat and reduces risk of heat-related damage.
• Can reduce noise by dampening vibration where installed.
• Commonly used when insulation is torn, missing, or degraded.

• Disconnect power before accessing internal components; ensure appliance is fully de-energized.
• Handle carefully to avoid tearing the insulation; use gloves if sharp edges or adhesive are present.
• Reinstall using original mounting points and fasteners; do not modify the part.

Replacement window glass that restores a clear viewing area in the appliance door and helps maintain a clean, sealed surface. Ideal for replacing cracked, chipped, or cloudy glass to improve visibility and safety. What it does:

• Provides a transparent viewing window so you can monitor cycles without opening the door.
• Replaces cracked, chipped, or fogged glass to restore appearance and function.
• Serves as the door's viewing surface and works with the door assembly and trim.
• Inspect surrounding gaskets, trim, and fasteners when replacing the glass to ensure a proper fit.

• Disconnect power (and water, if applicable) before attempting any repair.
• Wear cut-resistant gloves and eye protection when handling or removing glass.
• Door disassembly and removal of trim or retaining clips is commonly required.
• If the glass is shattered, remove broken pieces carefully and dispose of them per local regulations.

This front cover assembly replaces the damaged or worn outer panel that surrounds the dryer door, restoring the appliance's appearance and protecting internal components from debris and impact. Fits as the factory front panel for proper alignment. What it does:

• Replaces a cracked, dented, or broken front panel that lets in lint or shows visible damage
• Restores proper door alignment and sealing so the door closes securely
• Protects internal components from external impact, dust and debris
• Eliminates rattles or gaps caused by a warped or loose front cover

• Disconnect power (and gas, if applicable) before beginning any repair
• Removal typically requires taking off the dryer door and removing a few screws or clips; keep hardware for reassembly
• Handle edges carefully—panels may have sharp metal or plastic edges

This inner cover is the OEM replacement panel that protects internal components and wiring inside the appliance while restoring the unit's finished interior appearance. It helps block debris, moisture, and accidental contact with internal parts. What it does:

• Shields internal components and wiring from debris and accidental contact
• Restores the appliance's interior finish and fit where an inner panel was cracked or missing
• Helps reduce rattling or noise caused by loose or damaged interior panels
• Prevents moisture or small objects from reaching control areas or openings

• Disconnect power (and water, if applicable) before starting any repair.
• Removing the outer cabinet or adjacent trim may be required; retain all fasteners.
• Use appropriate hand tools and avoid over-tightening to prevent damage to clips or mounting points.

This Main PCB Assembly is an OEM part for LG microwaves. Responsible for managing and controlling the microwave's core functions, this part ensures proper heating, timing, and overall operation of the appliance. A malfunctioning Main PCB Assembly could disrupt the microwave's performance, leading to issues with heating, timer functionality, or even complete failure to operate.

Causes of a Bad Part:

• Electrical surges or power fluctuations
• Overheating due to excessive usage
• Age-related wear and tear

Symptoms of a Bad Part:

• Inconsistent heating or no heating at all
• Timer or display malfunctions
• Unresponsive buttons or control panel

This OEM LG part is also compatible with some Kenmore models.

This power control board assembly replaces the appliance's main power/control circuit, restoring reliable power distribution and control of core functions. It's a direct-fit electronic module used to manage operation and electrical signaling. What it does:

• Regulates and distributes power to the appliance's control circuits and major components
• Controls timing and signaling for motors, heaters, displays and other subsystems
• Can resolve symptoms like a blank or unresponsive control panel, intermittent operation, or failure to start
• Helps clear erratic behavior caused by a faulty power/control PCB

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock or damage
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Reconnect all wiring and secure mounting before restoring power;

A replacement mica canopy (waveguide cover) that protects the microwave's waveguide and interior from food splatter and debris, helping prevent arcing and maintain heating performance. Fits models that use part number 3052W1M020A. What it does:

• Shields the waveguide opening from grease, crumbs and splatter to protect internal components
• Prevents food buildup that can cause sparking or arcing during operation
• Keeps microwave cavity cleaner for more consistent cooking results
• Replaces damaged, charred or discolored mica that can affect performance

• One canopy mica (waveguide cover)

• Disconnect power or unplug the appliance before beginning any work
• Inspect mounting tabs or screws and replace hardware if damaged; handle the mica carefully—it can be brittle
• Clean surrounding area before installing to ensure a secure fit and proper sealing
• Replace it immediately and check for underlying issues

This flat case is the outer cover that protects and secures internal components, helping restore a clean, finished appearance and prevent debris or accidental contact. It's a direct replacement for the original flat housing piece. What it does:

• Replaces worn, cracked, or missing outer housing to restore proper enclosure
• Keeps wiring and components protected from dust and impact
• Helps reduce rattling or vibration caused by loose or damaged panels
• Restores alignment so adjacent panels and controls fit correctly

• One flat case outer cover

• Disconnect power before beginning any repair to avoid shock or injury
• Remove retaining screws or clips from the existing case and retain hardware if reusing
• Align the replacement case carefully, then secure with original fasteners
• If mounting requires additional parts or hardware, verify those separately; no extra hardware is assumed included

This glass tray replaces a damaged or missing microwave turntable to restore even heating and a stable surface for plates and bowls. Durable tempered glass resists heat and supports cookware during operation. What it does:

• Provides a flat, stable surface for food containers to rotate on while the microwave runs
• Helps promote more even cooking by allowing the turntable to rotate properly
• Replaces cracked, chipped, or missing glass trays that can cause wobble or uneven heating
• Fits on the central drive hub and works with the microwave's turntable support system

• One tempered glass turntable tray (single piece)

• Wear gloves and handle glass carefully to avoid cuts; inspect for chips before use
• Ensure the microwave is unplugged or power is off before removing or installing parts
• Set the tray onto the turntable support and verify it seats securely on the drive hub
• Check the turntable support and drive coupler for damage if the tray does not sit level or rotates unevenly.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This turntable assembly replaces the microwave's rotating glass platter and support, restoring stable rotation for even cooking and safe, wobble-free operation. Fits standard countertop microwave turntable systems. What it does:

• Replaces the glass turntable that holds food during cooking
• Restores smooth rotation to help heat food evenly
• Stops wobbling, slipping or noisy rotation caused by a worn support or coupler
• Works with the microwave's drive coupler and roller guide to maintain proper alignment

• Disconnect power before servicing to avoid electrical shock
• Handle the glass tray carefully to prevent chips or breakage
• Ensure the roller guide and drive coupler seat properly before use

This synchronous motor drives the microwave's glass turntable at a steady speed so food rotates for more even heating. Replace a weak or seized motor to restore smooth tray movement and consistent cooking performance.

• Provides slow, consistent rotation of the glass tray during cook cycles
• Helps promote more even heating by turning food under the magnetron
• Typical symptoms: turntable not turning, intermittent or jerky rotation, or humming without movement
• Located beneath the oven cavity, driving the coupler from below

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a dangerous charge
• Access is typically from the bottom; remove the bottom cover and mounting screws to reach the motor
• Transfer the two wires one at a time to the new motor and ensure the shaft fully engages the turntable coupler
• Reinstall the cover and test rotation first without the glass tray, then with the tray and support

This turntable shaft is the replacement spindle that transfers rotation from the motor to the glass tray, restoring smooth tray rotation for even heating in your microwave. It's a simple, inexpensive fix for a non-turning or unstable tray. What it does

• Transfers rotational force from the microwave turntable motor to the glass tray or roller ring
• Keeps the tray centered so food rotates evenly during cooking
• Commonly replaced when the turntable won't rotate, wobbles, or makes scraping noises
• Helps prevent uneven cooking caused by a stationary or misaligned tray

• Disconnect power before servicing the microwave.
• Remove the glass tray and roller ring before replacing the shaft.
• Press the shaft into the motor coupling or chassis location until seated; reassemble tray and test rotation.
• If the shaft is damaged or doesn't seat properly, inspect the motor coupling and roller assembly for wear.

The Heating Element is an OEM part for LG electric ranges. It serves a critical cooking function by using electric current to generate heat energy that cooks food inside the oven cavity. The heating element is constructed from flame-resistant and durable materials precisely designed to withstand high temperatures in a clean efficient manner.

Causes of a bad heating element can include mineral deposits on coils, cracks from overheating, or general wear over extended use.

Replacing a faulty element restores dependable oven performance.

Symptoms of a bad element include:

• Inefficient or uneven cooking temperatures
• Longer baking and cooking times
• Cracking or sagging coils affecting heat output
• Potential safety issues if damage exposes live wires

This element also fits the heating designs used in Jenn-Air and Frigidaire electric ovens.

This circulating motor drives air movement inside the appliance to maintain proper airflow and temperature distribution. Replaces a worn or failed fan motor to restore normal ventilation and performance. What it does:

• Spins the internal circulation fan to move air through the appliance
• Helps maintain even temperature and proper airflow for cooling/heating cycles
• Common symptom: little or no airflow, unusual grinding or humming sounds

• One circulating motor

• Disconnect power before attempting any service to avoid shock or injury
• Handle the motor and fan blades carefully to avoid damage to fittings and wiring
• Verify mounting orientation and wiring color codes match the original during replacement

This replacement reflector restores proper light/heat direction and helps protect the internal lamp area from damage. It installs in the appliance's interior to improve illumination and component coverage. What it does:

• Directs light or heat toward the intended area for consistent performance
• Protects the lamp/sensor area from direct contact and debris
• Replaces cracked, warped or missing reflectors that cause uneven lighting
• Helps eliminate rattling or loose-fit issues when the original reflector is damaged

• Disconnect power before starting any repair to avoid shock or injury
• Handle the reflector carefully to avoid scratches or bending that reduce effectiveness
• Use the same mounting hardware and fasteners removed during disassembly; do not overtighten

This metal tray is a direct-replacement interior tray that supports cookware and catches drips to keep the appliance cavity clean and protect internal components. It restores a flat, stable surface for consistent cooking and storage. What it does:

• Provides a sturdy, heat-resistant surface for pans, dishes, or food items
• Catches spills and drips to help keep the appliance interior cleaner
• Replaces bent, dented, or corroded trays that no longer sit flat
• Helps maintain even airflow and stable placement of cookware during use

• One replacement metal tray

• Unplug the appliance or switch off power before inspecting or replacing parts
• Allow the appliance and tray to cool completely to avoid burns
• Handle edges carefully; metal parts can have sharp edges
• Install per the appliance's service manual or parts diagram; do not operate if the tray is damaged

The Halogen Lamp is an OEM part for LG microwaves. This lamp is designed to provide illumination underneath or inside the select microwaves, allowing for better visibility inside the cavity or the cooking space below the microwave.

Causes of a bad part can include the lamp reaching the end of its lifespan due to normal use, electrical issues causing premature burnout, or physical damage from impact or exposure to heat.

Symptoms of a bad Halogen Lamp include:

• Dimming or flickering of the lighting
• Complete failure of the light to turn on
• Visible damage or burn marks on the lamp itself

This OEM LG part is also compatible with some Kenmore models.

This AC synchronous motor assembly drives the appliance's mechanical system for reliable, low-speed rotation where precise timing is required. Replaces a worn or failed motor to restore normal operation and reduce intermittent cycling or stopped movement. What it does

• Converts electrical input into consistent, timed rotational motion for dampers, valves, or other small-drive mechanisms.
• Helps resolve symptoms such as no movement, irregular or intermittent motion, or buzzing from the motor area.
• Designed for applications requiring accurate speed control and quiet operation.
• Matches OEM fit and function for direct replacement when the original synchronous motor has failed.

• 1 motor assembly

• Disconnect power before attempting service to avoid shock or injury.
• Inspect mounting, connectors, and wiring harness for damage; replace any worn fasteners or harness clips.
• Handle the motor and encoder carefully to avoid contamination or damage.

This halogen heater is the oven/dryer heating element that provides the concentrated heat needed for normal operation, restoring proper heating performance and cycle results. Install to replace a worn or broken heater assembly. What it does

• Generates focused heat used by the appliance's heating system
• Restores proper heat levels when the unit no longer reaches set temperatures
• Helps eliminate long or incomplete cycles caused by lack of heat
• Works as the main heating element for models that use halogen-style heaters

• Disconnect power (and gas, if applicable) before beginning work
• Handle the halogen lamp element carefully — glass is fragile
• Basic hand tools are typically required; inspect connectors and wiring for damage

This rear cover is the factory-style cabinet rear panel that protects internal components and helps maintain appliance structure. It restores the appliance's enclosure and keeps wiring and parts shielded for safe operation. What it does:

• Covers and protects internal components from dust, debris and accidental contact
• Helps reduce noise by enclosing moving parts and support structure
• Provides mounting surface for internal parts and routing for wiring
• Prevents exposure that can lead to sparks, shorting, or further component damage
• Common symptom: missing, cracked or loose rear cover, rattling or exposed components

• Disconnect power (unplug or switch off breaker) before starting any repair
• Use correct screws and fasteners; do not force or bend the panel into place
• Wear gloves to avoid cuts from sharp sheet-metal edges and check for pinched wiring after reassembly

This replacement shelf assembly restores a sturdy, level storage surface inside your refrigerator, helping you organize items and regain lost space when a shelf is cracked, missing, or no longer sits properly in its supports.

• Supports food containers and keeps items level within the compartment
• Slides into the side supports/rails for stable placement
• Replace if cracked, bowed, or unable to lock into position
• Common symptoms: broken or missing shelf, uneven seating, reduced storage capacity

• Remove items from the shelf area; lift out the damaged shelf
• Insert the new shelf into the side slots/rails and slide back until fully seated
• Ensure the shelf is level and locked into place before reloading items
• Handle edges carefully; avoid impact to prevent damage

This replacement part is a slide rack that has been manufactured by LG and is compatible with wall ovens. The slide rack is an internal component of the oven that provides a stable, heat-safe surface on which to balance cookware and place food inside the oven. Over time, this part could become bent, dented, warped, corroded, lost, or broken, requiring replacement. No tools are required to replace this part. Simply slide out the old rack and slide the new one into place. Ensure that oven is completely cooled down before attempting this to prevent serious burn injuries. This is a genuine OEM part that has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable, non-corrosive metal and is compatible with different wall ovens manufactured by LG and other brands. This part is only sold individually.

This water housing assembly routes and supports the refrigerator's internal water path, providing a sealed connection for water flow to the dispenser and icemaker. Replaces a cracked or leaking housing to restore proper water delivery. What it does

• Channels water from the supply line to internal dispenser/icemaker components
• Provides sealed mounting surfaces and ports for water lines and valves
• Stops leaks caused by cracked or warped housings
• Helps resolve weak or no-water flow symptoms when housing damage interrupts the path

• One water housing assembly

• Turn off refrigerator power and shut off the water supply before beginning service
• Use proper tools and a towel to catch residual water; inspect seals and O-rings and replace if damaged
• Check all connections for leaks after restoring power and water

This metal tray replaces a damaged or missing oven drip tray so you can catch spills and roast or bake without mess. It restores a stable cooking surface and helps protect the oven floor from food and grease. What it does

• Catches drips, crumbs and grease to make cleanup faster and prevent baked-on messes
• Provides a flat, stable surface for pans and bakeware
• Helps maintain even airflow around foods for consistent cooking results
• Replaces trays that are bent, corroded, pierced or missing

• One metal oven/drip tray

• Allow the appliance to cool completely and unplug or disconnect power before installing
• Slide the tray into the oven's lower rack supports until it rests securely
• Handle with care—edges may be sharp; use gloves if needed
• Clean before first use per the appliance owner's cleaning instructions

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

The Interlock Door Switch is an OEM part for LG microwaves. It is a safety component located on the door of the microwave designed to prevent the microwave from operating unless the door is securely closed. The interlock door switch works with the microwave's electronic control board to sense when the door is open or closed and allow or disallow operation accordingly.

Causes of a bad interlock door switch can include normal wear and tear from repeated opening and closing of the microwave door over time.

Symptoms of a bad interlock door switch include:

• The microwave runs or heats with the door open
• Error codes or diagnostic messages related to door sensors on the control board
• The microwave fails to operate even when the door is securely closed

This OEM LG part is also compatible with some Sears/Kenmore microwaves.

The Microwave Door Switch is an OEM replacement part for LG countertop microwaves. It monitors the door position electrically to prevent unsafe oven operation if ajar.

Symptoms of a bad door switch include:

• Inability to start or pause a cooking cycle unless securely latched
• Error messages about the door being open
• Inconsistent detection of open/closed door positions
• Unreliable contact functioning after extended use

Causes involve normal wear of electrical contacts and internals through many open/close uses. Exposure to moisture intrusion from spills may potentially damage sensitive switch circuitry over time as well.

This genuine LG replacement switch is also compatible with Sears/Kenmore microwaves.

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

This high-voltage transformer supplies the high-voltage power needed by the microwave's magnetron so the oven can heat food. Replaces a failed transformer to restore proper microwave operation when the HV supply is the issue. What it does:

• Converts incoming mains voltage to the high voltage required by the magnetron
• Commonly fails when the oven produces little or no heat
• Can cause loud humming, burning smell, or visible arcing if damaged
• Failure may be accompanied by blown fuses or a tripped thermal cutoff

• Disconnect power and fully discharge the high-voltage capacitor before servicing
• Handle carefully; contains components that store dangerous voltage even when unplugged
• Follow OEM service manual wiring and mounting instructions; replace grounding and insulation parts as required

This magnetron is the microwave high-voltage tube that produces the microwave energy used to heat food, restoring oven heating performance and cooking consistency for compatible microwave ovens. What it does:

• Generates the microwaves that heat and cook food in the oven cavity.
• Replaces a failed magnetron when the microwave stops heating or takes much longer to cook.
• Can resolve symptoms such as little or no heating, uneven heating, loud buzzing or humming, and unusual burning or arcing smells.
• Works with the oven's high-voltage circuitry and waveguide to deliver power into the cooking cavity.

• One magnetron

• High-voltage risk: always unplug the appliance and discharge the high-voltage capacitor before servicing.
• Inspect and replace any damaged waveguide covers, seals, or mounting hardware to prevent arcing.
• Do not operate the oven with the outer cover removed or with damaged door interlocks.

This humidity sensor assembly monitors moisture inside the microwave cavity during Sensor Cook and Reheat cycles, allowing the control to automatically adjust time and power. Replacing a failed sensor can restore accurate, reliable sensor-based cooking performance. What it does:

• Detects steam/humidity in the cavity for auto-sensing cook and reheat programs
• Sends feedback to the control board to adjust power levels and cook time
• Failure symptoms include sensor cook not starting, stopping early, "sensor" error messages, or inconsistent results on auto settings

• One humidity sensor assembly

• Unplug the appliance before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Handle the sensor face carefully and keep it clean; route and secure the wire harness as originally

This thermostat controls refrigerator temperature by opening and closing the cooling circuit as needed to maintain set temperatures. Replaces a failed or intermittent temperature control to help restore consistent cooling and food safety. What it does:

• Senses cabinet temperature and signals the cooling system to cycle on or off
• Stops continuous running when thermostat fails closed or restores cooling when stuck open
• Commonly used to address inconsistent temperatures, warm spots, or compressor short-cycling
• Passive electromechanical component—no programming required

• Disconnect power to the appliance before starting any repair
• Handle terminals and sensor capillary carefully to avoid bending or damage
• Confirm wire connections match the old thermostat and secure spade terminals firmly

The Diode is an OEM replacement part for LG countertop microwave models. Located internally on circuit boards regulating magnetron function, it precisely controls the electric current flow.

Causes of a bad diode involve thermal fatigue over time putting repetitive stress on sensitive semiconductor junctions. Microwave demands may accelerate failures.

Symptoms include:

• Intermittent cooking or complete failure to energize the tube
• Error codes appearing on the control panel display
• Buzzing or humming noises emitting from internal circuitry

This OEM LG part is also compatible with Sears/Kenmore microwaves.

The Thermostat is an OEM part for LG wall ovens. It is a temperature-sensitive cut-off switch located near the oven's heating elements that monitors interior temperatures and prevents overheating within the appliance.

Causes of a bad safety thermostat can be related to prolonged exposure to excessive heat inside the oven cavity, defects in the thermostat's microchip or coil components, or damage from corrosion or physical impact over time.

Symptoms of a failed hi-limit thermostat include:

• The oven's main thermostat clicking repeatedly but no temperature rise inside the cavity
• Unexpected shutdowns of the oven during heating cycles
• Smoking or burning smells coming from the oven area
• Tripped circuit breakers obstructing normal oven operation

This OEM LG part is also compatible with some Kenmore models.

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

This temperature sensor monitors internal appliance temperature and relays it to the electronic control so cycles run correctly. Replacing a faulty sensor restores accurate temperature feedback, helping the unit reach and maintain the set temperature.

• Detects temperature changes and sends a signal to the control board for proper operation
• Supports accurate heating/cooling and cycle timing based on real-time readings
• Direct replacement when the original reads open/short or out of range
• Common symptoms: incorrect temperatures, unusually long/short cycles, failure to reach set temperature, or sensor-related error codes

• Disconnect power before servicing and allow any hot components to cool
• Access the sensor, noting wire routing and connector orientation before removal
• Transfer any mounting clip/holder from the original if needed; seat the new sensor fully
• Route wiring away from moving or hot parts; restore power and run a test or cycle check

This thermostat controls oven/dryer temperature by opening or closing its contacts as the appliance reaches set temperatures, helping maintain safe and consistent operation. Replaces a worn or failed thermostat to restore proper temperature regulation. What it does:

• Senses temperature and interrupts heating when limits are reached to prevent overheating
• Re-establishes heating when temperature falls, maintaining normal cycle performance
• Commonly installed when an appliance won't heat, overheats, or cycles erratically
• Works as a direct replacement for the OEM thermostat designed for compatible LG units

• One thermostat

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Note wire locations or take a photo before removing wiring; reconnect wires to the same terminals
• Use a multimeter to verify thermostat continuity and correct operation before and after replacement

This fan assembly replaces a worn or failed fan motor and blade to restore normal airflow and cooling performance. Fits units that use the listed part number to move air where needed for efficient operation. What it does:

• Spins to circulate air across coils or through the appliance for proper temperature control
• Helps remove heat from condenser or circulate cold air from evaporator depending on application
• Commonly needed when the fan is noisy, intermittently stops, or airflow is weak
• Supports overall system efficiency by maintaining designed airflow pathways

• Disconnect power before beginning any repair to avoid shock or injury
• Handle the blade and motor carefully; avoid bending the blade or damaging electrical connectors
• Use basic hand tools; mounting hardware may be reused if in good condition
• After installation, verify the fan runs smoothly and does not contact surrounding components

This reflector assembly restores proper reflection inside the appliance, helping redirect light/airflow as intended for consistent performance. Replace a cracked, dented, or missing reflector to reduce glare, rattling, or uneven operation. What it does

• Directs reflected light and airflow within the appliance to maintain designed performance.
• Helps prevent hot/cold spots or uneven airflow caused by a damaged reflector.
• Stops loose or broken reflector pieces from rattling during operation.
• Restores proper fit and alignment when the original reflector is bent, cracked, or missing.

• Disconnect power (unplug or switch off circuit breaker) before starting any repair.
• Handle carefully; edges may be sharp—wear gloves and eye protection.
• Remove panels and fasteners as shown; retain original screws for reinstall.

This AC fan motor powers the appliance's cooling fan to move air across coils for proper heat exchange and temperature control. Designed as a direct replacement to restore normal airflow and cooling performance. What it does:

• Spins the cabinet/condensing/evaporator fan to circulate air for heat exchange
• Restores airflow if fan is noisy, intermittent, or not running
• Helps prevent overheating by maintaining proper condenser/evaporator ventilation
• Reduces cycling issues caused by poor air movement

• Disconnect power before servicing to avoid shock or injury
• Handle the motor and fan blades carefully to prevent damage to wiring and connectors
• Verify mounting orientation and connector fit before securing the motor

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

Replacement fan motor assembly that restores airflow and ventilation inside the appliance. Swapping a worn or failed fan reduces noise and helps maintain proper temperature and component cooling by restoring consistent air movement. What it does:

• Circulates air to maintain proper internal airflow and ventilation.
• Reduces or eliminates abnormal noises such as grinding, rattling, or squealing from a failing fan.
• Helps prevent component overheating by moving air across electronics or cooling surfaces.
• Can resolve symptoms like weak or no airflow and inconsistent cooling/venting performance.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Installation typically requires removing access panels; keep track of screws and mounting hardware.
• Handle electrical connectors carefully and reconnect wires to the original terminals; inspect harnesses for damage.
• After installation, restore power and verify the fan runs smoothly and quietly before reassembling all panels.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This blower motor housing mounts and aligns the microwave's cooling/vent fan motor and wheel to keep airflow moving through the oven and vent path. Replacing a damaged housing can restore proper airflow and reduce vibration and noise. What it does:

• Holds the blower motor and fan wheel in the correct position
• Directs cooling and exhaust air across components and out the vent path
• Maintains alignment to prevent fan wheel rubbing and vibration
• Typical symptoms: loud rattling/scraping near the vent area, weak venting, unit running hot or shutting off during use, visible cracks/warping of the housing

• 1 motor housing

• Disconnect power; for over-the-range units, remove the microwave from the wall to access the blower compartment
• Discharge the high-voltage capacitor before servicing internal components
• Transfer the blower motor and fan wheel to the new housing; match the original vent orientation
• Use care around sharp metal edges; retain and reuse the original mounting hardware

This terminal block connects the appliance power cord to the internal wiring, providing a secure, insulated point for line voltage. Replacing a worn or damaged terminal block restores a stable electrical connection and reduces arcing risk. What it does

• Secures incoming power leads and routes line voltage to the appliance wiring
• Prevents loose or intermittent power caused by cracked or burned terminals
• Helps stop visible sparking or overheating at the cord connection
• Supports strain relief so the power cord stays positioned correctly

• Disconnect power at the breaker or unplug the appliance before starting work
• Verify power is off with a meter; handle live wiring only
• Note wire placement and orientation before removal; transfer wires to the new block in the same order
• Tighten terminal screws securely and restore any strain-relief hardware

The Heating Element is an OEM part for LG ranges. It is responsible for providing heat to the oven cavity, allowing for proper cooking and baking.

The heating element is exposed to high temperatures with each use and over time can become brittle or defective. Causes of a bad heating element can include cracks in the coils, burn marks, or faulty electrical connections.

Symptoms of a bad heating element include:

• The oven not heating up or heating unevenly
• Diminished cooking power
• Burning or burning smell from the oven
• Tripped circuit breaker or blown fuse

Replace yours today with this genuine LG heating element and restore your oven's full cooking capabilities. This OEM LG part is also compatible with Sears/Kenmore.

This heater sheath is the protective cover that surrounds the dryer's heating element, helping protect wiring and other components from direct heat. It lets the heater run safely and reduces the chance of element contact with other parts. What it does:

• Covers and shields the heating element from contact with the dryer drum and internal components
• Helps maintain proper airflow around the heater assembly
• Can prevent arcing or shorting caused by a damaged or mispositioned element
• Commonly replaced when the sheath is cracked, deformed, or shows heat damage

• One heater sheath

• Disconnect power before starting — this part is part of the dryer's high-temperature electrical system
• Access usually requires removing the dryer front panel or drum per the model's service instructions
• Inspect the heating element, thermostats and wiring while the unit is open; replace any damaged components
• Use proper fasteners and routing to keep the sheath positioned so it does not contact the drum

This packing gasket creates a secure seal to help prevent leaks and air loss, protecting internal components and restoring proper appliance function. Use it to replace worn, cracked, or damaged seals. What it does:

• Forms a tight seal at a joint or door to stop water or air from escaping
• Helps maintain proper operating conditions and prevents moisture damage
• Stops common symptoms like visible leaks, drafts, or loss of cooling/heating
• Replaces torn, warped, flattened, or otherwise degraded gasket material

• Disconnect power and water before beginning any repair
• Remove the old gasket fully and clean the mating surface prior to installation
• Seat the new gasket evenly around the opening; trim only if explicitly specified by OEM instructions
• Test for leaks and proper operation after installation

This vent directs and channels airflow for proper ventilation in the appliance, restoring reliable exhaust or intake flow and helping prevent overheating or airflow-related performance issues. What it does:

• Channels exhaust or intake air where the appliance design requires
• Restores proper airflow to reduce overheating and improve performance
• Replaces cracked, deformed, or clogged vents that cause restricted airflow
• Can reduce unusual air-related noises caused by damaged venting

• One vent assembly

• Disconnect power (and water if applicable) before beginning any service
• Inspect surrounding ducting and seals; replace damaged gaskets or clamps for best results
• Secure the vent with the original fasteners; do not force or overtighten plastic tabs

This plate guide is the rotating support that centers and stabilizes the microwave's glass tray for smooth, even rotation during cooking. It restores proper turntable movement and helps prevent wobbling or scraping. What it does:

• Supports and centers the glass turntable so it rotates evenly
• Keeps the tray aligned with the drive coupling to prevent slipping
• Reduces wobble and noise caused by a worn or broken guide
• Can resolve symptoms like an off-center, wobbly, noisy, or non-rotating turntable

• One plate guide

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the glass tray and roller ring to access and replace the guide
• Handle glass parts carefully to avoid chips or cuts; reinstall components in proper order
• No special tools typically required; test rotation after reassembly
