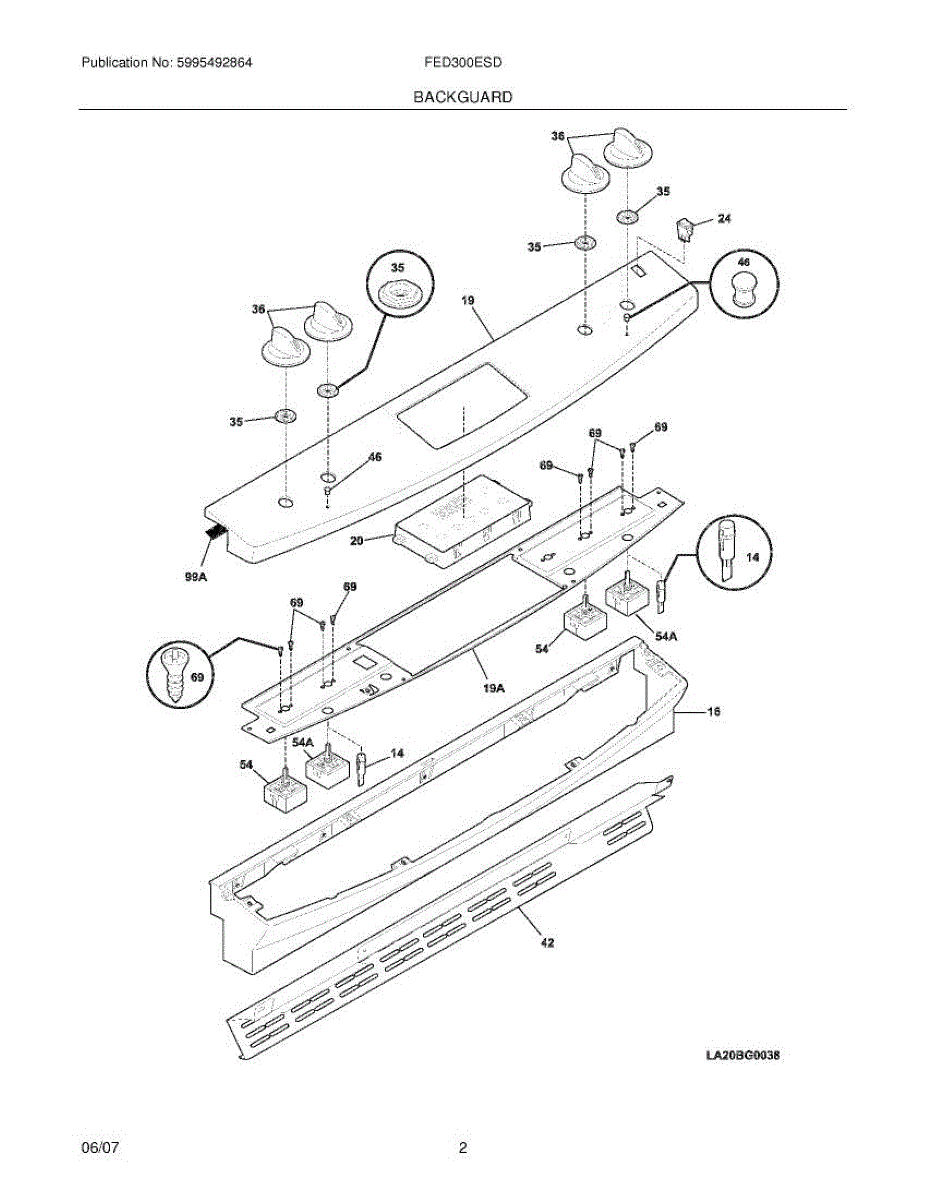

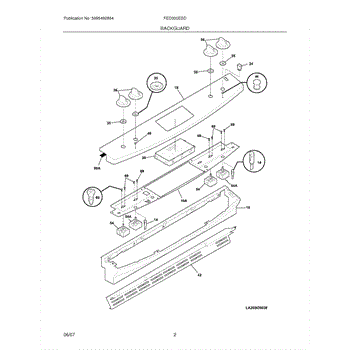

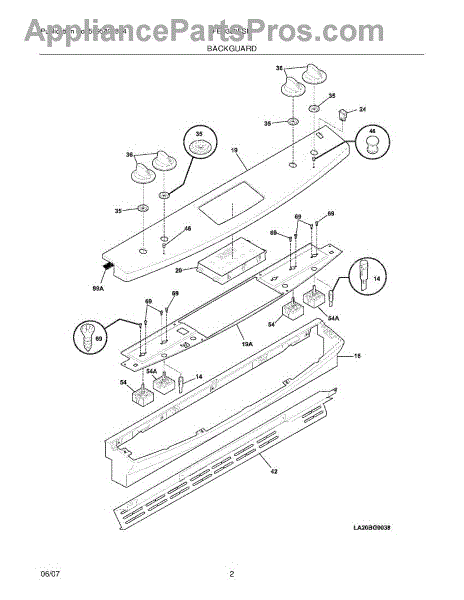

Parts for Frigidaire FED300ESD: 03 - Backguard Parts

Designed for use on electric ranges, this is the console assembly that features the controls for the appliance. There are selection buttons as well as the display components for the unit. When the buttons aren't working on this console assembly, it is likely that this part will need to be replaced. Any issues with the digital display will also result in needing to replace the console assembly. Inspect the part to determine if there are any physical signs of failure or damage. Unplug the range from its electrical outlet before beginning. It's always a good idea to wear work gloves when performing care and maintenance on any appliance.This specific console assembly is compatible with electric ranges that are white in color and are manufactured by Frigidaire and Crosley. The part comes straight from the manufacturer and is sold individually.

This clock timer is the electronic oven control that governs timekeeping and oven functions. It displays the clock and settings and directs power to the bake/broil circuits so the oven responds to your commands.

• Controls and displays the clock, kitchen timer, and oven settings
• Sends power to bake and broil relays based on selected temperature and mode
• Coordinates preheat and cycle timing for consistent results
• Common signs it may be needed: blank or dim display, unresponsive buttons, error codes/beeping, oven won't start or heat though elements and power test good

• Disconnect power at the breaker before servicing—this is a high-voltage electronic part
• Access through the control panel or backguard; remove panel screws to reach the control
• Move wire connectors one at a time to the new control; reuse any mounting hardware
• Handle the board carefully to avoid static discharge; after installing, restore power and set the clock, then test oven functions

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control knob replaces a worn, cracked, or missing range/oven control knob to restore safe, precise selection of heat and function settings. It gives a secure grip and a clear tactile stop for common range controls. What it does:

• Fits onto the range/oven control shaft to select temperature or function settings
• Provides a positive grip and stop so settings stay where you set them
• Replaces broken, stripped, cracked, or missing knobs that won't turn or won't stay set
• Helps restore proper user control for burner or oven functions

• Always disconnect power (unplug or shut off breaker) and shut off gas supply before servicing
• Pull the old knob straight off the control shaft; align and push the replacement knob onto the shaft until fully seated
• Don't force the knob; if it won't seat, inspect the control shaft and the knob opening for debris or damage

The Surface Burner Infinite Switch is an OEM part for Frigidaire ranges. This switch is responsible for controlling the heat output of the surface burners on your range. By adjusting the infinite switch, you can set the burner to different heat levels, allowing for precise cooking control.

Common causes of a bad infinite switch include electrical failures, internal component wear, or physical damage to the switch mechanism.

Symptoms of a bad surface burner infinite switch include:

• Burner not heating up
• Burner only working at one heat level
• Burner not turning off
• Inconsistent or fluctuating heat levels

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Switch is an OEM part for Frigidaire ovens. This component is responsible for controlling the flow of electricity to various functions of the oven, such as the bake and broil elements, ensuring the oven operates correctly according to the selected settings.

Causes of a bad switch can include wear and tear from frequent use, electrical surges, or physical damage from impact or exposure to moisture.

Symptoms of a bad switch include:

• The oven not turning on or responding to control inputs
• Inconsistent heating or temperature control issues
• Certain oven functions not working, such as the bake or broil elements
• The switch feeling loose or sticking when turned

This OEM replacement is also compatible with Electrolux, Gibson, Tappan, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This wiring harness routes power and signals between the appliance's control and electrical components so controls, igniters, sensors or motors receive the correct connections. It replaces a worn or damaged factory harness to restore proper electrical routing. What it does:

• Provides the factory-style wiring connections between control boards, switches, sensors and actuators
• Restores lost or intermittent electrical connections that can cause controls or components to stop working
• Helps resolve symptoms such as intermittent power to components, no response from controls, or certain functions not activating
• Matches OEM connector types and wire lengths

• One replacement wiring harness

• Disconnect power to the appliance before starting work to avoid shock or injury
• Compare the replacement harness to the original for connector type, pin count and wire routing before installing
• Route and secure the harness away from heat sources and moving parts; use existing clips or ties where provided

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
