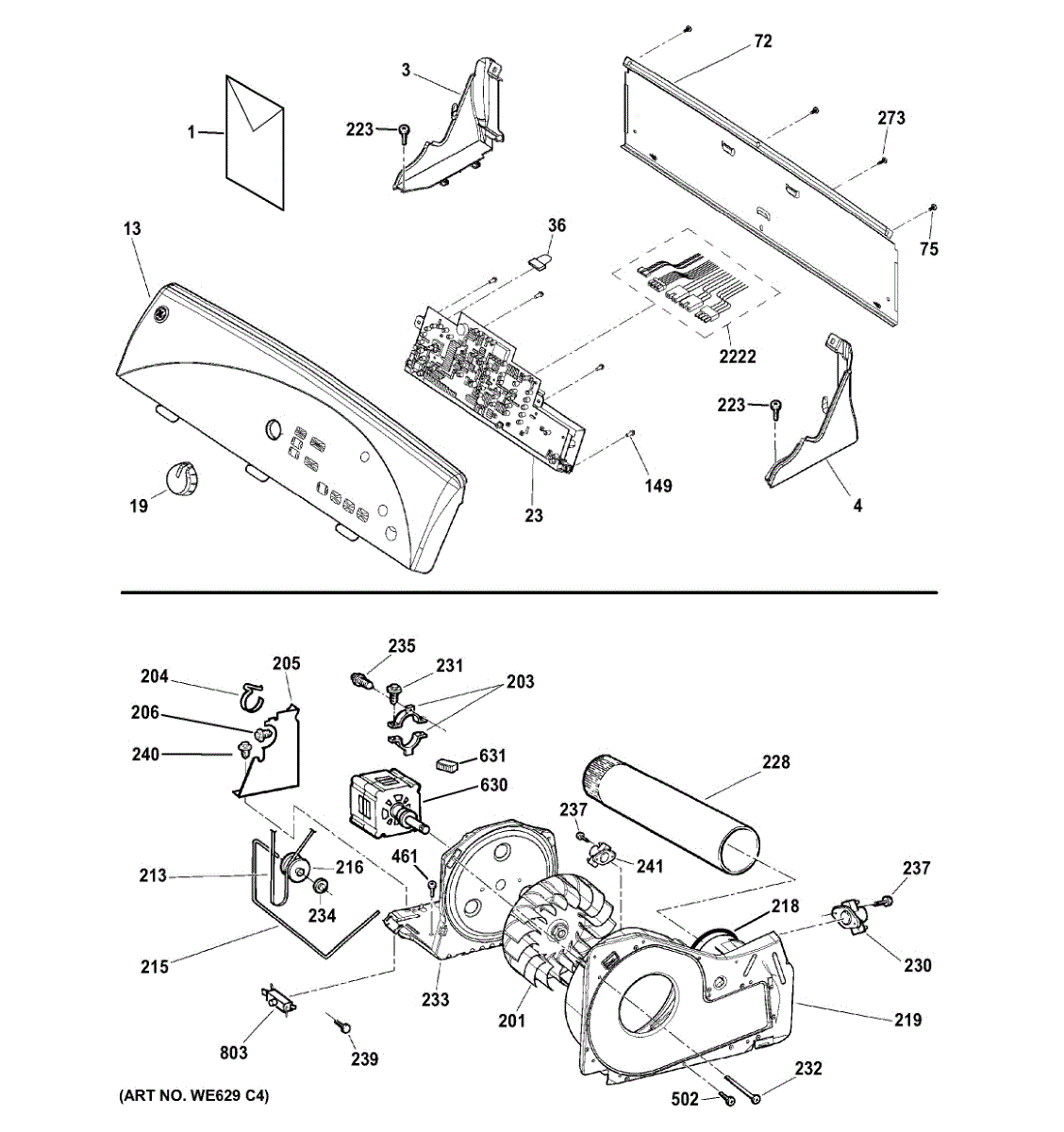

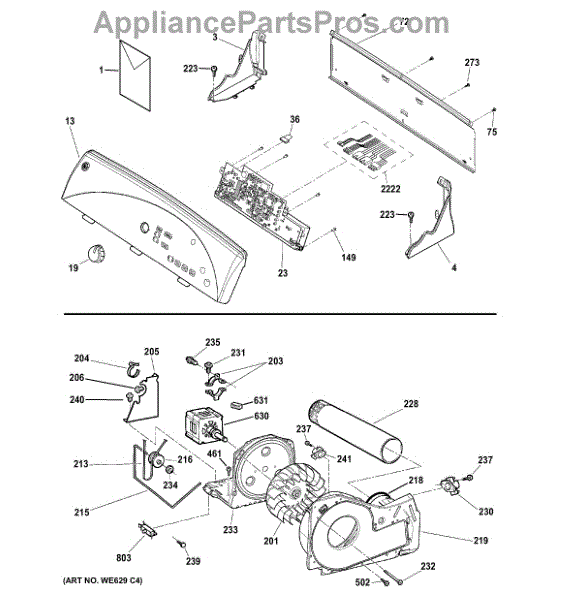

Parts for Ge GTDS560EF2WS: Backsplash Blower Drive Assembly Parts

Left-hand endcap for dryer drum assembly. Secures and supports the drum end. Replace if cracked, broken, or missing to restore proper drum support.

Fix a dryer that won't start, stops mid-cycle, or shows error codes with this control board assembly. Direct-fit part for electronic control issues.

Replacement rear panel for dryers. Restores the cabinet's back surface when the original is dented, rusted, cracked, or damaged. Secures and protects internal wiring and components.

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

8-18 hi/lo 5/8

Dryer barely blowing air or taking forever to dry? A worn blower wheel fails to pull air through the drum. This wheel restores airflow for efficient drying.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

Secures your dryer motor to the cabinet to reduce vibration and noise. Replace if motor shifts or rattles during operation. Confirm fit with your model.

Metal bracket that secures the dryer motor and blower assembly in place. Replace if your mounting bracket is cracked, broken, or causing loose components.

Secures the ground wire to the dryer cabinet for safe electrical connection. Replace if missing, stripped, or corroded to restore proper grounding.

Transfers power from motor to drum in your dryer. Replace if squeaking, not spinning, or visibly worn. Confirm fit with your model number before ordering.

Supports the idler pulley to maintain proper belt tension in your dryer. Replace if the arm is warped, cracked, or causing belt tracking issues.

Seals the blower-to-exhaust duct connection in your dryer. Replace if torn, brittle, or causing heat loss and longer dry times. Confirm fit by model.

Replacement screw for dryer panels and brackets. Secures loose or rattling components. Restores stable fastening when original is missing or stripped.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Fix a dryer that won't heat with this outlet backup thermostat. Mounts on exhaust duct for over-temperature protection. DIY repair in under 1 hour.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Replacement mounting screw for dryer panels and components. Needed when original screws are stripped, missing, or damaged during repair or maintenance.

This motor plate is the stamped mounting plate that secures and positions the motor assembly in the appliance, keeping the motor aligned and stable for reliable operation. It helps reduce vibration and keeps drive components in proper relation. What it does:

• Provides a secure mounting surface for the motor to prevent movement during operation
• Maintains motor alignment to ensure belts, pulleys, or blowers run true
• Helps reduce noise and vibration from a loose or misaligned motor assembly
• Can prevent rubbing or intermittent contact between the motor and cabinet

• Disconnect power (and gas if applicable) before starting any repair
• Installation typically requires hand tools; support the motor while removing and reinstalling fasteners
• Reuse original hardware only if undamaged; replace any stripped or corroded fasteners
• Verify motor alignment and clearances after installation; run a short test cycle to ensure proper operation

10-16 x 1/2 mounting screw secures panels, brackets, and internal components in your dryer. Replace when stripped, missing, or corroded for stable assembly.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

Replacement mounting screw for dryer panels, brackets, and components. Needed when screws are missing, stripped, or damaged during repairs or disassembly.

Ground

Size: 8-32 t. Includes 12 screws.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

Dryer won't start, stops mid-cycle, or runs backward? The drive motor powers drum rotation. Moderate difficulty repair requires disassembly. Video guide.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
