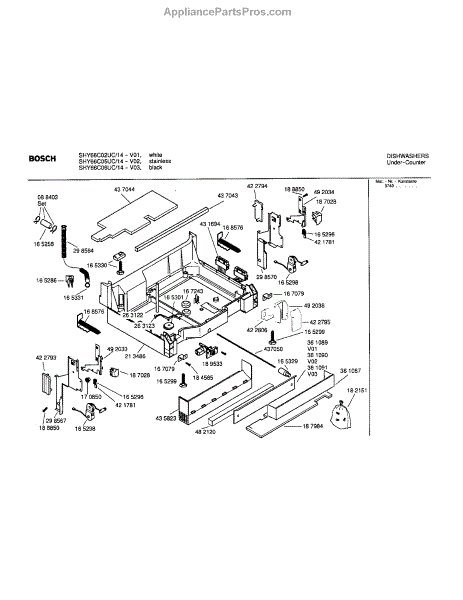

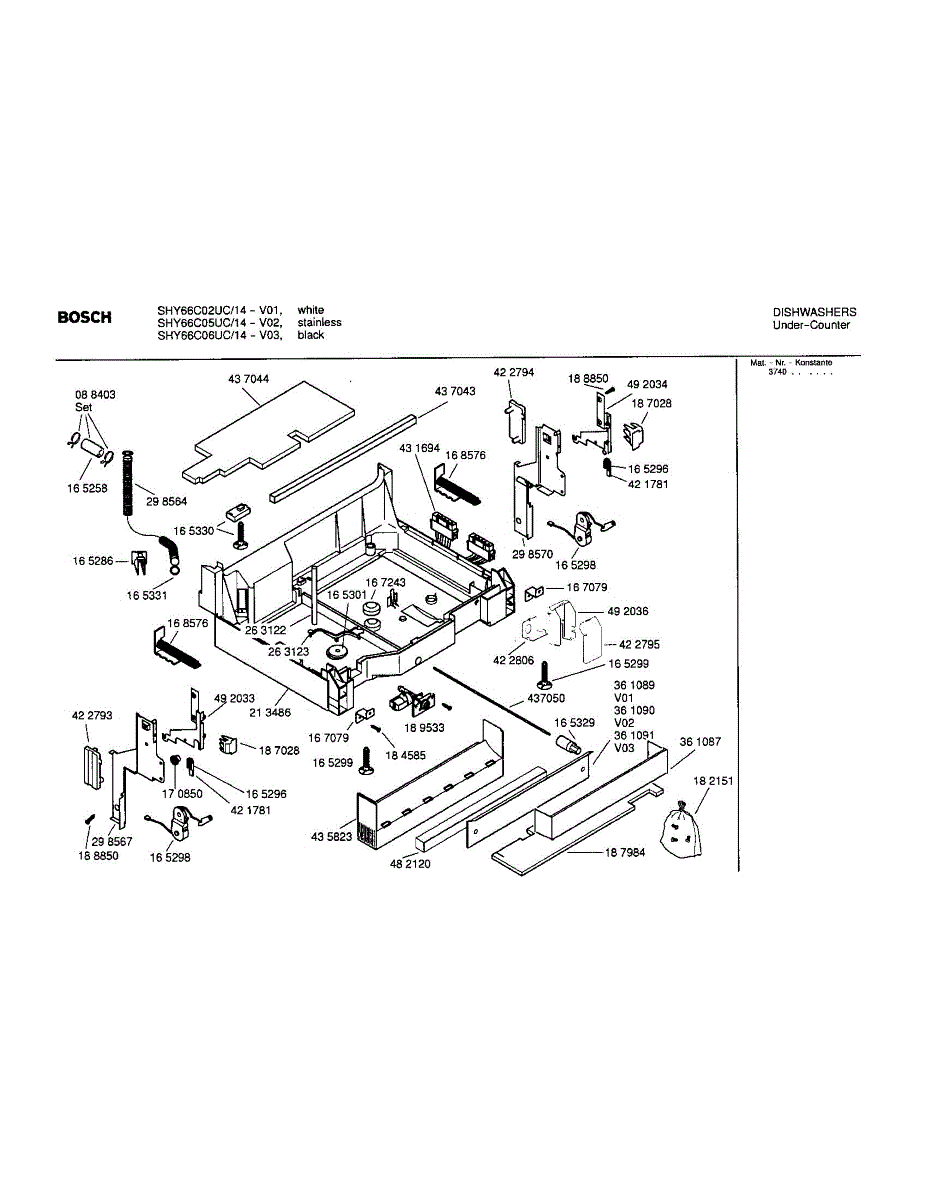

Parts for Bosch SHY66C02UC/14: Base Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

2 clamps included.

Black adapter connects dishwasher drain hose to another hose or fitting for secure wastewater routing. Replace when cracked, loose, or missing for leak-free.

Drain hose clamp

Plastic bushing that guides and supports the dishwasher door hinge assembly. Replace if cracked, broken, or worn causing noisy or misaligned door movement.

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Front leveling leg adjusts and supports your dishwasher at the front. Replace if damaged, missing, or worn to restore proper height and stability.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Replacement adjuster socket for dishwasher leveling feet. Installs at cabinet base to raise or lower the unit for level installation. Replace if cracked or stripped.

The leveling leg is an adjustable foot that screws into the bottom corner of your appliance to raise or lower that side independently. Properly adjusted legs keep the appliance stable, level, and reduce vibration or rocking during operation. Replace or adjust this part if your appliance wobbles, shakes excessively, or sits unevenly on the floor.

O-ring seal prevents leaks between dishwasher components. Replace when you notice water drips or moisture buildup. Confirm fit with your model number.

Metal mounting bracket that secures the toe kick panel to the bottom of your dishwasher. Replace if bent, broken, or missing to properly attach panel.

This is a hood or cover component used in a dishwasher assembly. It serves as a protective cover that shields internal components from moisture and debris during operation. Replace this part if the cover is cracked, warped, or missing, which can expose sensitive parts to water damage and affect the dishwasher's performance.

Left-side hinge spacer insert for dishwasher door assembly. Replaces cracked, broken, or missing spacers. Ensures proper door alignment and spacing.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

Cotton sound-dampening pad installs under the dishwasher tub base. Replace if worn, torn, missing, or compressed to restore noise reduction.

Single Torx T20 screw secures dishwasher panels, brackets, and trim. Replace missing, stripped, or damaged fasteners to keep components tight.

Fix a dishwasher that won't fill with water or leaks when not in use. This water inlet valve controls water flow during the fill cycle. DIY repair.

This is a tube-shaped actuator component used in the dishwasher's float switch assembly. It helps transmit the position of the float to the switch, which controls the water level inside the tub. Replace this part if the dishwasher is overfilling, not filling with water, or if the float mechanism feels loose or unresponsive.

Dishwasher overfilling or won't stop filling? This float switch lever activates the water level sensor. Simple DIY fix restores proper fill control.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replaces cracked, kinked, or leaking dishwasher drain hose. Connects unit to household drainage system. Essential when hose is damaged or worn.

Left side door hinge plate for your dishwasher. Replaces cracked, broken, or worn hinge plates that cause door misalignment or instability.

Right side door hinge plate for dishwashers. Secures the door hinge mechanism to the frame. Replace if cracked, broken, or damaged to restore proper fit.

This kick plate covers the space at the bottom front of your dishwasher, providing a finished appearance. It replaces a damaged or missing plate that exposes the dishwasher's base components or affects the kitchen's appearance.

Plastic bushing that guides and supports the dishwasher door hinge assembly. Replace if cracked, broken, or worn causing noisy or misaligned door movement.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

Replace a broken or cracked dishwasher detergent dispenser cover that won't latch or leaks detergent during cycles. Restores proper seal and function.

Replaces cracked or missing stress relief grommet on your dishwasher. Installs at wire entry point to protect cables from damage and wear.

Plastic toe panel that installs at the base of your dishwasher. Replace if the original is cracked, broken, warped, or missing to restore appearance.

Insulation pad for dishwashers. Installs underneath or around the tub to reduce noise and retain heat. Replace if torn, compressed, or missing.

Is your dishwasher overheating or damaging nearby components? This thermal insulator reduces heat transfer and protects parts. Simple installation.

Replacement rod for your dishwasher. Restores proper function when the original is bent, broken, or missing. Direct fit installation.

This cotton insulation piece provides noise- and heat-damping for the appliance cabinet area, helping reduce operating sound and limiting heat transfer around the tub. Designed to replace worn or damaged insulation for a snug fit and quieter operation. What it does:

• Reduces operating noise by adding a sound-dampening layer around the tub area
• Helps limit heat transfer from the heater/tub to surrounding panels
• Provides a protective barrier to reduce vibration-related noise
• Restores the original insulation barrier when the old material is compressed or torn

• One cotton insulation panel, white, 46 dB variant

• Disconnect power and water supply before beginning any service
• Handle the insulation gently to avoid tearing; wear gloves and a dust mask if needed
• Remove access panels and old insulation, then position and secure the new piece in the same orientation
• Reinstall panels and restore power; test for proper operation and reduced noise

Left-hand hinge lever for dishwasher doors. Assists door opening and closing through pivoting motion. Replace if cracked, broken, or damaged from overextension.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
