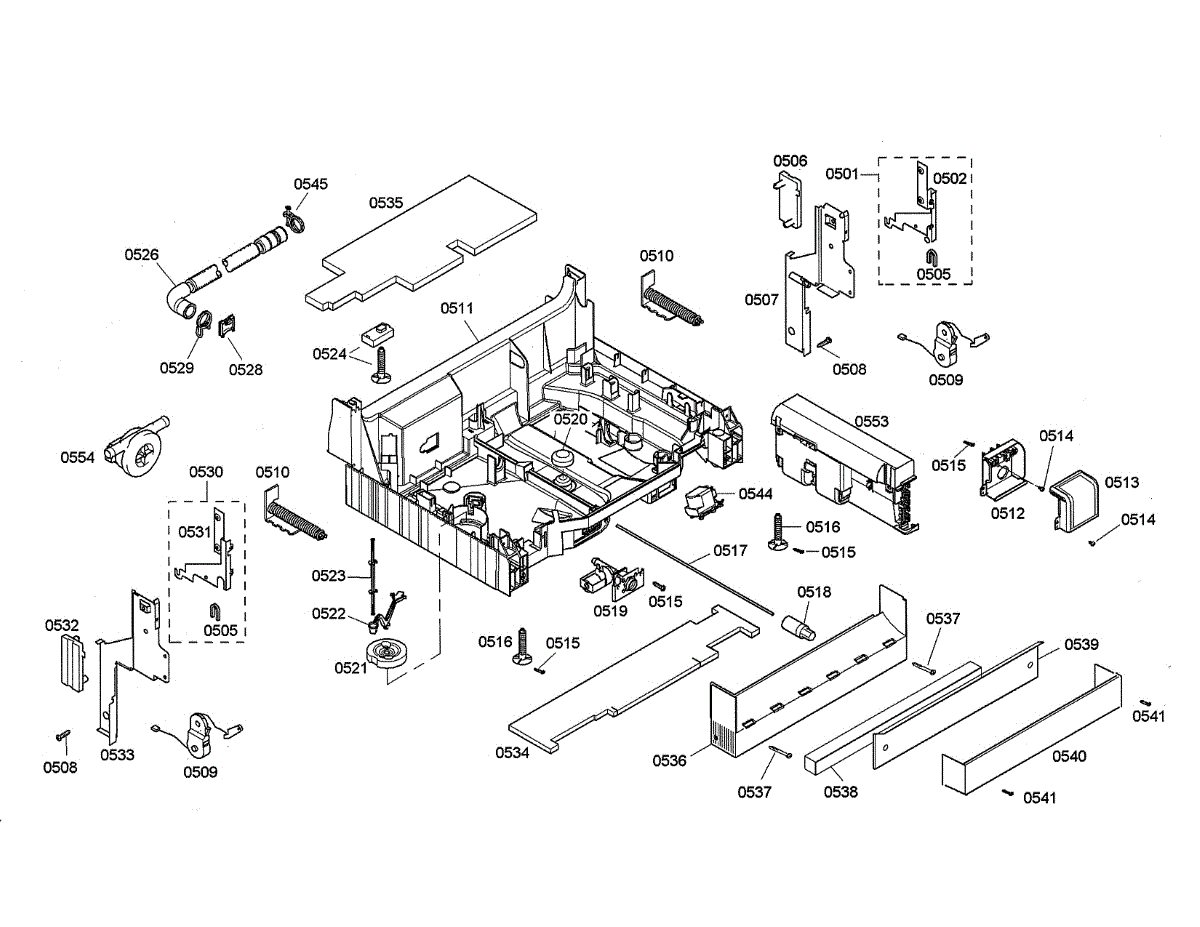

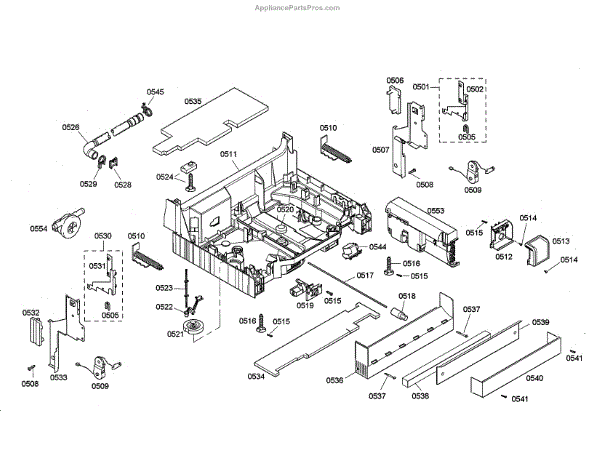

Parts for Bosch SHE68M05UC/50: Base / Control Module Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

Plastic bushing that guides and supports the dishwasher door hinge assembly. Replace if cracked, broken, or worn causing noisy or misaligned door movement.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

Right side door hinge plate for dishwashers. Secures the door hinge mechanism to the frame. Replace if cracked, broken, or damaged to restore proper fit.

Single Torx T20 screw secures dishwasher panels, brackets, and trim. Replace missing, stripped, or damaged fasteners to keep components tight.

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Restores proper door balance on your dishwasher. Replaces a worn, broken, or missing door hinge spring that causes sagging or doors that won't stay open.

Replace a cracked or damaged dishwasher bottom case. This structural component forms the lower housing of your dishwasher, protecting internal parts.

Dishwasher won't start or keeps tripping the breaker? A damaged terminal box with melted connections is often the cause. Moderate DIY repair.

Replace a missing or damaged junction box cover on your dishwasher. Protects power supply and control board wiring connections. Easy DIY repair.

This replacement screw secures appliance panels and internal brackets so components stay tight and aligned during everyday use. Replacing missing or stripped hardware restores a solid fit and helps minimize vibration and rattling.

• Fastens covers, panels, and brackets to their mounting points
• Helps maintain alignment of the attached component
• Reduces movement that can cause noise or wear
• Typical reasons to replace: missing screw, stripped head/threads, loose panel or bracket

• Disconnect power and, if applicable, shut off water before servicing
• Use the driver bit specified for your model; hand start threads to avoid cross-threading
• Tighten snugly without over-torquing to prevent stripping
• Replace screws one at a time to maintain alignment

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

Replace a broken, worn, or missing dishwasher leveling leg. This adjustable foot installs at the front corner to stabilize and level your appliance.

Replacement rod for your dishwasher. Restores proper function when the original is bent, broken, or missing. Direct fit installation.

Replacement adjuster socket for dishwasher leveling feet. Installs at cabinet base to raise or lower the unit for level installation. Replace if cracked or stripped.

If your dishwasher won't fill with water or makes thumping noises, the water inlet valve likely needs replacement. Moderate DIY repair from base.

Replacement tank mounting bushing for your dishwasher. Secures the wash tank assembly in place. Order a new bushing if yours is cracked or missing.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dishwasher overfilling or won't stop filling? This float switch lever activates the water level sensor. Simple DIY fix restores proper fill control.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement drain hose for dishwashers. Carries wastewater from the tub to household plumbing. Replace if cracked, leaking, or develops pinholes.

Secures dishwasher wiring harness where it passes through cabinet. Replace if clip is cracked, broken, or missing to protect wires from strain and chafing.

Secures hoses to fittings, preventing leaks at connections. Replace when clamps lose tension or show corrosion. Confirm fit with your model number.

Left-hand hinge lever for dishwasher doors. Assists door opening and closing through pivoting motion. Replace if cracked, broken, or damaged from overextension.

Left-hand hinge lever for dishwasher doors. Assists door opening and closing through pivoting motion. Replace if cracked, broken, or damaged from overextension.

Left side door hinge plate for your dishwasher. Replaces cracked, broken, or worn hinge plates that cause door misalignment or instability.

Is your dishwasher overheating or damaging nearby components? This thermal insulator reduces heat transfer and protects parts. Simple installation.

The Toe Panel Screw is an OEM replacement part for Bosch dishwashers. It secures the toe panel to the dishwasher.

Causes may involve normal wear and tear over time, improper installation, or damage from excessive force or impact. Replacing with this genuine OEM screw will reinforce your Bosch dishwasher's integrity for reliable performance.

Symptoms of a bad toe panel screw can include:

• The toe panel becoming loose, cracked, or removable
• Internal components visible underneath a loose toe panel
• Strange noises or vibration emanating from the toe panel area

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

This cotton insulation piece provides noise- and heat-damping for the appliance cabinet area, helping reduce operating sound and limiting heat transfer around the tub. Designed to replace worn or damaged insulation for a snug fit and quieter operation. What it does:

• Reduces operating noise by adding a sound-dampening layer around the tub area
• Helps limit heat transfer from the heater/tub to surrounding panels
• Provides a protective barrier to reduce vibration-related noise
• Restores the original insulation barrier when the old material is compressed or torn

• One cotton insulation panel, white, 46 dB variant

• Disconnect power and water supply before beginning any service
• Handle the insulation gently to avoid tearing; wear gloves and a dust mask if needed
• Remove access panels and old insulation, then position and secure the new piece in the same orientation
• Reinstall panels and restore power; test for proper operation and reduced noise

This dishwasher door seal fits into the channel around the tub opening to create a tight, water-resistant barrier when the door closes. Replacing a worn seal helps stop leaks at the front of the unit and keeps cycles running efficiently. What it does:

• Forms a watertight perimeter seal between the tub and door
• Helps contain water and steam during wash and rinse cycles
• Aids proper door compression for reliable closing
• Common symptoms: water on the floor at the front, drips from door corners, visible cracks/flattening, or gaps in the gasket

• 1 door seal

• Disconnect power and turn off water supply before servicing
• Remove the old seal and clean the gasket channel thoroughly
• Start at the top center and press the new seal evenly into the groove without stretching
• Close the door to check for uniform compression, then run a short test cycle to inspect for leaks

This interference capacitor reduces electrical noise and helps protect the appliance's control circuitry from voltage spikes. It's a direct-replacement noise suppressor used where EMI/RFI filtering is required for reliable operation. What it does:

• Suppresses electromagnetic and radio-frequency interference that can affect controls and electronics
• Helps prevent false signals or erratic behavior caused by electrical noise
• Supports stable operation of motors and electronic control boards
• Can reduce audible electrical noise or interference-related symptoms

• Disconnect power at the breaker before inspecting or replacing the capacitor
• Discharge the capacitor and avoid touching terminals; use insulated tools
• Verify wiring match and polarity before connecting

Spring-style hose clamp secures water hoses to prevent leaks at connections. Replace if worn, rusted, or if you notice dripping around hose fittings.

The Control Unit is an OEM part for Bosch dishwashers. It is responsible for controlling receiving and interpreting signals from the control panel and other sensors in the dishwasher. It coordinates the timing and sequencing of different parts, such as the motor, water inlet valve, and heating element.

A bad control unit can occur due to electrical malfunctions, power surges, or part failure. Signs of a faulty module include the dishwasher not starting, error codes on the display, or erratic behavior during the cycle.

Symptoms of a bad control unit include:

• The dishwasher not starting or responding
• Error codes displayed
• Interruptions of the cycle

Replace your faulty control unit with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Impeller Jug is an OEM part for Bosch dishwashers. Located inside the wash chamber, the impeller jug is responsible for evenly distributing water throughout the dish rack during the wash cycle. It features strategically placed holes and channels that work with the spray arms to direct water flow and ensure all dishes receive thorough coverage.

Symptoms of a bad impeller jug include:

• Incomplete cleaning even on short or heavy wash cycles
• Dirty dishes remaining at the end of the cycle
• A buildup of food or grime deposits inside the wash chamber
• Off-balanced or excessive noise levels during washing

Causes of failure can be mineral or scale buildup inhibiting water flow, cracked or damaged casing allowing leaks, or worn impeller fins no longer efficiently dispersing water. Over time, hard water deposits and normal use can degrade performance.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
