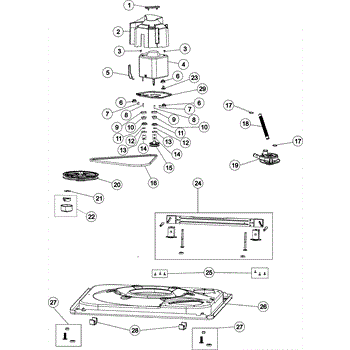

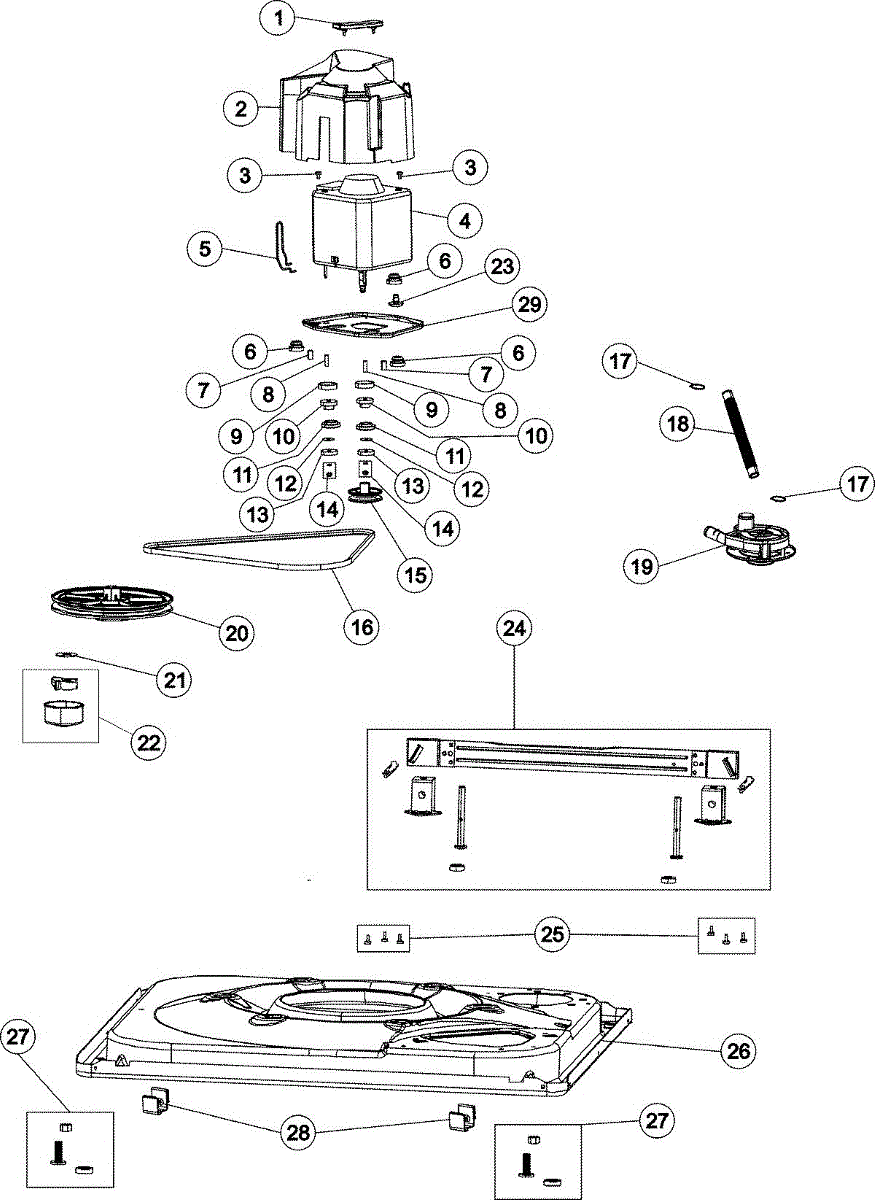

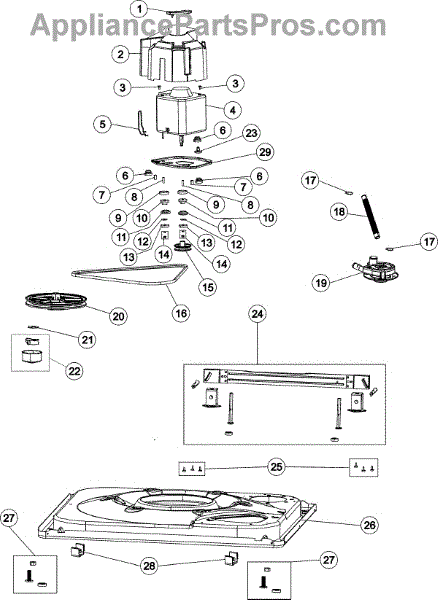

Parts for Magic Chef CAV2005AWW: 01 - Base & Motor Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Specs: 10-16 x 1/2 inch.

The Motor Assembly is an OEM part for Whirlpool washing machines. It drives the agitator and drum, enabling the machine to effectively clean and rinse clothes during the wash cycle. The motor assembly is crucial for the proper operation and performance of the washing machine.

Over time, the motor assembly can wear out or become damaged due to factors such as heavy usage, electrical issues, or mechanical failures. These problems can lead to a malfunctioning motor, affecting the washer's ability to operate correctly.

Symptoms of a bad Motor Assembly include:

• The washer not spinning or agitating
• Unusual noises during operation
• The drum not moving
• The washer failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Motor Spring is an OEM replacement part for Whirlpool top-loading washing machines. This spring applies proper tension to the agitator assembly during wash cycles.

Causes of a bad motor spring can include damage from unintended impacts or fatigue after extended use. Over time, constant movement may cause the spring to weaken.

Symptoms of a bad motor spring include:

• Inadequate cleaning as clothes don't tumble vigorously
• Excessive noise or vibration from the off-balance agitator
• Stalling or failure of the agitator to rotate fully

This OEM Whirlpool replacement is also compatible with some Kenmore, Admiral, Estate, and Roper top-load washer models as well.

Motor plate isolator.

Drive motor isolator.

This motor isolator is a rubber mounting that cushions and secures the washer motor, reducing vibration and noise during spin cycles and helping protect the motor and chassis from premature wear. What it does:

• Cushions the motor to reduce vibration and minimize rattle and noise during operation
• Keeps the motor properly positioned to prevent rubbing or misalignment
• Helps protect motor and surrounding components from shock and movement
• Common symptom linkage: excessive vibration, loud noise during spin, or visible motor shifting

• Disconnect power to the appliance before starting any work.
• This part mounts between the motor and chassis; access typically requires tilting or removing the washer cabinet or accessing the underside.
• Inspect adjacent mounts and fasteners; replace any worn hardware and use the exact OEM part for proper fit.

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

The Motor Assembly is an OEM part for Whirlpool washing machines. It drives the agitator and drum, enabling the machine to effectively clean and rinse clothes during the wash cycle. The motor assembly is crucial for the proper operation and performance of the washing machine.

Over time, the motor assembly can wear out or become damaged due to factors such as heavy usage, electrical issues, or mechanical failures. These problems can lead to a malfunctioning motor, affecting the washer's ability to operate correctly.

Symptoms of a bad Motor Assembly include:

• The washer not spinning or agitating
• Unusual noises during operation
• The drum not moving
• The washer failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Washer Drive Belt is an OEM part for Whirlpool washing machines. It is crucial for transmitting the power from the motor to the drum, enabling the washing machine to tumble and spin during the wash and spin cycles. The drive belt wraps around the motor and drum pulleys, providing the necessary traction and tension to operate efficiently.

Causes of a bad Washer Drive Belt can include stretching over time, which reduces its efficiency to grip the pulleys properly, or fraying and cracking due to age and normal wear and tear. Misalignment or improper installation can also lead to premature belt failure.

Symptoms of a bad Washer Drive Belt include:

• The washing machine failing to spin or agitate.
• A burning smell or unusual noises during operation, indicating slippage or rubbing.
• Visible signs of wear like cracks, fraying, or noticeable looseness on the belt.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Washer Tub to Pump Hose is an OEM part for Whirlpool washing machines. This hose connects the washer tub to the drain pump, facilitating the proper drainage of water from the tub during the wash and spin cycles.

Causes of a bad tub to pump hose can include wear and tear from frequent use, blockages from lint or debris, and damage from overloading the washer or mishandling during maintenance.

Symptoms of a bad tub to pump hose include:

• Leaks during the wash or spin cycles
• Water not draining properly from the washer
• Visible cracks, holes, or wear in the hose
• Unusual noises during the drain cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Washer Drain Pump Assembly is an OEM part for Whirlpool washing machines. This component is vital for draining water from the washer drum during the wash and rinse cycles. The pump forces water out of the drum and through the drain hose, ensuring that clothes are cleaned and rinsed effectively.

Symptoms of a failing Washer Drain Pump Assembly include:

• Water not draining from the washer, leaving clothes wet
• Unusual noises during the drain cycle, such as humming or grinding
• Error codes on the washer's display indicating drainage issues
• Water leaks from the pump area or from the washer
• The washer stopping mid-cycle due to drainage problems

Causes of a bad drain pump assembly can include obstructions from debris, wear and tear on the pump motor over time, electrical issues such as short circuits, or damage from improper installation or usage.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: This pump has been redesigned and the mounting plate is no longer required. It now mounts directly to the base of the washer.

The Thrust Bearing Kit is an OEM part for Whirlpool washing machines. This kit is essential for the proper operation of the washer's transmission system, allowing the drive system to engage smoothly and efficiently.

Over time, components within the thrust bearing kit can wear down or become damaged due to the constant stress and movement they endure during the wash cycle. This wear can lead to issues with the washing machine's ability to agitate or spin correctly.

Symptoms of a bad Thrust Bearing Kit include:

• The washing machine is noisy during operation
• The washer struggles to agitate or spin
• The washing machine may fail to spin at all, leaving clothes wet at the end of the cycle
• Excessive vibration during use

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 1.25OD x .530IDX.

The Thrust Bearing Kit is an OEM part for Whirlpool washing machines. This kit is essential for the proper operation of the washer's transmission system, allowing the drive system to engage smoothly and efficiently.

Over time, components within the thrust bearing kit can wear down or become damaged due to the constant stress and movement they endure during the wash cycle. This wear can lead to issues with the washing machine's ability to agitate or spin correctly.

Symptoms of a bad Thrust Bearing Kit include:

• The washing machine is noisy during operation
• The washer struggles to agitate or spin
• The washing machine may fail to spin at all, leaving clothes wet at the end of the cycle
• Excessive vibration during use

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This kit is used to fix balance problems. Kit includes a new base, heavy duty springs and a snubber.

Includes leg, foot pad and locknut.
