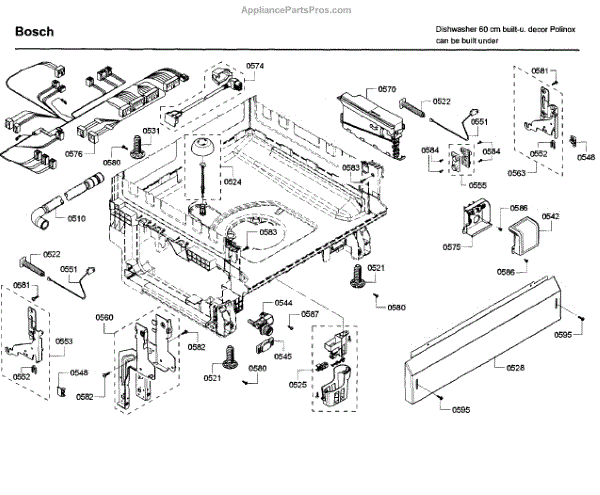

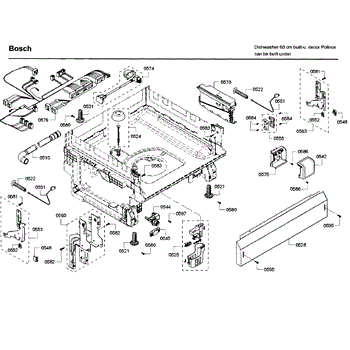

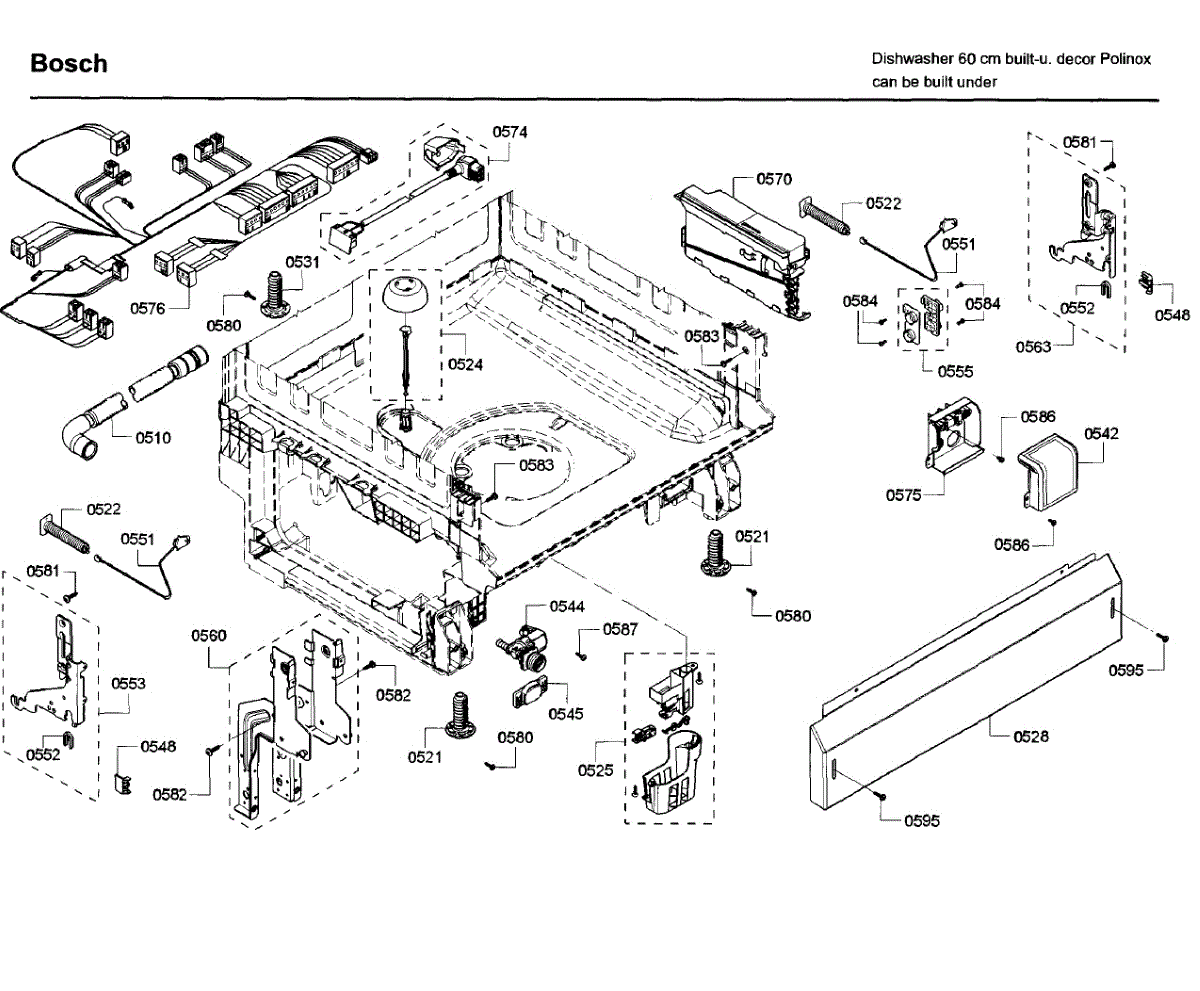

Parts for Bosch SHE3AR72UC/22: Base Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Hose is an OEM part for Bosch dishwashers. This hose is responsible for carrying the wastewater out of the dishwasher and into the household plumbing system during the draining cycle. It ensures the efficient removal of dirty water, allowing the dishwasher to function correctly and maintain optimal cleaning performance.

Causes of a bad drain hose can include blockages from food particles or debris, kinks or twists in the hose, or damage from wear and tear over time. If the drain hose is compromised, it can lead to drainage problems and potential water leaks.

Symptoms of a bad drain hose include:

• Water not draining from the dishwasher
• Puddles of water around or under the dishwasher
• Error codes related to drainage issues
• Visible damage or cracks in the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Leveling Leg is an OEM replacement part for Bosch dishwashers. It permits adjustment to compensate for uneven floor surfaces, leveling the dishwasher, and ensuring proper drainage. Precise leveling facilitates water collection and effective cleaning performance.

Symptoms of a bad leveling leg can include broken or stripped threads preventing adjustment, and conditions that promote rocking during operation.

Causes of a bad leveling leg include:

• Loose or unstable mounting where legs spin freely
• Legs unable to securely lock into position once adjusted
• Drainage issues such as standing water or poor rinsing
• Excessive vibration or noise heard from the leveling area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement spring restores proper tension to the linked mechanism so it moves smoothly and returns to its intended position. Replacing a worn or broken spring helps correct looseness, sticking, and misalignment in the affected assembly. What it does:

• Provides return force and tension for the associated latch, lever, or panel
• Helps the mechanism open/close smoothly and stay in position
• When weakened or broken, can cause poor latching, sluggish return, or a loose feel
• Reduces squeaks or rattling from an under-tensioned mechanism

• 1 spring

• Disconnect power to the appliance before servicing; shut off water or gas if applicable
• Note spring orientation and anchor points before removal; take reference photos
• Use needle-nose pliers to remove/attach the spring; mind pinch points and stored tension
• Refer to your model's parts diagram for routing and placement

This replacement hood canopy restores the exterior cover of the range hood to protect internal components and maintain proper ventilation performance and appearance. It's a direct-fit exterior panel that replaces damaged or dented hoods. What it does:

• Covers and protects internal fan, light, and wiring from grease and debris
• Channels exhaust airflow through the hood body to the vent system
• Restores proper fit and finish when the original hood is bent, dented, or corroded
• Helps reduce visible gaps and rattling caused by a damaged outer panel

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Wear gloves and eye protection to guard against sharp edges and debris
• Removal/installation may require basic hand tools and a second person to support the panel
• Follow the appliance manufacturer's service instructions for proper alignment and fastening

Replacement housing that restores the appliance's outer enclosure and helps protect internal components from damage. Use this part when the original housing is cracked, broken or otherwise compromising appliance stability and appearance. What it does:

• Replaces a damaged outer housing to restore structural support and component protection.
• Helps reduce vibration and rattling caused by cracked or loose enclosure pieces.
• Prevents direct exposure of internal parts to dirt and moisture when intact.
• Improves the appliance's appearance by covering worn or broken bodywork.

• Disconnect power (and water supply if applicable) before beginning any repair.
• Remove control panels or trim as needed to access the housing; keep fasteners for reuse if undamaged.
• Handle edges carefully—metal or molded parts can be sharp.
• Verify part fit and orientation against the old housing before finalizing installation.

The Panel-Base is an OEM part for Bosch dishwashers.

Causes of a bad panel-base can include long-term wear and tear from normal operation, subjecting it to excess weight or strain, or accidental damage from moving or transporting the dishwasher.

Symptoms of a failing panel-base include:

• Warping or bending of the sheet metal
• Loosening or detachment from adjacent parts
• Cracks or breaks appearing in welds/seams
• Leaks developing from compromised seals

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Leveling Foot is an OEM part for Bosch dishwashers. It is designed to provide stability by allowing you to adjust the height of the dishwasher, ensuring it is level on uneven flooring.

Causes of a bad leveling foot can include wear and tear over time, damage from excessive force or impact, or thread stripping from frequent adjustments.

Symptoms of a bad leveling foot include:

• The dishwasher rocking or wobbling during operation
• Difficulty in achieving a level position
• Increased noise or vibration when the dishwasher is running

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Junction Box Cover is an OEM part for Bosch dishwashers. Located at the rear of the appliance, the junction box houses connections to the power supply and control board wiring. The junction box cover protects these internal electronic parts.

Symptoms of a bad junction box cover can include:

• Cracks, breaks or missing pieces of the plastic casing
• Exposed wires posing risk of electric shock
• Difficulties accessing internal components for service or repairs
• Potential water damage into electrical components

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Water Inlet Valve is an OEM part for Bosch dishwashers. This part controls the flow of water into the dishwasher during the wash and rinse cycles. The valve ensures that the correct amount of water enters the appliance.

Common causes of a bad valve include mineral buildup from hard water, electrical issues, or wear and tear over time.

Symptoms of a bad water inlet valve include:

• Dishwasher not filling with water
• Low water pressure during cycles
• Leaks or water pooling under the dishwasher
• Dishes not being cleaned properly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This lock clamp secures the dishwasher door latch assembly to help keep the door aligned and allow the latch to engage properly. Replaces a worn or broken clamp to restore reliable door closure and normal cycle starts. What it does:

• Holds the door latch/lock assembly in the correct position so the door can latch and the cycle can begin
• Commonly replaced when the door feels loose, the latch won't engage, or the door doesn't stay closed
• Helps prevent intermittent door-open errors caused by a misaligned or damaged clamp
• Works as part of the latch/lock system; does not include the entire latch or switch

• Basic hand tools typically required; disconnect power before starting and verify the appliance is powered off
• Remove inner door panel or access panel per manufacturer instructions to reach the latch area
• Handle sharp edges carefully; reassemble panels and test the door latch engagement before full use

The Support is an OEM part for Bosch dishwashers. This part supports the door hinges, ensuring that the dishwasher door opens and closes smoothly and securely. The hinge support is vital for maintaining the alignment of the door, preventing stress on other components, and ensuring a proper seal during operation to avoid leaks.

Causes of hinge support failure often include mechanical wear and tear from frequent use, accidental damage from forceful handling, or corrosion from exposure to moisture and cleaning chemicals.

Symptoms of a failing dishwasher door hinge support include:

• Difficulty in opening or closing the dishwasher door
• A door that hangs unevenly or does not close fully
• Noticeable creaks or squeaks during door movement
• Increased effort required to operate the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Cable is an OEM part for Bosch dishwashers. It plays an essential role in the mechanism that controls the movement of the dishwasher door, allowing it to open and close smoothly and safely. This cable connects the door to the spring, providing the necessary tension and support to prevent the door from slamming shut or dropping open too quickly, which can be hazardous and potentially cause damage.

Symptoms of a failing Hinge Cable include:

• The dishwasher door suddenly dropping open
• Difficulty in opening or closing the door smoothly
• The door feeling unusually heavy or not staying in place when opened
• A snapping sound when trying to open or close the door, indicating a potential break

Causes of a bad hinge cable often involve fraying or snapping due to the constant tension and movement, general wear from frequent use, or corrosion from exposure to moisture and detergents.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Note: This is a Cable Kit. (Includes 2 cables)

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This adjusting device helps align and fine-tune moving parts so doors and components operate smoothly. It's a direct-fit replacement designed to restore proper adjustment and reliable positioning for compatible Bosch appliances. What it does:

• Provides precise adjustment of movable assemblies to correct alignment issues
• Helps reduce binding, rubbing, or uneven gaps at doors or panels
• Restores intended movement and positioning for better operation
• Works as the factory replacement part specified for alignment tasks

• One adjusting device

• Designed for direct replacement; use the appliance's service instructions or OEM guide for correct placement
• Turn off power to the appliance before servicing to avoid injury
• Keep fasteners and mounting orientation the same as the original part during installation

This door pivot hinge secures and guides an appliance door so it opens and closes smoothly, helping maintain proper door alignment and sealing. It's a direct-fit replacement designed to restore stable door operation. What it does:

• Provides a pivot point to support the appliance door and maintain alignment
• Helps ensure the door closes fully to preserve internal temperature and performance
• Reduces door sag, rubbing, or misalignment that can cause uneven wear or gaps
• Can stop squeaks or binding caused by a worn or damaged hinge

• One hinge

• Disconnect power and empty the door area before starting; follow manufacturer safety instructions
• Support the door during removal and installation to prevent damage or injury
• Use existing fasteners unless replacements are specified by the manufacturer
• Tighten mounting hardware securely and check door alignment after installation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Power Module Programmed is an OEM component specifically designed for advanced Bosch dishwashers. It serves as the intelligent control center, enabling customized cycles tailored for optimal washing results. The programmed power module analyzes load sizes and soil levels to self-adjust water, temperatures, and cycles accordingly.

Causes of failure can include defects in electronic programming from harsh chemicals or water exposure over time. Physical damage such as pins or connections becoming dislodged may also hinder function.

Symptoms include:

• Inability to run specialized cycles like Quick Wash or Glass Care
• Defaulting to only standard cycles regardless of load type
• Fault codes or resetting of customized programming
• Full non-responsiveness requiring replacement

Replacing with this genuine Bosch module restores smart cycle optimization. It regulates washing perfectly for dishes, pots, pans, and delicate glassware alike. Compatible with Miele, Thermador, and select Asko models.


This cable supply is the factory replacement wire harness that delivers electrical power between components, restoring reliable connections and stable operation. Use it to replace damaged, frayed, or corroded supply wiring. What it does

• Provides the primary electrical connection between the appliance's power source and internal components.
• Restores continuity when the original cable is cut, burned, or shows visible wire damage.
• Helps stop intermittent power loss, control failures, or components that fail to start due to wiring faults.
• Maintains correct connector fit and routing to prevent shorting or chafing.

• One cable supply (wire harness) as shown.

• Always disconnect power (unplug appliance or switch off breaker) before inspecting or replacing wiring.
• Match connector shapes and wire colors to the original harness before installation; do not modify wires.
• Route the cable away from moving parts, sharp edges, and heat sources; secure with existing clips or fasteners.
• Clean or replace affected connectors to ensure a reliable connection.

The Terminal Box is an OEM part for Bosch dishwashers. It serves as the central hub for connecting electrical wires within the appliance, ensuring a safe and organized electrical system.

Over time, the terminal box can become damaged due to electrical malfunctions, corrosion, or physical impact. Wear and tear from regular use can also affect its integrity, leading to potential electrical issues.

Symptoms of a bad terminal box include:

• The dishwasher not starting or failing to complete cycles
• Intermittent power issues
• Burning smells or visible burns around the terminal box
• Electrical shorts or tripped circuit breakers

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

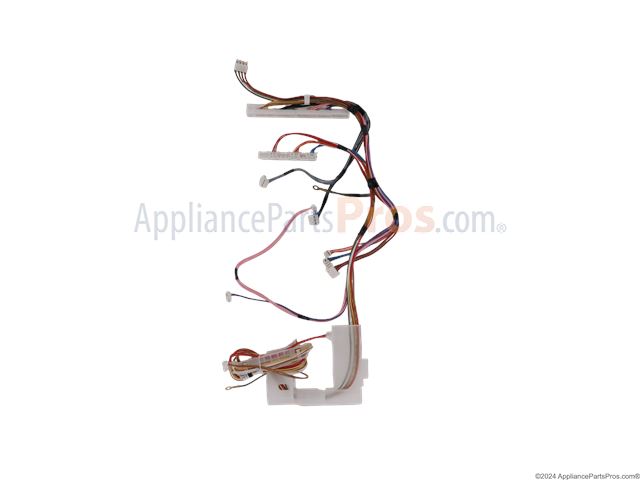

The CABLE HARNESS is an OEM part specifically designed for Bosch dishwashers. As the internal wiring backbone, it carries electrical signals operating all wash components according to cycles.

Symptoms of a faulty cable harness include:

• Random component failures due to intermittent connections
• Repeated error codes relating to components not responding
• Buzzing noises or excessive warmth around internal wires

Causes can be physical damage exposing wires, cracked wire insulation reducing conductivity over time, or broken connectors inhibiting communication.

This replacement harness restores function and integrity to the sensitive electrical pathways within the dishwasher. Proper voltage transmission is crucial for wash arms, the pump, the heater, and control boards to seamlessly activate in sequence during cleaning.

Compatible with premium Thermador, Gaggenau, and Kenmore models using matching Bosch systems technology, this OEM harness precisely follows original conduit paths.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

This is a single replacement mounting screw used to secure panels, trim, or components on compatible appliances. It restores proper fit and prevents parts from coming loose or vibrating during operation. What it does

• Secures panels, brackets, or components in place to maintain appliance alignment
• Stops rattling or vibration caused by loose fasteners
• Helps ensure switches, doors, or trims stay properly seated
• Replaces missing or stripped screws to restore original fit

• One replacement screw

• Use the correct driver and size; start threads by hand to avoid cross-threading
• Tighten securely but avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety precautions when accessing internal parts

This factory fastener secures panels, brackets, or internal components in your appliance, helping keep assemblies tight and rattle-free. Replace missing or stripped screws to restore a secure fit and dependable operation.

• Fastens components to the appliance frame, chassis, or panel assemblies
• Helps maintain alignment and reduce vibration or rattling
• Replaces lost, rusted, or stripped screws during service
• Common signs it's needed: loose panel or handle, vibration noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match the screw's location and length to the original from your model
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model's screw head

This replacement screw secures appliance panels and internal brackets so components stay tight and aligned during everyday use. Replacing missing or stripped hardware restores a solid fit and helps minimize vibration and rattling.

• Fastens covers, panels, and brackets to their mounting points
• Helps maintain alignment of the attached component
• Reduces movement that can cause noise or wear
• Typical reasons to replace: missing screw, stripped head/threads, loose panel or bracket

• Disconnect power and, if applicable, shut off water before servicing
• Use the driver bit specified for your model; hand start threads to avoid cross-threading
• Tighten snugly without over-torquing to prevent stripping
• Replace screws one at a time to maintain alignment

This factory screw secures appliance components per the original design, helping stop looseness and vibration. Replace a missing, stripped, or corroded fastener to restore a solid, rattle-free fit and protect nearby parts from damage.

• Secures panels, brackets, or internal components as specified by the manufacturer
• Helps maintain proper alignment and reduces vibration or rattling
• Replace if the head is stripped, threads are damaged, or the screw is missing
• Common signs include loose or misaligned panels/trim and hardware that won't stay tight

• Disconnect power and turn off water or gas supply as applicable before servicing
• Match length and thread to the original; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly without overtightening
• Retain any original washers, bushings, or clips used in the assembly

The Screw is an OEM part for Bosch dishwashers. It serves as a fastening component, securing the kickplate panel at the bottom of the dishwasher in place.

Causes of needing a replacement screw may include screws becoming stripped or damaged during installation or removal, corrosion or rust buildup on the screws over time, and screws going missing or getting lost during dishwasher maintenance.

Symptoms of an issue with the Screws include:

• A loose or rattling kickplate panel
• Difficulty properly aligning or securing the kickplate
• Visible gaps or an uneven fit of the kickplate

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
