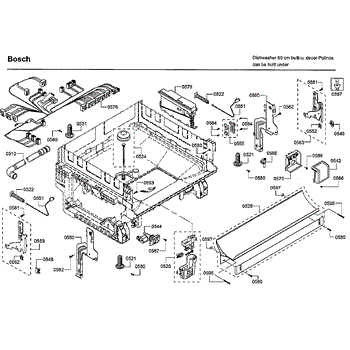

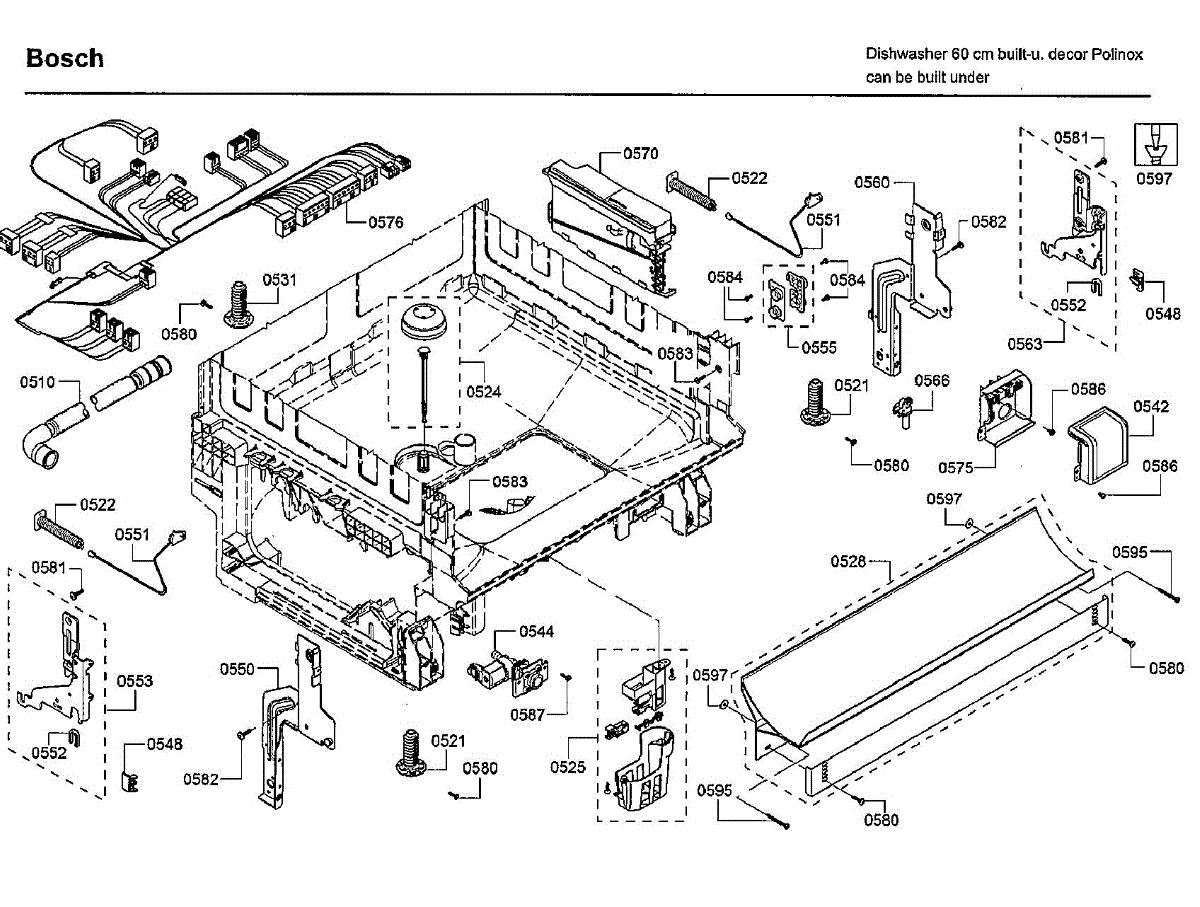

Parts for Bosch SHS5AVF5UC/01: Base Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Hose is an OEM part for Bosch dishwashers. This hose is responsible for carrying the wastewater out of the dishwasher and into the household plumbing system during the draining cycle. It ensures the efficient removal of dirty water, allowing the dishwasher to function correctly and maintain optimal cleaning performance.

Causes of a bad drain hose can include blockages from food particles or debris, kinks or twists in the hose, or damage from wear and tear over time. If the drain hose is compromised, it can lead to drainage problems and potential water leaks.

Symptoms of a bad drain hose include:

• Water not draining from the dishwasher
• Puddles of water around or under the dishwasher
• Error codes related to drainage issues
• Visible damage or cracks in the hose

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Leveling Leg is an OEM replacement part for Bosch dishwashers. It permits adjustment to compensate for uneven floor surfaces, leveling the dishwasher, and ensuring proper drainage. Precise leveling facilitates water collection and effective cleaning performance.

Symptoms of a bad leveling leg can include broken or stripped threads preventing adjustment, and conditions that promote rocking during operation.

Causes of a bad leveling leg include:

• Loose or unstable mounting where legs spin freely
• Legs unable to securely lock into position once adjusted
• Drainage issues such as standing water or poor rinsing
• Excessive vibration or noise heard from the leveling area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement spring restores proper tension to the linked mechanism so it moves smoothly and returns to its intended position. Replacing a worn or broken spring helps correct looseness, sticking, and misalignment in the affected assembly. What it does:

• Provides return force and tension for the associated latch, lever, or panel
• Helps the mechanism open/close smoothly and stay in position
• When weakened or broken, can cause poor latching, sluggish return, or a loose feel
• Reduces squeaks or rattling from an under-tensioned mechanism

• 1 spring

• Disconnect power to the appliance before servicing; shut off water or gas if applicable
• Note spring orientation and anchor points before removal; take reference photos
• Use needle-nose pliers to remove/attach the spring; mind pinch points and stored tension
• Refer to your model's parts diagram for routing and placement

Replacement hood canopy that restores the vent cover and exterior appearance of your range hood. Installs in place of a dented, rusted, or damaged canopy to keep ventilation components protected and maintain a finished look. What it does:

• Covers and protects internal blower, controls and filters from grease, dust and damage
• Directs exhaust airflow through the hood; bent or crushed can disrupt ventilation
• Restores exterior appearance—visible dents, rust or corrosion are common signs it needs replacement
• Provides the proper mounting surface for filters and related hood components

• Disconnect power to the appliance before starting any repair
• Retain existing mounting hardware and seals unless new hardware is specifically listed as included

Replacement housing that restores the appliance's outer enclosure and helps protect internal components from damage. Use this part when the original housing is cracked, broken or otherwise compromising appliance stability and appearance. What it does:

• Replaces a damaged outer housing to restore structural support and component protection.
• Helps reduce vibration and rattling caused by cracked or loose enclosure pieces.
• Prevents direct exposure of internal parts to dirt and moisture when intact.
• Improves the appliance's appearance by covering worn or broken bodywork.

• Disconnect power (and water supply if applicable) before beginning any repair.
• Remove control panels or trim as needed to access the housing; keep fasteners for reuse if undamaged.
• Handle edges carefully—metal or molded parts can be sharp.
• Verify part fit and orientation against the old housing before finalizing installation.

This Base Panel mounts at the bottom of the appliance to give a clean, finished look while shielding internal components from dust and impact. Replace a cracked, bent, or missing panel to restore proper coverage and reduce noise.

• Shields the lower chassis and wiring from dust and debris
• Provides a finished toe-kick/front appearance
• Helps maintain designed airflow and reduce noise at the base
• Typical reasons to replace: cracked, bent, missing, or won't fasten securely

• Disconnect power at the breaker; shut off gas
• Wear cut-resistant gloves—panel edges can be sharp
• Support the panel while removing fasteners; note orientation and any clips/insulation
• Transfer any reusable clips/insulation and secure the new panel without overtightening

The Leveling Leg is an OEM component specifically designed for Bosch dishwashers. This leg works to stabilize and balance the dishwasher evenly on any floor surface.

The leveling leg is responsible for ensuring the dishwasher remains level during operation. Proper leveling is crucial for preventing excess vibration or noise, as well as allowing the dishwasher door to align correctly.

Symptoms of a bad leveling leg can include:

• The dishwasher rocking or shuffling across the floor over time
• Excessive vibration or noise during wash cycles
• The dishwasher door not closing or sealing properly
• Difficulty leveling the dishwasher

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Junction Box Cover is an OEM part for Bosch dishwashers. Located at the rear of the appliance, the junction box houses connections to the power supply and control board wiring. The junction box cover protects these internal electronic parts.

Symptoms of a bad junction box cover can include:

• Cracks, breaks or missing pieces of the plastic casing
• Exposed wires posing risk of electric shock
• Difficulties accessing internal components for service or repairs
• Potential water damage into electrical components

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Water Inlet Valve is an OEM part for Bosch dishwashers. It controls the flow of water into the dishwasher, ensuring that the correct amount of water enters the machine during the wash and rinse cycles. This valve is crucial for maintaining the proper water levels for effective cleaning performance.

Common issues include blockages from mineral deposits, electrical malfunctions, or wear and tear from regular use.

Symptoms of a bad water inlet valve include:

• Dishwasher not filling with water
• Slow filling or no water flow
• Leaking water at the valve
• Error codes related to water flow
• Dishes not being cleaned properly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This support is a replacement mounting bracket that helps secure and stabilize internal appliance components for proper alignment and operation. Replacing a worn or broken support restores fit and reduces movement-related noise or malfunctions. What it does

• Holds internal components or assemblies in their correct position to prevent shifting during operation
• Restores proper alignment that can affect door fit, drawer travel, or rotating parts
• Reduces vibration and rattling caused by a loose or damaged support
• Suitable when the original support is cracked, bent, or missing

• One support as shown

• Disconnect power and, if applicable, water supply before beginning any repair
• Remove surrounding panels or assemblies as needed to access the support; keep fasteners for reassembly
• Inspect adjacent clips, screws, and mounting points; replace any damaged hardware

This door pivot hinge secures and guides an appliance door so it opens and closes smoothly, helping maintain proper door alignment and sealing. It's a direct-fit replacement designed to restore stable door operation. What it does:

• Provides a pivot point to support the appliance door and maintain alignment
• Helps ensure the door closes fully to preserve internal temperature and performance
• Reduces door sag, rubbing, or misalignment that can cause uneven wear or gaps
• Can stop squeaks or binding caused by a worn or damaged hinge

• One hinge

• Disconnect power and empty the door area before starting; follow manufacturer safety instructions
• Support the door during removal and installation to prevent damage or injury
• Use existing fasteners unless replacements are specified by the manufacturer
• Tighten mounting hardware securely and check door alignment after installation

The Hinge Cable is an OEM part for Bosch dishwashers. It plays an essential role in the mechanism that controls the movement of the dishwasher door, allowing it to open and close smoothly and safely. This cable connects the door to the spring, providing the necessary tension and support to prevent the door from slamming shut or dropping open too quickly, which can be hazardous and potentially cause damage.

Symptoms of a failing Hinge Cable include:

• The dishwasher door suddenly dropping open
• Difficulty in opening or closing the door smoothly
• The door feeling unusually heavy or not staying in place when opened
• A snapping sound when trying to open or close the door, indicating a potential break

Causes of a bad hinge cable often involve fraying or snapping due to the constant tension and movement, general wear from frequent use, or corrosion from exposure to moisture and detergents.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Note: This is a Cable Kit. (Includes 2 cables)

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This adjusting device helps align and fine-tune moving parts so doors and components operate smoothly. It's a direct-fit replacement designed to restore proper adjustment and reliable positioning for compatible Bosch appliances. What it does:

• Provides precise adjustment of movable assemblies to correct alignment issues
• Helps reduce binding, rubbing, or uneven gaps at doors or panels
• Restores intended movement and positioning for better operation
• Works as the factory replacement part specified for alignment tasks

• One adjusting device

• Designed for direct replacement; use the appliance's service instructions or OEM guide for correct placement
• Turn off power to the appliance before servicing to avoid injury
• Keep fasteners and mounting orientation the same as the original part during installation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This door pivot hinge secures and guides an appliance door so it opens and closes smoothly, helping maintain proper door alignment and sealing. It's a direct-fit replacement designed to restore stable door operation. What it does:

• Provides a pivot point to support the appliance door and maintain alignment
• Helps ensure the door closes fully to preserve internal temperature and performance
• Reduces door sag, rubbing, or misalignment that can cause uneven wear or gaps
• Can stop squeaks or binding caused by a worn or damaged hinge

• One hinge

• Disconnect power and empty the door area before starting; follow manufacturer safety instructions
• Support the door during removal and installation to prevent damage or injury
• Use existing fasteners unless replacements are specified by the manufacturer
• Tighten mounting hardware securely and check door alignment after installation

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Indicator Light is an OEM part for Bosch dishwashers. It serves as a visual cue, providing important status updates and notifications related to the dishwasher's operation.

Causes of a malfunctioning Indicator Light can stem from issues with the control board or wiring harness that powers the light, or the light itself burning out due to age or electrical surges.

Symptoms of a bad Indicator Light include:

• The light not illuminating at all, even when it should be on
• Flickering or dimming of the light during operation
• The wrong indicator light turning on or staying on inappropriately

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

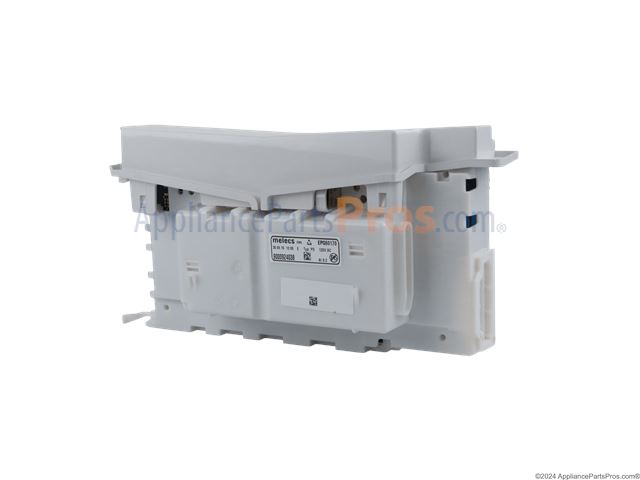

The Control Unit is an OEM part for Bosch dishwashers. The control unit processes button commands to coordinate all functions and cycle sequencing.

The control unit maintains perfect wash and rinse timings through built-in programming logic. Its integrated sensors automatically detect soil levels and water properties for optimal cleaning power.

Causes can be failures over time from heat, chemical exposures, and continuous operation. Corrosion risks rise with age and usage factors like water quality.

Symptoms of a bad control unit include:

• Faulty or incomplete wash cycles that do not remove soils
• Inability to run any cycle despite intact buttons and displays
• Error codes and diagnostic messages indicating module failure

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Terminal Box is an OEM part for Bosch dishwashers. It serves as the central hub for connecting electrical wires within the appliance, ensuring a safe and organized electrical system.

Over time, the terminal box can become damaged due to electrical malfunctions, corrosion, or physical impact. Wear and tear from regular use can also affect its integrity, leading to potential electrical issues.

Symptoms of a bad terminal box include:

• The dishwasher not starting or failing to complete cycles
• Intermittent power issues
• Burning smells or visible burns around the terminal box
• Electrical shorts or tripped circuit breakers

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

This is a single replacement mounting screw used to secure panels, trim, or components on compatible appliances. It restores proper fit and prevents parts from coming loose or vibrating during operation. What it does

• Secures panels, brackets, or components in place to maintain appliance alignment
• Stops rattling or vibration caused by loose fasteners
• Helps ensure switches, doors, or trims stay properly seated
• Replaces missing or stripped screws to restore original fit

• One replacement screw

• Use the correct driver and size; start threads by hand to avoid cross-threading
• Tighten securely but avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow appliance safety precautions when accessing internal parts

This factory fastener secures panels, brackets, or internal components in your appliance, helping keep assemblies tight and rattle-free. Replace missing or stripped screws to restore a secure fit and dependable operation.

• Fastens components to the appliance frame, chassis, or panel assemblies
• Helps maintain alignment and reduce vibration or rattling
• Replaces lost, rusted, or stripped screws during service
• Common signs it's needed: loose panel or handle, vibration noises, or parts that won't stay secured

• Disconnect power and shut off water or gas before servicing
• Match the screw's location and length to the original from your model
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model's screw head

This replacement screw secures appliance panels and internal brackets so components stay tight and aligned during everyday use. Replacing missing or stripped hardware restores a solid fit and helps minimize vibration and rattling.

• Fastens covers, panels, and brackets to their mounting points
• Helps maintain alignment of the attached component
• Reduces movement that can cause noise or wear
• Typical reasons to replace: missing screw, stripped head/threads, loose panel or bracket

• Disconnect power and, if applicable, shut off water before servicing
• Use the driver bit specified for your model; hand start threads to avoid cross-threading
• Tighten snugly without over-torquing to prevent stripping
• Replace screws one at a time to maintain alignment

This factory screw secures appliance components per the original design, helping stop looseness and vibration. Replace a missing, stripped, or corroded fastener to restore a solid, rattle-free fit and protect nearby parts from damage.

• Secures panels, brackets, or internal components as specified by the manufacturer
• Helps maintain proper alignment and reduces vibration or rattling
• Replace if the head is stripped, threads are damaged, or the screw is missing
• Common signs include loose or misaligned panels/trim and hardware that won't stay tight

• Disconnect power and turn off water or gas supply as applicable before servicing
• Match length and thread to the original; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly without overtightening
• Retain any original washers, bushings, or clips used in the assembly

The Toe Panel Screw is an OEM replacement part for Bosch dishwashers. It secures the toe panel to the dishwasher.

Causes may involve normal wear and tear over time, improper installation, or damage from excessive force or impact. Replacing with this genuine OEM screw will reinforce your Bosch dishwasher's integrity for reliable performance.

Symptoms of a bad toe panel screw can include:

• The toe panel becoming loose, cracked, or removable
• Internal components visible underneath a loose toe panel
• Strange noises or vibration emanating from the toe panel area

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
