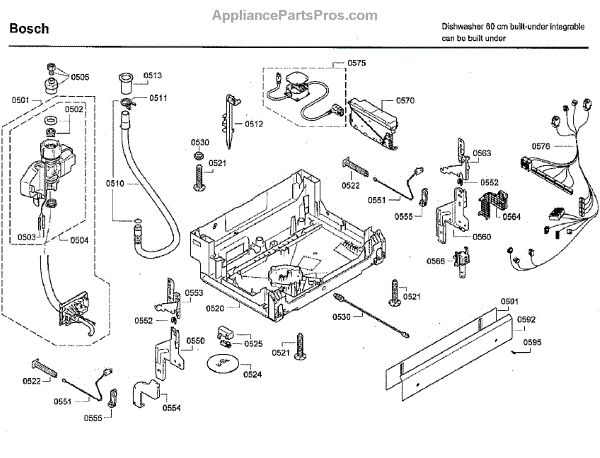

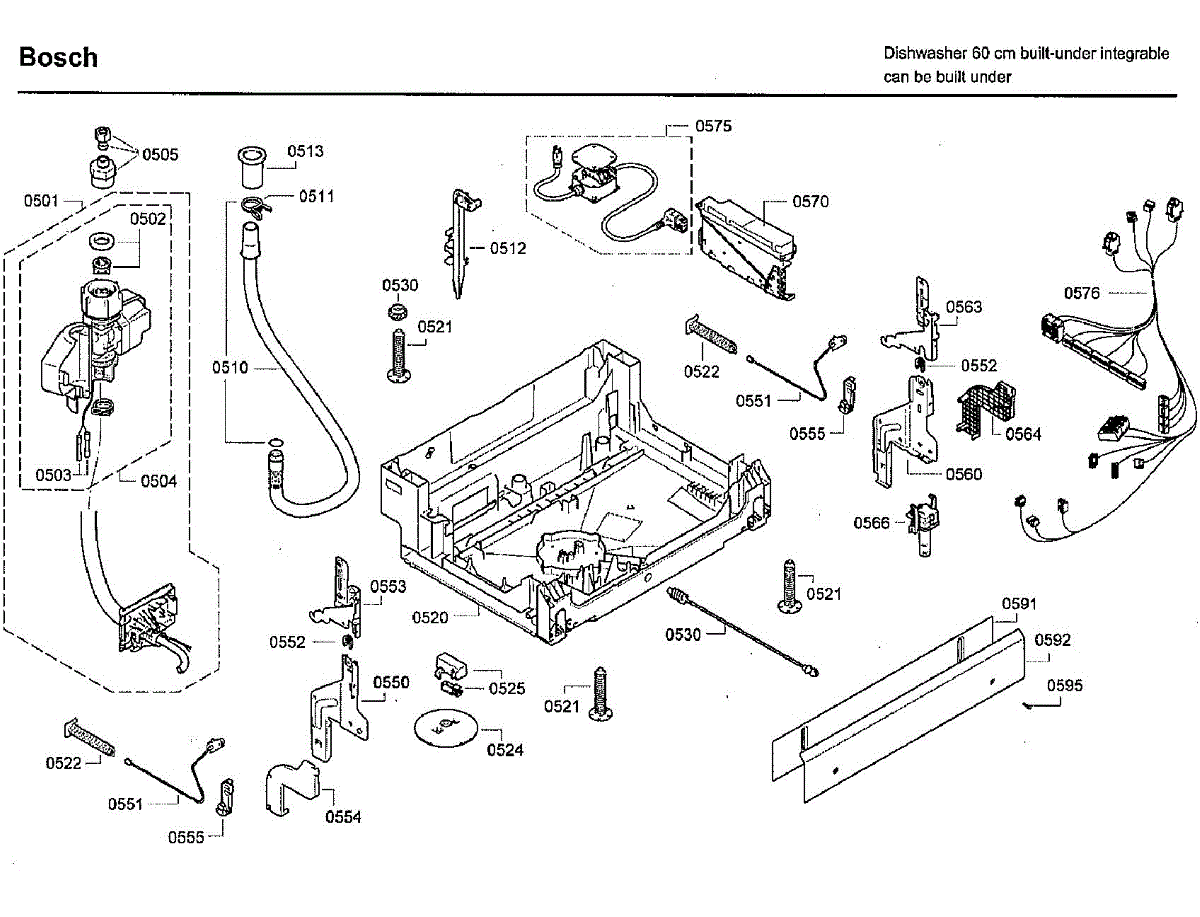

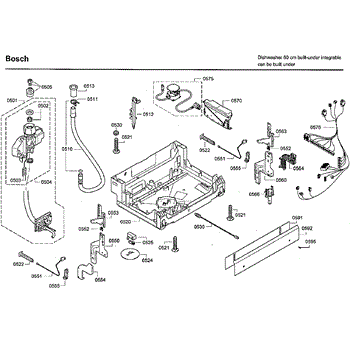

Parts for Bosch SHX7ER55UC/01: Base Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Aquastop is an OEM part for Bosch dishwashers. This part prevents water leaks and flooding by automatically shutting off the water supply in case of a leak or malfunction.

Causes of a bad Aquastop can range from normal wear and tear over time to physical damage or clogging due to debris or sediment buildup in the water supply line.

Symptoms of a bad Aquastop include:

• Water leaks or puddles around the dishwasher
• Failure of the dishwasher to fill with water
• Error codes or indicators related to water supply issues
• Visible damage or deterioration of the Aquastop component

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This inlet seal is a small rubber gasket that creates a watertight connection at the dishwasher's water inlet. Replacing a worn seal helps stop leaks and ensures the inlet valve can fill the appliance properly. What it does:

• Seals the water inlet connection to prevent drips or steady leaks underneath the dishwasher
• Maintains a tight seal at the inlet valve so the fill cycle can operate normally
• Commonly replaced when there is visible wear, cracking, or persistent water on the floor
• Helps avoid water damage and the nuisance of repeated drainage or fill errors tied to leaking

• One inlet seal

• Turn off the water supply and disconnect power before servicing
• Remove the inlet valve or access panel as needed to reach the seal; replace with the old seal removed
• Make sure the new seal is seated evenly and the mating surfaces are clean before reassembly

This drain hose channels wastewater from your dishwasher to the household drain. Replacing a brittle, cracked, or clogged hose restores proper draining and helps prevent under-sink leaks and water backup. What it does:

• Provides a sealed path for wastewater from the dishwasher's drain outlet to the home's drain system
• Common failure signs include slow or no draining, water left in the tub, or water backing up
• Drips or leaks at hose joints, behind the unit, or under the sink
• Visible kinks, cracks, or deterioration; possible blockage leading to odors or strain on the drain pump

• 1 drain hose

• Disconnect power at the breaker and shut off the water supply; pull the dishwasher forward for access
• Place a towel or pan to catch residual water when removing the old hose
• Reuse existing fittings/clamps; route the new hose with a proper high loop/air gap as required, avoiding sharp bends and kinks
• Run a drain/rinse cycle and inspect all connections for leaks

Spring-style hose clamp that secures flexible water hoses to fittings on select appliances, helping maintain a leak-tight connection at hose joints. Keeps hoses seated to reduce leaks and ensure reliable water flow. What it does:

• Holds flexible inlet, drain, or circulation hoses tightly on barbed fittings and nipples.
• Prevents leaks and water loss at hose connections by maintaining steady clamp pressure.
• Common signs it needs replacement: dripping or pooling near hose connections, a loose or wobbly hose, or visible clamp corrosion or deformation.
• Small, inexpensive part that restores a secure hose connection when the original clamp has failed.

• Always disconnect power and shut off the water supply before servicing appliance plumbing.
• For spring-style clamps, use pliers to open the clamp, position it over the hose, and release slowly so it seats properly; ensure the hose is fully pushed onto the fitting.
• Inspect the hose and fitting for damage; replace the hose if cracked or excessively worn before installing a new clamp.
• Wear eye protection when compressing or releasing spring clamps to avoid injury from sudden release.

This small insert is a precision-fit piece that helps secure and align a mating component so it fits and functions properly. Replacing a worn or missing insert restores a solid connection and dependable operation. What it does:

• Provides a snug mounting/locating point for the related part
• Helps prevent looseness, rattling, or misalignment
• Restores proper fit after cracking, wear, or loss
• Common signs include a cracked or missing insert and parts that no longer stay in place

• 1 insert

• Disconnect power (and water supply, if applicable) before servicing
• Compare the new insert to your original to match and orientation
• Remove any broken fragments and clean the area before installation
• Press or snap into place carefully; do not force or overtighten any fasteners

This bottom case is the dishwasher base assembly that protects internal components and helps contain leaks, keeping the wash system stable and secure. It's a direct-fit replacement that restores the appliance's lower enclosure. What it does

• Forms the appliance's lower enclosure to shield the pump, motor and wiring from debris
• Helps direct and contain water in the event of minor leaks to protect surrounding components
• Provides mounting surfaces for lower hardware and supports correct alignment of internal parts
• Can reduce rattles or vibration caused by a damaged or cracked lower shell

• One bottom case

• Disconnect power and water supply before beginning any repair
• Handle the part carefully to avoid damaging edges, clips or mounting tabs
• Keep fasteners and any hardware from the original unit; verify fit and alignment before tightening
• If you see water or corrosion, dry and inspect surrounding components for damage before reassembly

This replacement foot is the leveling support at the base of your appliance. It helps set the height and keep the unit stable and level, reducing wobble, vibration, and noise for smoother, quieter operation.

• Supports the appliance base and provides solid floor contact
• Allows height/leveling adjustment as designed by the unit
• Helps correct rocking, vibration, walking, or door misalignment caused by an unlevel appliance
• Replace if the foot is cracked, missing, worn, or stripped and won't hold adjustment

• Disconnect power; shut off water supply if applicable
• Protect flooring and have a helper steady or move the unit
• Remove the damaged foot; install the new foot per the mounting style (threaded or push-in)
• Adjust height to level the cabinet and stability at all corners

The Spring is an OEM part for Bosch dishwashers. It is used in the door mechanism to provide tension and balance, ensuring the door opens and closes smoothly and stays securely in place during operation.

Over time, the spring can wear out or become damaged due to repeated use, exposure to moisture, or accidental impacts. If the spring fails, the door may not operate correctly.

Symptoms of a bad spring include:

• The door not staying open or closed
• Difficulty in opening or closing the door
• The door dropping too quickly or not staying in position
• Unusual noises when operating the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Note: One spring only. For the spring/cable kit, order 00754866

This is the appliance's main power on/off switch. It restores reliable control of electrical power to the unit so you can turn it on and off consistently.

• Controls AC power to the appliance's user interface and electronics
• Worn or stuck switch can cause no power, intermittent power, or inability to shut off
• Spongy or loose button feel may indicate internal switch failure

• Disconnect power before service to avoid electrical shock
• Access typically requires removing the control panel or console
• Note wire positions or take a photo before disconnecting
• Do not force tabs; transfer any clips or boots from the old switch if present

This is the appliance's main power on/off switch. It restores reliable control of electrical power to the unit so you can turn it on and off consistently.

• Controls AC power to the appliance's user interface and electronics
• Worn or stuck switch can cause no power, intermittent power, or inability to shut off
• Spongy or loose button feel may indicate internal switch failure

• Disconnect power before service to avoid electrical shock
• Access typically requires removing the control panel or console
• Note wire positions or take a photo before disconnecting
• Do not force tabs; transfer any clips or boots from the old switch if present

This spindle is the rotating shaft that transfers motion between the motor/gearbox and the appliance's moving components, restoring proper rotation and alignment for reliable operation. Fits as a direct replacement when the original spindle is worn or broken. What it does:

• Connects and transmits rotational force from the drive assembly to the appliance's moving part
• Maintains alignment and smooth rotation for consistent performance
• Can stop wobble or intermittent movement caused by a bent or damaged shaft
• Helps restore normal operation if the original spindle is cracked, worn, or seized

• Intended for users comfortable with appliance repair; unplug appliance and shut off water before starting
• Inspect related seals, bearings, and mounting hardware; replace if damaged
• Use correct tools and torque per manufacturer guidance; avoid forcing components to prevent damage

This door cable links the door hinge to the tension spring to counterbalance your dishwasher door, helping it open smoothly and stay under control. Replace a worn or broken cable to restore proper door action.

• Connects the door hinge to the spring to counterbalance door weight
• Helps prevent the door from dropping open or slamming
• Common symptoms: door feels heavy, drops quickly, or won't stay in position
• Uneven or crooked door movement can indicate a failed cable on one side
• Visible fraying or a snapped cord near the spring/pulley area

• Disconnect power at the breaker and shut off water before servicing
• Support the door and carefully relieve spring tension before removing the cable
• Route the new cable exactly as the original over the pulley; attach to hinge and spring
• Inspect both sides, springs, and pulleys; replace any worn components for balanced operation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dishwasher Hinge Lever is an OEM replacement part for Bosch dishwashers. This hinge lever is crucial for the operation of the dishwasher door, supporting smooth movement as it opens and closes. It works alongside the door springs to provide balanced tension, ensuring that the door stays securely in place when opened or closed.

Over time, hinge levers may wear out due to regular use, strain from overloading the door, or corrosion from prolonged exposure to moisture. A damaged hinge lever can disrupt the door’s movement, leading to issues with opening, closing, or improper sealing of the dishwasher door.

Symptoms of a bad Dishwasher Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door dropping open without resistance
• A loose or sagging door that won’t stay securely in place
• Unusual noises when moving the door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Door Cable Guide is an OEM part for Bosch dishwashers. This guide ensures the door cables are properly aligned and move smoothly when opening and closing the dishwasher door, helping to maintain the door's balance and functionality.

Causes of a bad door cable guide can include regular wear and tear from frequent use, damage from improper handling, or accumulation of debris that hinders smooth movement. A damaged guide can lead to improper door operation and potential strain on the door cables.

Symptoms of a bad door cable guide include:

• Difficulty opening or closing the dishwasher door
• The door not staying open or closed as intended
• Unusual noises when the door is in motion
• Visible wear or damage to the guide

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replacement door hinge that restores proper door alignment and smooth opening/closing for compatible Bosch appliances. Simple, direct support for the door pivot to reduce sagging, uneven closing, and noisy operation. What it does:

• Supports the appliance door pivot and maintains correct door alignment during use.
• Helps stop door sagging, uneven gaps, and doors that don't close or latch reliably.
• Restores smooth opening and closing and reduces hinge-related noise.
• Works as the mechanical pivot/connection between the door and cabinet frame.

• Turn off power and disconnect the appliance (and water supply if applicable) before starting any repair.
• Support the door while removing/installing the hinge to prevent damage or injury.
• Use the original mounting hardware or manufacturer-recommended fasteners; tighten securely but avoid overtightening.
• After installation, check door alignment and operation; adjust as needed per manufacturer instructions.

The Indicator Light is an OEM part for Bosch dishwashers. It serves as a visual cue, providing important status updates and notifications related to the dishwasher's operation.

Causes of a malfunctioning Indicator Light can stem from issues with the control board or wiring harness that powers the light, or the light itself burning out due to age or electrical surges.

Symptoms of a bad Indicator Light include:

• The light not illuminating at all, even when it should be on
• Flickering or dimming of the light during operation
• The wrong indicator light turning on or staying on inappropriately

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This control module is manufactured by Bosch and is designed for dishwashers. The control module is responsible for monitoring and managing the dishwasher's functions, including rinsing, soaking, and draining. The control module includes wiring connections and contains circuit boards. The control module is located within the dishwasher itself. It is protected from physical impacts, but can still be damaged by prolonged exposure to moisture or high heat levels. When the control module fails, users may notice that the dishwasher operates erratically or that it is completely inoperable. Always wear gloves and never work on an appliance that has not been isolated from its power source.This is a genuine OEM part and is sold individually. It is compatible with Bosch Thermador dishwashers.

The Base Panel is an OEM replacement part for Bosch dishwashers. It serves as the protective front cover for the dishwasher's base, hiding the internal parts and providing a finished look to your appliance.

A bad base panel can occur due to accidental damage, wear and tear, or discoloration over time. Signs of a faulty base panel include cracks, dents, or a worn-out appearance.

Symptoms of a bad base panel include:

• Visible cracks, dents, or damage
• A worn-out or faded appearance
• Difficulty in cleaning the panel

Restore your Bosch dishwasher by replacing the damaged or worn-out base panel with this genuine OEM part. This Bosch part can also be used on Thermador and Gaggenau appliances.


A replacement base panel that covers and protects the appliance's lower front area while restoring a finished appearance. Durable metal construction keeps internal components shielded from debris and accidental contact. What it does:

• Covers the appliance base to protect wiring, insulation, and components from dust and debris.
• Helps maintain proper airflow under the appliance and keeps internal areas concealed.
• Restores the unit's finished appearance when the original panel is dented, bent, or missing.
• Prevents accidental contact with lower components and reduces exposure to pests or spills.

• One base panel

• Disconnect power to the appliance before beginning work; follow all safety precautions.
• Remove the kickplate or access panel and any mounting screws or clips to swap panels.
• Handle edges carefully; replacement panels may have sharp metal edges.

This fixing kit provides the mounting hardware needed to secure or reposition appliance panels and components, restoring proper fit and reducing rattles or movement. It's a compact set meant for specific Bosch appliance repair tasks. What it does:

• Provides the screws, clips, and/or brackets used to mount panels or components securely
• Helps stop panel vibration, rattling, or misalignment caused by loose fasteners
• Restores proper fit for access panels, trim pieces, or internal brackets
• Useful when replacing panels or refurbishing assembly points that rely on factory fasteners

• Installation requires basic hand tools; follow for correct fastener locations
• Turn off and unplug the appliance before starting any repair to avoid electric shock
• Handle sheet metal and sharp edges with care; wear gloves and eye protection as needed

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
