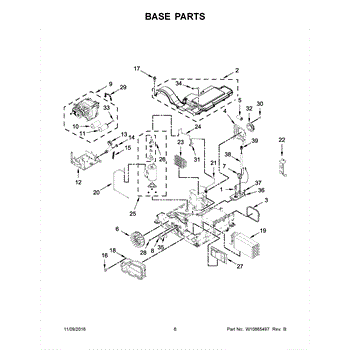

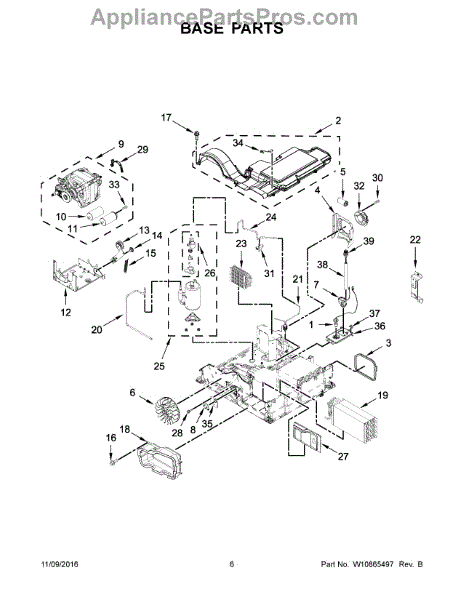

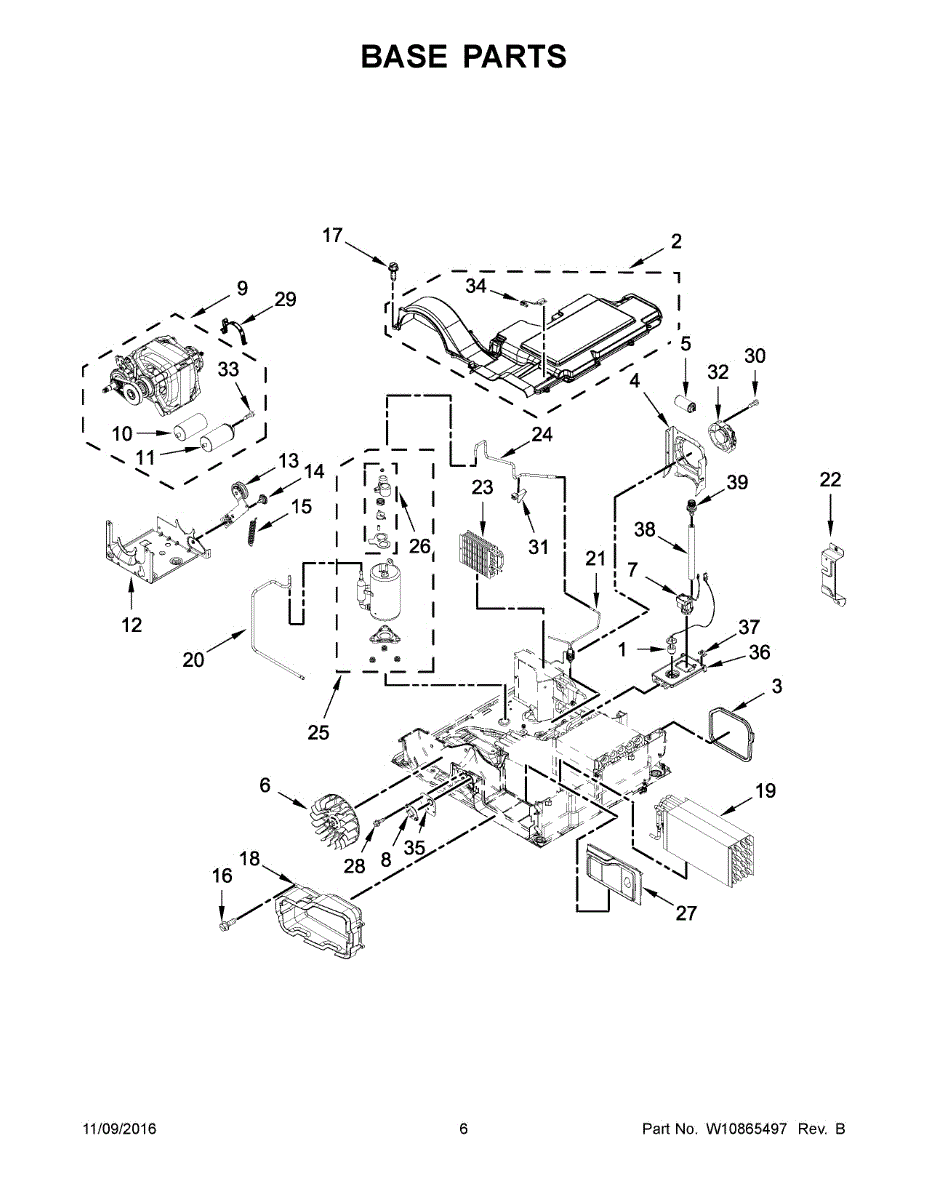

Parts for Whirlpool WED9290FC0: 04 - Base Parts

This wire harness assembly routes power and signals between the appliance's control and electrical components so the unit can operate reliably. Replaces a damaged or burnt harness to restore proper electrical connections. What it does:

• Carries power and control signals between switches, controls, motors, and sensors
• Restores lost power paths that can cause controls, lights, or heating elements to fail
• Replaces harnesses with burnt wires, melted insulation, or broken connector leads
• Helps eliminate intermittent operation caused by loose or corroded connections

• Disconnect all power before beginning repair to avoid shock or injury
• Verify routing and connector orientation match the original harness; secure with original clips/ties
• Inspect mating connectors and terminal fittings for damage before reassembly

This control panel cover replaces a damaged or worn exterior cover that protects your appliance's control area and provides a clean finished appearance. It restores protection from dust, moisture and everyday wear while keeping controls accessible. What it does:

• Shields the control board and buttons from spills, dust and debris.
• Restores a secure, flush fit to the control area if the original cover is cracked or warped.
• Helps prevent accidental contact with controls and wiring.
• Improves the appliance's look when the original cover is scratched, faded, or broken.

• Disconnect power (unplug or shut off breaker) before starting work.
• Removal may require a screwdriver or nut driver to detach retaining screws or clips—keep parts organized for reassembly.
• Handle the new cover carefully to avoid scratching; align tabs/clips before fastening.

This blower wheel assembly moves air through the dryer to support heating and proper exhaust flow. Replacing a worn or damaged wheel restores airflow for more efficient drying and helps prevent overheating. What it does

• Spins with the motor to pull air through the drum and vent system.
• Restores restricted airflow that can cause longer dry times or poor drying performance.
• Reduces unusual noise from a cracked, bent, or loose wheel.
• Helps prevent lint buildup and overheating caused by inadequate ventilation.

• Disconnect electrical power (and gas supply for gas dryers) before beginning work.
• Inspect surrounding components (motor shaft, mounting, ductwork) for damage or lint buildup.
• May require removal of the front or rear access panel; keep track of fasteners and orientation.
• Use caution handling sharp sheet metal edges and dispose of lint and debris safely.

The Thermistor is an OEM part for Whirlpool brand dryers. It is a temperature-sensing resistor that monitors air temperature changes during the drying cycle. The thermistor provides feedback to the control board on heating element performance and internal air condition.

Symptoms of a failed thermistor include:

• Inaccurate temperature readings and selections
• Improper or incomplete drying
• Safety issues from overheating due to lack of feedback
• Error codes displayed on the control panel

Causes can be related to normal wear and environmental exposure over time. Failure prevents the dryer from achieving optimal drying conditions.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This drive motor powers the appliance's primary mechanical system. Replacing a weak or failed motor restores proper rotation and torque so cycles can complete without stalling, humming, or intermittent starts. What it does:

• Converts electrical power into rotational motion to drive the machine's mechanism
• Provides starting torque and sustained speed under load
• Helps resolve issues like humming with no movement, overheating/thermal cutout, or intermittent operation
• Addresses symptoms such as burning smell, excessive noise, or a shaft that won't turn freely

• One drive motor

• Disconnect power before servicing; allow any moving parts to stop completely
• Note and label wire locations; transfer connectors carefully to the new motor
• Support the assembly when removing mounting hardware to prevent drops or damage
• After mounting, verify the motor spins freely by hand and that connectors are fully seated before restoring power

This motor start/run capacitor restores the electrical boost a motor needs to start and run smoothly in compatible Whirlpool appliances. Replacing a failing capacitor can stop motor hesitations and restore normal cycling. What it does:

• Provides the temporary electrical charge needed for compressor or motor startup and stable running
• Helps prevent long crank times, slow or labored motor operation, and intermittent motor stalls
• Reduces humming or buzzing from a motor that struggles to start
• Supports consistent appliance cycles by stabilizing voltage to the motor

• One replacement capacitor

• Disconnect power to the appliance at the breaker or unplug before beginning any service
• Capacitors can hold a charge—discharge safely before touching terminals
• Handle and mount according to the appliance wiring diagram; match terminal connections exactly

This electrical capacitor stores and releases energy to help the appliance's electrical system operate smoothly and reliably. Replacing a failed capacitor restores proper electrical performance and can prevent erratic motor or control behavior. What it does:

• Provides short-term energy storage for motors and control circuits to start and run correctly
• Helps prevent motor hesitation, intermittent stopping, or weak starts when failing
• Reduces electrical noise and helps stabilize voltage to sensitive control components
• Commonly replaced when symptoms include humming, failure to start, or erratic operation

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Handle the capacitor carefully; follow proper discharge and safety procedures before touching terminals
• Replace with the exact part number and specifications to ensure correct fit and safe operation

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Filter is an OEM part for Whirlpool dryers. The filter screens lint and dryer debris from exiting air.

Causes of filter issues can include excessive lint buildup over multiple loads inhibiting airflow, tearing of fragile mesh from continuous vibration, or warping out of shape preventing a tight fit.

Symptoms of a dirty or damaged Filter are:

• Slow drying times as the condenser works harder
• Strange smells detected inside the dryer
• Increased level of lint left inside the dryer drum
• Visible lint accumulation behind the screen grille

This OEM Whirlpool replacement ensures smooth operation by continuously screening lint particles. Compatible models include some Kenmore and select KitchenAid condenser dryers.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

This replacement nut is a small hardware fastener used to secure components inside your appliance. It helps keep parts tight and properly aligned so assemblies don't loosen from vibration or normal operation.

• Threads onto a mating bolt, stud, or shaft to clamp parts together
• Maintains alignment and reduces movement and rattling
• Replaces a stripped, missing, or damaged nut to restore a secure fit
• Common signs of failure: loose panels or components, unusual vibration/noise, hardware missing

• Disconnect power; shut off gas and/or water if applicable before servicing
• Note the original hardware stack-up (washers/spacers) and orientation for reassembly
• Start by hand to avoid cross-threading; tighten to manufacturer guidance—do not overtighten
• Replace any damaged washers or locking devices

This replacement momentary push-button switch restores a control input used to start or signal appliance functions. It provides a simple, reliable electrical contact for user controls and safety interlocks. What it does

• Acts as a momentary electrical contact that completes a control circuit when pressed.
• Restores user input for start, cycle advance, or other control functions.
• Common symptom: appliance doesn't respond to button presses or won't start.
• Can be part of a user control panel or safety interlock depending on model.

• One replacement momentary push-button switch.

• Disconnect power before accessing controls to avoid shock or injury.
• Access may require removal of a control panel or trim—retain screws and fasteners.
• Verify wiring location and connector orientation before disconnecting; reconnect exactly as found.

This metal mounting bracket secures internal components so assemblies stay aligned and stable during normal use. Replacing a damaged bracket restores proper fit and helps eliminate rattling or loose parts. What it does:

• Provides a sturdy attachment point to hold panels or assemblies in place
• Prevents component movement that can cause noise, vibration, or misalignment
• Restores correct spacing for connected parts to ensure smooth operation
• Useful when an existing bracket is cracked, bent, or missing fasteners

• Disconnect power before beginning any repair to avoid shock or injury
• Use basic hand tools; keep track of screws and any removed fasteners
• Handle edges carefully—mounting brackets may have sharp corners
• Align the bracket to the mounting holes before tightening to avoid stripping

The Connector is an OEM part for Whirlpool dryers. It creates a secure and airtight connection, preventing air leaks and promoting optimal drying.

A bad dryer hose connector can occur due to wear and tear, damage, or improper installation. If you notice symptoms such as lint buildup, poor drying results, or overheating of the dryer, it may be time to replace the hose connector.

Symptoms of a bad dryer hose connector include:

• Lint buildup in the dryer or vent system
• Poor drying performance or extended drying times
• Overheating of the dryer or excessive heat in the laundry room

Repair your dryer by replacing the faulty or damaged dryer hose connector with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
