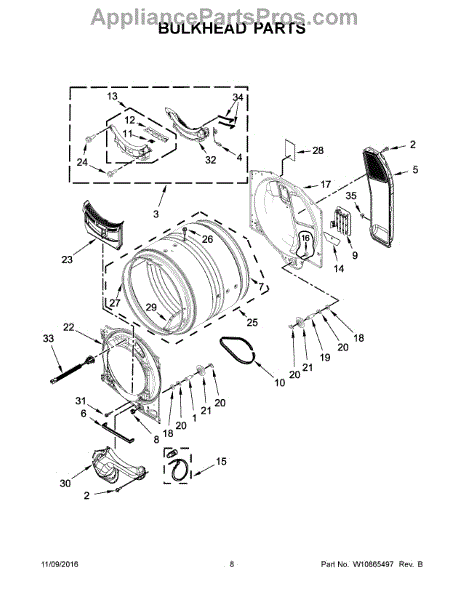

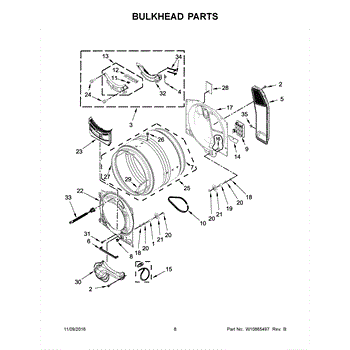

Parts for Whirlpool WED9290FC0: 05 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Outer housing shell that forms the protective exterior of your dryer. Replace if cracked, dented, or deformed from impacts or daily wear over time.

Dryer won't start or stops mid-cycle? A faulty sensor wire harness disrupts temperature readings. This direct-fit harness restores accurate communication.

Genuine dryer seal creates a tight barrier to prevent air leaks. Replace if worn, cracked, or causing poor drying performance. Confirm fit with your model.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

This is a heater inlet duct assembly that channels air into the heating element area of the dryer. It directs airflow over the heating element so warm air can circulate through the drum to dry clothes. Replace this duct if it is cracked, melted, or warped, or if your dryer is not heating properly or overheating due to restricted airflow.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Replacement flip-up door that covers the lint screen opening in your dryer's front bulkhead. Needed when original door is cracked, broken, or missing.

Complete door assembly for your dryer. Replace a cracked, damaged, or broken door that no longer closes properly or has a worn seal or latch mechanism.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

This is the rear bulkhead panel located at the back of the dryer drum compartment. It provides structural support for the drum and helps seal the rear of the drying chamber. Replace this part if you notice excessive heat escaping from the back of the dryer, unusual noises during tumbling, or if the panel is visibly cracked or warped.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Front bulkhead panel that supports the dryer drum and seals the cabinet. Replace if cracked, warped, or damaged to restore drum alignment and airflow.

Captures lint and debris during drying cycles. Replace when torn, damaged, or clogged despite cleaning. Confirm compatibility with your model number.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

This is the main drum assembly for a dryer, the large cylindrical chamber where clothes tumble during the drying cycle. It rotates to circulate garments through heated air for even drying. Replace this drum if it has developed cracks, dents, worn spots that snag clothing, or if the interior coating is peeling or damaged.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Front drum felt seal prevents clothes from catching between the drum and dryer interior. Replace if worn or damaged. Confirm fit with your model number.

Dryer drum support pad provides cushioning and reduces noise during operation. Replace if worn, cracked, or causing rattling sounds. Confirm fit with your model.

Replaces a cracked, broken, or missing drum baffle inside your dryer. Installs in the drum to lift and separate clothes during tumbling cycles.

Dryer lint duct channels lint from the drum to the trap. Replace if clogged, torn, or restricting airflow. Verify fit with your model number.

10 - 16 x 1/2

Fix a damaged dryer grill with this assembly. Restores proper alignment and secures internal components. Direct fit for compatible models.

Dryer shuts off before clothes are dry? The moisture sensor bar detects dryness levels. Easy 10-30 minute DIY fix with video guide included.

This is a high limit thermostat that monitors the temperature inside the dryer and cuts off the heating element if temperatures exceed safe levels. It is typically mounted on or near the heating element housing or exhaust duct. Replace this thermostat if the dryer is not heating, overheating, or shutting off prematurely during a cycle.
