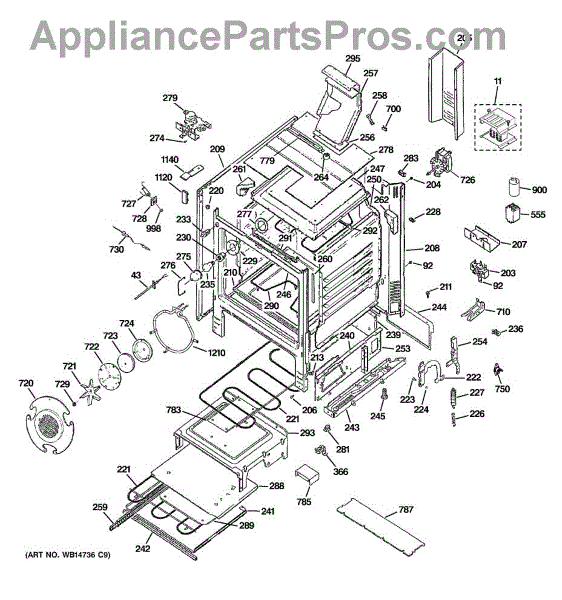

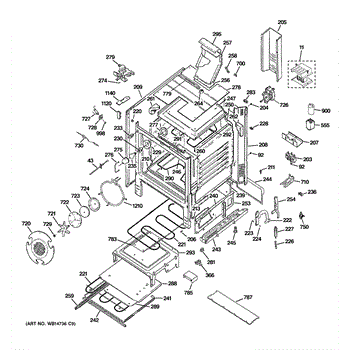

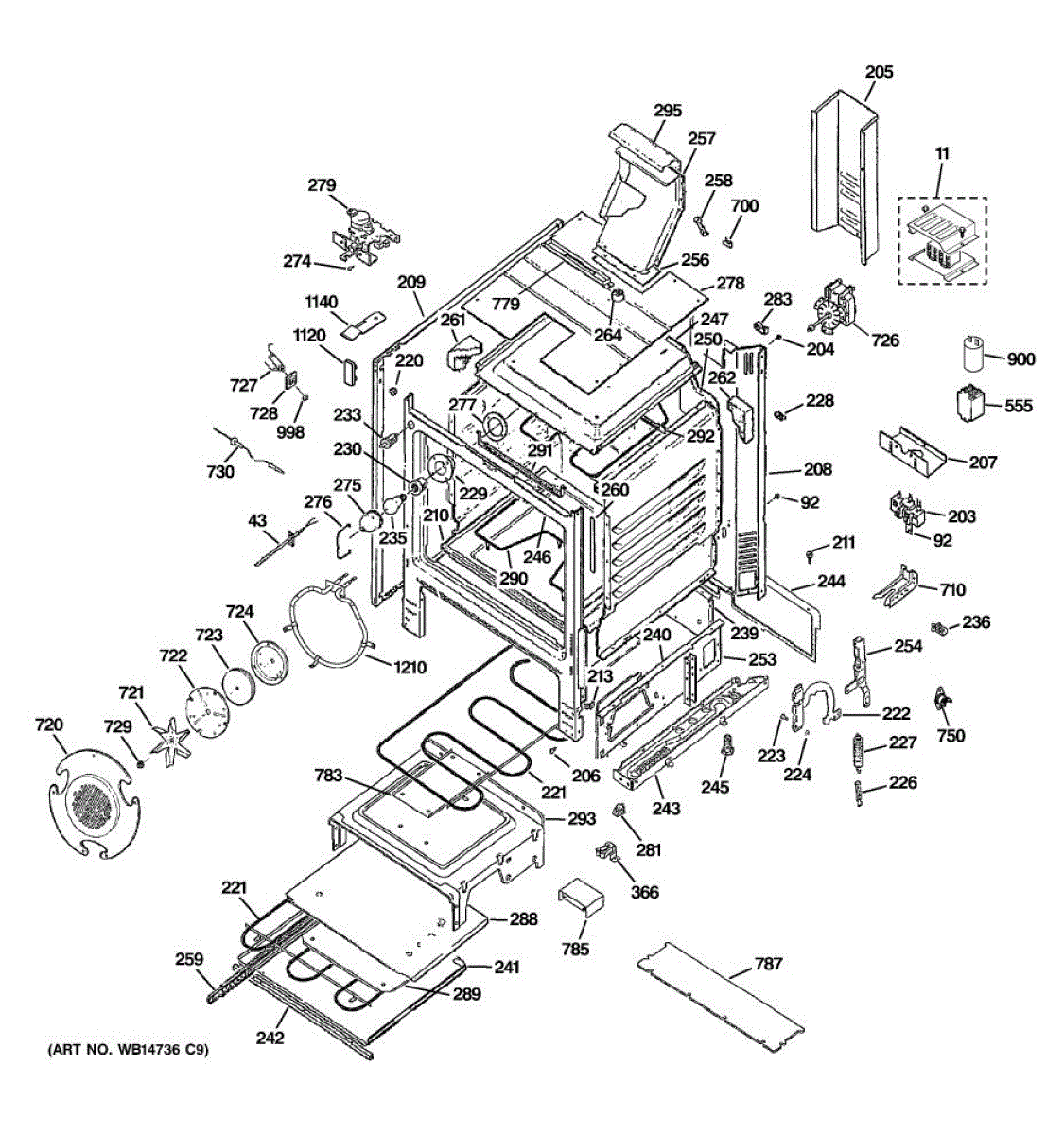

Parts for Ge CS980SN3SS: 03 - Body Parts

Fix a griddle burner that won't heat or sparks when turned on. This relay assembly controls power to your range griddle element. Moderate repair skill.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Package of 12

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Protective housing cover for your range's convection fan motor. Replace if cracked, damaged, or missing to shield internal motor components from debris.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Size: 8-18 x 1/2 inch.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

A top heating element that restores heat to an electric cooktop so pots and pans heat properly. Fits the range cooktop surface and replaces a damaged or non-heating radiant element for reliable cooking. What it does:

• Provides the cooking heat on

Oven not heating or baking unevenly? This bottom bake element restores proper heating for baking and roasting. Common fix for failed oven performance.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. W

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Side panel for range broil compartment. Replaces damaged, scratched, or discolored exterior panels. Restores structural integrity and appearance.

This bottom range panel is the lower interior/exterior panel that supports and protects the oven cavity and heating components. It restores proper airflow and keeps the oven underside sealed from spills and debris. What it does:

• Replaces a bent, rusted or missing lower oven panel to improve oven cleanliness and safety
• Helps maintain proper airflow under the oven cavity for consistent heating
• Covers and protects wiring and components beneath the oven from food and moisture
• Reduces drafts into the oven cavity caused by damaged or ill-fitting panels

• One bottom range panel

• High-level swap: remove oven drawer or lower access, unfasten retaining screws, replace panel, and refasten
• Disconnect power to the range before beginning any service
• Wear gloves to avoid sharp edges on metal panels and protect finished surfaces during installation

Support base for electric ranges. Secures and stabilizes internal components. Replace if cracked, broken, or warped to restore proper structure.

Structural mounting piece that secures the range cabinet and keeps components aligned. Replace if cracked, broken, or worn to restore cabinet support.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

Replaces a damaged, cracked, or missing exhaust vent assembly on your range. Routes air from the appliance to the outside or internal ducting system.

This slide and bearing assembly restores smooth, stable movement to a refrigerator drawer. It replaces worn slides that cause sticking, sagging, or noisy operation so drawers open and close properly. What it does:

• Provides the sliding track and

Replaces the worn or broken slide and bearing assembly that guides your oven rack. Restores smooth in-and-out movement when hardware is damaged or missing.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap for range ovens. Installs around the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

Replacement insulation for the back wall of your range oven cavity. Replaces worn, damaged, or missing insulation to maintain proper heat retention.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Insulation panel that installs on top of the range warming drawer cavity. Replace if the original insulation is torn, compressed, or missing. Fits select models.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

This insulation vent is a replacement venting piece that helps direct heat and protect internal components in the oven cavity. Replacing a damaged vent restores proper heat routing and helps maintain safe operation. What it does:

• Directs heat and airflow away from sensitive components behind the oven cavity
• Helps prevent heat-soak and reduces risk of heat damage to wiring and insulation
• Commonly replaced when vent is cracked, missing, or shows heat-related deterioration
• Works as part of the oven's thermal management to support consistent cooking performance

• Inspect surrounding insulation and mounting area before installing; replace any damaged insulation per OEM guidance
• Use basic hand tools; avoid sharp edges and wear gloves to protect against fiberglass/insulation irritation
• Disconnect power to the appliance before accessing the oven cavity or removing panels

Fix a range door that won't stay closed or latch properly with this door catch. Common fix for loose or misaligned oven doors. Moderate DIY repair.

This compressor start relay helps the refrigerator compressor receive the initial jolt it needs to start running, restoring normal cooling when a worn relay prevents compressor startup. It's a direct-fit replacement specified by the manufacturer. What it

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Anti-tip bracket assembly that secures your range to the wall or floor. Replace if bracket is bent, broken, missing, or doesn't anchor properly.

Cooling fan cover for gas ranges. Installs over the internal cooling fan assembly. Replace if cracked, damaged, or missing to restore proper airflow.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Insulating pad that cushions and isolates the fan assembly in electric and gas ranges. Replace if cracked, compressed, or missing to reduce vibration noise.

Support plate that secures the cooling fan assembly inside your electric range. Replace if the original is cracked, bent, or damaged during repairs.

Fix uneven oven cooking with this range convection fan motor. Replaces worn motors causing hot spots or temperature inconsistencies in convection ovens.

Range won't power on or burners not heating? This terminal block receptacle connects power to your range. Moderate DIY repair for electric & gas ranges.

Replacement mounting nut secures components and panels inside your electric range or wall oven. Replaces stripped, lost, or damaged nuts causing loose parts.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor

Fix an overheating oven with this range limit thermostat. Stops heating when temperatures exceed safe limits. Straightforward repair for most DIYers.

This support smoke eliminator bracket secures the oven/range smoke eliminator assembly so it stays aligned and helps channel smoke and cooking vapors away from controls. It restores correct mounting and reduces rattling or misalignment during use. What it does:

• Secures the smoke eliminator/smoke baffle assembly to the appliance frame
• Helps maintain proper airflow path to reduce smoke and odor reaching controls
• Prevents movement or vibration that can cause noise or misalignment
• Common symptom: visible sagging, loose bracket, or rattling near the smoke eliminator area

• One smoke eliminator support bracket

• Disconnect power to the appliance before starting any repair
• Requires basic hand tools; access may involve removing oven door or rear panels depending on model
• Inspect surrounding fasteners and the smoke eliminator for damage; replace as needed

This capacitor holder is the molded mounting retainer that secures a dryer/motor capacitor in place, preventing movement and ensuring stable connections for reliable motor and control operation. What it does

• Holds the capacitor firmly in the appliance cabinet to prevent vibration and contact with other components.
• Keeps capacitor terminals accessible and positioned for secure electrical connections.
• Helps stop intermittent motor starts or noise caused by a loose or shifting capacitor.
• Provides the correct fit and alignment for compatible OEM capacitors and wiring harnesses.

• One capacitor holder mounting retainer

• Disconnect power to the appliance before beginning work.
• Discharge the capacitor fully before handling to avoid shock.
• Use basic hand tools; inspect surrounding wiring and fasteners and replace any damaged components.

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.

Support bracket for range manifold panel assembly. Secures and stabilizes the control panel mounting. Replace if bent, broken, or damaged during repairs.
