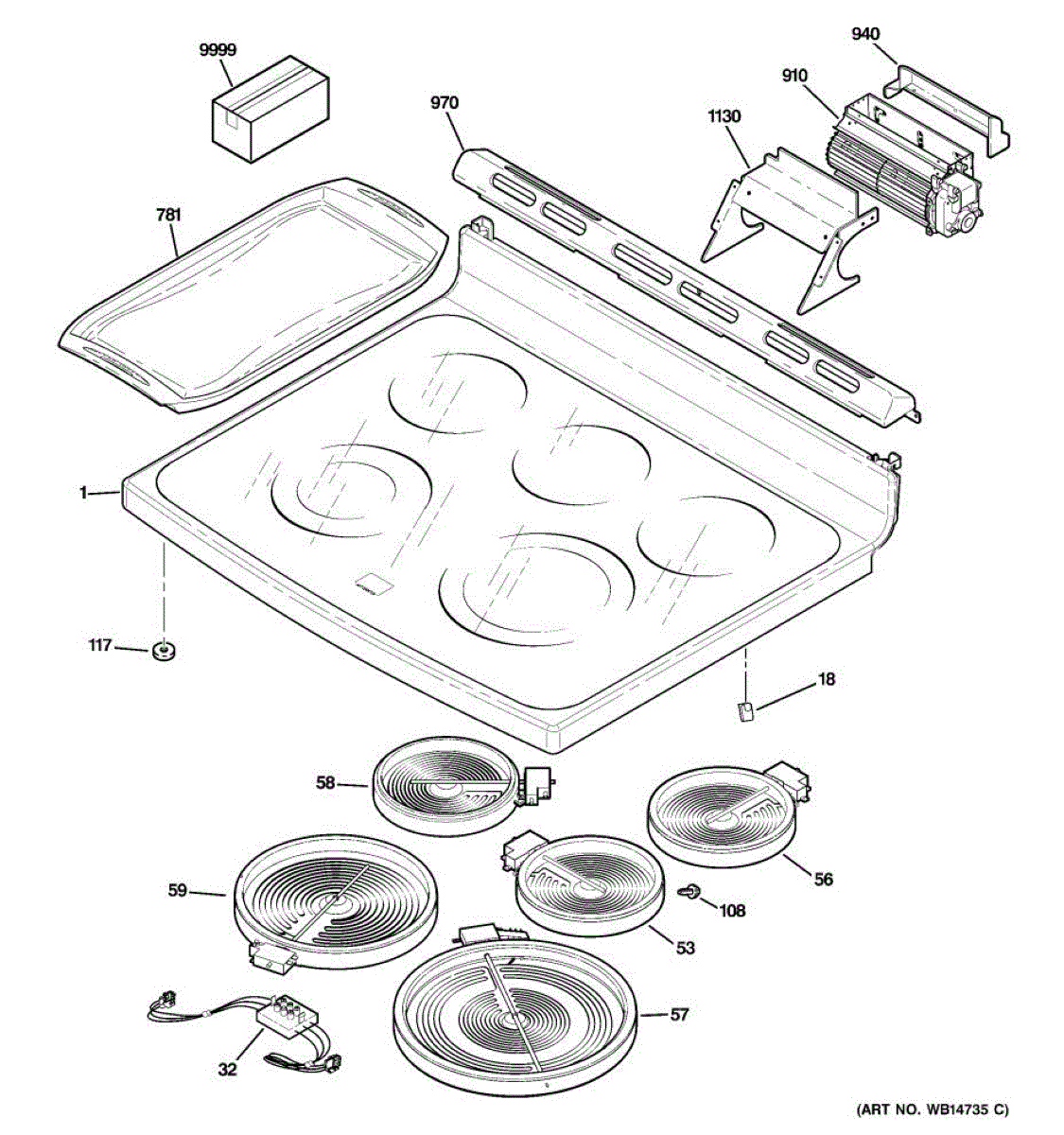

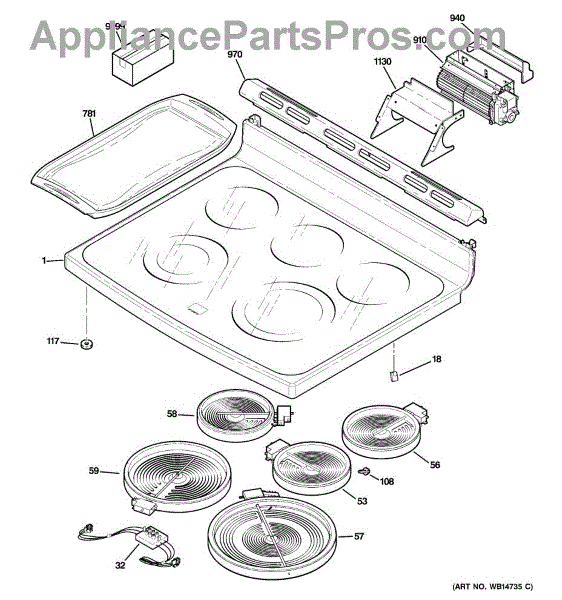

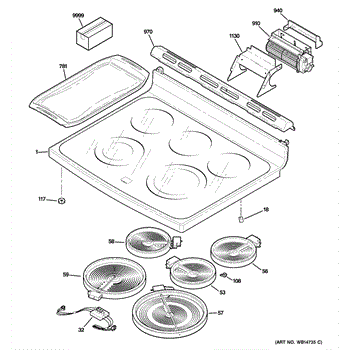

Parts for Ge CS980SN3SS: 02 - Cooktop Parts

This is a range top and glass assembly that is used on many ranges and stoves. These parts are found on the top of the stove and heat up to allow users to cook meals. This part is made of strong glass but can be damaged. It may crack, split, or experience other problems that make it unsafe for use. If the range top and glass assembly are damaged, they will need to be replaced.To replace these components, basic tools and work gloves will be needed. Unplug the range from the wall to prevent the appliance from coming on during the replacement process. Open the oven door to access the screws that hold the range top on the stove. Lift up the top away from the range to access burner knobs. Unplug the grounding cable and elements before removing the part. Replace with the new range top and glass assembly. Reinstall the elements and screw in the part before plugging back in the range.The range top and glass assembly are genuine OEM replacement parts that are sourced directly from the manufacturer. It is sold as a single kit. These parts are made to be used with ranges, ovens, and stoves by General Electric and Hotpoint.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

This module indicator light is a small replacement indicator lamp that shows the status of the appliance control module, restoring visible status feedback for diagnostics and normal operation. What it does:

• Lights to indicate the control module or user interface is powered or active
• Helps you troubleshoot control or display issues
• Fails silently when burned out, causing no visible status light
• Small electrical signal/light element designed to mate with the module harness

• Disconnect power to the appliance before servicing to avoid shock or damage
• Access typically requires removal of the control panel or console; keep fasteners organized
• Inspect and reseat connectors; replace only if the lamp or socket is visibly damaged
• Test the control board and wiring for faults

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 6" surface radiant element replaces a damaged or non-heating cooktop burner so your range heats evenly and cooks reliably. It fits into the cooktop opening and connects to the existing terminal block for standard operation. What it does

• Heats cookware by radiating heat from the glass-ceramic cooktop surface
• Restores a single 6" cooking zone that won't heat, cycles, or shows visible damage
• Works with standard cooktop terminal block connections and mounting clips
• Helps eliminate uneven cooking, no-heat, or intermittent heat symptoms

• One 6" surface radiant element

• Disconnect power at the breaker before servicing to avoid shock
• Remove the glass cooktop and access the element terminals per OEM instructions
• Verify terminal connections and element size/fit before final assembly

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

Dual

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This griddle radiant assembly is the heating element that warms the built-in griddle surface on select ranges, restoring consistent griddle heat for cooking. Replaces a failed or uneven griddle heating assembly to recover normal griddle operation. What it does:

• Provides direct radiant heat beneath the griddle plate for frying and grilling
• Heats the griddle surface evenly; may fix cold spots or weak griddle heat
• Replaces a burned-out or electrically open griddle element assembly
• Works as the OEM-fit heating component for affected griddle modules

• One griddle radiant assembly (heating element) as shown

• Disconnect power to the appliance before starting any repair
• Remove griddle plate and follow service manual for access to the element assembly
• Handle the griddle plate and element carefully to avoid damage to the surface or terminals
• Verify electrical connections and secure mounting; use proper wire connectors and strain reliefs

The Blower Motor is an OEM part for GE ranges. Within the oven cavity, it circulates air to help distribute heat evenly for thorough cooking.

Causes of a bad Blower Motor include wear from long term use, residue buildup on fan blades inhibiting air movement, or electrical issues such as loose wiring connections or a burned out motor coil.

Symptoms of a bad Blower Motor are:

• Inconsistent or improper baking and broiling
• Hot and cold spots inside the oven cavity
• Extended cooking times needed for foods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
