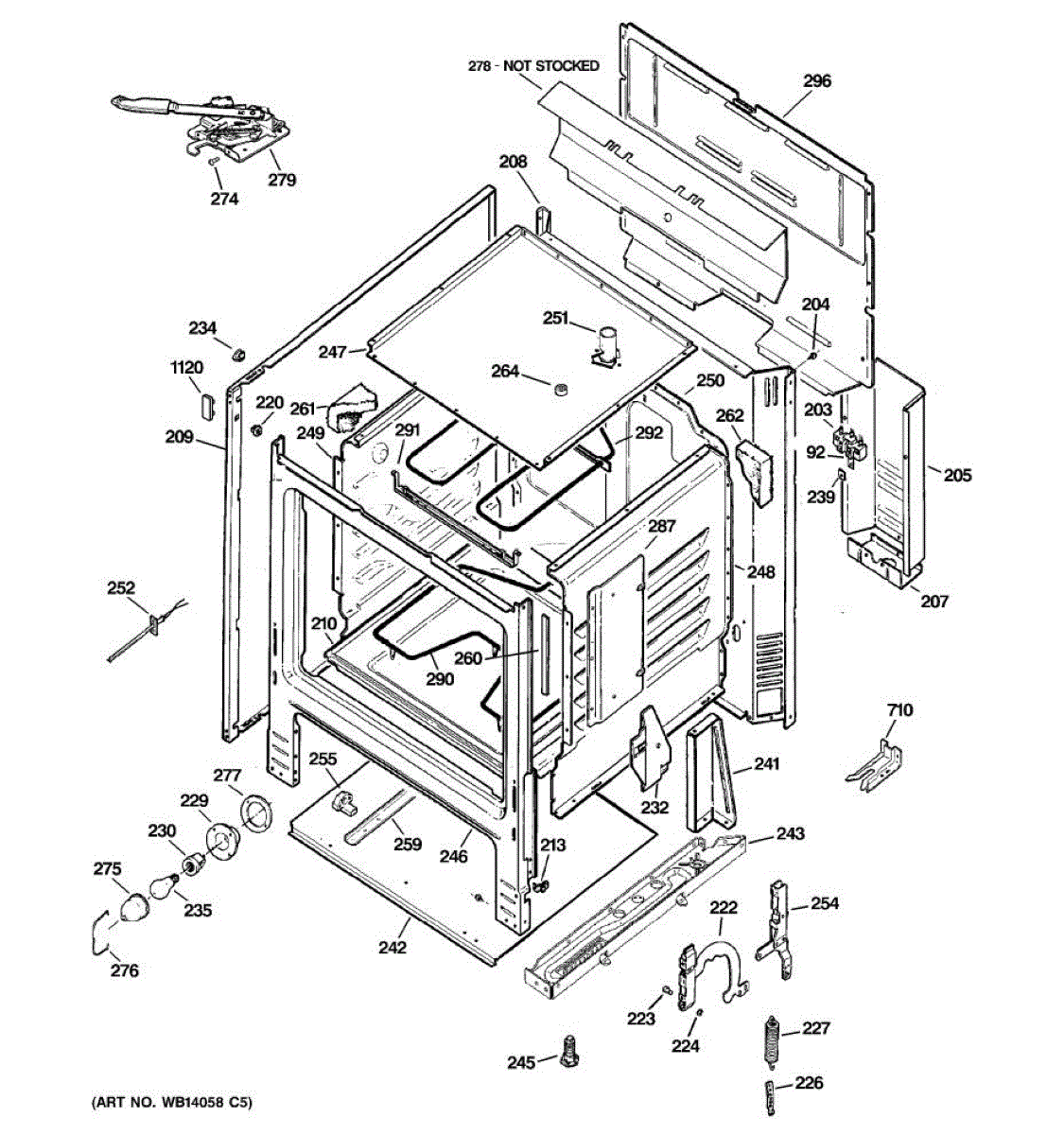

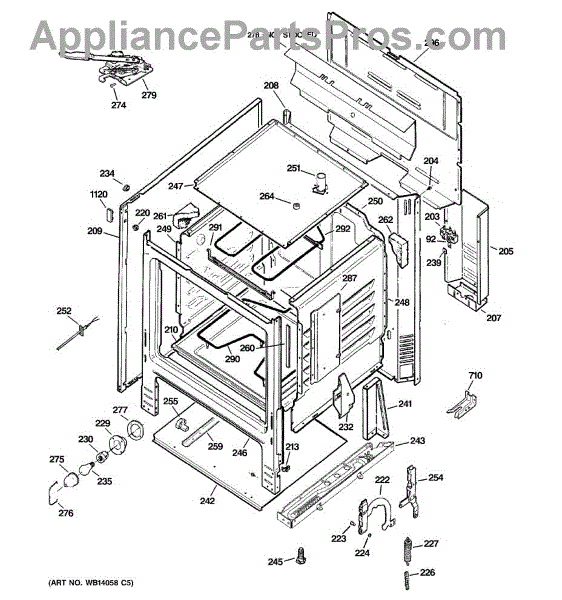

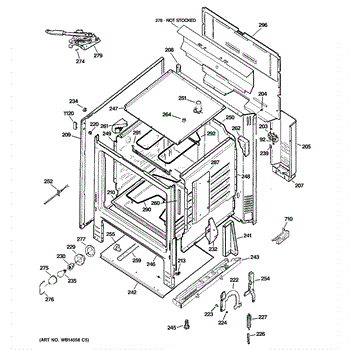

Parts for Ge JBP27DM2BB: 02 - Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This guard terminal protects and shields wire connection points on your appliance, helping prevent accidental contact and shorting while keeping terminals organized for reliable operation. What it does:

• Covers and insulates exposed terminal connections to reduce risk of arcing or short circuits
• Keeps wiring routed and separated for consistent electrical contact
• Helps avoid accidental contact during maintenance or part replacement
• Supports safe operation by protecting fragile terminal ends from bending or snagging

• Disconnect power to the appliance before inspecting or replacing electrical parts
• Replace only with the correct terminal guard
• Use basic hand tools; avoid bending terminals or over-tightening fasteners

This bracket mounting terminal secures the appliance's main electrical terminal block to the cabinet, keeping wiring stable for a safe, reliable power connection. It's a direct-fit replacement where terminal block support is damaged or loose. What it does

• Physically mounts and supports the main terminal block so incoming power wires stay secure
• Keeps wiring strain-relieved to reduce the risk of loose connections or arcing
• Restores a stable electrical connection when a broken or bent bracket causes intermittent power or poor contact
• Helps prevent overheating at the terminal connection by maintaining proper alignment

• One bracket mounting terminal

• Disconnect all power before servicing; lock out and tag if needed
• Use basic hand tools; avoid overtightening terminal screws to prevent damage
• Inspect wiring and terminal block; replace any damaged wires or connectors when present

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

This hook door spring helps restore proper tension and support to an oven or range door, improving door balance and smooth opening/closing. Designed to replace a worn or broken door tension spring. What it does:

• Provides tension to counterbalance the oven/range door for controlled opening and closing
• Helps prevent the door from sagging or dropping unexpectedly
• Restores proper door alignment and feel after spring wear or breakage
• Useful when the door hangs unevenly or doesn't stay open at intended positions

• One hook door spring

• Disconnect power to the appliance and allow components to cool before starting repairs
• Springs are under tension; wear eye protection and gloves and follow OEM instructions for safe removal and installation
• Installation may require partial door removal or support

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven top replaces the worn or damaged top surface on compatible ranges to restore a clean, stable cooking area and help maintain proper appliance appearance and operation. What it does:

• Replaces a cracked, dented, or heavily scratched oven top to improve cooktop appearance and surface integrity
• Provides a stable mounting surface for burners, grates, and trim pieces
• Helps prevent heat and spills from reaching internal components under the top
• Can reduce rattles or fitment issues caused by a warped or damaged top

• Disconnect power to the range at the breaker before starting any work
• Remove burners, knobs, grates and any trim as required to access and lift off the old top
• Handle panel edges carefully — metal edges can be sharp
• Verify fit and orientation before final fastener installation; keep all removed hardware for reassembly

This is a replacement vent tube designed to route exhaust air and restore proper ventilation in the appliance. Replacing a damaged or clogged vent tube helps maintain airflow and reduces the risk of moisture buildup or heat retention. What it does:

• Channels exhaust or vented air away from the appliance to maintain proper airflow
• Helps prevent moisture buildup and related odors when ventilation is impaired
• Can reduce overheating or performance issues caused by restricted venting
• Restores a secure path for airflow when the original tube is cracked, collapsed, or disconnected

• Disconnect power to the appliance before beginning work; for gas appliances, turn off the gas supply.
• Use basic hand tools and avoid sharp edges on sheet-metal near the vent opening.
• Ensure all connections are seated and sealed per the appliance diagram to prevent air leaks.

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drawer Support is an OEM part for GE ovens. This component provides structural stability and support to the oven drawer, ensuring it slides in and out smoothly and securely holds baking pans and other items stored within.

Causes of a bad drawer support can include regular wear and tear, excessive weight placed on the drawer, or physical damage from impacts or misalignment.

Symptoms of a bad drawer support include:

• Difficulty in opening or closing the oven drawer
• The drawer sagging or appearing misaligned
• Unstable or wobbly drawer when in use
• Noise or friction when sliding the drawer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This latch assembly secures and releases the oven door as designed, including during self-clean on many models. Replacing a worn latch restores proper door engagement so cycles start reliably and the door locks when required.

• Engages the door strike to lock and unlock the door
• Supports the self-clean safety interlock on applicable ranges
• Helps resolve issues like a door that won't lock/unlock or a latch that sticks/feels loose
• Clears control errors related to door lock status

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the latch from the control area or beneath the cooktop/top panel, per model
• Note spring/linkage routing; transfer reusable hardware and align the latch with the door strike
• After reassembly, hand-check smooth latch movement and verify lock/unlock operation

Right hand side

Left hand side

Replace a burned-out lower bake heating element to restore consistent heat and even baking. This part is the primary heat source during Bake cycles; when it fails, the oven may not heat, preheat slowly, or bake unevenly.

• Provides bottom heat for the oven during Bake cycles
• Common symptoms: no heat in bake mode, very long preheat, uneven or undercooked results, element not glowing
• Replaces elements with visible cracks, blisters, or breaks
• Restores consistent temperature recovery and even heating

• Disconnect power at the breaker and allow the oven to cool completely
• Remove racks; unfasten mounting screws; gently pull the element forward and move one wire at a time to the new element
• Prevent wires from slipping back into the insulation; support them as you work
• Do not overtighten screws or bend the element; restore power and test Bake

This broil element support bracket secures the upper heating element to the oven cavity, maintaining proper spacing and alignment. Replacing a damaged or missing support restores stable mounting and helps prevent sagging or arcing.

• Holds the broil element in position at the top of the oven
• Maintains safe clearance from the liner to reduce shorts/sparking
• Helps promote even broiling by keeping the element level and centered
• Common symptoms include a broken/missing support, a sagging or loose element, rattling, or scorch marks near the mount

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks; support the broil element while removing the existing support and screw
• Position the new support and secure it with the mounting screw; do not overtighten
• The element sits level with adequate clearance before restoring power and testing

The Oven Broil Element is an OEM replacement part for GE ovens. It is located in the upper portion of the oven cavity and is responsible for generating intense heat for broiling foods. This element provides even heat distribution, ensuring proper cooking and browning of food during the broil cycle.

Over time, broil elements can wear out or fail due to frequent use, high temperatures, or electrical issues. A damaged element will affect the oven's ability to broil properly.

Symptoms of a bad broil element include:

• The broil function not working or producing insufficient heat
• Uneven browning or cooking of food during broiling
• Visible damage, such as breaks or blisters on the element
• Sparking or tripping of the circuit breaker when the broil setting is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components
