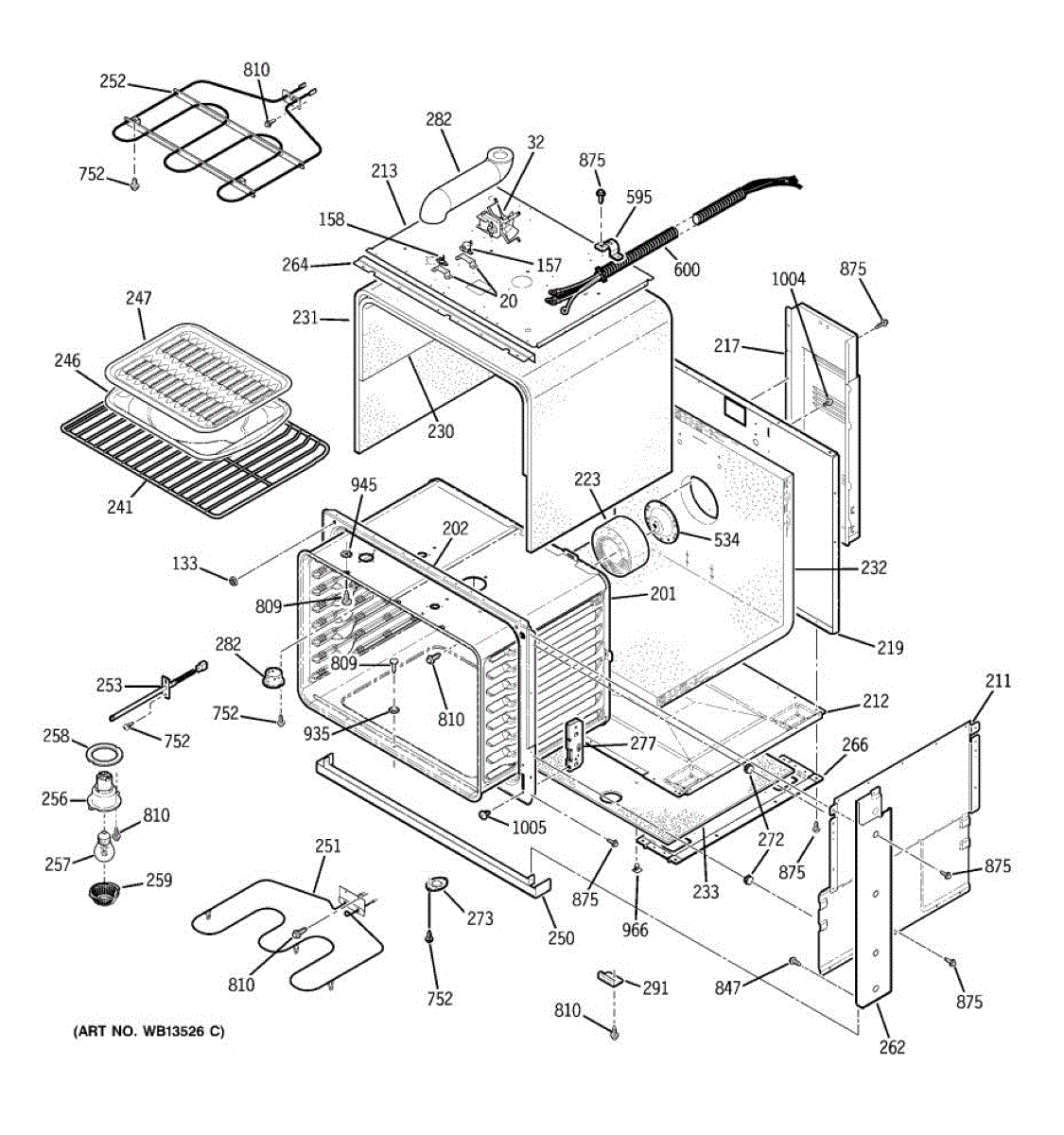

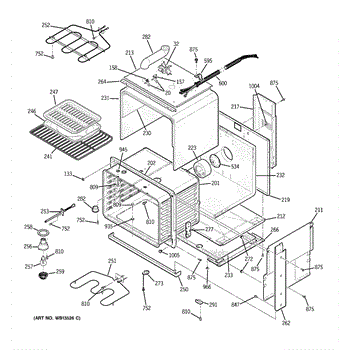

Parts for Ge JDP39BK3BB: 02 - Body Parts

This mounting bracket secures the appliance switch in place to maintain reliable switch alignment and operation. It's a simple replacement that restores proper switch positioning and helps prevent intermittent or failed switch contact. What it does

• Holds the switch assembly firmly in the correct position for consistent operation
• Prevents switch movement that can cause intermittent operation or failure to engage
• Commonly replaced when a loose or broken bracket causes the appliance not to start, stops mid-cycle, or has inconsistent controls
• Compatible with the factory switch design to maintain original fit and function

• Disconnect power to the appliance before starting any repair
• Basic hand tools are typically required; keep screws and small parts organized
• Handle the switch and wiring carefully; avoid pulling on wires during replacement
• After installation, restore power and test the switch operation before reassembling panels

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

This limit switch is a small position-sensing microswitch used in the oven door lock system. It tells the control when the latch is open or closed so the door can lock/unlock correctly and self-clean can run safely.

• Detects the oven door latch p

Oven overheating or won't heat properly? This thermal limit switch monitors temperature and cuts power to prevent damage. Resets automatically when cooled.

Front frame trim for ovens and ranges. Replaces cracked, broken, or damaged trim pieces around the oven door opening. Restores appearance and structure.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Insulation pad that installs on top of the oven cavity to reduce heat transfer and dampen sound. Replace if torn, compressed, or missing for safety.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Lower trim panel for ranges. Installs along the bottom front edge to cover gaps and provide a finished appearance. Replace if cracked, chipped, or missing.

Oven not heating or baking unevenly? A failed bake element is the likely cause. This DIY repair typically takes 15-30 minutes with basic tools.

Broiler not heating or won't turn on? This broil element assembly restores high-heat broiling. Most DIYers complete this repair in under 30 minutes.

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

Base rail that guides and supports oven racks for smooth sliding. Replace this structural component if cracked, bent, or worn to restore proper rack movement.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural sup

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

Mounting screw for gas ranges and ovens. Secures panels, components, or brackets during installation. Replace if missing, stripped, or damaged.

Nickel

Black. 8-18 AB HXW 3/8

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
