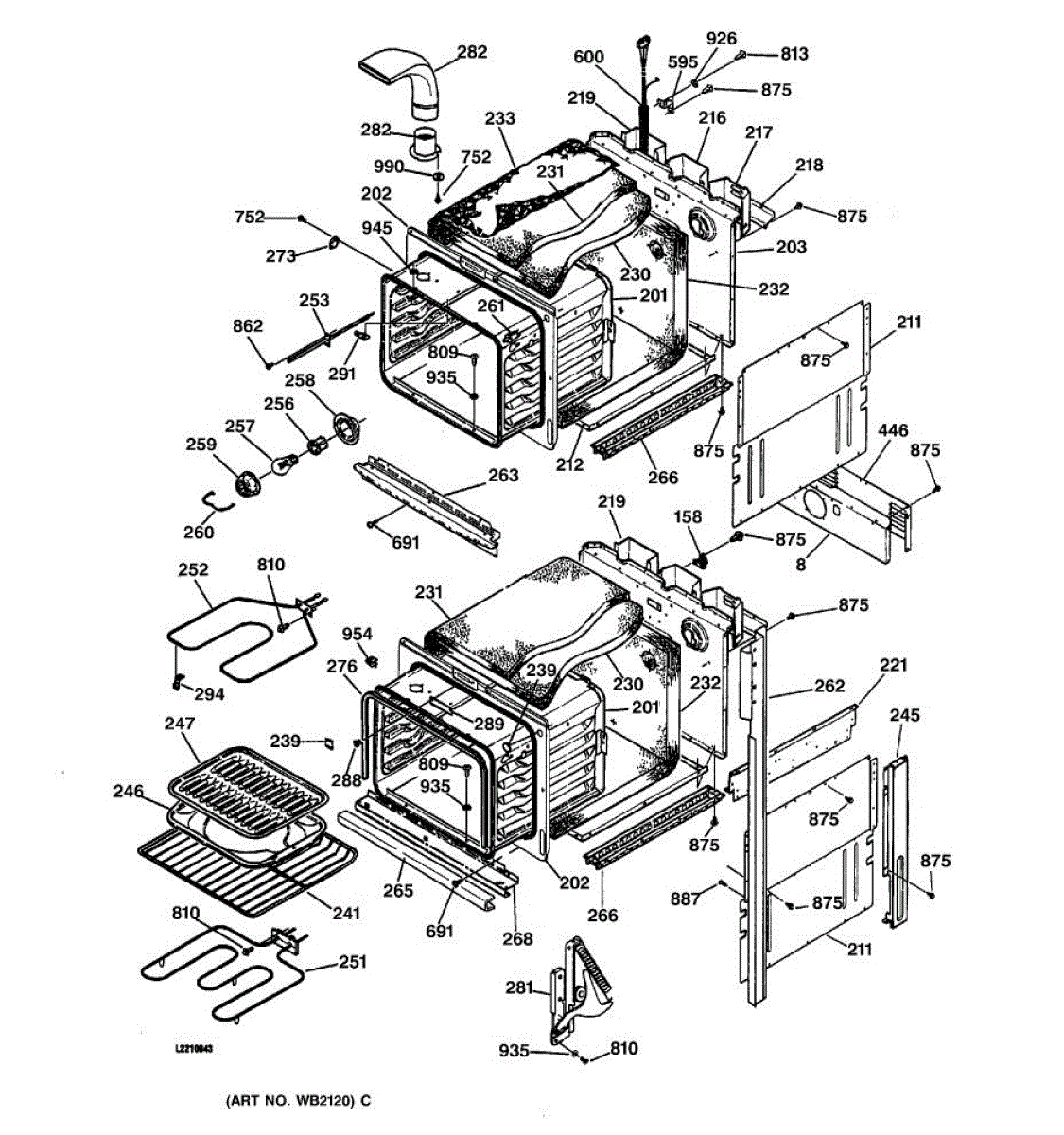

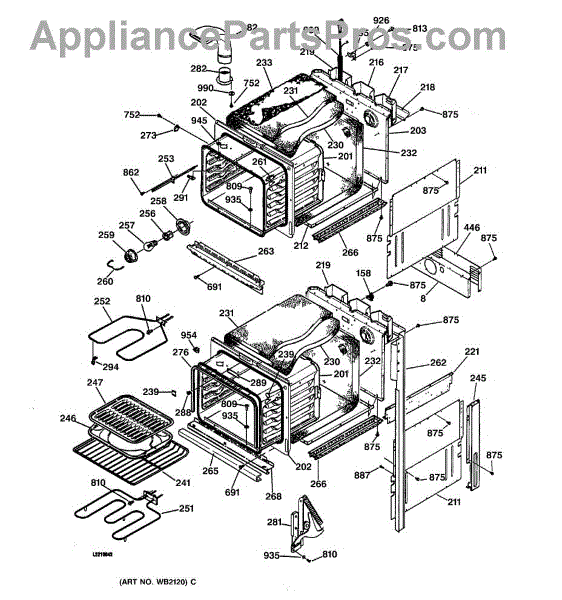

Parts for Ge JKP27BA2BB: 02 - Body Parts

Lower back

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

This oven cavity wrapper assembly replaces the damaged or corroded inner oven liner to restore the oven's interior surface and help maintain even cooking and easier cleaning. Designed to fit the oven cavity and support mounting of oven components. What it does:

• Replaces a warped, dented, or corroded oven cavity surface to restore interior integrity
• Provides the proper mounting surface for heating elements and internal components
• Helps reduce hotspots and improves heat containment when the cavity is intact
• Improves cleanability by restoring a smooth, continuous inner surface

• One oven cavity wrapper assembly

• Requires basic disassembly of the oven door and removal of internal components
• Disconnect power at the breaker before starting work to avoid electric shock
• Handle edges carefully — sheet metal may be sharp; wear gloves and eye protection
• Verify alignment and fastener torque per OEM instructions

Rear chassis panel for ovens. Supports internal components and protects wiring. Replace if your panel is cracked, corroded, damaged, or missing.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Inner door insulation wrap for ovens and ranges. Replaces worn, damaged, or missing insulation between door panels. Maintains heat efficiency.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? This lower bake element restores consistent heat from the bottom of your oven. Moderate DIY repair for most models.

Oven not heating or baking unevenly? A failed bake element is often the cause. This heating element restores proper baking temperature in 10-15 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlay labels. Adheres over existing control panel surface.

Secures the broiler element at the top of your oven for proper heat distribution. Replace if broken, missing, or failing to hold element in place.

Wire harness assembly that routes and protects electrical wiring inside your wall oven. Replace if cracked, damaged, or connections are loose or worn.

Replacement black screw for securing range panels, trim, or brackets. Needed when original screw is missing, stripped, or broken. Discrete fastener restores fit.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Range ground washer ensures proper electrical grounding. Prevents shock hazards and ensures safe operation. Quick 5-minute repair for most models.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Lock washer secures burner components on electric ranges and cooktops. Replace if washer is damaged, missing, or no longer holds parts firmly in place.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.
