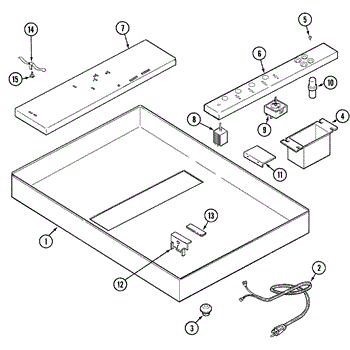

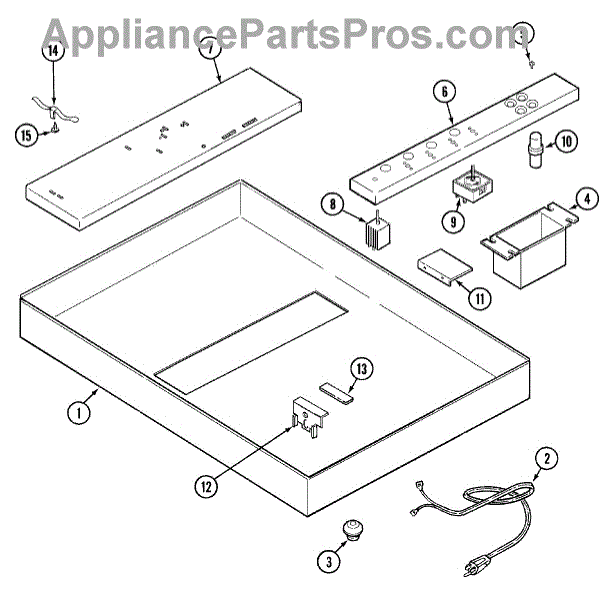

Parts for Jenn-Air CVE3400W: 02 - Body Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

The fan control switch is the panel-mounted switch that sends power to the appliance's fan motor. Replacing a worn switch restores reliable on/off control and proper airflow so the fan starts and stops when it should.

• Provides user-operated on/off power to the fan/blower motor
• Helps regulate airflow for cooling, venting, or convection depending on model
• Typical symptoms: fan won't run, runs continuously, intermittent operation, or a loose/broken switch shaft
• Mounts behind the control panel and is actuated by the exterior knob/lever

• Disconnect power at the breaker before servicing
• Remove the control knob/actuator and panel trim to access the switch
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure with the original hardware, restore power, and test operation

Color: black. It measures about 1 inch in diameter.

The Infinite Switch Kit (Dual) is an OEM part for Whirlpool ranges and cooktops. This kit includes the dual infinite switch, which allows for the independent control of two heating elements on the same burner. It provides precise control over the temperature settings for cooking surfaces, ensuring optimal performance.

Causes of a bad infinite switch can include wear and tear from frequent use, electrical surges, or exposure to moisture and spills. These issues can affect the switch's ability to regulate the burner temperature effectively.

Symptoms of a bad infinite switch include:

• One or both burners not heating up or heating inconsistently
• Burners staying at a fixed heat level regardless of the setting
• Difficulty in adjusting the burner temperature
• The switch feeling loose, stuck, or unresponsive

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. It controls the power levels of the surface heating elements, allowing users to adjust the heat intensity for cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from regular use, or damage due to overheating.

Symptoms of a bad infinite switch include:

• Inconsistent heating of the burner
• The burner not turning on or off
• The burner staying at one heat level regardless of adjustment
• Sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation
