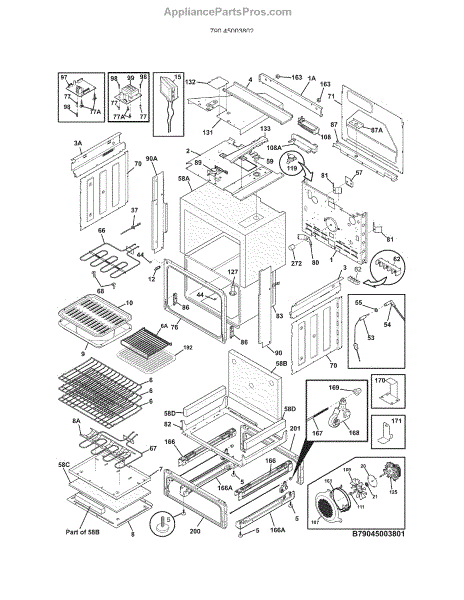

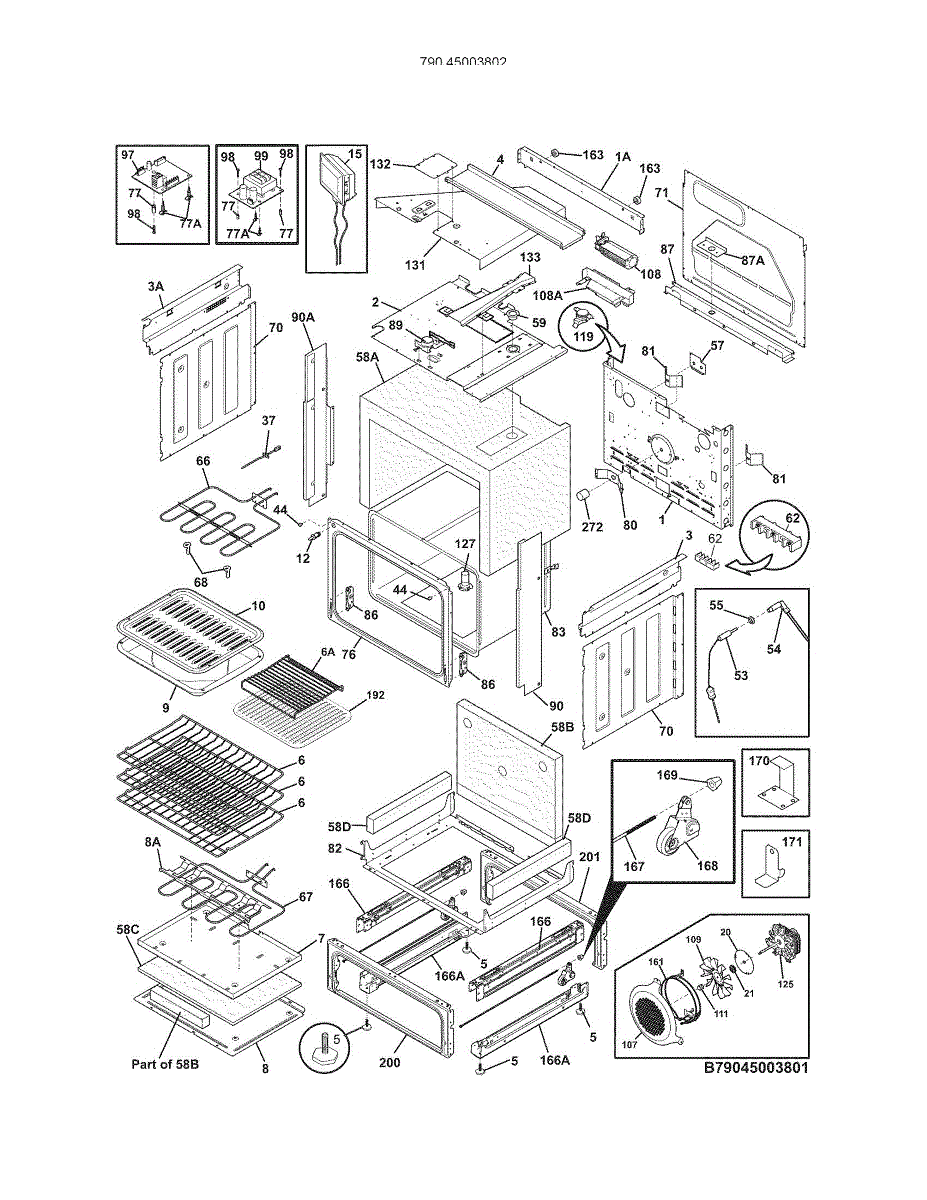

Parts for Kenmore 790.45003802 (79045003802, 790 45003802): Body Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

Replace your oven's heat shield if it's cracked, warped, or missing. This metal guard installs inside the cavity to protect internal components from heat damage.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

Broiler pan rack for electric ovens and ranges. Replaces cracked, warped, or missing racks. Installs inside broiler pan for elevated cooking.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replace your electric range's mounting bracket if it's bent, cracked, or broken. This metal bracket secures internal components in place during operation.

Protective guard panel for electric range control areas. Replaces cracked, broken, or missing panels. Shields controls and internal components from damage.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

This is a halogen light assembly that illuminates the interior of the oven cavity so you can monitor food while cooking. It includes the bulb, socket, and lens cover that mount inside the oven compartment. Replace this assembly if the oven interior light does not turn on, the lens is cracked or discolored from heat damage, or the socket no longer holds the bulb securely.

Replace your range oven door seal to maintain heat efficiency and prevent energy loss. Essential when you notice gaps, cracks, or heat escaping. Verify fit.

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

Sound dampening insulation for electric ranges. Installs inside the range cabinet to reduce noise and provide thermal protection. Replace if worn or missing.

Insulates and cushions the oven cabinet interior. Replace if cracked, damaged, or missing to restore thermal separation and reduce condensation.

Sound dampening insulation for wall ovens. Replaces worn, damaged, or missing insulation that reduces noise and heat transfer during operation.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a broil element designed for use in an electric range or oven. It mounts in the upper portion of the oven cavity and provides high, direct heat for broiling foods. Replace this element if your oven no longer broils properly, heats unevenly from the top, or if the element shows visible damage such as cracks, blistering, or burn-through spots.

Oven not reaching temperature or cooking unevenly? A faulty bake element is often the cause. This heating element restores proper baking performance.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix F95 error codes or doors that won't lock with this oven door latch motor. Restores self-cleaning function. Moderate difficulty, 30-45 minute repair.

This is a black filler panel designed to mount on the left side of the range. It covers the gap between the range and adjacent cabinetry for a finished, built-in appearance. Replace this panel if it is cracked, warped, discolored, or missing.

Range won't turn on or display shows incomplete numbers? This electronic control board manages cycles and user inputs. Moderate DIY repair, 1-2 hours.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Fix noisy convection fan operation with this motor replacement. Restores quiet, even heating in your oven. Moderate DIY repair in 30-60 minutes.

Vent duct adapter for ovens and ranges. Connects vent ductwork to ensure proper airflow. Replace if cracked, broken, or missing for secure fit.

Replacement support plate for ovens and ranges. Mounts inside the oven cavity to secure internal components. Order a new plate if yours is cracked or broken.

This is a 2500-watt circular heating element located at the rear wall of the oven cavity, surrounding the convection fan. It provides even heat distribution during convection baking and roasting by working in conjunction with the fan. Replace this element if your oven is not heating properly in convection mode, food is cooking unevenly, or the element is visibly damaged or broken.

Secures internal components to your range cabinet. Replace this bracket if the original is broken, bent, or missing to restore proper alignment.

Replacement screw for electric and gas ranges. Secures components and panels in place. Order a new screw if yours is stripped, missing, or damaged.

Replace worn, cracked, or missing range wheel and bracket assembly. Installs on the bottom of your range for smooth rolling and stability. Ideal fix for flat spots or broken wheels from frequent moving.

Secures your range to the wall or floor to prevent tipping hazards. Replace if missing, damaged, or when installing a new range. Essential safety bracket.

Structural mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, broken, cracked, or missing to restore proper fit.

Replace your range cooktop's trim frame if the paint is chipping, peeling, or worn. This decorative frame installs around the glass cooktop surface.

Structural frame component for electric and gas ranges. Replaces damaged, bent, or corroded frame that affects cabinet integrity or appliance stability.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Support plate for electric ranges. Mounts internally to provide structural support. Replace if cracked, broken, or damaged during service or repairs.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
