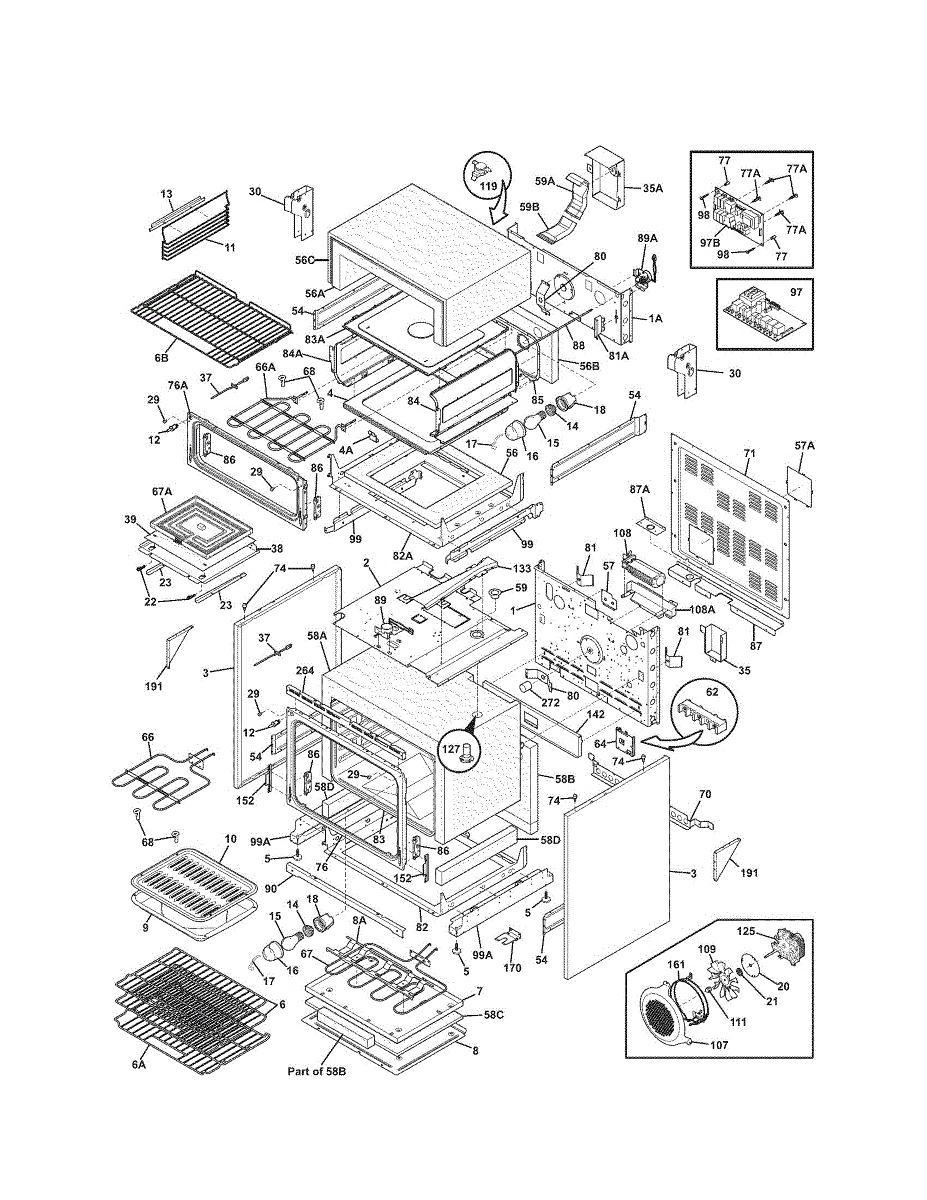

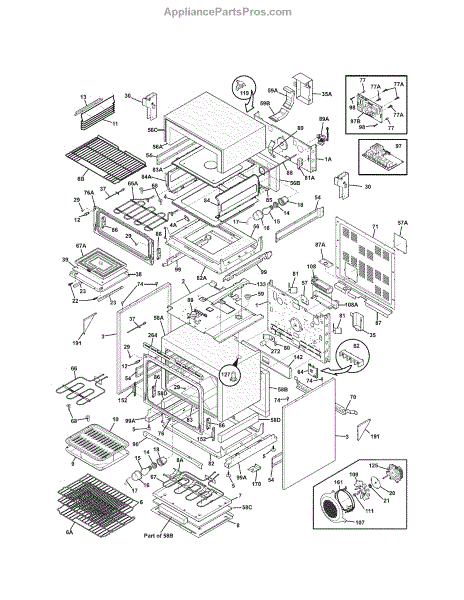

Parts for Kenmore 790.97502000 (79097502000, 790 97502000): Body Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

Protective liner that sits on the floor of your range oven cavity. Replace if cracked, warped, stained, or damaged to restore appearance and protect.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

Replace your electric range's mounting bracket if it's bent, cracked, or broken. This metal bracket secures internal components in place during operation.

Protective guard panel for electric range control areas. Replaces cracked, broken, or missing panels. Shields controls and internal components from damage.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace your range oven door seal to maintain heat efficiency and prevent energy loss. Essential when you notice gaps, cracks, or heat escaping. Verify fit.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

This replacement insulation panel installs behind the refrigerator liner to help the cabinet maintain proper temperature and reduce frost buildup. It restores original thermal protection and helps the appliance run more consistently. What it does

• Replaces damaged or missing liner insulation that can cause uneven cooling or frost issues
• Helps reduce heat transfer between the fresh food/freezer compartments and the cabinet
• Supports consistent compressor cycling by improving internal temperature stability
• Can reduce condensation and cold spots around the liner area

• One insulation panel

• Designed to fit behind the refrigerator liner; access typically requires removing interior panels and shelving
• Handle gently to avoid compressing or tearing the insulation material
• Use appropriate fasteners/adhesive per the OEM instructions when reinstalling
• Disconnect power before beginning repairs and follow all safety precautions

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

Sound dampening insulation for electric ranges. Installs inside the range cabinet to reduce noise and provide thermal protection. Replace if worn or missing.

Sound dampening insulation for wall ovens. Replaces worn, damaged, or missing insulation that reduces noise and heat transfer during operation.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Replaces the metal liner that forms the interior walls of your range oven cavity. Order a new liner if yours is cracked, warped, or corroded.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix an oven door that won't lock or unlock during self-clean cycle. This door latch motor controls the locking mechanism. Moderate DIY repair.

Fixes ovens that shut off during heating or lose temperature over time. Controls heating elements through relay signals. Moderate difficulty repair.

Oven won't heat to set temperature or display shows error codes? This electronic control board manages bake/broil circuits and clock functions. DIY repair.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat or shuts off during use? A blown thermal fuse cuts power to prevent overheating. Simple diagnosis with a multimeter, quick replacement.

Fix noisy convection fan operation with this motor replacement. Restores quiet, even heating in your oven. Moderate DIY repair in 30-60 minutes.

Vent duct adapter for ovens and ranges. Connects vent ductwork to ensure proper airflow. Replace if cracked, broken, or missing for secure fit.

Oven won't heat or bakes unevenly? This bake element restores reliable heat for even cooking. Direct replacement part—most DIYers complete in 30 minutes.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

Replace your oven's broken or missing rack spring. This small metal spring helps support and stabilize oven racks during sliding and positioning.

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Support plate for electric ranges. Mounts internally to provide structural support. Replace if cracked, broken, or damaged during service or repairs.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Replace your range's internal wiring harness if wires are frayed, damaged, or connections are loose. Connects electrical components inside the range.

Wiring harness for wall ovens. Connects electrical components inside the oven cavity. Replace if wires are frayed, burned, or connections are loose.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
