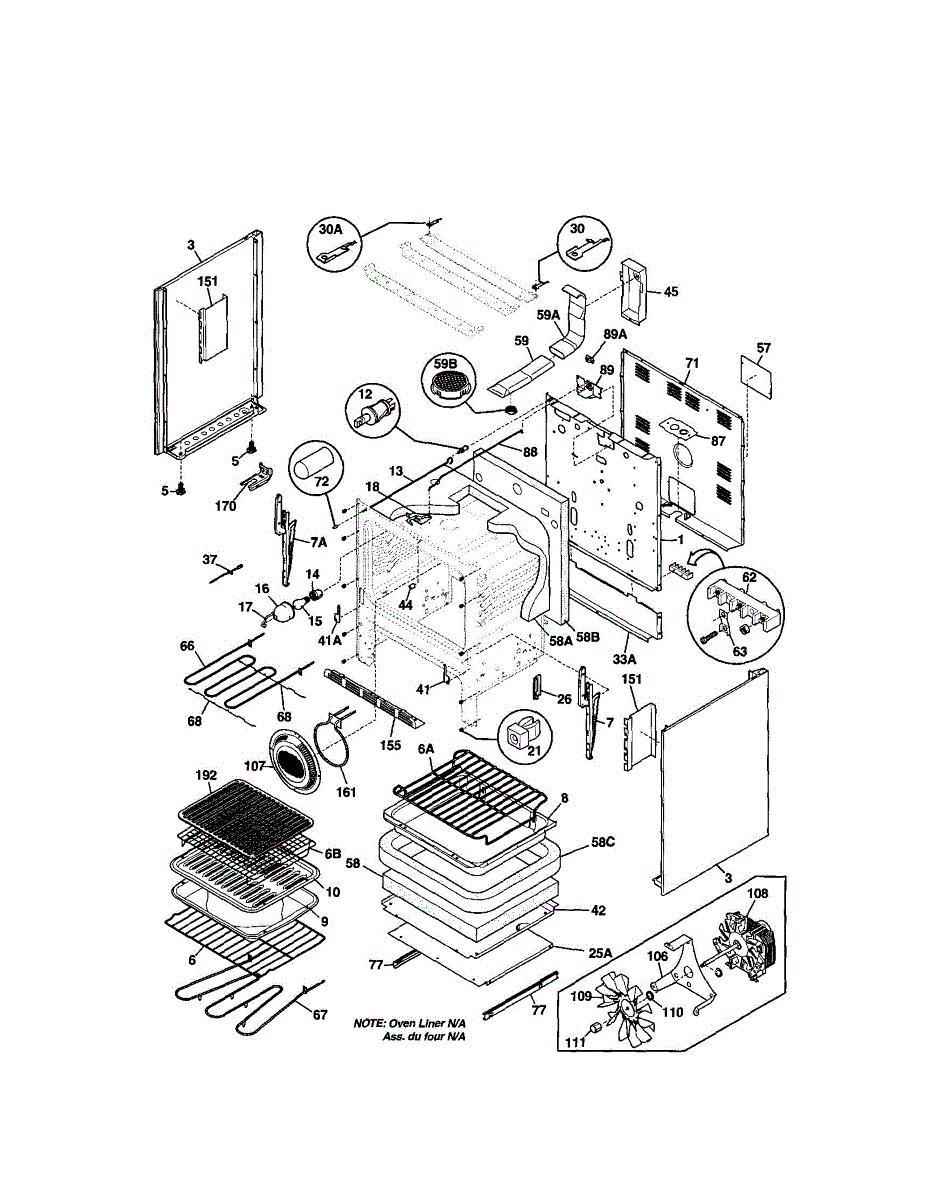

Parts for Kenmore 790.99014100 (79099014100, 790 99014100): Body Parts

Replacement back panel for your electric range. Covers the rear of the range chassis. Order a new panel if yours is cracked, damaged, or missing.

This adjustable leg supports your range and allows you to level it on uneven floors. It screws up or down to raise or lower each corner for proper alignment. Replace this if your range rocks, sits unevenly, or if the existing leg is stripped, bent, or missing.

Broiler pan rack for electric ovens and ranges. Replaces cracked, warped, or missing racks. Installs inside broiler pan for elevated cooking.

Replace your cracked, warped, or hard-to-clean oven rack. This durable rack installs inside your range oven to support cookware during baking and roasting.

This is the left side door hinge. For right side use 316216500.

Right side oven door hinge for your range. Replaces broken, bent, or worn hinges that prevent proper door closure. Installs on range frame. Sold individually.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Body-side spacer for gas range door or lid hardware. Installs on cabinet side to set correct stand-off and alignment. Replace if cracked or missing.

Mounting bracket that secures the range cabinet and internal components for proper alignment. Replace if cracked, bent, or broken to restore stability.

Right-hand hinge bracket for gas range main top. Secures the cooktop hinge assembly. Replace if cracked, bent, or missing to restore proper alignment.

Left-hand hinge bracket for gas range main top. Secures and supports the range top hinge assembly. Replace if bent, cracked, or broken to restore proper fit.

Fixes oven not reaching correct temperature or displaying error codes. This temperature sensor probe monitors and regulates oven heat. Easy DIY fix.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Plastic spacer that positions the oven door correctly during opening and closing. Replace if cracked, broken, or missing to restore proper door alignment.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Replacement access cover kit for electric ranges. Covers internal components and wiring. Order a new kit if your original is cracked, broken, or missing.

Ceramic catalyst insert for range oven vents. Breaks down cooking odors and residues at high temperatures. Replace if cracked, clogged, or missing.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Broil element not heating or burnt out? This upper heating element restores intense top heat for broiling meats and melting cheese. Easy DIY repair.

Oven not heating or preheating slowly? A failed bake element is usually the cause. This direct-heat component restores even baking. DIY repair in 30 minutes.

Support bracket that secures the broil heating element in your range oven. Replace if cracked, broken, or missing to properly mount the broiler element.

Replace a cracked, damaged, or missing shield on your electric range. This structural component protects internal parts and maintains proper assembly.

Protective cover for the light switch rod end assembly. Replace if cracked, broken, or missing to shield the switch and maintain proper door light operation.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

A replacement motor latch that secures the motor assembly to the appliance chassis, helping keep the motor stable during operation for smoother performance and reduced vibration. Fits specific Frigidaire/WCI motor assemblies. What it does:

• Secures and positions the motor assembly to prevent excessive movement
• Helps reduce vibration and rattling caused by a loose motor mount
• Restores proper alignment between motor and drive components
• Can eliminate intermittent contact-related noise from a shifting motor

• Disconnect power (unplug or switch off breaker) before starting any repair
• Installation typically requires accessing the motor area—expect to remove panels or the cabinet
• Keep track of mounting hardware; replace any damaged fasteners
• Test operation after reassembly; stop and recheck if noises or vibration persist

This is a metal cover that fits over the convection fan assembly in the back wall of the oven cavity. It protects the fan and heating element while allowing hot air to circulate evenly during convection cooking. Replace this cover if it is warped, cracked, or corroded, which can cause uneven heating or rattling noises during convection baking.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

Size: 3/4 inch od x 1/4 inch id.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Uneven baking or convection mode not working? This rear-mounted convection fan heating element circulates hot air for consistent cooking results.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Removable griddle plate that sits over range burners to create a flat cooking surface. Replace yours if cracked, warped, or worn for even cooking.

Wiring diagram for your range. Shows electrical connections and circuit layout. Replacement needed if original is lost, damaged, or unreadable.

Replacement owners manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Size: 8-18ab x 0.5 inch.

Size: 10-32 x 0.312 inch. Color: Black.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
