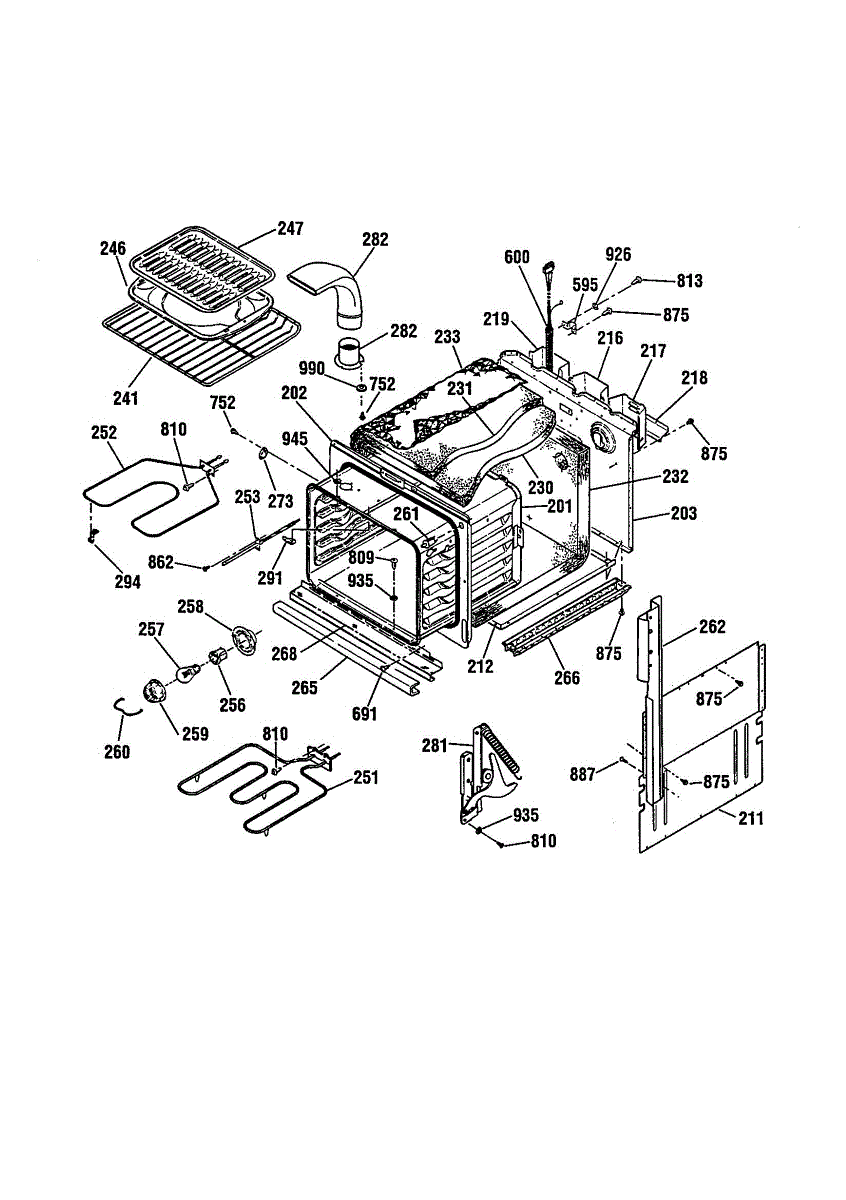

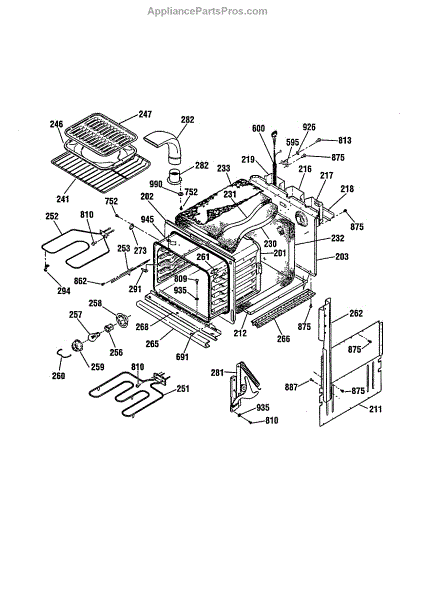

Parts for Kenmore 911.47486991 (91147486991, 911 47486991): Body Parts

This oven cavity wrapper assembly replaces the damaged or corroded inner oven liner to restore the oven's interior surface and help maintain even cooking and easier cleaning. Designed to fit the oven cavity and support mounting of oven components. What it does:

• Replaces a warped, dented, or corroded oven cavity surface to restore interior integrity
• Provides the proper mounting surface for heating elements and internal components
• Helps reduce hotspots and improves heat containment when the cavity is intact
• Improves cleanability by restoring a smooth, continuous inner surface

• One oven cavity wrapper assembly

• Requires basic disassembly of the oven door and removal of internal components
• Disconnect power at the breaker before starting work to avoid electric shock
• Handle edges carefully — sheet metal may be sharp; wear gloves and eye protection
• Verify alignment and fastener torque per OEM instructions

Rear chassis panel for ovens. Supports internal components and protects wiring. Replace if your panel is cracked, corroded, damaged, or missing.

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? This lower bake element restores consistent heat from the bottom of your oven. Moderate DIY repair for most models.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Speed nut for ovens and ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.
