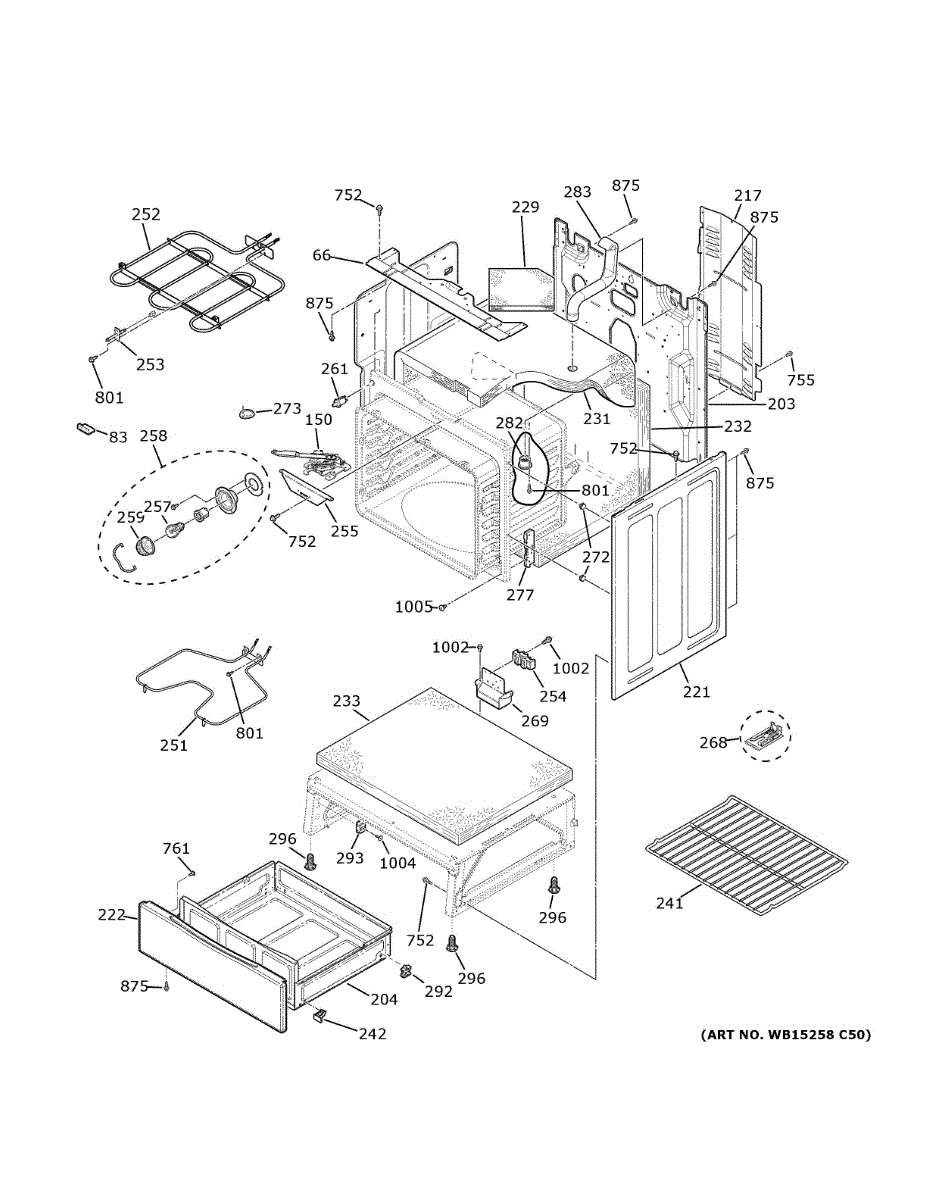

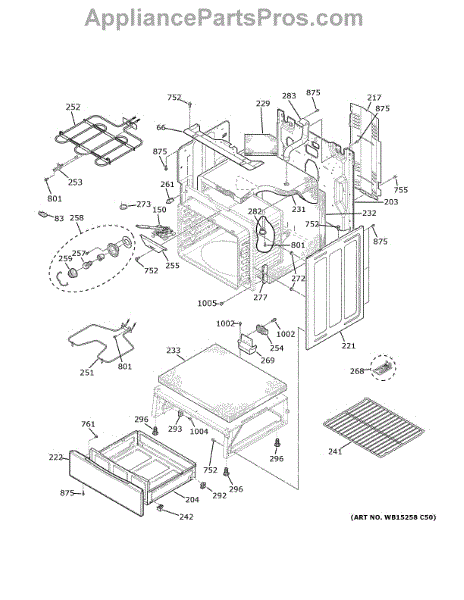

Parts for Ge JB655FK8DS: Body Parts

Rangetop enclosure for electric ranges. Installs on the main cooking surface to contain and support the heating elements. Replace if cracked or damaged.

Oven door won't close or lock properly? This range door latch and handle assembly secures the door during baking and self-clean cycles. DIY repair.

Replace your electric range's lower drawer assembly if bent, jammed, cracked, or missing. Restores smooth glide operation and proper alignment.

Replace a cracked, dented, or missing side panel on your electric range. This structural cover panel installs on the exterior side of your appliance.

Insulation wrap for range vent tubes. Prevents heat transfer to cooktop surface. Replace if damaged, torn, or missing after rodent damage or wear.

Oven not heating evenly or exterior too hot? This cavity insulation blanket restores heat retention and improves cooking performance in your range.

Rear insulation panel that installs behind the oven cavity to contain heat and protect surrounding components. Replace if cracked, damaged, or missing.

Replace worn oven bottom insulation when heat escapes or the cabinet gets too hot. This thermal pad restores proper insulation under the oven cavity.

Oven rack for electric ranges. Slides into oven cavity to hold cookware during baking. Replace if cracked, bent, warped, or missing a second rack.

Aligns and stabilizes your range's lower storage or warming drawer for smooth sliding and flush closure. Replace if cracked, worn, or missing to restore fit.

The Bake Element is an OEM part for GE wall ovens and ranges. It generates the necessary heat through a series of exposed coils to bake and brown food consistently.

Symptoms of a failed bake element include:

• Inability to reach or maintain proper baking temperatures
• Burned-out coils causing uneven or sporadic heating
• Error codes relating to sensor detection of element issues
• Premature element failure can create a hazardous smell or smoke

Causes may be normal wear of the coil material over many use cycles in high heat. Without a functioning bake element, the oven cannot reliably or safely perform its baking function.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Broiler not working or burned out? This broil element radiates intense heat from above to sear and brown foods. Straightforward DIY replacement.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Fix burning smell or electrical arcing from loose terminal connections. This terminal block assembly connects your range's internal wiring to power supply.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

Halogen oven light assembly illuminates your electric range interior so you can monitor cooking without opening the door. Replace when dim or burned out.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Range won't power on or has a loose power connection? This terminal block mount secures the electrical connection. Straightforward install in under an hour.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Secures your range door hinge to the cabinet frame for proper pivot and seal. Replace if door sags, won't close flush, or hinge is loose. Confirm fit with your model number.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Hex washer head screw secures panels, brackets, and small assemblies inside refrigerators and ranges. Replace stripped, missing, or damaged screws.

Replacement mounting screw for electric ranges and wall ovens. Secures components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Black. 8-18 AB HXW 3/8

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
