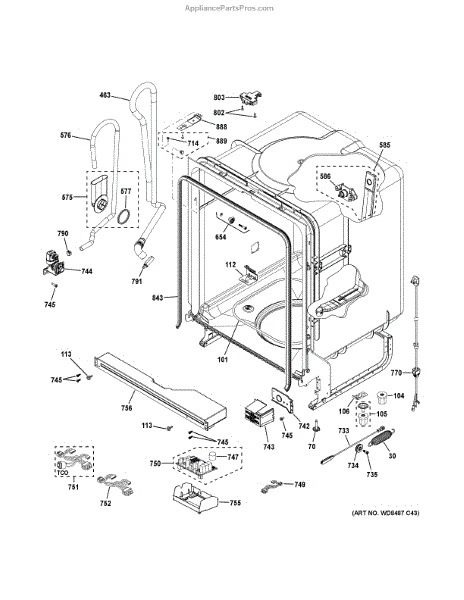

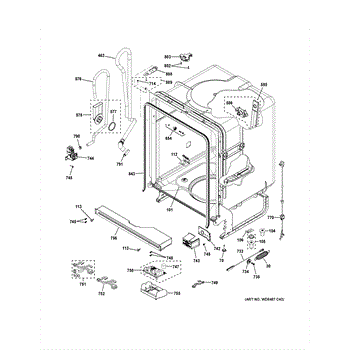

Parts for Ge GDF511PGM0BB: Body Parts

Parts for Ge GDF511PGM0BB: Body Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
30
Best Seller
Product photo
5.0 (1)
By: Ge
Part Number: WD03X20445

Counterbalances your dishwasher door for smooth opening and prevents sudden dropping or slamming. Replace if fatigued, broken, or missing.

More
$13.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
70
Best Seller
Product photo
By: Ge
Part Number: WD02X31882

Adjustable leveling leg for dishwashers. Screws into the base frame to set height and stabilize the unit. Replace if worn, broken, or missing.

More
$10.72

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
101
Best Seller
Product photo
5.0 (3)
By: Ge
Part Number: WD05X35098

The Heating Element is an OEM replacement part for GE dishwashers. It is responsible for heating the water during wash cycles and assisting in drying dishes at the end of the cycle. The heating element ensures optimal cleaning and drying performance by raising the water temperature and promoting evaporation.

Over time, heating elements can fail due to wear, mineral buildup, or electrical issues. A malfunctioning element may result in poor cleaning or drying performance.

Symptoms of a bad heating element include:

  • Dishes remaining wet after the drying cycle
  • Water not heating adequately during the wash cycle
  • Error codes related to temperature or heating issues
  • Visible damage, such as cracks or corrosion on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

More
$43.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
104
Best Seller
Product photo
5.0 (4)
By: Ge
Part Number: WD02X33462

Secures the dishwasher heating element to the tub from underneath. Replace if cracked, stripped, or missing to prevent leaks at the element mounting point.

More
$6.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
105
Product photo
By: Ge
Part Number: WD02X28518

This heater nut secures the dishwasher's heating element where it passes through the tub, helping maintain a tight connection and proper positioning. Replacing a damaged or missing nut can help prevent leaks and keep the element stable.

  • Fastens the heating element to the tub from below to hold it firmly in place
  • Helps support a watertight connection at the element pass-through when used with the proper seal
  • Replace if the nut is cracked, heat-damaged, stripped, or missing
  • Common symptoms include water leaking under the unit near the heater terminals and a loose or wobbly heating element
What's included: Heater nut. Install notes:
  • Disconnect power at the breaker and shut off water before servicing
  • Access the nut from beneath the dishwasher; remove the toe-kick and pull the unit forward if needed
  • Support the element from inside the tub while tightening; snug gently and do not overtighten to avoid damage
  • Restore power/water and run a short cycle to check for leaks

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
106
By: Ge
Part Number: WD02X26579

Fix electrical grounding issues in your dishwasher with this metal grounding bracket. Ensures safe chassis ground connection and protects components.

More
$14.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
Best Seller
Product photo
4.9 (16)
By: Ge
Part Number: WD02X10067

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

  • Noises or abnormal sounds coming from inside the tub
  • Intermittent error codes related to moving components
  • Detached or misaligned spray arms or filters
  • Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
463
5.0 (4)
By: Ge
Part Number: WD24X27778

Replaces cracked, leaking, or worn drain hoses in your dishwasher. Creates the required elevated loop to prevent backflow. Essential for proper drainage.

More
$16.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
575
Product photo
By: Ge
Part Number: WD49X23818

The Funnel Service Kit is an OEM replacement part for GE dishwashers. It includes a water inlet funnel and seals necessary for proper water flow within your dishwasher. This part helps prevent leaks and ensures that water is properly directed into the dishwasher.

Symptoms of a faulty water inlet funnel service kit include:

  • Water leaks from the dishwasher
  • Insufficient water flow during the wash cycle
  • Inconsistent cleaning or rinsing performance

Causes of a bad water inlet funnel service kit can include wear and tear over time, blockage from debris or mineral buildup, or damage to the funnel or associated components. If you notice issues such as water leaks, inadequate water flow, or inconsistent cleaning results, it may be time to replace the old or damaged water inlet funnel service kit with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

More
$48.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
576
Product photo
5.0 (1)
By: Ge
Part Number: WD24X27659

Directs water from inlet to tub through the fill funnel. Replace if cracked or leaking to restore a sealed fill path and prevent water damage.

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
585
By: Ge
Part Number: WD12X22814
$19.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
586
By: Ge
Part Number: WD12X32039

Conduit docking port for dishwashers. Connects wiring harness at the base of the unit. Replace if cracked, broken, or connection point is damaged.

More
$6.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
654
Product photo
By: Ge
Part Number: WD12X10433

Replaces worn tub rollers that cause racks to drag or bind. Mounts to dishwasher sidewall for smooth rack gliding. Confirm fit with your model number.

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
714
Product photo
By: Ge
Part Number: WD02X10160

This dishwasher screw secures internal components and panels within your dishwasher's assembly. It provides proper fastening for pumps, motors, and housing components that keep the unit operating smoothly. Replace this screw if internal parts are loose, vibrating excessively, or if the original screw is damaged or missing.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
733
Best Seller
Product photo
4.9 (10)
By: Ge
Part Number: WD01X10569

The door cable and pulley assembly controls the smooth opening and closing motion of your dishwasher door by managing its descent and preventing it from dropping too quickly. Located inside the door hinges, this assembly requires replacement when the door slams shut, won't stay open at various angles, or makes grinding noises during operation.

More
$11.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
734
Best Seller
Product photo
5.0 (1)
By: Ge
Part Number: WD16X21836

Door hinge pulley for dishwashers. Works with springs and cables to balance door movement. Replace if cracked, broken, or causing uneven door operation.

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
735
Product photo
By: Ge
Part Number: WD01X21837

Zinc-plated 10-32 x 1/4 inch screw secures internal panels and brackets in dishwashers. Replace missing, stripped, or corroded fasteners to restore fit.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
743
Best Seller
Product photo
5.0 (2)
By: Ge
Part Number: WD12X10412

Encloses the power-connection compartment at the base of your dishwasher. Replace if cracked, broken, or missing to protect wiring from debris.

More
$31.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
744
Best Seller
Product photo
4.8 (33)
By: Ge
Part Number: WD15X26140

Dishwasher not filling with water or filling too slowly? The water inlet valve controls water flow into the tub. DIY-friendly repair with video guide.

More
$41.54

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
745
Best Seller
Product photo
By: Ge
Part Number: WD01X22514

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
747
Best Seller
Product photo
5.0 (3)
By: Ge
Part Number: WD21X25696

If your dishwasher won't start or has no power, the control board fuse may be blown. This 4.1 amp fuse protects electronic components from overcurrent.

More
$11.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
749
Best Seller
Product photo
5.0 (4)
By: Ge
Part Number: WD21X23559

This wiring harness connects your dishwasher's electronic control board to other components. It carries electrical signals between the control board and various sensors, pumps, and motors. Replace it if your dishwasher displays error codes, doesn't respond to button presses, or operates erratically.

More
$47.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
750
Product photo
5.0 (1)
By: Ge
Part Number: WD21X25734

Dishwasher won't start or accept user input? The control board regulates all functions. Common DIY repair when cycles fail to run or buttons don't respond.

More
$95.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
751
By: Ge
Part Number: WD21X24939

Fix a dishwasher that won't start or has intermittent power with this AC harness assembly. Restores safe voltage distribution to control and components.

More
$32.63

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
752
By: Ge
Part Number: WD21X24399
$45.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
755
Product photo
By: Ge
Part Number: WD30X24239

Replace a cracked or damaged control box bottom housing that's exposing your dishwasher's electronics. Secures control board and shields components.

More
$10.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
756
Product photo
By: Ge
Part Number: WD27X32298

Fix unresponsive controls or a damaged front panel with this dishwasher control box top cover. Protects internal electronics from moisture and dust.

More
$104.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
790
By: Ge
Part Number: WD01X22786

Leaking dishwasher? A damaged hose clamp may be allowing water to escape at pump or drain connections. This clamp secures hoses to prevent leaks.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
791
Product photo
5.0 (3)
By: Ge
Part Number: WD01X24246

Secures hoses and tubing in your dishwasher to prevent leaks and ensure proper water flow. Replace if you notice water dripping or leaking around connections. Verify fit with your model number before ordering.

More
$9.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
802
Product photo
4.8 (6)
By: Ge
Part Number: WR01X10380

Size: 8-18 AB TSQ 5/8 SS

More
$15.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
803
Best Seller
Product photo
4.8 (93)
By: Ge
Part Number: WD21X10490

Dishwasher won't start or run? A faulty door latch prevents cycles from beginning. This latch assembly secures the door and activates switches. 5-10 min fix.

More
$40.41

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
843
Best Seller
Product photo
4.9 (69)
By: Ge
Part Number: WD08X23476

Seals dishwasher door perimeter to prevent water leaks during operation. Replace if you notice leaking from door sides or bottom. Easy 5-minute install.

More
$24.75

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
888
4.8 (6)
By: Ge
Part Number: WD35X35958

Replacement countertop mounting screw and decorative button plug for dishwashers. Secures unit to underside of countertop. Order new hardware if missing or stripped.

More
$28.50

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
889
Best Seller
Product photo
5.0 (4)
By: Ge
Part Number: WD35X10383

Secure your dishwasher to the underside of countertops with this screw and button plug kit. Replace stripped, missing, or damaged fasteners.

More
$11.86

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
4.9 (421)
By: Whirlpool
Part Number: W10549851

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
