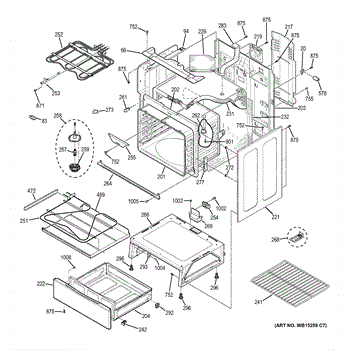

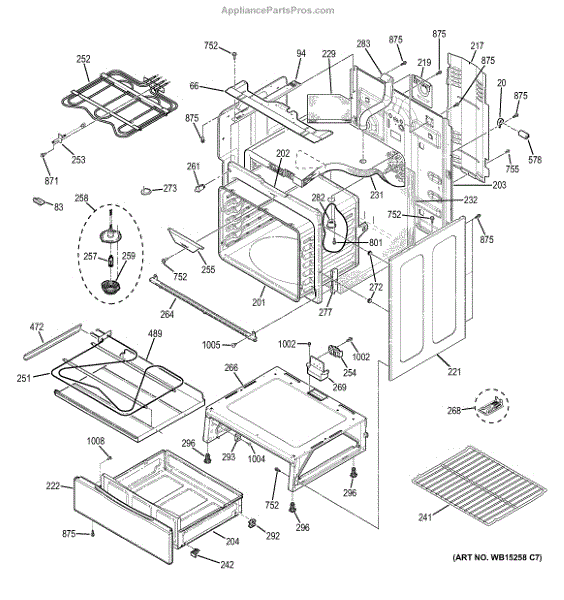

Parts for Ge JB690DF2BB: Body Parts

This oven body weld assembly restores the welded rear/side oven cavity structure and support for the inner liner, helping maintain proper oven shape and alignment for heating performance. Fits ovens that require the welded body section in black finish. What it does:

• Replaces a damaged or warped oven body weld to restore structural integrity of the oven cavity
• Helps keep the inner liner aligned so door sealing and heating remain consistent
• Addresses visible cracks, separation, or distortion of the oven body weld area
• Useful when the oven body has been dented or the original weld has failed

• One oven body weld assembly (black)

• Intended for technicians or experienced DIYers; requires disassembly of outer panels and handling of heavy sheet-metal components
• Disconnect power and gas supply before starting work
• Wear gloves and eye protection; watch for sharp edges on sheet metal

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This back cover is the rear panel that protects a range or oven's internal components and wiring, helping keep debris and heat away from sensitive parts for safer, more reliable operation. What it does:

• Shields control modules, wiring, and electrical connections from dust, spills, and physical contact
• Helps contain and direct appliance heat and airflow away from external surfaces
• Reduces risk of accidental contact with live components for improved user safety
• Prevents debris buildup that can lead to malfunctions or odor issues

• One back cover

• Disconnect power (unplug or switch off breaker) before removing or installing the cover
• Remove screws or fasteners securing the old panel; keep hardware for reuse only
• Watch for sharp edges; wear gloves to protect your hands
• Reinstall all fasteners securely and restore power; test appliance function after installation

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer wedge aligns and stabilizes the lower drawer so it opens and closes smoothly and sits flush. Replacing a worn or missing wedge helps eliminate wobble, rubbing, and gaps for better everyday operation.

• Supports and centers the drawer for proper alignment on the slides
• Acts as a spacer/stop to reduce vibration and metal-to-metal contact
• Helps prevent binding and keeps the drawer from popping off the track
• Common symptoms: drawer crooked or sagging, won't close fully, rattles, or feels loose

• Disconnect power and allow the appliance to cool before servicing
• Pull the drawer out to the stops, release the side track tabs, and remove the drawer
• Note the original wedge's position; remove it and install the new wedge in the same orientation (reuse existing hardware if applicable)
• Reinstall the drawer on the rails and verify smooth operation and proper fit

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

The Broil Element Assembly is an OEM part for GE ranges. It is responsible for broiling food placed on oven racks in the top portion of the range.

Symptoms of a bad broil element include:

• Element failing to heat up or only heating to low temperatures
• Food not browning or cooking properly under the broiler setting
• Hot or cold spots occurring during the broiling process

Causes of a bad broil element can be prolonged and heavy usage resulting in burns or shorts in the heating coils. Signs of failure also include visible damage, corrosion or discoloration of the coils.

This OEM GE replacement part is also compatible with some Kenmore range models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This halogen lamp assembly replaces a worn or broken oven/range interior light to restore clear, bright illumination so you can check cooking progress without opening the door. Designed to fit OEM lamp housing and connector. What it does:

• Provides bright, halogen interior illumination so food is easy to see while baking or roasting
• Replaces a burned-out, flickering, dim, or cracked oven light assembly
• Restores proper light function when the oven lamp fails to turn on
• Fits into the lamp housing and connects to the existing oven wiring harness

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the oven to cool completely before accessing the lamp
• Avoid touching the bulb glass with bare hands; use gloves or a clean cloth to prolong bulb life

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This mount terminal block secures and organizes high-voltage wiring where the appliance power harness connects to the oven/range chassis. It provides a stable, insulated connection point to help restore reliable electrical contact. What it does:

• Holds and routes the incoming power wires and attaches them to the appliance wiring harness
• Provides insulated, screw-style terminal connections to maintain secure electrical contact
• Commonly replaces a cracked, melted, or loose terminal block that can cause poor power or intermittent operation
• Can stop visible sparking or burning at the connection point and prevent wire chafing

• Always disconnect all power at the breaker or unplug the appliance before servicing
• Verify wiring locations and take photos before removing the old block to ensure correct reconnection
• Use appropriate insulated tools and replace any damaged screws or wire terminals as needed

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

Front

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

Size: 8-18 BA POR 3/4 SN
