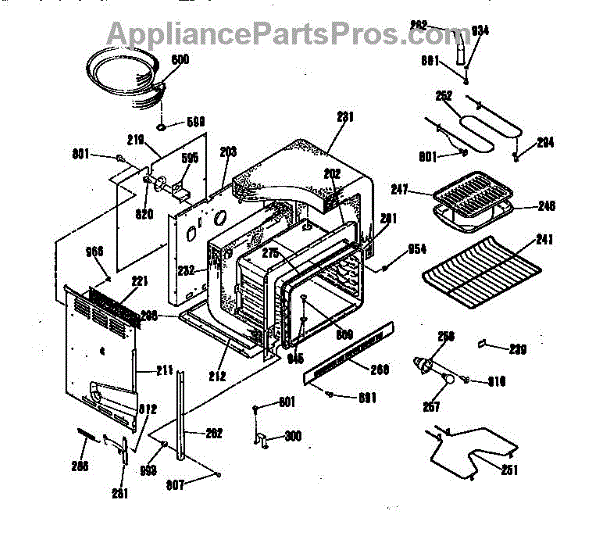

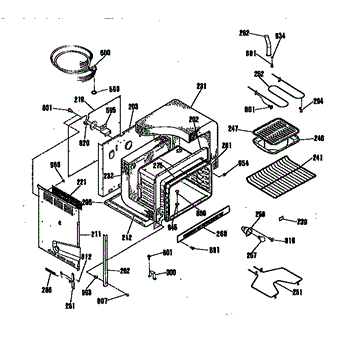

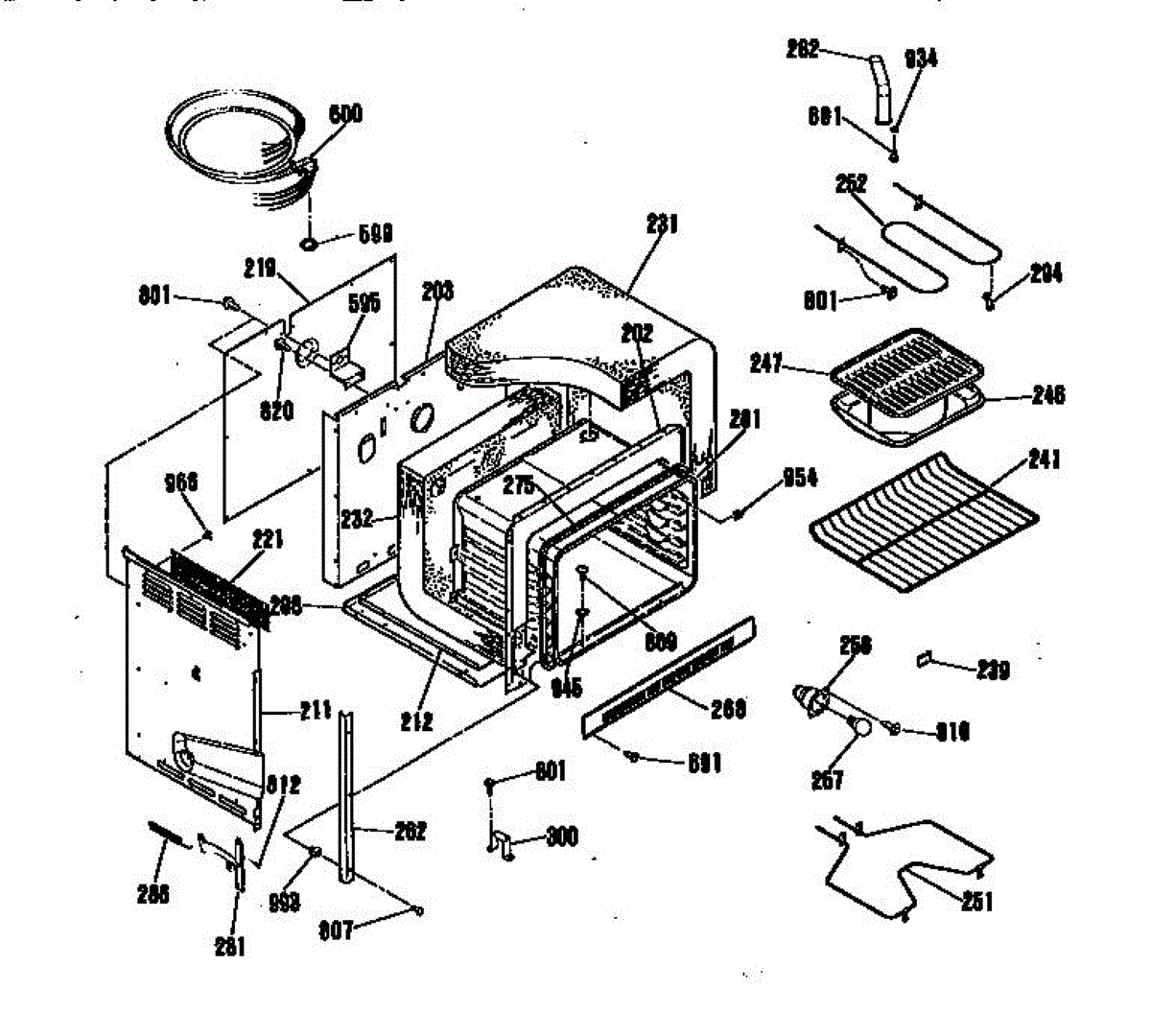

Parts for Kenmore 911.4524190 (9114524190, 911 4524190): Body Section Parts

Main bottom panel for electric ranges and wall ovens. Replaces cracked, damaged, or missing bottom chassis component. Structural support piece.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broiler not heating or browning food? A faulty broil element is often the cause. Located at the top of the oven, this part restores even heat for broiling.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

Decorative bottom trim for your range. Installs along the lower edge to cover gaps and complete the finished look. Replace if cracked, chipped, or missing.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

ST10-16 X 7/16"

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Package of 12
