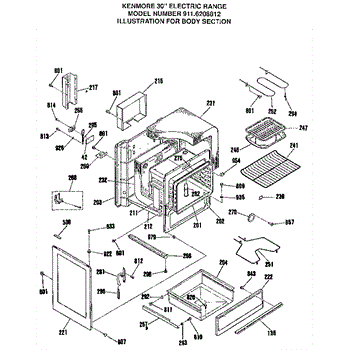

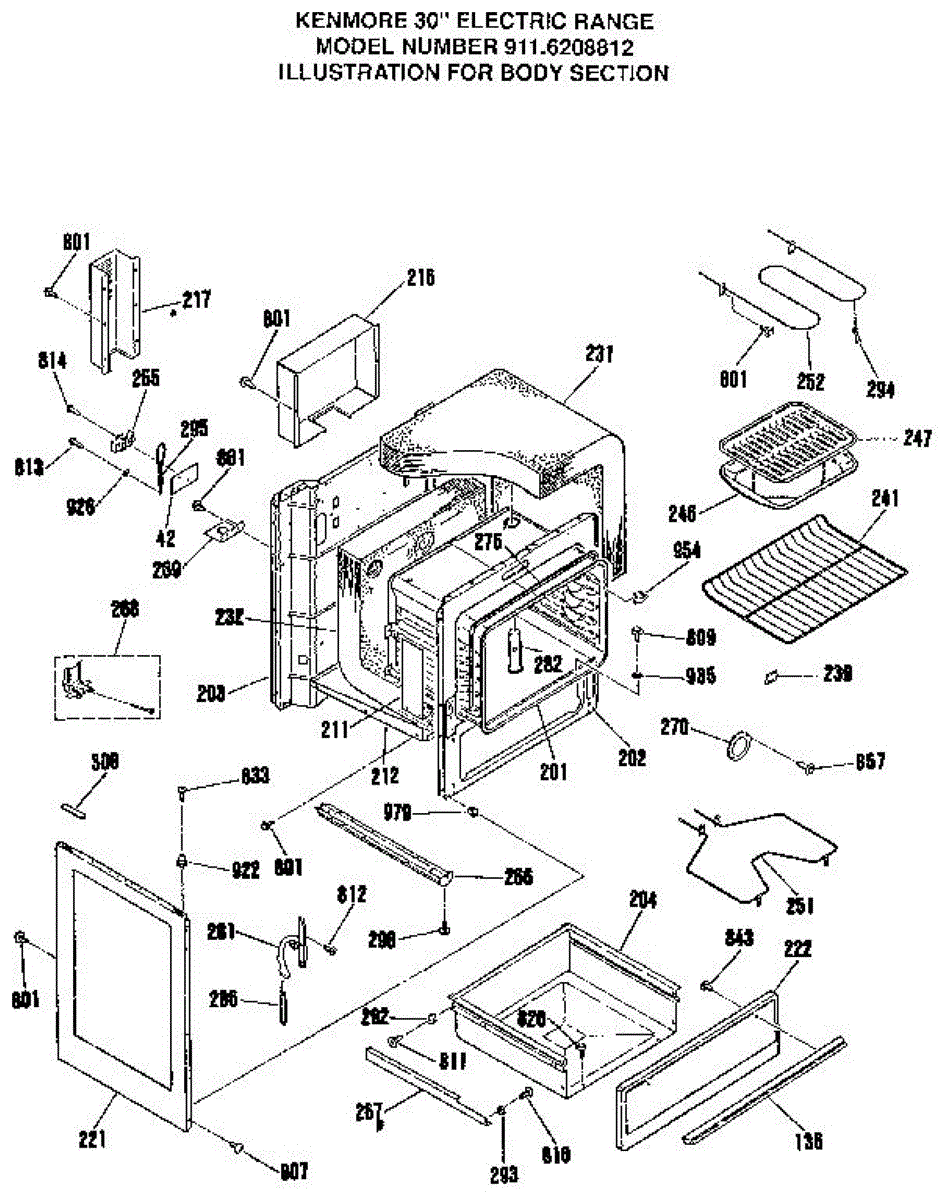

Parts for Kenmore 911.6208812 (9116208812, 911 6208812): Body Section Parts

Mounting plate that secures and supports the wiring harness in your cooktop. Replace if cracked, broken, or missing to properly secure electrical connections.

This upper wire shield protects and guides control wiring behind the appliance's control area to help prevent heat and abrasion damage, reducing the risk of shorts or intermittent control issues. It restores the factory routing and protection for accessible wiring. What it does:

• Shields upper control wires from heat, chafing and contact with sharp edges
• Helps prevent electrical shorts and wiring damage that can cause control failures
• Restores proper wire routing and fastening behind the control panel
• Commonly used when wire insulation is exposed, wiring has shifted, or the original shield is missing

• Disconnect power to the appliance before beginning any service.
• Handle part carefully; edges and mounting tabs can be sharp.
• Reuse original fasteners if in good condition or replace with OEM fasteners as specified.
• Follow the appliance service manual for correct routing and attachment to avoid pinch points.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? A failed bake element is often the cause. Located at the bottom of the oven, this part is a straightforward DIY fix.

Broil element broken or not heating? This top heating element restores high-heat broiling in electric ovens. DIY-friendly repair, typically done in under 30 minutes.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

The range rear drawer glide is a sliding mechanism that allows smooth operation of your oven's storage drawer or warming drawer. It provides support and guidance for the drawer as it opens and closes. Replace this glide if your drawer sticks, won't slide smoothly, or has become misaligned or damaged.

This metal bracket provides structural support for range components like burner assemblies or control panels. It securely holds parts in their proper position during normal cooking operations. Replace when range components become loose, sag, or don't align properly.

Spacer for cooktop installation. Replaces worn, cracked, or missing spacers that maintain proper clearance between components during mounting.

ST10-16 X 7/16"

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing components inside your range or oven. Needed when original fasteners are stripped, lost, or damaged during repairs.

Package of 12

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Package of 12

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.

This printed user manual provides the appliance's operating instructions, safety warnings, and basic troubleshooting to help you use and maintain your appliance correctly. Handy reference for controls, care, and common questions. What it does:

• Explains control panel functions, cycle options, and normal operation
• Lists safety warnings and proper care/cleaning procedures
• Provides basic troubleshooting steps and error-code guidance
• Offers maintenance tips to help prolong appliance life

• This is documentation only—no installation or tools required
• Keep in a dry, accessible location near the appliance for quick reference
• Share manual details with when scheduling service
• Check manufacturer resources for downloadable PDFs or updates
