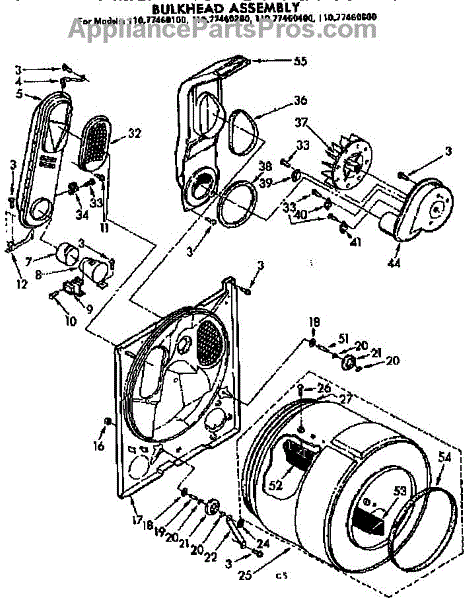

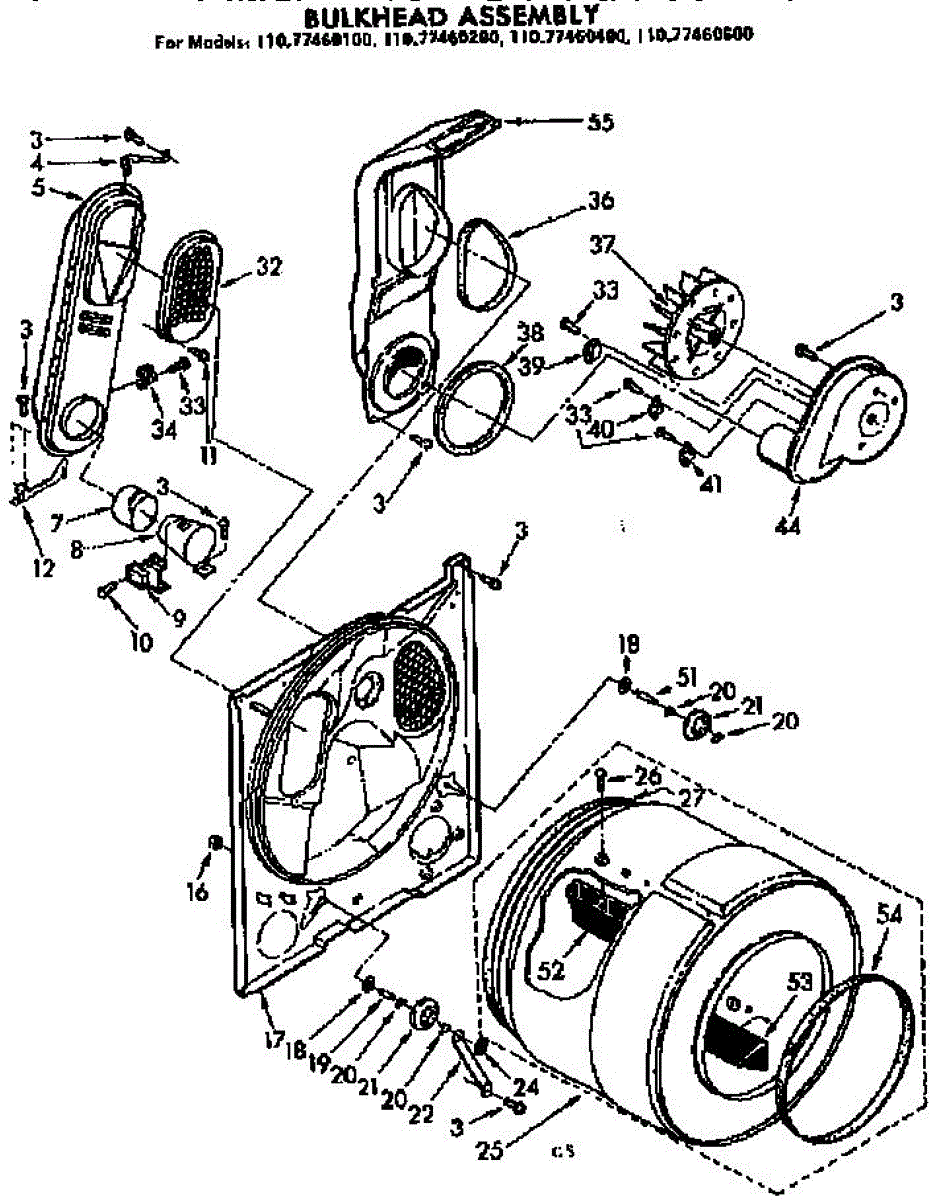

Parts for Sears 11077460100: Bulkhead Assembly Parts

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

The Rear Drum Felt Seal with Adhesive is an OEM part for Whirlpool dryers. This part creates a tight seal at the rear of the dryer drum. This seal prevents hot air from escaping the drum during cycles, ensuring efficient and even drying of clothes.

Causes of a deteriorating rear drum felt seal can range from normal wear and tear, excessive heat exposure, to mechanical issues that cause misalignment or excessive wear on the seal itself.

Symptoms of a bad Rear Drum Felt Seal include:

• Clothes taking longer to dry or not drying thoroughly
• Increased lint outside the dryer or in the venting system
• Unusual noises during operation, indicating a gap or friction issue
• Heat escaping from the rear of the dryer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This manifold cover protects the appliance manifold assembly by shielding valves and fittings from dust, debris, and accidental contact. It restores a secure, finished appearance and helps keep manifold components functioning reliably. What it does:

• Shields manifold valves, fittings and connections from dust, food particles and spills
• Helps prevent accidental snagging or contact with manifold components during use or maintenance
• Restores a damaged, cracked or missing cover to maintain a finished appearance
• Can reduce intrusion of debris that complicates service or repairs

• Disconnect power and shut off gas supply before starting work
• Replace only with the correct OEM part and align over manifold before fastening
• Use appropriate fasteners; do not overtighten to avoid cracking the cover

L205-40. Dryer

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This replacement ice chute directs ice from the bucket to the dispenser opening, helping prevent jams and stray cubes. If the original chute is cracked, warped, or obstructed, replacing it restores smooth, consistent ice dispensing. What it does:

• Guides cubed or crushed ice through the dispenser opening into your glass
• Helps prevent ice from scattering or missing the glass
• Reduces ice jams and clogs caused by damaged or misaligned parts
• Common symptoms: ice not dispensing properly, ice spilling at the dispenser, frost or ice buildup in the chute area, broken plastic pieces

• 1 dispenser ice chute

• Unplug the refrigerator and turn off the water supply before servicing
• Access the dispenser area per your model's service instructions
• Note orientation; transfer any gaskets/seals and reuse original hardware if applicable
• Ensure the chute seats and aligns correctly with the ice door before reassembly and test

This part has been discontinued and is no longer available.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power
