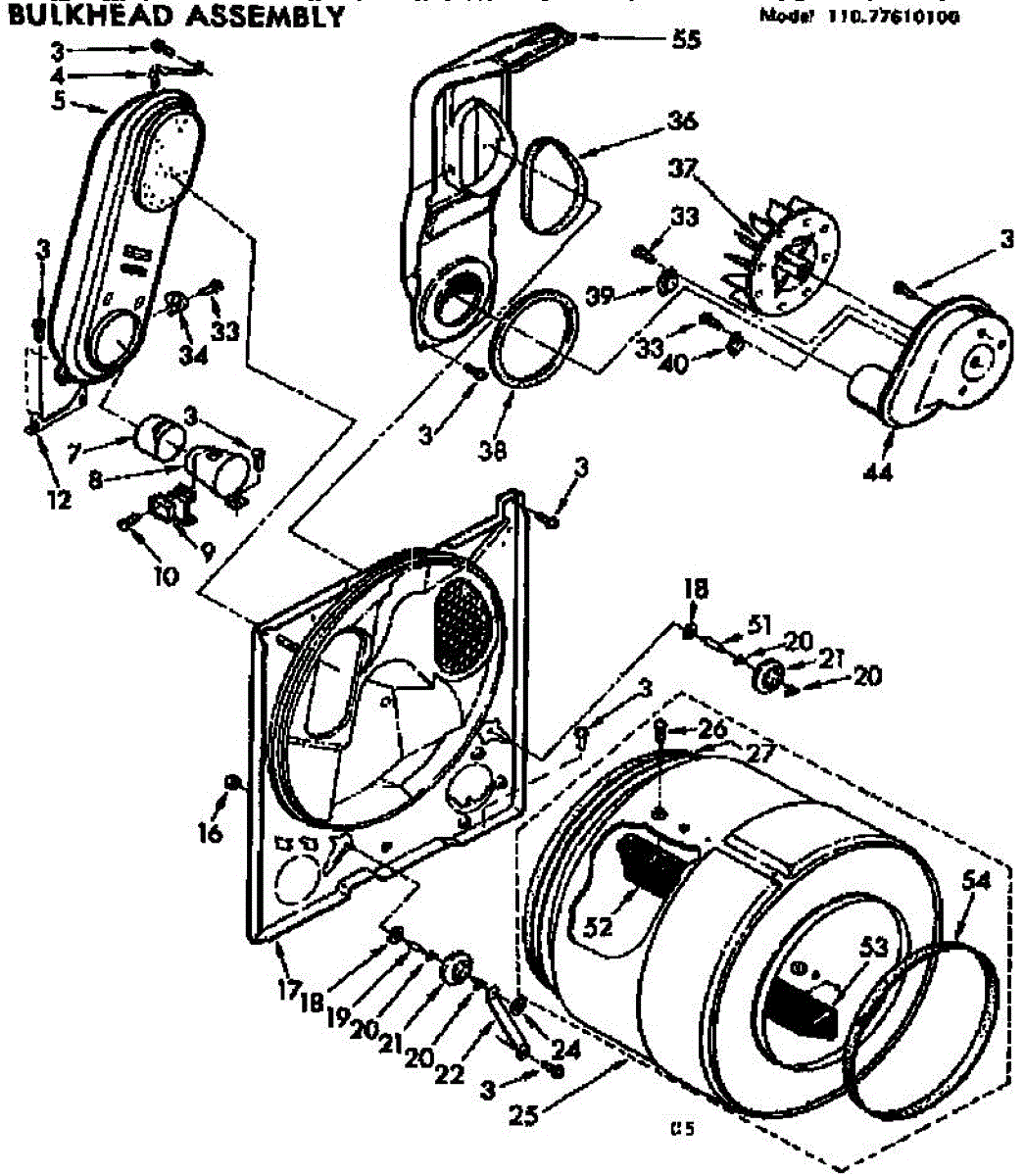

Parts for Sears 11077610100: Bulkhead Assembly Parts

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

This replacement box/housing restores the appliance's original enclosure where internal components mount, protecting wiring and parts from damage. It helps maintain safe operation and prevents loose components from shifting. What it does:

• Provides a protective enclosure for internal components and wiring
• Keeps parts properly positioned to prevent rubbing or disconnection
• Helps reduce vibration-related noise caused by loose components
• Restores a secure mounting point for associated hardware

• Disconnect power to the appliance before beginning any work
• Remove panels as needed to access the original box; keep fasteners for reuse
• Inspect surrounding wiring and components while installing the new box

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This bulkhead is the front tub housing that supports the washer drum and seals the washer cabinet to help contain water. Replaces a cracked or corroded housing to restore proper drum alignment and help prevent leaks. What it does:

• Provides structural support for the washer tub and drum assembly
• Forms the front seal surface to help keep water inside the washer
• Helps maintain correct drum alignment to reduce noise and wobble
• A failing bulkhead can cause visible leaks, excessive vibration, or rubbing noises

• Disconnect power and water supply before starting any repair
• Inspect surrounding seals, gaskets, and mounting hardware when replacing the bulkhead
• Replacement may require partial disassembly of the washer cabinet and drum; follow OEM instructions

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

Left-side shaft that supports the drum roller assembly in your dryer. Replace if worn, bent, or damaged to restore proper drum rotation and alignment.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Rear drum support roller kit for dryers. Mounts behind the drum to maintain alignment and smooth rotation. Replace when rollers are worn or damaged.

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Seals the rear of the dryer drum to prevent hot air loss and ensure even drying. Replace when worn, cracked, or causing noise. Verify fit by model.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Seals the lint screen housing to prevent air leaks and maintain proper airflow. Replace if damaged, missing, or causing lint buildup. Verify fit.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Right-side shaft for dryer drum support roller. Replace if worn, bent, scored, or damaged to restore proper drum rotation. Installs on right side of cabinet.

This part has been discontinued by the manufacturer and is no longer available.
