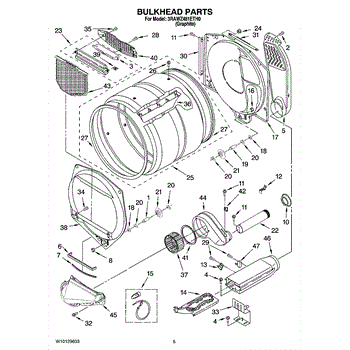

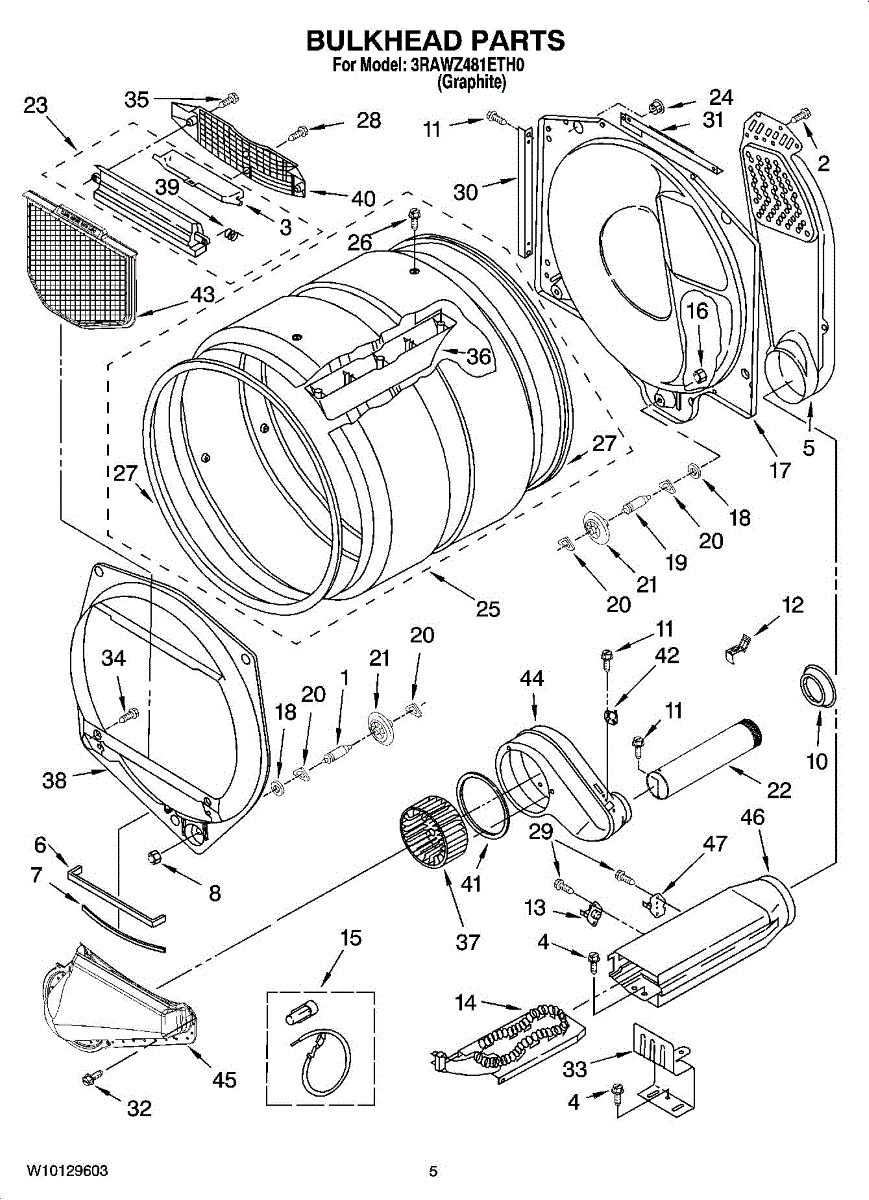

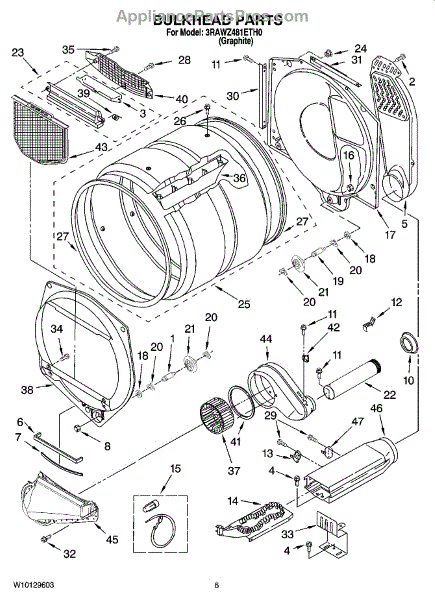

Parts for Whirlpool 3RAWZ481ETH0: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Lint Screen Door is an OEM part for Whirlpool dryers. It is located at the front of the dryer and provides easy access to the lint screen. It helps to trap lint and debris from the drying process, preventing it from entering the dryer vent and potentially causing clogs or fire hazards.

Causes of a faulty or damaged lint screen door can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as difficulty in opening or closing the door, a loose or insecure fit, or reduced effectiveness in capturing lint.

Symptoms of a bad lint screen door may include:

• Difficulty in opening or closing the door
• Loose or wobbly door fit
• Lint bypassing the lint screen and accumulating in the dryer vent

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This air duct collar channels dryer exhaust to the external vent connection. It provides a secure, sealed outlet for the vent hose to help maintain proper airflow, reduce leaks, and support consistent drying performance.

• Directs exhaust air from the blower/outlet to the rear vent connection
• Provides a stable connection point for the vent hose
• Helps maintain airflow and drying efficiency
• Common symptoms: vent hose won't stay attached, heat or lint leakage at the back of the dryer, longer dry times, visible cracks/warping at the outlet

• Disconnect power; for gas dryers, also shut off gas supply
• Pull the dryer forward and detach the vent hose
• Remove mounting screws/clips, replace the collar, and reuse existing hardware
• Clear lint from ducting, reattach the vent hose securely, and verify strong airflow at the exterior vent

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory shield is a protective panel used within the appliance assembly. It helps guard nearby components and maintain proper operation by directing heat, air, or moisture as designed. Replacing a damaged or missing shield restores correct fit and protection.

• Provides a protective barrier for internal components in the specified area
• Helps manage airflow/heat/moisture path as engineered for the system
• Replace if cracked, warped, missing, or not securing firmly
• Typical signs include visible damage, rubbing/rattling, or evidence of heat/moisture exposure near the shield

• Disconnect power; shut off gas/water if applicable before servicing
• Access the location per your model's service information
• Transfer and reuse original clips/fasteners as needed; do not overtighten
• Verify alignment and clearances before reassembly and testing

Small replacement clip that secures panels or small internal components to restore a snug fit and reduce rattling or misalignment. Use this clip when a worn or broken retainer lets trim or parts sit loose. What it does:

• Holds trim, panels or other small appliance components in place to maintain correct alignment.
• Helps eliminate rattling, vibration noise or gaps caused by a missing or damaged clip.
• Restores secure fit where a broken clip allows parts to shift or separate.
• Simple, low-profile replacement part used in affected Whirlpool appliances.

• Disconnect power (unplug or shut off breaker) before servicing any appliance.
• Small part; keep track of screws and retainers during disassembly.
• Basic hand tools may be required; trim or panel removal might be necessary to access the clip.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It plays a crucial role in ensuring the dryer operates at safe temperatures by cutting off power to the heating element if the dryer overheats. This safety mechanism helps prevent potential fires and damage to the appliance.

Common causes of a bad thermostat include normal wear and tear, exposure to excessive heat, or electrical malfunctions.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating
• The dryer overheating
• The dryer shutting off unexpectedly during a cycle
• Longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heating Element is an OEM part for Whirlpool dryers. This part generates the heat necessary to dry clothes during the drying cycle. The element is designed to heat up when electricity passes through it, producing the warmth required to effectively dry laundry.

Causes of a bad heating element include wear and tear over time, electrical issues such as short circuits or power surges, and physical damage from overloading the dryer or mishandling the appliance.

Symptoms of a bad heating element include:

• The dryer not producing heat
• Clothes taking longer to dry than usual
• The dryer overheating or shutting off mid-cycle
• Unusual noises or burning smells during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

This bulkhead is the front interior panel that supports the drum and helps direct dryer airflow for efficient tumbling and exhaust. It restores proper drum alignment and airflow when the original panel is worn or damaged. What it does:

• Provides a stable mounting surface for the drum and front bearing/glide assembly
• Helps channel air from the drum to the exhaust path for consistent drying
• Prevents drum wobble and rubbing that can cause noise or fabric wear
• Reduces air leaks and hot spots that can extend dry times or trigger heat issues

• One bulkhead panel

• Disconnect power and venting before beginning any repair
• Removing the front panel and drum is typically required to access and replace the bulkhead
• Inspect drum seals, rollers, and bearings while the dryer is open; replace any worn components
• Use appropriate tools and follow OEM instructions.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Lint Screen Housing is an OEM part for Whirlpool dryers. This part holds the lint screen in place, ensuring that lint is effectively captured during the drying cycle. This housing helps maintain dryer efficiency by preventing lint from entering the exhaust system, which can cause blockages and reduce performance.

Causes of a bad lint screen housing can include frequent use, accidental impacts, or heat-related degradation over time.

Symptoms of a bad lint screen housing include:

• Difficulty fitting the lint screen securely
• Lint escaping into the dryer drum or exhaust system
• Visible cracks or breaks in the housing
• Reduced drying efficiency and longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

This Heater Box Bracket secures the dryer's heater housing to the cabinet, keeping the heating assembly firmly mounted and aligned. Replace a bent, cracked, or missing bracket to restore stable support and reduce vibration around the heater area.

• Anchors the heater housing/box to the cabinet frame
• Maintains proper alignment and clearance for the heating element assembly
• Helps prevent rattling or rubbing noises from a loose heater housing
• A damaged bracket may leave the heater housing loose, cause vibration, or contribute to intermittent heating issues

• Disconnect power; if gas, shut off gas supply and allow the unit to cool completely
• Access the heater housing; note bracket orientation and reuse existing fasteners
• Support the heater housing and keep wiring clear while removing/installing the bracket
• After installation, verify the housing sits square and clear of the drum and wiring before restoring power

This drum baffle restores proper tumbling by lifting and separating laundry as the dryer drum rotates. It helps improve drying performance and reduces garment bunching. What it does:

• Lifts and tumbles clothes so air flows more evenly through the load
• Helps prevent garments from clumping or wrapping around the drum
• Can reduce rubbing, thumping, or scraping noises caused by a loose or damaged lifter
• Restores consistent drum contact and improves drying efficiency

• Disconnect power before starting any repair to avoid shock or injury
• Access typically requires opening the dryer cabinet or front panel; small tools may be needed
• Align the baffle with factory mounting holes and secure with existing fasteners; use correct screws if replacements are required
• Inspect and replace worn drum or support parts as needed for reliable operation

The Blower Wheel is an OEM part for Whirlpool dryers. This component is essential in the dryer's air system, as it is responsible for moving air through the drum and out the vent. The blower wheel works by pulling air over the heating element, circulating it through the clothes, and expelling the moist air outside, which assists in the efficient drying of laundry.

Symptoms of a failing Blower Wheel include:

• Reduced airflow, resulting in clothes not drying properly or increased drying times
• Unusual noises like rattling or thumping, suggesting the wheel may be loose or damaged
• Excessive vibration of the dryer, especially if the blower wheel is unbalanced
• The dryer overheating due to restricted airflow if the wheel is clogged or malfunctioning

Causes of a bad blower wheel typically involve objects getting caught in the wheel, lint build-up that unbalances the wheel, or wear and tear that leads to the wheel's fins breaking or deforming.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore smooth operation of your dryer's lint screen cover with this lint screen door spring. It provides the correct tension so the cover opens and closes properly and the lint screen seats securely for reliable lint collection.

• Applies spring tension to the lint screen door/cover hinge
• Helps the lint screen and cover stay properly positioned
• A worn or broken spring may cause the cover to feel loose, pop open, or not stay closed
• May make inserting or removing the lint screen difficult

• Disconnect power; for gas dryers, also shut off gas supply
• Access the lint screen door area per your model's service information
• Note the original spring orientation; transfer the new spring carefully using needle-nose pliers
• Check cover operation and lint screen seating before restoring power

The Lint Screen Grille is an OEM part for Whirlpool dryers. It works with the lint screen to capture and collect lint during the drying cycle, preventing it from clogging the vent and ensuring proper airflow.

A bad dryer lint screen grille can be caused by regular wear and tear, accumulation of debris, or accidental damage. If the grille becomes cracked, broken, or warped, it can lead to lint escaping from the lint screen or obstructed airflow.

Symptoms of a bad dryer lint screen grille include:

• Lint escaping from the lint screen area.
• Reduced drying efficiency or longer drying times.
• Visible damage or warping of the grille.
• Excessive lint buildup in the venting system.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This internal-bias thermostat regulates dryer drum temperature by cycling the heat on and off, helping maintain consistent drying performance and protect against overheating.

• Controls the cycling temperature of the heating circuit to prevent underheating or overheating
• Helps resolve symptoms like no heat, not enough heat, long dry times, or temperature swings
• A faulty thermostat may cause overheating that can trip the thermal fuse
• Located on the blower housing on many models

• Disconnect power and shut off gas (for gas dryers) before servicing
• Access the blower housing; note wire positions and transfer one at a time
• Mount the thermostat flush to the housing for proper sensing
• After installation, run a test cycle to verify proper heating

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

Replacement housing that supports and protects internal components in compatible Whirlpool appliances. Restores structural integrity to the cabinet, helping reduce vibration and keeping wiring and components enclosed for safe, reliable operation. What it does:

• Provides the outer cabinet support that secures motors, controls and wiring
• Protects internal parts from debris and accidental contact
• Helps reduce rattling, vibration and misalignment symptoms caused by cracked or damaged cabinets
• Restores proper fit for panels and fasteners to eliminate rubbing or interference noises

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are typically required; keep screws and clips organized during disassembly
• Some housings may require two people to position during replacement—avoid forcing parts to prevent damage
• Fasteners and any sealing gaskets are in good condition and replaced if worn

This lint duct assembly forms the sealed air path between the lint screen and the blower. Replacing a damaged or leaking duct restores proper airflow and drying performance while helping keep lint contained within the filtration path.

• Directs air from the drum through the lint screen to the blower and exhaust
• Maintains a sealed passage to optimize airflow and drying efficiency
• Replace if cracked, warped, or loose, or if mounting tabs are broken
• Common symptoms: long dry times, weak exhaust airflow, lint inside the drum/cabinet, or visible damage/gaps

• Disconnect power and shut off gas supply before servicing
• Remove the lint screen and access panels as required by the model to reach the duct
• Note fastener locations; transfer any attached sensors, brackets, seals, and screws from the old duct to the new one
• Vacuum lint from the blower housing and vent path before reassembly; ensure the duct seats and seals evenly

This heater box is the protective housing that encloses and supports the heating element in your appliance. Replacing a warped or damaged housing helps restore safe, efficient heating and protects nearby components from excessive heat.

• Holds the heater element securely and maintains proper spacing from surrounding parts
• Shields adjacent wiring and components from direct heat
• Helps maintain consistent heating performance when the original housing is heat-damaged or cracked
• Common symptoms include visible melting/warping, loose element fitment, burning odors, or repeated safety shutoffs

• Disconnect power (and gas supply, if applicable) and allow the unit to cool completely before service
• Take photos of the existing layout to aid reassembly and wire routing
• Transfer the heater element and any model-specific hardware to the new housing in the same orientation
• Ensure wiring is clear of sharp edges and heat sources; reassemble and test for proper operation

The Thermal Cut-Off Kit is an OEM part for Whirlpool dryers. This safety kit is designed to protect the dryer from overheating by interrupting the heat source when the dryer air temperature reaches dangerously high levels. The kit typically includes one high-limit thermostat and one thermal cut-off fuse. These components are critical for preventing potential fire hazards by ensuring that the dryer operates within safe temperature ranges.

Symptoms of a failing thermal cut-off kit include:

• Dryer not heating up at all, as the thermal fuse may have been triggered
• Excessive heat in the dryer, prior to the fuse being triggered
• Frequent stopping of the dryer during cycles

Causes of thermal cut-off failure often involve restricted airflow (from lint buildup or obstructed vents), component failure within the heating system, or issues with the dryer cycling thermostat that cause abnormal heating.

This OEM part is also compatible with Kenmore, Maytag, KitchenAid, Roper, and other brands manufactured by Whirlpool.
