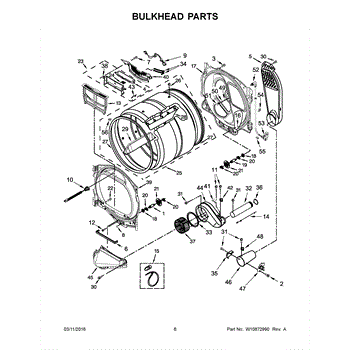

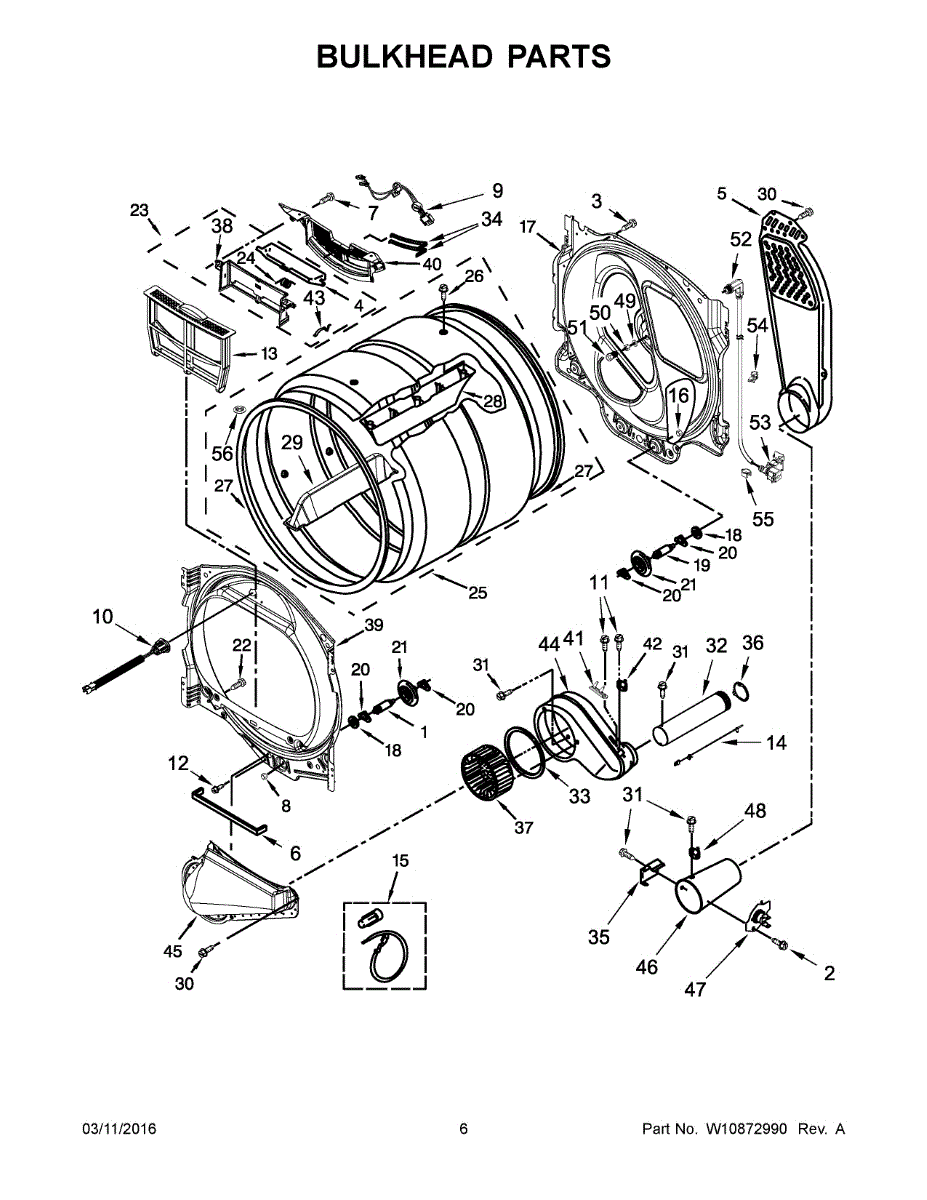

Parts for Maytag MGDB855DW3: 04 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Lint filter housing assembly holds the lint screen in place on your dryer. Replace if cracked, broken, or doors are damaged. Includes mounting frame.

Air duct routes hot air from the dryer drum to the vent outlet. Replace if cracked, melted, damaged, or clogged to restore proper airflow.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Wire harness for dryers and laundry centers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or burnt.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Traps lint and debris during drying cycles to prevent vent clogs. Replace if cracked, torn, or damaged at the hinge. Confirm fit with your model number.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

Dryer bulkhead assembly connects the drum to the blower housing. Replace if cracked, damaged, or air leaks occur. Verify fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Lint filter housing assembly holds the lint screen in place on your dryer. Replace if cracked, broken, or doors are damaged. Includes mounting frame.

Lint filter housing assembly holds the lint screen in place on your dryer. Replace if cracked, broken, or doors are damaged. Includes mounting frame.

Dryer making loud banging noises or clothes not tumbling? This drum assembly restores proper rotation and airflow. Moderate DIY install for most models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer drum felt seal creates a protective barrier between the drum and cabinet. Replace when worn or heat-damaged to prevent noise and inefficiency.

Replacement baffle that mounts inside the dryer drum to help tumble clothes during drying cycles. Needed when the original is cracked, broken, or missing.

Interior vane that lifts and tumbles clothes inside the dryer drum. Replace if cracked, broken, or missing to restore proper tumbling action.

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

The Electrode is an OEM replacement part for Whirlpool dryers. It is responsible for detecting the moisture levels in your laundry during the drying cycle, allowing the dryer to automatically adjust the drying time and temperature. It helps prevent over-drying or under-drying of your clothes, saving energy and protecting them from potential damage.

A bad electrode can occur due to wear and tear, damage, or a buildup of debris or lint. If you notice symptoms such as clothes taking longer to dry, the dryer shutting off prematurely, or inconsistent drying results, it may be time to replace the moisture sensor bar electrode.

Symptoms of a bad electrode include:

• Clothes taking longer to dry than usual
• The dryer shutting off prematurely
• Inconsistent drying results, with some items remaining damp

Repair your dryer by replacing the faulty or damaged electrode with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Connects and secures the exhaust duct to your dryer. Replace if the collar is cracked, loose, damaged, or missing to restore a tight vent connection.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

Structural inner panel that supports the dryer tub and provides mounting for controls and seals. Replace if cracked or damaged to prevent leaks. Verify fit.

This is the outer grille cover that sits over the lint screen area on the front of the dryer. It provides airflow while protecting the lint filter slot from debris and damage. Replace this part if it is cracked, broken, or has missing louvers that allow lint to escape or reduce drying efficiency.

Fix a dryer that won't start or has no heat with this thermal fuse. This safety component prevents overheating. Easy 30-minute DIY repair.

Fix E1 error codes or overheating issues with this dryer thermistor. Monitors temperature to prevent shutdowns. DIY repair takes about 30 minutes.

Lint filter housing assembly holds the lint screen in place on your dryer. Replace if cracked, broken, or doors are damaged. Includes mounting frame.

The Housing is an OEM component specifically designed for Whirlpool electric dryers. Found within the rear upper compartment, the square blower housing surrounds and supports the centrifugal fan assembly.

Machined from durable heavy-duty plastic with ventilation slots, the blower housing channels airflow from the fan into the dual-duct exhaust system. Strategically placed mounting tabs secure the assembly in precise alignment.

Causes of a bad blower housing include cracks developing from years of constant vibration stress. Heat and exhaust moisture exposure could also warp or degrade housing material properties over time.

Symptoms of a bad housing include:

• Noisy or unbalanced fan operation
• Reduced air velocity through ducts
• Faulty directional airflow inside the dryer drum

Compatible with Whirlpool, Maytag, KitchenAid, and some high-efficiency Kenmore models.

Channels airflow and lint from drum to trap and exhaust. Replace if cracked or damaged to restore proper ventilation. Confirm fit with your model.

This finished burner funnel directs gas and air into the burner for correct flame shape and ignition. It replaces a damaged or corroded funnel to help restore even heating and reliable burner performance. What it does:

• Channels gas and air into the burner for proper mixing and flame distribution
• Helps maintain even flame across the burner for consistent cooking heat
• Can reduce ignition delays or uneven flames caused by a damaged funnel
• Works with the burner assembly; not a standalone gas valve or igniter

• Turn off gas supply and electricity to the appliance before servicing
• Replace only with the correct funnel for your burner; follow OEM diagram for orientation
• Tighten fittings by hand-first, then snug—do not overtighten; inspect for leaks after reassembly

Dryer won't heat? A failed thermal cut-off fuse cuts power when temps spike. DIYers replace this safety part in 20-30 minutes with basic tools.

Dryer won't heat or shuts off early? The high limit thermostat monitors temperature and cuts power when overheating occurs. DIY repair in 30 minutes.

Flat metal washer that distributes load and secures fasteners in your dryer. Replace if worn, corroded, or missing to restore proper fastener grip.

Replacement mounting nut for dryers. Secures panels, brackets, and assemblies. Replace if stripped, missing, or corroded during repairs or maintenance.

The Valve is an OEM component specifically designed for Whirlpool gas and electric dryers. It controls the flow of gas to the burner and maintains proper temperature during the drying cycle. The valve is opened and closed electronically based on temperature and dryness sensor readings.

Symptoms of a bad dryer valve include:

• Inability to achieve or maintain high enough heat for efficient drying
• Fluctuating temperatures throughout cycles
• Repeated drying times or inability to fully dry loads
• Burner or heating element issues

Causes of a dryer valve malfunctioning can be worn over many years of use. Dust or debris accumulation in the valve mechanism is also common.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Retainer clip secures interior panels and trim in your dryer, reducing vibration and rattling. Replace when panels feel loose or fasteners break.
