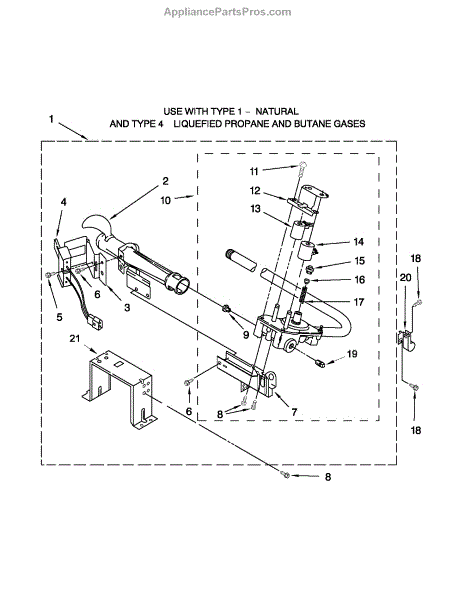

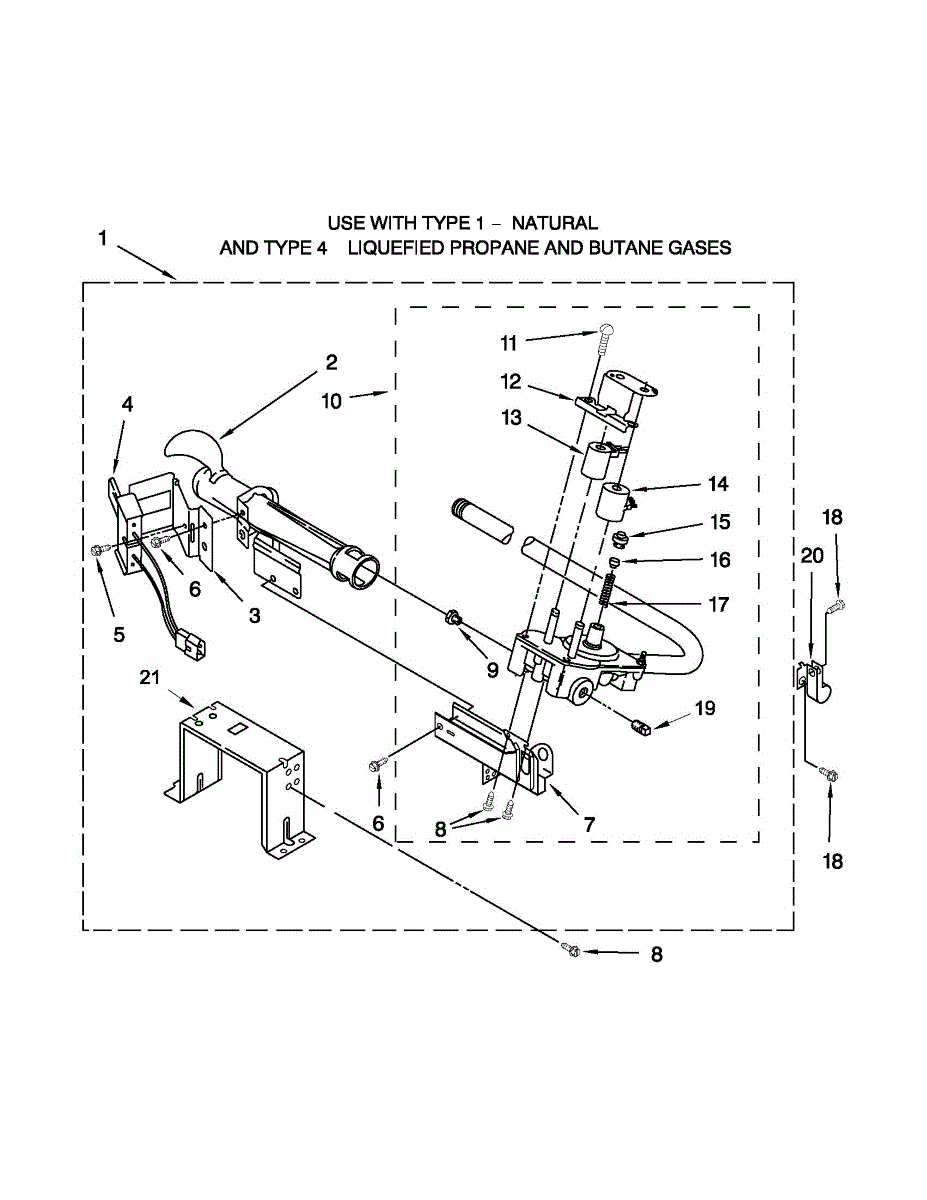

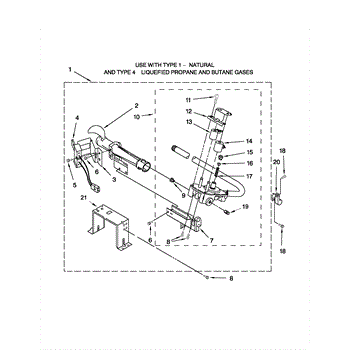

This genuine OEM replacement part is a burner and gas valve assembly for dryers. The burner and gas valve assembly is a complete assembly that contains the burner that distributes the gas in a way that creates an even flame allowing for heat to be distributed properly to perform the dryer's essential function. If the dryer is no longer drying clothes effectively or heating properly, then it might be time for it to be replaced. Luckily repairing a gas valve assembly is a relatively simple job.To replace the burner and gas valve assembly, begin by shutting off power to the appliance. Next, pull the dryer away from the wall to gain access to the back panel. Remove the back panel and locate the burner and gas valve assembly. Remove the mounting screws that hold it in place. After removing the screws use both hands to pull and release the old burner assembly. Set it off to the side and proceed to install the new one by refastening the screws that hold it in place.This replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washers.
If your dryer won't heat or flame won't stay lit, a corroded burner tube may be the cause. This assembly includes an adjustable air shutter for proper combustion.
This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.
Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.
Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.
Usually ships within 4 - 14 days
This part is discontinued by the manufacturer and is no longer available for purchase.
Mounting bracket for dryer interior assembly. Secures components in place. Replace if bracket is bent, cracked, broken, or missing during repairs.
This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.
This part has been discontinued and is no longer available.
Dryer buzzing but not heating? Gas valve assembly controls gas flow to the burner. Common fix for ignition issues. Moderate DIY repair, 30-45 minutes.
8-32 mounting screw for dryer assemblies. Replaces lost, stripped, or damaged screws during repairs or panel reinstallation. Essential hardware part.
Mounting bracket for dryer shunt assembly. Secures electrical shunt component to cabinet frame. Replace if cracked, bent, or missing hardware slots.
Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.
If your dryer won't stay lit or shuts off after a few minutes, the gas limiter may be faulty. This regulator controls safe gas flow to the burner.
Dryer making high-pitched sound when igniter turns on? This natural gas regulator maintains proper gas pressure to burners. DIY-friendly repair.
Spring installs inside the gas pressure regulator assembly on gas dryers. Replace if lost during conversion between natural gas and propane fuel types.
This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
Structural mounting bracket for dryer assemblies. Secures internal components in place. Replace if bent, cracked, or broken to restore proper fit.
Moving to a propane home? Convert your natural gas dryer to LP with this orifice kit. Straightforward DIY process takes 1.5-2.5 hours with careful work.
