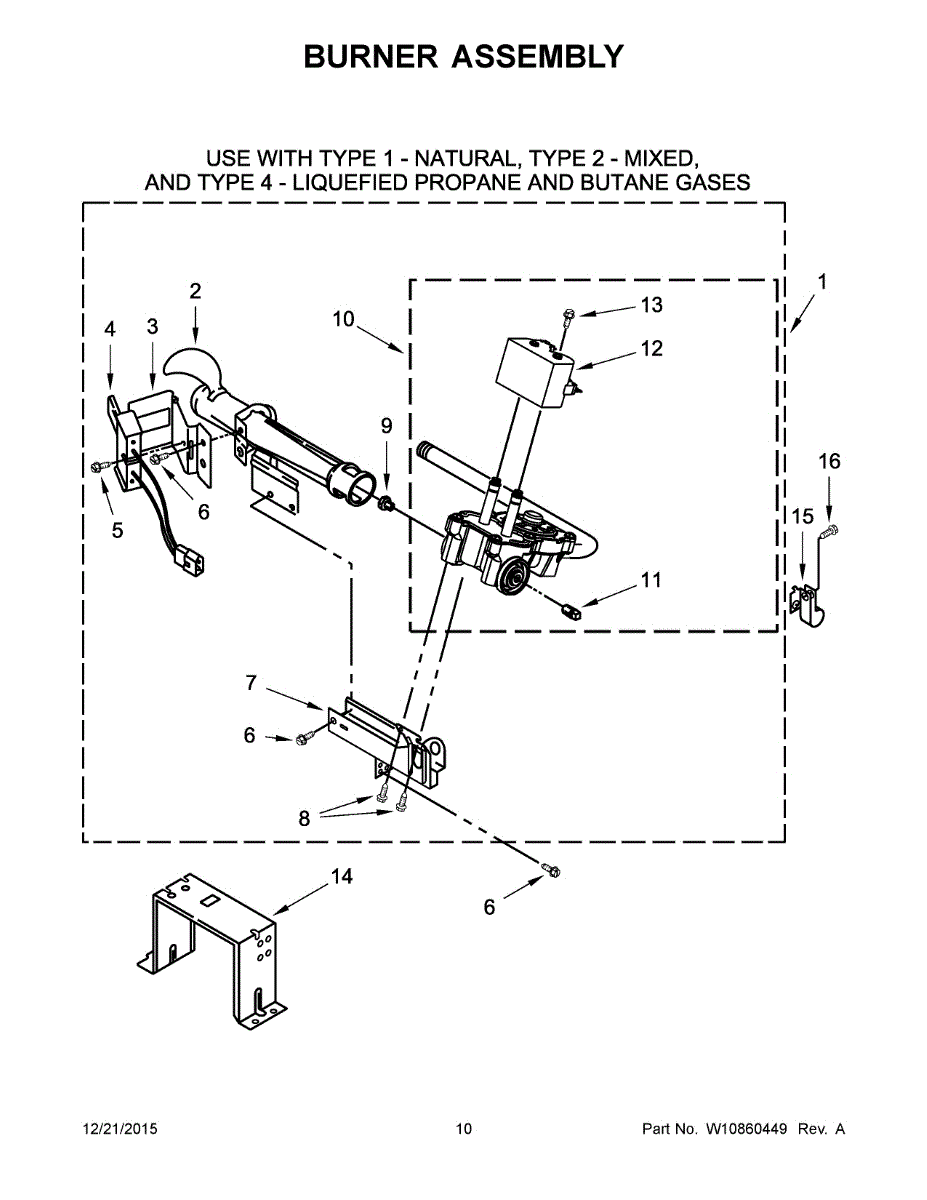

Parts for Whirlpool WGD72HEDW1: 06 - Burner Assembly Parts

This burner tube channels the gas-air mixture to the burner and includes an adjustable air shutter to set proper combustion. Replacing a damaged assembly helps restore reliable ignition, stable flame, and consistent heating performance.

• Directs the fuel/air mixture from the gas valve to the burner port
• Integrated adjustable shutter regulates primary air for proper flame
• Helps maintain efficient heat output and reliable burner operation
• Failure can present as no or intermittent heat, burner that lights then goes out, yellow/lazy flame, or soot

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Access the burner compartment and transfer any clips/brackets from the original tube
• Note the current shutter position; after installation, adjust for a steady blue flame
• After reassembly, leak-test gas connections with a soap solution and verify burner operation

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

Specs: 10-16 x 1/2 inch.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Natural Gas Orifice is an OEM part for Whirlpool dryers. This part regulates the flow of natural gas to the burner, ensuring efficient and safe combustion for proper drying performance.

Causes of a bad natural gas orifice can include buildup of debris or lint, wear and tear over time, or damage from improper handling during maintenance.

Symptoms of a bad dryer natural gas orifice include:

• The dryer not heating up
• Inconsistent or weak flame in the burner
• Longer drying times than usual
• Unusual gas odors or hissing sounds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

The Gas Valve Coils are OEM parts for Whirlpool dryers. These coils are integral to the operation of gas dryers, controlling the flow of gas to the burner. When electrical signals are sent to the coils, they open the valve to allow gas to flow and be ignited, producing heat for drying clothes.

Over time, these coils can fail due to wear or electrical issues, leading to symptoms such as no heat or insufficient heating in the dryer, even though it runs.

Symptoms of faulty gas valve coils include:

• Inconsistent or intermittent heating ability
• Failure to ignite or irregular flame patterns
• Gas valve clicking noises without burner ignition
• Coil wires compromised, brittle or showing exposed conductors

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
