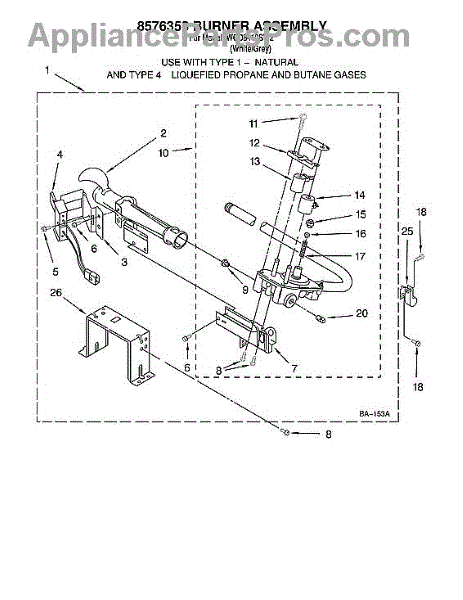

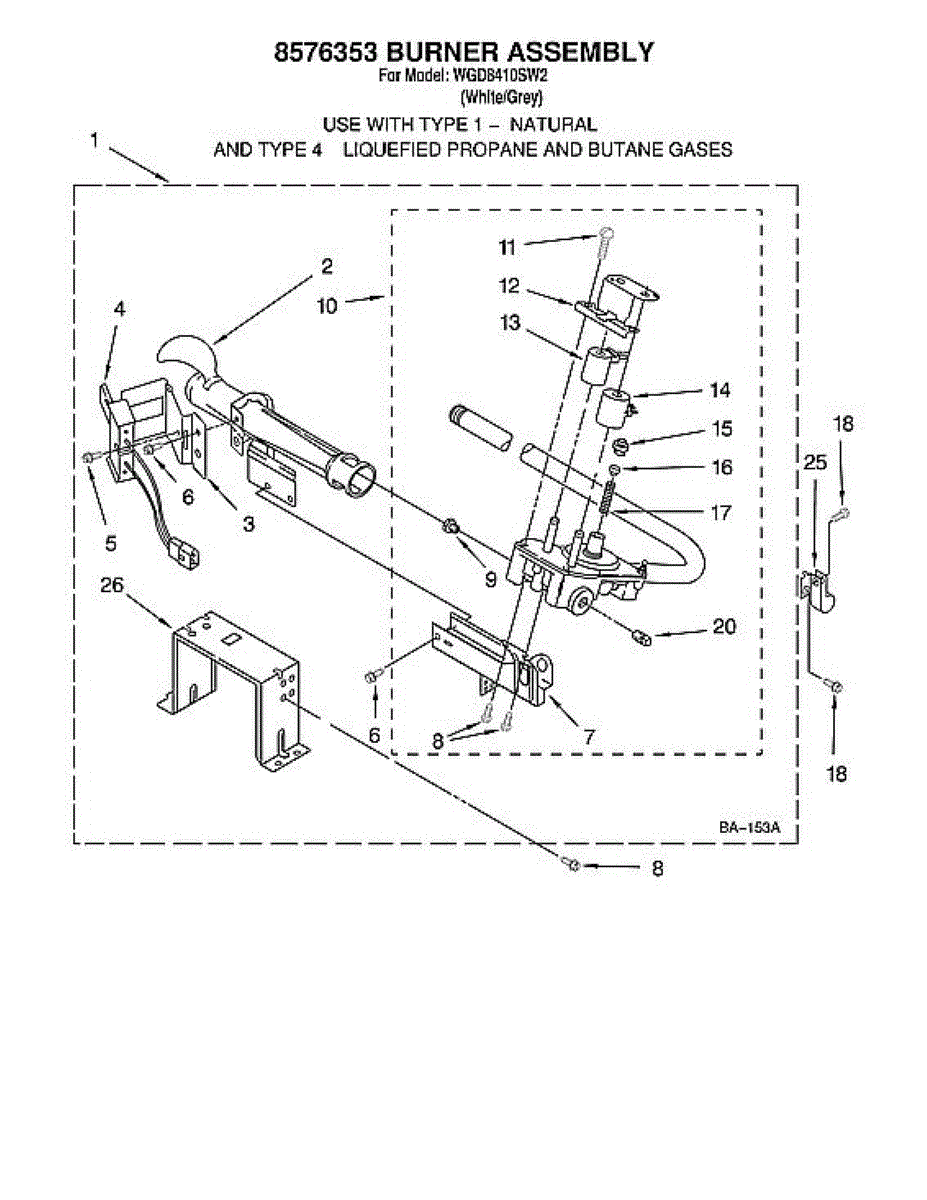

Parts for Whirlpool WGD8410SW2: 8576353 Burner Assy Parts

This genuine OEM replacement part is a burner and gas valve assembly for dryers. The burner and gas valve assembly is a complete assembly that contains the burner that distributes the gas in a way that creates an even flame allowing for heat to be distributed properly to perform the dryer's essential function. If the dryer is no longer drying clothes effectively or heating properly, then it might be time for it to be replaced. Luckily repairing a gas valve assembly is a relatively simple job.To replace the burner and gas valve assembly, begin by shutting off power to the appliance. Next, pull the dryer away from the wall to gain access to the back panel. Remove the back panel and locate the burner and gas valve assembly. Remove the mounting screws that hold it in place. After removing the screws use both hands to pull and release the old burner assembly. Set it off to the side and proceed to install the new one by refastening the screws that hold it in place.This replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washers.

This burner tube channels the gas-air mixture to the burner and includes an adjustable air shutter to set proper combustion. Replacing a damaged assembly helps restore reliable ignition, stable flame, and consistent heating performance.

• Directs the fuel/air mixture from the gas valve to the burner port
• Integrated adjustable shutter regulates primary air for proper flame
• Helps maintain efficient heat output and reliable burner operation
• Failure can present as no or intermittent heat, burner that lights then goes out, yellow/lazy flame, or soot

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Access the burner compartment and transfer any clips/brackets from the original tube
• Note the current shutter position; after installation, adjust for a steady blue flame
• After reassembly, leak-test gas connections with a soap solution and verify burner operation

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

Designed for use in dryers, the gas valve assembly is a part with solenoids or coils. These are used to close and open the valve that controls how much gas flows through the internal parts of the dryer. The gas valve assembly is made of strong materials but can become damaged or worn out. When this occurs, the dryer may not longer create heat during a cycle. If this happens, test the coils using a multimeter. If the reading is not within 1,000 to 2,000 ohms, the gas valve assembly should be replaced.Before starting, unplug the dryer from the wall and shut off the gas supply. Remove the lint screen from the housing and use a screwdriver to take out the screws in the housing. Disassemble the dryer to gain access to the gas valve and coils. Remove the screws from the mounting bracket to detach this part. Replace with the new component and test before use.The gas valve assembly is designed to be used with dryers by Kenmore, Maytag, and Amana. This genuine OEM part is directly sourced from the manufacturer. It is priced as a single unit.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.

The Natural Gas Regulator is an OEM part for Whirlpool ranges. This regulates the pressure of natural gas entering the appliance, ensuring safe and efficient operation. It maintains a consistent gas flow to the burners and oven, allowing for precise temperature control and optimal cooking performance.

Over time, the natural gas regulator can wear out or become damaged due to exposure to high temperatures, contaminants in the gas supply, or mechanical failures.

Symptoms of a bad natural gas regulator include:

• Inconsistent flame or burner performance
• The oven or burners not igniting or staying lit
• Unusual odors or hissing sounds near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Natural Gas Spring is an OEM part for Whirlpool ranges. This part assists in regulating the flow and pressure of natural gas to the burners, ensuring consistent and safe operation. The spring helps maintain the correct pressure within the gas regulator, which is vital for efficient cooking performance.

Causes of a bad natural gas spring can include wear and tear from prolonged use, exposure to high temperatures, or contamination from particles within the gas line.

Symptoms of a bad natural gas spring include:

• Inconsistent or weak burner flames
• Difficulty in lighting the burners or oven
• Irregular cooking temperatures
• Unusual noises or gas odors near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool LP gas conversion kit is an OEM replacement part responsible for allowing the conversion of a natural gas-powered dryer to operate on LP (liquid propane) gas. This kit contains the orifice, leak limiter, and an instruction sheet to guide the conversion process. Once the conversion kit is installed, it alters the fuel source of the dryer, allowing it to burn LP gas instead of natural gas. This conversion is necessary when a home or installation site lacks access to natural gas and relies on LP gas as the fuel source for heating appliances

Causes for needing an LP gas conversion kit include relocating the appliance to a home with LP gas, or preferring LP gas over natural gas for cooking efficiency or availability. The conversion process involves changing the orifices and adjusting the gas pressure to suit LP gas requirements.

Symptoms that indicate a need for conversion or issues with the current setup include:

• Improper or uneven flame on the burners
• Difficulty in lighting the burners
• Burners not operating at full power
• Gas smell indicating possible leaks or incorrect gas type

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
