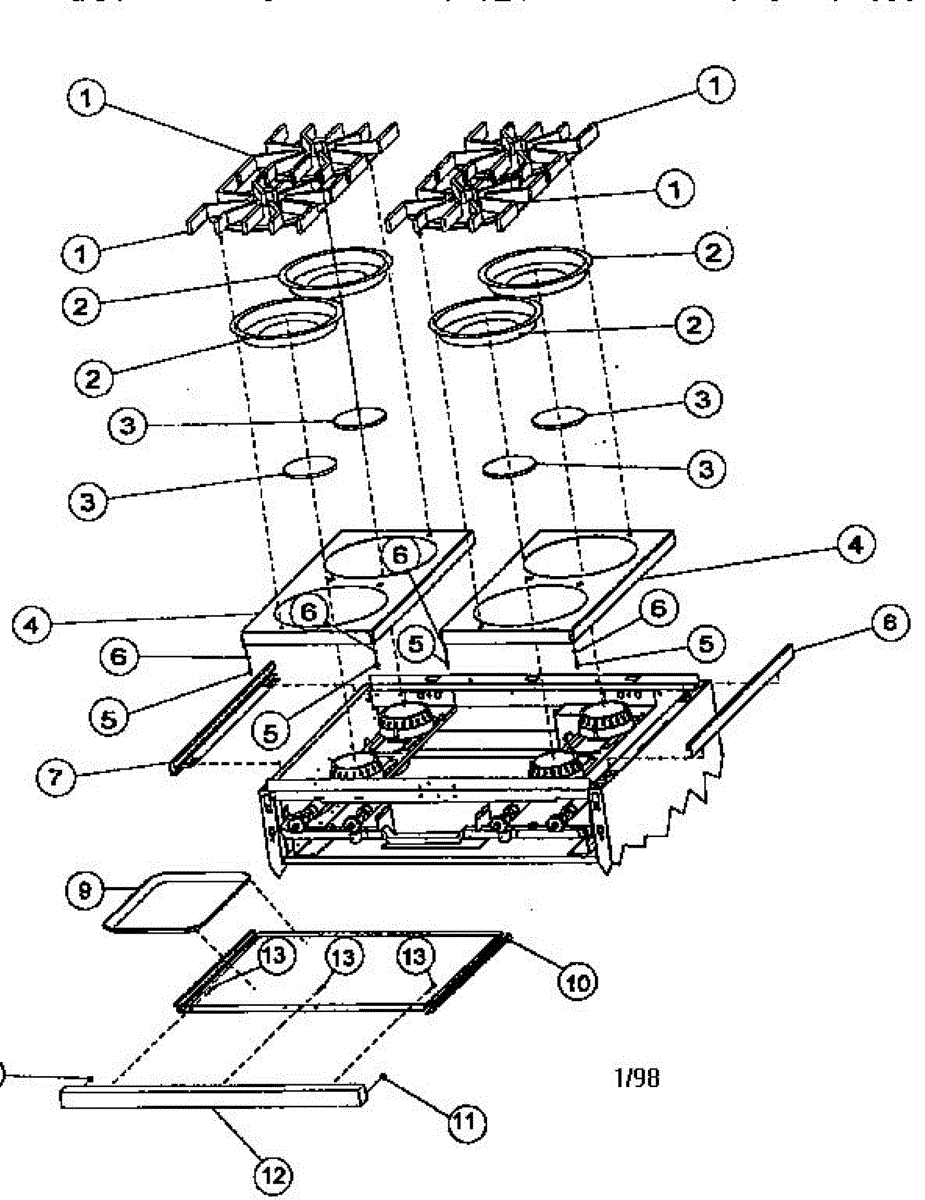

Parts for Viking Range VGRC48: Burner Box Exterior Assembly Parts

Gray grate for gas cooktops and ranges. Sits over burners to support cookware. Replace if cracked, warped, chipped, or discolored from heat exposure.

Black gloss spider grate for gas cooktops and ranges. Replaces cracked, chipped, or worn grates. Sits over burner to support pots and pans during cooking.

Black surface burner grate supports cookware above the flame on gas ranges and cooktops. Replace cracked, warped, or discolored grates to restore stability.

This stainless-steel burner bowl collects and channels heat and drippings under the burner to protect the cookbox and support proper burner operation. Durable replacement for corroded or damaged bowls to restore safe, even grilling. What it does:

• Holds and routes grease/drippings away from the burner to help prevent flare-ups.
• Supports the burner assembly and positions it for correct flame pattern.
• Replace if bowl is dented, rusted, cracked, or causing uneven heating.
• Can help stop burner instability or ignition problems when the original bowl is damaged.

• One stainless-steel burner bowl.

• Turn off and disconnect propane or natural gas supply before starting any repair.
• Remove grates and control components as needed; keep hardware for reuse unless corroded.
• Inspect surrounding components (burner, valves, igniter) and clean surfaces before installing.

Fix uneven flames or burner ignition issues with this burner cap. Sits atop the burner head to distribute flame evenly. Easy 5-minute replacement.

Fix uneven flames or burner ignition issues with this burner cap. Sits atop the burner head to distribute flame evenly. Easy 5-minute replacement.

Captures cooking drips and grease to protect internal components and keep your range cleaner. Replace when damaged or clogged. Verify fit with your model number.

This is a small rubber or plastic foot that attaches to the bottom of a range grate to cushion it against the cooktop surface. It prevents the grate from scratching the cooktop and keeps it stable during cooking. Replace this part if your grates slide around, sit unevenly, or the existing feet are worn, cracked, or missing.

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance

70-inch stainless steel flexible gas supply tubing for gas ranges. Connects your range to the gas line. Replace if kinked, cracked, or damaged.

This tubing connects to the bake shutoff or safety valve in a gas oven, routing gas to the bake burner assembly. It ensures proper gas flow to the oven burner when the bake cycle is activated. Replace this tubing if you detect a gas smell near the oven, notice uneven heating, or if the oven fails to ignite due to a compromised gas line connection.

This is the wire assembly that connects the spark module to the rear burner ignitor on a gas range. It carries the electrical pulse needed to create a spark that ignites the gas at the burner. Replace this wire if the rear burner clicks but does not light, produces no spark at all, or if the wire insulation is damaged or burned.

This wire connects the spark module to the grill or griddle burner ignitor on a gas range. It carries the electrical spark signal needed to ignite the burner. Replace this wire if your grill or griddle burner clicks but won't ignite, or if you notice intermittent ignition failure due to a damaged or corroded wire.
