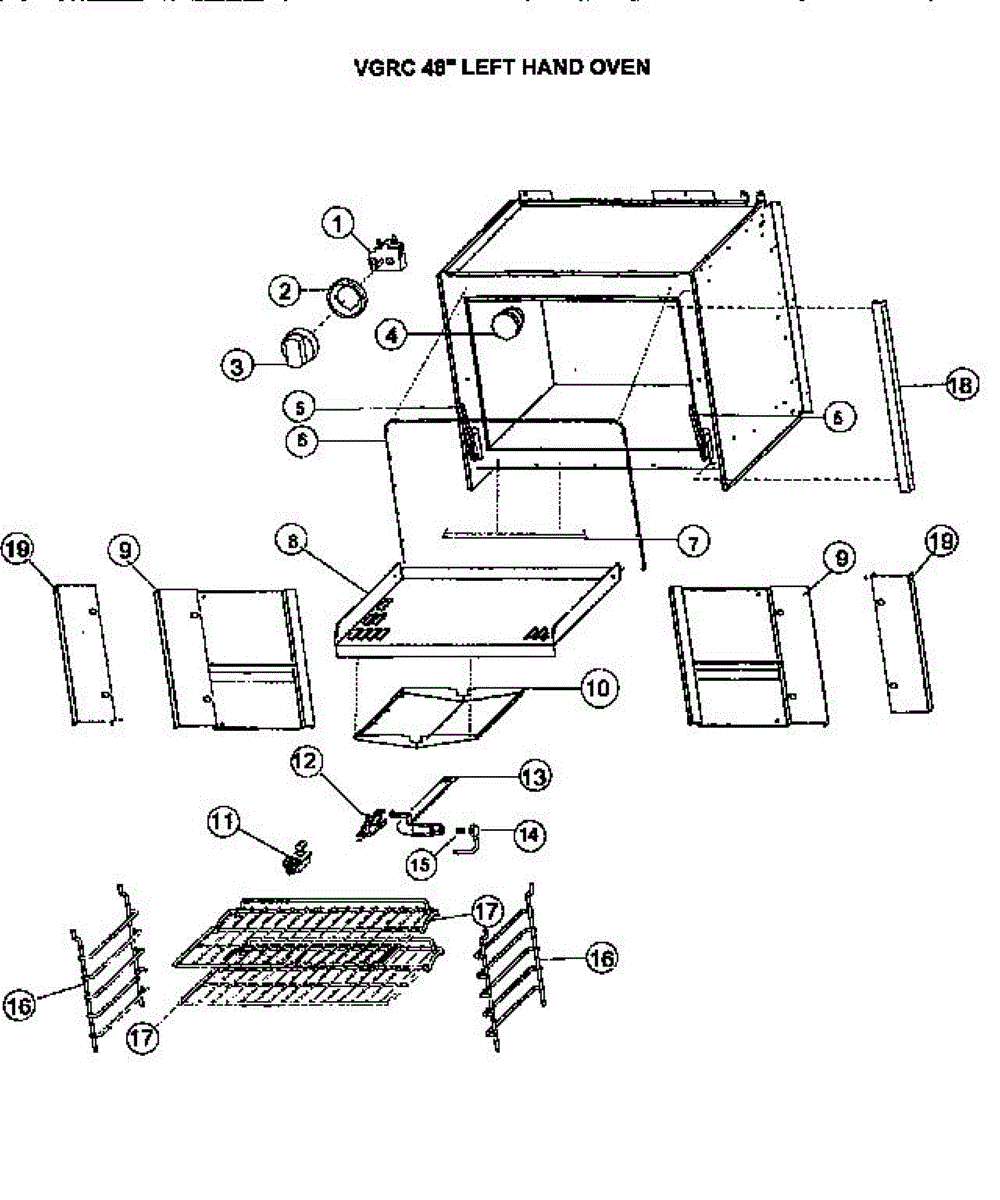

Parts for Viking Range VGRC48: Left Hand Oven Parts

Thermostat for the griddle and bake surface that regulates cooking temperature to restore consistent heat. Replacing a faulty thermostat can stop under-heating, overheating or irregular temperature cycling so food cooks evenly. What it does:

• Senses and regulates griddle/bake temperature by switching heater circuits to maintain the set heat level.
• Stops symptoms like a griddle or bake surface that won't reach temperature, runs too hot, or cycles on and off erratically.
• Helps restore predictable cooking performance and prevents unevenly cooked food.
• Works as the temperature control element for the griddle/bake function on compatible ranges.

• Disconnect power to the appliance before starting work and allow all surfaces to cool.
• Compare new part to the old thermostat and follow the appliance wiring diagram for correct connections.
• Use proper tools and fasteners; secure mounting so the sensor/shaft is positioned as originally installed.
• After installation, restore power and verify proper temperature control and safe operation.

Light bulb socket assembly includes: Light bulb socket, light bulb and light lens.

This left-hand single thermal valve controls gas flow to one burner assembly, helping restore safe, consistent operation in affected ovens or ranges. It replaces a faulty valve to re-establish proper temperature regulation and ignition behavior. What it does:

• Regulates gas flow to the left-side burner or oven pilot as part of the appliance's gas control system
• Helps prevent unwanted gas flow when the burner is off and allows normal ignition when called for
• Commonly used when burners fail to light, spark but no gas, or flame is irregular on the left side
• Works with existing mounting and gas line connections as the OEM replacement component

• Turn off the appliance's gas supply and electrical power before starting any repair
• Only connect or adjust gas fittings with proper tools and thread sealant rated for gas; check for leaks after installation
• Do not modify the valve; replace with the correct left-hand unit to ensure safe operation

A flat hot-surface ignitor that replaces a worn oven ignitor to restore reliable burner ignition. Heats to ignition temperature so gas burners can light more consistently and help the oven reach operating temperature. What it does:

• Heats to a high temperature to ignite the oven or range gas burner
• Common failure symptoms: oven won't light, long ignition delay, or intermittent ignition
• Direct replacement for flat-style hot-surface ignitors used in compatible gas ovens and ranges
• Matches electrical connector and mounting style of the original flat ignitor design

• Always shut off electrical power and the gas supply before starting repair
• Handle the ceramic element carefully — it is fragile; avoid touching the element surface with bare hands
• Verify connector/wire compatibility and use the original mounting hardware or manufacturer-recommended fasteners

This left-hand oven burner restores proper flame distribution for consistent baking and roasting. Replacing a corroded, warped, or clogged burner helps eliminate uneven temperatures and weak or irregular flames on the left side of the oven.

• Generates and distributes the bake flame on the left-hand side of the oven
• Helps maintain stable oven temperatures for even baking and roasting
• Replacing a damaged or clogged burner can address uneven heating, weak/yellow flames, or delayed ignition on that side
• Direct, model-specific replacement for the original left-hand burner

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the oven to cool completely; remove racks and any flame spreader/heat baffle as needed for access
• Remove mounting screws and detach the burner from the gas tube/manifold; transfer any reusable brackets or hardware
• Reassemble securely, restore gas, and check for leaks; verify proper flame appearance per the service manual

Orifice hood (#57) is the burner component that centers and protects the burner orifice, helping deliver a steady, correctly-shaped gas flame for even cooking. Replacing a damaged hood restores reliable burner operation and flame control. What it does:

• Positions and shields the burner orifice to ensure correct gas flow to the burner.
• Helps maintain proper flame shape for even heat distribution across the burner.
• Can cause uneven or weak flames, delayed ignition, or irregular heating when damaged or corroded.
• Use as a direct replacement when the existing hood is bent, cracked, or excessively worn.

• Shut off the appliance power and gas supply before attempting any service.
• Replace only when the burner is cool; do not force or over-tighten parts.
• Inspect the burner head and orifice for damage or debris when installing this hood.

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance

The Spark Module Wire is an OEM part for Viking ranges and cooktops. It is responsible for transmitting the electrical signal from the spark module to the burner igniters, enabling the burners to ignite when the control knob is turned on. This wire is crucial for the proper functioning of the ignition system, ensuring that the gas ignites quickly and efficiently.

Over time, the spark module wire can become worn or damaged due to heat exposure, accidental pinching during maintenance, or normal wear and tear. When the wire is compromised, it can lead to issues with the burner ignition process, affecting the overall performance of the appliance.

Symptoms of a bad spark module wire include:

• Burners not igniting or taking longer to ignite
• Intermittent sparking or no sparking at all
• Clicking sound without ignition

This OEM part is specifically designed for Viking appliances, ensuring compatibility and reliable performance.
