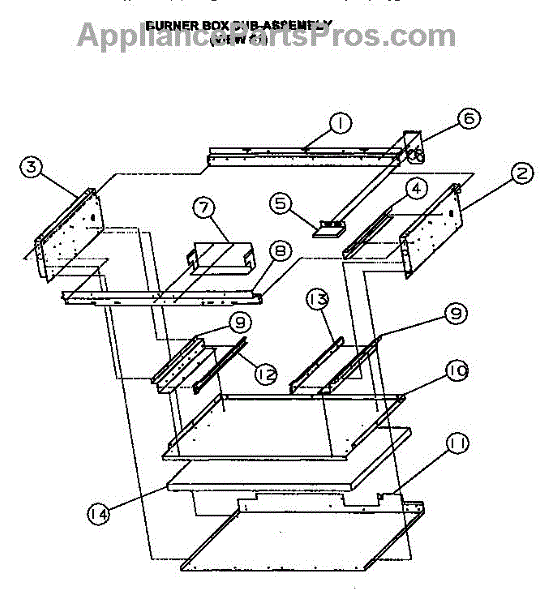

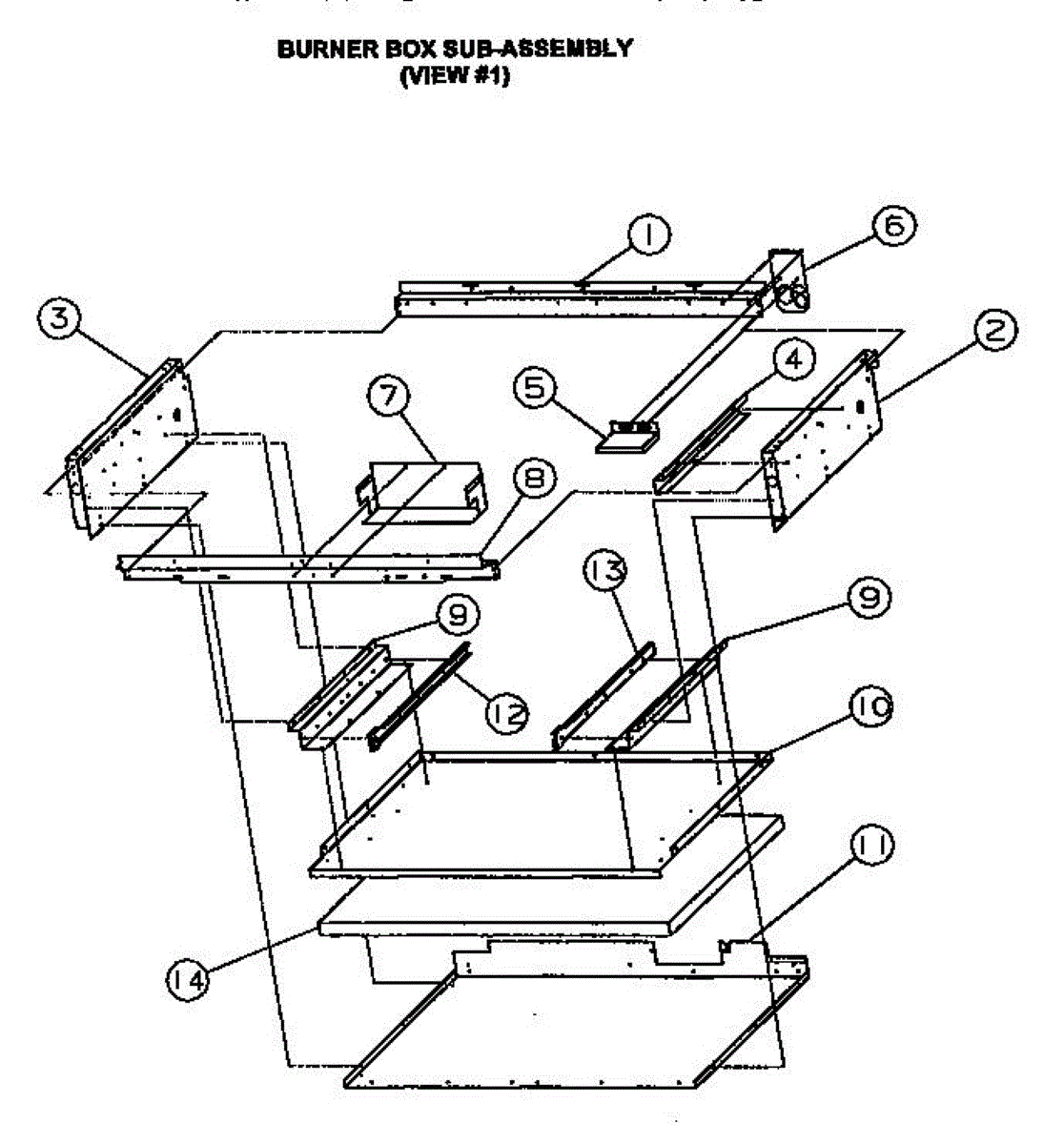

Parts for Viking Range VDSC365: Burner Box Sub-Assembly (View #1) Parts

This drip tray guide bracket secures and aligns the appliance's removable drip tray so it slides smoothly and stays in place. It helps prevent the tray from rattling or shifting while in use. What it does:

• Supports and guides the drip tray or pan along its track for proper alignment
• Keeps the tray stable to reduce noise and prevent spills from shifting
• Restores smooth insertion and removal of the drip tray
• Useful when bracket is bent, cracked, or missing

• One drip tray guide bracket

• Designed for field-replacement; inspect surrounding mounts and hardware before installing
• Use appropriate hand tools and avoid over-tightening fasteners
• Disconnect power to the appliance and follow OEM safety recommendations if accessing electrical components
• If bracket is corroded or mounting holes are damaged, replace damaged hardware.

Left-hand drip tray guide for gas cooktops and ranges. Replaces cracked, broken, or missing guides that secure the drip tray assembly in position.

This heat-resistant padding insulates the oven cavity to improve energy efficiency and protect surrounding components from excessive heat. Replace it if you notice heat escaping from the oven exterior, increased cooking times, or if the insulation appears compressed or damaged.

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance
