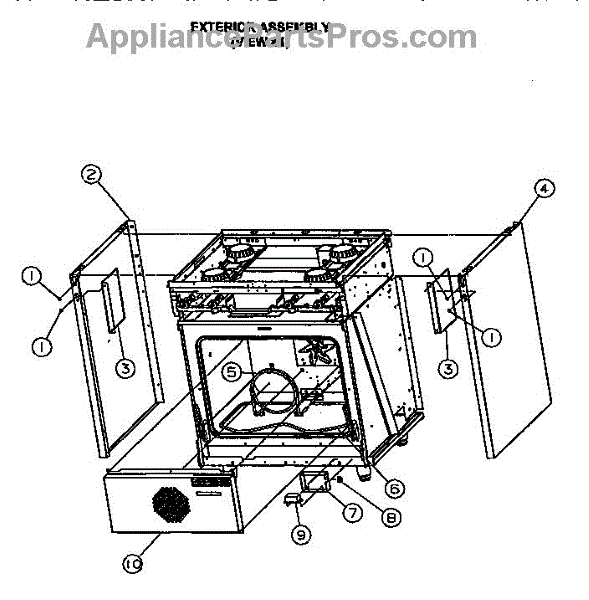

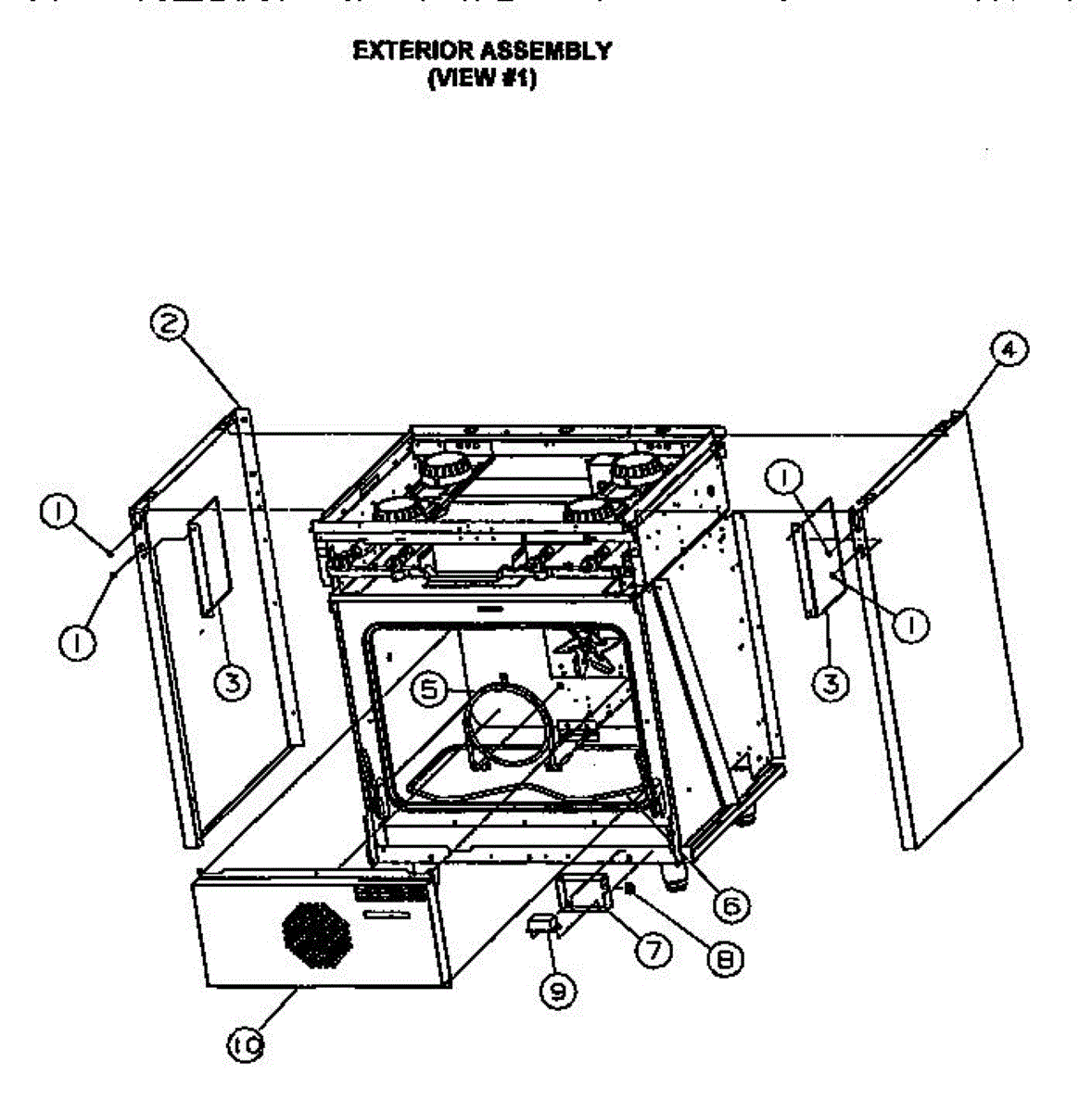

Parts for Viking Range VDSC365: Exterior Assembly (View #1) Parts

This bake element is the oven heating element that provides the lower radiant heat for baking. It replaces a failed or damaged 240-volt element to help restore even baking performance and proper oven heat. What it does:

• Heats the oven cavity during bake cycles by producing the required radiant heat.
• Replaces a burned-out or visibly damaged element that won't glow, causing little or no heat.
• Helps correct uneven baking when the original element is blistered, broken, or has open electrical continuity.
• Intended for use in 240V household ovens.

• Disconnect all power at the circuit breaker before starting any service.
• Element typically mounts at the back of the oven and connects to terminal screws.
• Handle carefully to avoid sharp metal edges; allow the element to cool fully before touching.

This 25-amp relay switches high-current components in your appliance on and off as directed by the control system. Replacing a failing relay restores consistent power to elements or motors and helps resolve intermittent, no-heat, or non-running issues.

• Controls power to high-demand components when signaled by the control
• Opens/closes the circuit to keep heavy current away from sensitive electronics
• Common failure symptoms: no heat or fan operation, intermittent cycling, or clicking without activation
• Helps correct erratic operation caused by pitted or stuck contacts

• Disconnect power at the breaker and verify no voltage before servicing
• Photograph and label wiring; transfer leads to matching terminals one at a time
• Mount securely in the original orientation; ensure tight, clean spade connections and replace any heat-damaged terminals
• Restore power and test operation

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance
