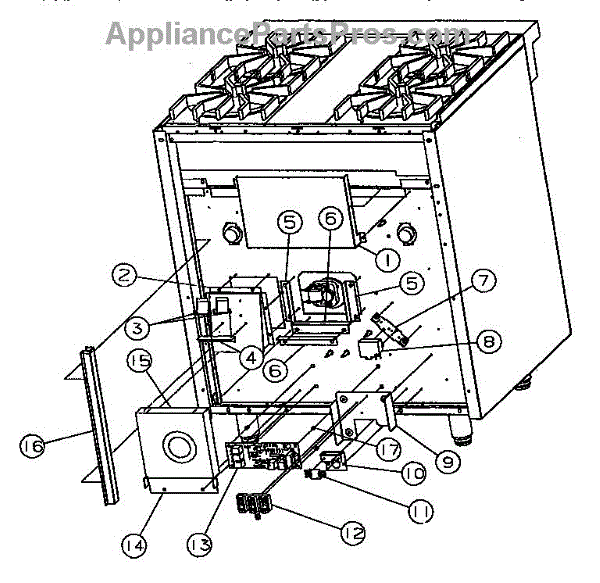

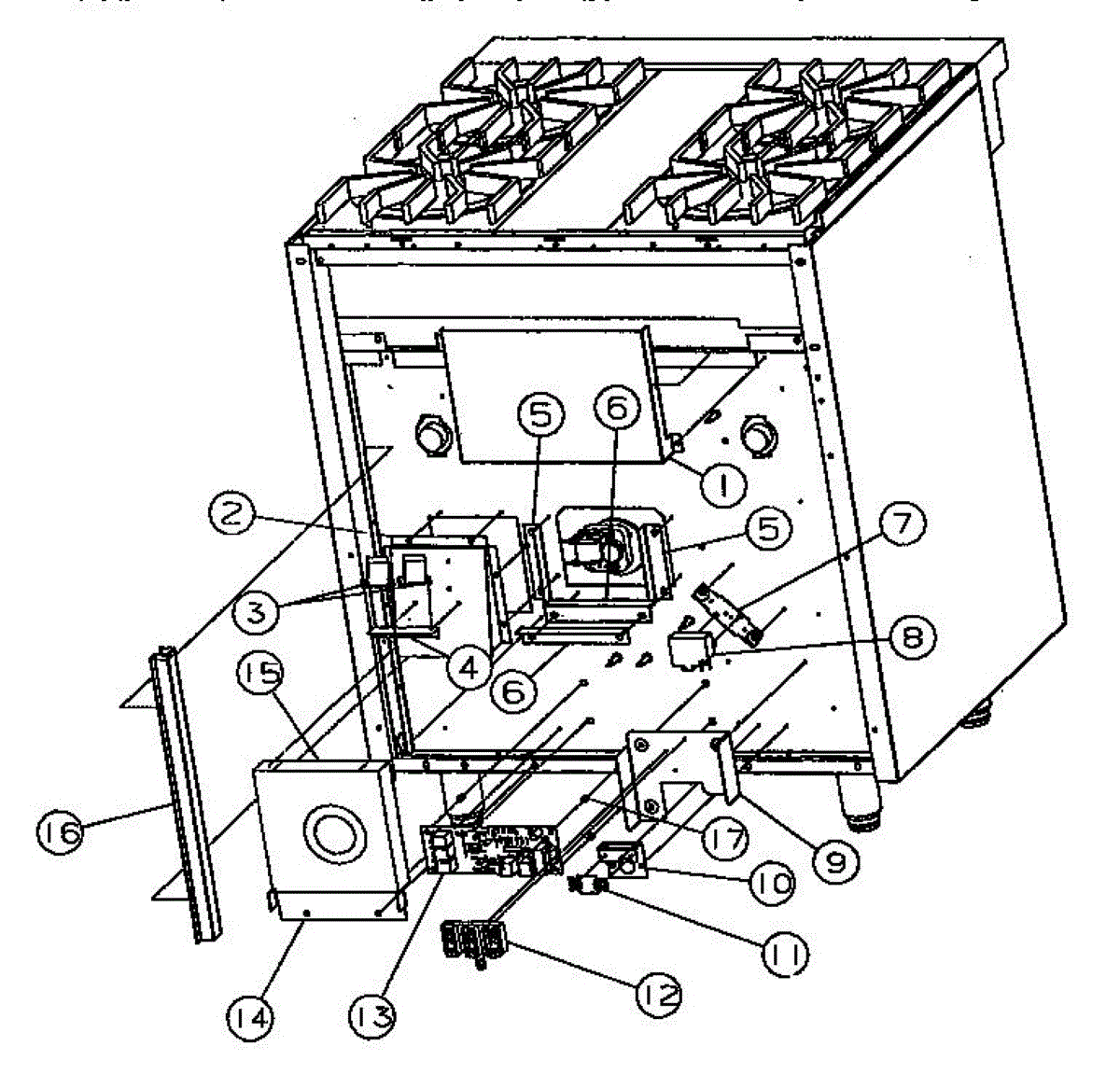

Parts for Viking Range VDSC365: Rear Panel (Top And Bottom) Parts

This double-pole control relay switches two circuits at once to route power in your range or oven control system. It helps restore reliable electrical make/break operation for heating and control circuits. What it does:

• Acts as a two-pole electrical switch controlled by the appliance control board
• Allows the control board to turn power on/off to heating elements or other high-current circuits
• Commonly linked to symptoms such as no heat, intermittent heating, or a clicking relay sound
• Replaces a failed relay to restore proper circuit switching and component operation

• One double-pole control relay

• Always disconnect power at the breaker or unplug the appliance before servicing
• Handle the relay and control board connections carefully to avoid bending terminals
• Verify wiring and terminal positions during removal so connections are restored exactly

This thermo-disc bracket secures the thermo-disc/thermal cutoff assembly so the temperature sensor stays properly positioned for reliable oven temperature sensing and safety. It's a direct-fit replacement bracket for affected VDSC assemblies. What it does

• Holds the thermo-disc or thermal cutoff in the correct position so it senses oven temperature accurately
• Keeps the sensing device stable to prevent false trips or intermittent temperature control
• Helps maintain proper operation of temperature-limiting safety components
• Can be replaced when bent, cracked, or corroded to restore secure mounting

• Disconnect power to the appliance before starting any repair
• Handle the thermo-disc/thermal cutoff carefully—avoid damaging the sensor element or leads
• Basic tools are typically required; alignment and secure mounting are important for correct sensing

This auto-reset safety device is used in oven self-clean cycles to limit heat and automatically restore operation when temperatures fall to a safe level. It helps protect the oven from overheating during high-temperature cleaning. What it does:

• Limits temperature during self-clean to prevent overheating of oven components
• Automatically resets once the unit cools so normal operation can resume
• Common symptom: self-clean cycle trips or won't start
• Prevents repeated thermal shutdowns during high-heat cleaning cycles

• Always disconnect power to the appliance before inspecting or replacing heating safety devices
• Access may require removing back panel or control console; follow the oven's service manual
• Test operation only after reassembly and restoring power

This control board operates the oven's self-clean cycle and timer functions, restoring reliable control of cleaning, timed cook settings, and related control signals. Replaces a failed electronic module to return normal oven control behavior. What it does:

• Manages the oven self-clean sequence and related safety interlocks
• Controls clock and timer functions used for delayed or timed cooking
• Sends/receives control signals to the oven's temperature and door systems
• Commonly replaces a board that causes self-clean to fail, timers to not run, or control errors to appear

• Disconnect power at the breaker before starting; this is an electrical/ESD-sensitive module
• Handle the board by edges and avoid static discharge; wear an anti-static strap if available
• Installation typically requires removing the console or rear panel and reconnecting wiring harnesses exactly as found

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance
