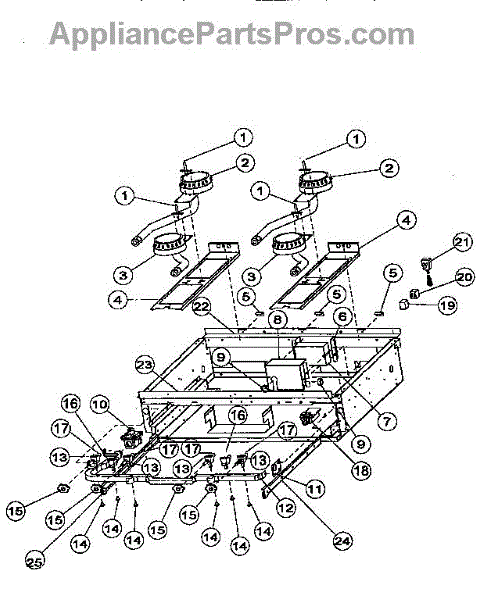

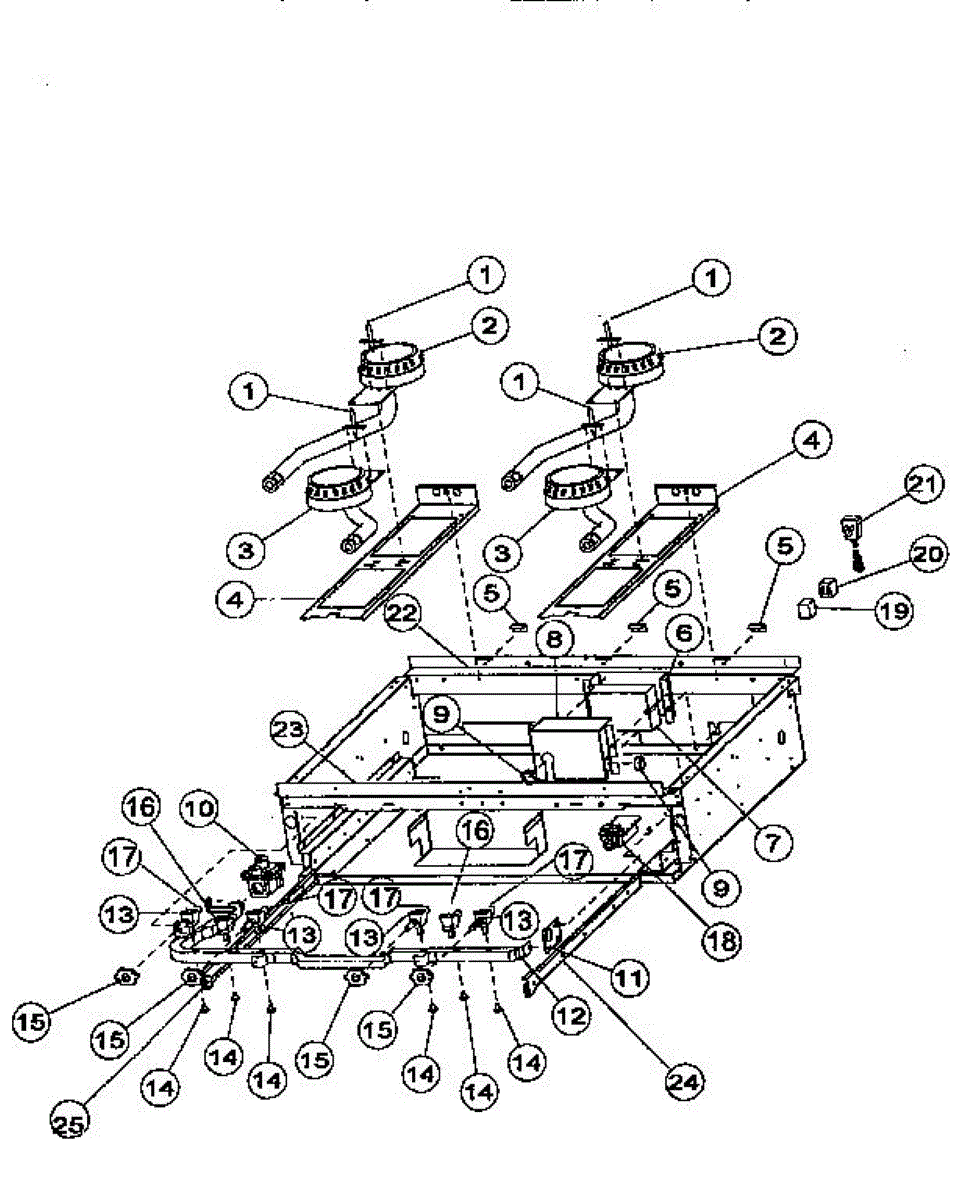

Parts for Viking Range VGRC60: Burner Box Sub-Assembly Parts

Fix burners that won't light or click constantly with a new spark electrode. This igniter creates the spark needed to ignite gas at the burner head.

This top burner front is a direct-fit replacement panel that restores the cooktop's front burner area for proper fit and appearance. It helps secure burner components and keeps the cook surface aligned and stable. What it does:

• Replaces a cracked, warped, dented or discolored top burner front panel
• Restores correct fit and support for front burners and grate alignment
• Helps prevent loose or misaligned burners that can affect cooking performance
• Improves appearance by replacing damaged or worn front trim

• Turn off power and gas to the appliance before servicing; follow all safety precautions
• Basic hand tools required; part installs from the top of the cooktop or under the cooktop depending on model
• Handle edges carefully to avoid cuts; check alignment and secure fasteners evenly

This spark module controls ignition for the surface burners on gas cooktops and ranges. When a knob is turned, it generates the high-voltage spark needed to light the gas, restoring fast, consistent burner ignition across four positions.

• Generates high-voltage pulses to ignite up to four surface burners
• Activates when a burner switch is turned to provide reliable sparking to the igniters
• Common symptoms include no spark on any surface burner
• Intermittent or weak sparking across multiple burners
• Burners only lighting with an external flame

• Disconnect electrical power and shut off gas before servicing
• Photograph or label all wire positions; move wires to the new module one at a time to avoid miswiring
• Mount the module securely in the original location; keep leads dry and routed away from heat/sharp edges
• High-voltage hazard: do not touch igniter outputs during testing; verify all connections are fully seated before restoring power

Gas cooktop won't ignite or clicks continuously? This spark module cover protects ignition components. Straightforward replacement restores reliable lighting.

Fixes inconsistent flame height and uneven cooking heat. This natural gas pressure regulator maintains steady burner performance and proper combustion.

Fixes inconsistent flame height and uneven cooking heat. This natural gas pressure regulator maintains steady burner performance and proper combustion.

This stainless-steel burner bowl collects and channels heat and drippings under the burner to protect the cookbox and support proper burner operation. Durable replacement for corroded or damaged bowls to restore safe, even grilling. What it does:

• Holds and routes grease/drippings away from the burner to help prevent flare-ups.
• Supports the burner assembly and positions it for correct flame pattern.
• Replace if bowl is dented, rusted, cracked, or causing uneven heating.
• Can help stop burner instability or ignition problems when the original bowl is damaged.

• One stainless-steel burner bowl.

• Turn off and disconnect propane or natural gas supply before starting any repair.
• Remove grates and control components as needed; keep hardware for reuse unless corroded.
• Inspect surrounding components (burner, valves, igniter) and clean surfaces before installing.

Uneven flame or incorrect burner output? This #50 orifice hood regulates gas flow to your burner. Common repair for flame issues. Moderate difficulty.

Uneven flame or poor burner performance? This orifice hood centers and protects the gas orifice for steady flame control. Simple DIY repair part.

If one burner won't ignite or heats unevenly, this left-hand thermal valve regulates gas flow to restore consistent operation. Moderate DIY repair.

Left-hand drip tray guide for gas cooktops and ranges. Replaces cracked, broken, or missing guides that secure the drip tray assembly in position.

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance

70-inch stainless steel flexible gas supply tubing for gas ranges. Connects your range to the gas line. Replace if kinked, cracked, or damaged.

Clicking but not lighting? This spark ignitor wire assembly restores reliable ignition on gas cooktops. Moderate DIY repair in 30-45 minutes.

The Spark Module Wire is an OEM part for Viking ranges and cooktops. It is responsible for transmitting the electrical signal from the spark module to the burner igniters, enabling the burners to ignite when the control knob is turned on. This wire is crucial for the proper functioning of the ignition system, ensuring that the gas ignites quickly and efficiently.

Over time, the spark module wire can become worn or damaged due to heat exposure, accidental pinching during maintenance, or normal wear and tear. When the wire is compromised, it can lead to issues with the burner ignition process, affecting the overall performance of the appliance.

Symptoms of a bad spark module wire include:

• Burners not igniting or taking longer to ignite
• Intermittent sparking or no sparking at all
• Clicking sound without ignition

This OEM part is specifically designed for Viking appliances, ensuring compatibility and reliable performance.
