Parts for Electrolux BGGF3045RFC: 03 - Burner Parts

This water inlet manifold directs refrigerator water flow between the dispenser and ice maker, restoring reliable water delivery. Replaces a cracked or clogged manifold to stop leaks and restore normal dispenser and ice-maker operation. What it does:

• Routes incoming water to the icemaker and door dispenser as part of the refrigerator water system
• Helps maintain correct water flow; a failed manifold can cause weak or no water at the dispenser
• Can leak or drip if cracked or gasketed connections fail, producing visible water under or behind the unit
• Works with solenoid valves and tubing to control water distribution safely and precisely

• Turn off refrigerator power and shut off the water supply before starting
• Drain remaining water from lines and carefully disconnect tubing to avoid spills
• Inspect and replace any worn gaskets or O-rings when installing to ensure a watertight seal

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker so you get a steady supply when needed and stop unwanted leaks. Replaces a worn or faulty valve to restore proper fill and dispensing. What it does

• Opens and closes to allow water into the ice maker and dispenser when requested
• Stops water flow to prevent overfilling or continuous running
• Commonly replaced when dispenser or ice maker won't fill, has weak flow, or leaks
• Works with the refrigerator's water line and solenoid actuators to meter supply

• One water inlet valve (single unit as shown)

• Disconnect power and shut off the household water supply before starting
• Drain lines and remove front or rear access panels to reach the valve
• Inspect and replace any damaged water lines or fittings; tighten connections and check for leaks after installation

The Gas Valve is an OEM part for Frigidaire gas ranges. It controls the flow of gas to the surface burners, enabling precise temperature adjustments and safe operation. This valve operates by opening and closing to allow gas to pass through when the burner is turned on and shutting off the flow when it is turned off.

Causes of a bad gas valve can include mechanical wear, debris buildup that obstructs the valve, or failure of the electrical components that control the valve's operation.

Symptoms of a bad Gas Valve include:

• Gas burner failing to light despite the ignition sparking
• Uneven flame or a flame that goes out unexpectedly
• A noticeable gas smell when the appliance is in use, indicating a potential leak
• Inability to adjust the flame height or heat level on the burners

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

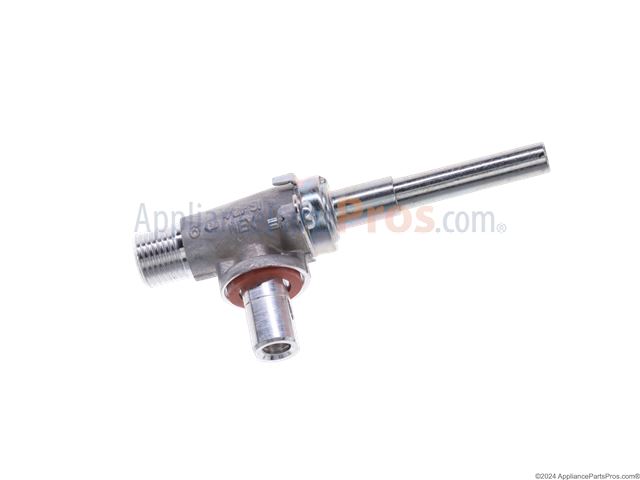

The Surface Burner Valve is an OEM replacement part for Frigidaire ranges. It controls the flow of gas to one of the surface cooking burners, allowing for temperature control on that burner.

Causes of a bad surface burner valve can include wear and tear from extensive use over time, damage to the valve components due to impact or mishandling, or issues with the gas control mechanism failing to function properly.

Symptoms of a bad surface burner valve include:

• Inability to adjust flame height or turn burner on/off
• Burner only works at one setting or unpredictably adjusts itself
• Leaking gas smell coming from the valve area
• Yellow burner flames instead of clean blue flames

This part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ranges.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


This water inlet valve controls water flow to the refrigerator's dispenser and ice system so you get a steady supply when needed and stop unwanted leaks. It replaces a worn or failing valve to restore proper water delivery. What it does:

• Opens and closes to allow water into the ice maker and dispenser
• Stops water flow when dispenser/ice fill is inactive
• Commonly replaced when water won't dispense or ice maker won't fill
• Needed if the valve is leaking or causing water drips

• Disconnect power and shut off the water supply before replacing the valve
• Handle with care and inspect inlet/outlet fittings and gaskets for proper sealing
• Reconnect water and power, then check for leaks and proper water flow after installation
• Follow manufacturer instructions

This wiring harness connects key components within the appliance, carrying power and control signals where they need to go. Replacing a damaged harness restores safe operation and fixes intermittent failures caused by loose, burnt, or broken connections.

• Routes electrical power and control signals between boards, switches, sensors, motors, and heaters
• Helps resolve symptoms such as won't start, stops mid-cycle, intermittent operation, dead components, breaker tripping, burning smell, or visible melted/brittle wiring
• Restores proper continuity when the original wiring is cut, overheated, corroded, or shorted
• Maintains correct electrical pathways to protect components from further damage

• Disconnect power before servicing; verify no voltage is present with a meter
• Document connector locations and wire routing; take photos for reference
• Release connector locking tabs—do not pull on wires; route in original path using existing clips/retainers, away from sharp edges, heat, and moving parts
• Ensure all terminals are fully seated; test operation before final reassembly

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This surface burner channels gas through its ports to create an even, controllable flame on your cooktop. Replacing a worn or clogged burner restores reliable ignition, proper flame shape, and consistent heating performance.

• Directs gas from the orifice through burner ports to produce the cooking flame
• Interfaces with the spark electrode for fast, consistent ignition
• Helps maintain even heat across the pan
• Common symptoms: burner won't light, weak or uneven flame, yellow tips, delayed ignition or popping

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; detach mounting hardware as applicable and lift off the old burner
• Align the new burner with the orifice and igniter; reinstall hardware and cap
• Restore gas and power, then check for leaks and verify proper ignition and flame quality

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor/orifice assembly replaces the combined spark igniter and orifice holder for a gas surface burner, restoring fast, reliable lighting and proper flame. Replace it when the burner won't ignite, clicks repeatedly, or lights with delay.

• Directs gas through the burner orifice and positions the spark igniter for reliable ignition
• Common fix for a surface burner that won't light, has no/weak spark, or lights with delay
• Can help resolve unstable or uneven flame caused by a damaged or obstructed orifice
• Intended for the specific burner location and gas type specified by your model

• Disconnect power and shut off the gas supply before servicing
• Allow the cooktop to cool; remove grates, burner caps/heads to access fasteners
• Lift the top or burner deck as needed to reach the orifice holder; transfer the igniter lead and any brackets from the old assembly
• Reassemble, restore gas, check for leaks with soapy water, and verify burner ignition

This ignitor orifice assembly sits under the cooktop and both routes gas to a surface burner and provides the spark to light it. Replace a damaged or clogged assembly to restore fast, reliable ignition at that burner.

• Feeds gas from the valve to the burner and houses the spark igniter electrode for ignition
• Common fix for a surface burner that won't light, has no or weak spark, or only lights with a match
• Also called an igniter/orifice holder assembly

• Disconnect power and shut off the gas supply before servicing.
• Raise or lift the cooktop per your model's service information; support it to avoid strain on gas lines.
• Note wire routing; set the electrode gap to the burner head per service specs and keep the lead away from heat/sharp edges.
• After reassembly, check all gas connections with an approved leak-detection solution and verify proper spark and flame.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

This ignitor/orifice assembly combines the surface burner spark electrode with the orifice holder that meters gas to the burner. Replacing a worn assembly restores reliable ignition and proper gas flow for steady, even flame performance.

• Provides the spark to ignite surface-burner gas
• Houses the orifice that controls gas flow into the burner head
• Helps resolve burners that won't light or only light with a match
• Can improve weak, uneven, or delayed ignition
• Replaces cracked or carbon-tracked electrodes and corroded orifice holders

• Disconnect power and shut off the gas supply before servicing
• Let the cooktop cool; remove grates, caps, and burner heads to access the assembly
• Disconnect the spark lead and gas connection, install the new assembly, and secure fittings per OEM guidance
• After reassembly, restore gas and check connections for leaks with an approved leak-detection solution; verify ignition and flame

The Igniter Orifice Assembly is an OEM component for Frigidaire gas ranges. It is an integrated assembly housing both the electric ignition wire and adjustable gas orifice or restrictor needed for controlled gas flow.

Symptoms of a bad ignitor orifice assembly include:

• Burners failing to light or requiring multiple igniter clicks
• Flames that are irregularly shaped, oversized, or yellow-tipped
• Burners ignite but flame size is not adjustable across settings
• Gas smells were detected without an obvious leak at the connections

Over time, normal use can cause an orifice to deteriorate or crack while ambient gases degrade igniter wires.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This manifold supply tube routes gas from the appliance's inlet/regulator to the burner manifold and valves. Replacing a damaged tube helps restore safe, consistent fuel delivery and reliable burner performance. What it does

• Channels gas from the regulator/inlet to the burner manifold/valve assembly
• Maintains proper fuel flow to multiple burners
• Replace if the tube is bent, cracked, corroded, or leaking
• Symptoms can include multiple burners not lighting or weak/uneven flames due to restricted flow

• 1 manifold supply tube

• Shut off the gas supply and disconnect electrical power before servicing
• Note the routing and orientation of the original tube to match bends and connections
• Use only approved practices for your fitting type; do not apply sealant to flare-seat connections
• After installation, perform a soap-and-water leak test on all joints; do not operate if bubbles appear

The Regulator is an OEM replacement part for Frigidaire gas ranges and cooktops. It is a valve component that regulates gas flow from the supply line into the appliance burners. Carefully controlling fuel input maintains proper and safe burner flame sizes.

Symptoms of a bad regulator include:

• Burners producing uneven or excessively high flames
• Inability to reduce burner flames properly
• Gas leaks at the regulator connections

Causes of failure involve wear of internal sealing parts over extended use. Corrosion or debris clogging gas passages can also disrupt flow regulation.

This OEM Frigidaire replacement regulator ensures optimal and reliable burner performance. Compatible with some Amana, Electrolux, and KitchenAid models as well, regular replacements prevent dangerous gas line issues from developing.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

The Valve is an OEM replacement part for Frigidaire ranges. Located along the gas line leading to the oven burners, it regulates gas flow and controls burner ignitions. Proper valve function is critical for safe and efficient cooking performance.

Causes of a bad valve can include wear from prolonged use, corrosion or clogging of small internal passages over many years. Damage may also occur if exposed to extreme heat or sudden temperature changes.

Symptoms include:

• Inconsistent or intermittent burner ignition
• Flames that fluctuate in size or temperature
• Gas leaks around connections that develop
• Failure of the oven or burners to ignite properly

Compatible models include Electrolux, Gibson, and select Kenmore ranges.

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

The Oven broil Igniter is an OEM part for Frigidaire ovens and ranges. This component is responsible for igniting the gas in the oven burner, allowing the oven to heat up. It works by drawing electrical current through the igniter filament until it becomes hot enough to ignite the gas, providing the flame necessary for cooking.

Common causes for an Oven Igniter to fail include a burnt-out filament, a break in the igniter's ceramic base, or a malfunction within the igniter's electrical system.

Symptoms of a bad Oven Igniter include:

• Oven not starting or heating up
• Gas smell when the oven is turned on
• Weak or no glow from the igniter element
• Unusual noises when attempting to ignite the gas

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement baffle is the internal guide that channels flow inside the appliance so it operates as designed. Replace a cracked or missing baffle to restore proper circulation and eliminate rattles from loose or damaged pieces.

• Directs internal airflow/circulation along the intended path
• Shields adjacent components from direct spray, debris, or heat
• Helps maintain consistent performance and reduce vibration/noise
• Replace if the original is cracked, warped, loose, or missing

• Disconnect power before service; allow any hot surfaces to cool
• Use your model's parts diagram to locate the baffle; retain screws/clips for reuse
• Install in the same orientation; do not overtighten to avoid cracking
• Run a brief test to check for proper operation and no noise

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This baffle is an air deflector used to direct airflow inside the appliance, helping maintain even temperatures and proper ventilation. It replaces a worn or damaged baffle to restore intended airflow paths and performance. What it does:

• Redirects internal air to help even out temperatures and airflow distribution
• Helps prevent localized hot or cold spots that can affect performance
• Can reduce abnormal airflow noise caused by loose or damaged deflectors
• Restores correct airflow routing after impact or cracking

• High-level swap; usually secures with clips or screws—inspect mounting points before installing
• Disconnect power (or unplug) and remove any shelving or panels that block access
• Handle carefully to avoid cracking thin plastic fins or tabs
• Replace hardware before completing installation

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This gas burner orifice meters fuel to the flame so your range or cooktop heats with the correct flame size and stable output. Replacing a worn or clogged orifice can help restore even flames and consistent cooking performance.

• Regulates gas flow through the burner jet for proper flame height
• Supports reliable ignition and stable, even flame characteristics
• Common signs of trouble: weak or uneven flames, yellow tipping, or delayed ignition
• Orifices are position- and fuel-specific; always match to your model and gas type

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Remove grates, burner caps, and burner head as needed to access the orifice
• Use the correct wrench/nut driver; do not overtighten or alter the jet opening
• After reassembly, turn gas on and leak-check with a soap-and-water solution; verify flame per the manual

The Burner Orifice is an OEM part for Frigidaire ranges. This part regulates the flow of gas to the burners, ensuring proper combustion and heat output.

Causes of a bad burner orifice can include clogging from debris or food particles, corrosion or damage to the orifice opening, or improper installation or misalignment.

Symptoms of a bad burner orifice include:

• Uneven or flickering flames on the burners
• Yellow or orange-colored flames instead of a steady blue flame
• Burners producing excessive noise or popping sounds
• Difficulty in igniting the burners or keeping them lit
• Inconsistent heat output or hot and cold spots on the cooking surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The LP Conversion Kit is an OEM part for Frigidaire gas ranges. This kit allows for the conversion of the range's fuel type from natural gas to LP (liquefied petroleum) gas. It ensures the safe and efficient operation of the gas range when using LP gas as the fuel source.

Causes of a bad LP conversion kit can include incorrect installation, missing components, or damaged parts.

Symptoms of an improper fuel conversion or a bad LP conversion kit may include:

• Uneven flame
• Improper heating
• Unusual gas smells

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This wiring harness connects the appliance's electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help resolve power loss and intermittent electrical issues. What it does:

• Transfers power and control signals between components so controls and motors can operate
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps stop failures that lead to no-start or loss of specific functions
• Restores secure connector fit to reduce arcing or poor connections

• Always disconnect power before servicing the appliance
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Secure fasteners and strain reliefs; verify all connections are fully seated
• If you find heat or burn damage at terminals, inspect adjacent components for root cause

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
